Designer Series Refrigeration

Use and Care Guide

2 | English

Customer Care

The model and serial number are listed on the product

rating plate. Refer to page 6 for rating plate location. For

warranty purposes, you will also need the date of installa-

tion and name of your authorized Sub-Zero dealer. Record

this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certiﬁed Service Name

Certiﬁed Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a

Sub-Zero Factory Certiﬁed Service provider.

Designer Series Refrigeration

Important Note

To ensure this product is installed and operated as safely

and eciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION

Indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING

States a hazard that may cause serious injury or

death if precautions are not followed.

Contents

2Designer Series Refrigeration

3Safety Precautions

6Designer Series Features

7Touch Controls

7Storage

9Product Operation

12 Food Preservation

13 Care Recommendations

13 Troubleshooting

15 Sub-Zero Warranties

subzero.com | 3

Safety Precautions

IMPORTANT SAFEGUARDS

WARNING

This appliance is only intended for residential use.

WARNING

Keep ventilation openings, in the appliance enclosure or in

the built-in structure, clear of obstruction.

WARNING

Do not store explosive substances such as aerosol cans with

a ﬂammable propellant in this appliance.

WARNING

This appliance contains ﬂammable refrigerant and must

be handled, installed, serviced, and decommissioned by

authorized personnel. Once decommissioned, consult local

authorities for disposal instructions.

WARNING

Do not damage the refrigerant circuit.

WARNING

Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type

recommended by the manufacturer.

WARNING

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the haz-

ards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by chil-

dren without supervision. Children aged from 3 to 8 years

are allowed to load and unload refrigerating appliances.

4 | English

Safety Precautions

IMPORTANT SAFEGUARDS

WARNING

This symbol indicates risk of ﬁre/ﬂammable materials.

WARNING

To minimize the risk of ignition due to improper installation,

replacement parts, or service procedures, only refrigera-

tion technicians with ﬂammable refrigerant training who are

aware of the dangers of dealing with high voltage electricity

and refrigerant under pressure are allowed to work on this

equipment.

CAUTION

Appliances without a four-star compartment are not suit-

able for freezing foodstus.

CAUTION

To avoid food contamination, respect the following:

• Regularly clean surfaces that come into contact with

food and accessible drainage systems.

• Clean ice and water dispensers that have not been used in

48 hours. Dispense and discard ice and water if the ice

and water have not been used in more than ﬁve days.

• Do not allow raw meat and ﬁsh to touch other food in the

refrigerator. Store in suitable containers.

• One-, two-, and three-star compartments are not suit-

able for freezing fresh food.

• Two-star frozen-food compartments are suitable for

storing pre-frozen food, storing or making ice cream and

making ice cubes.

• If the refrigerating appliance is left empty for long

periods, switch o, defrost, clean, dry, and leave the door

open to prevent mold developing within the appliance.

subzero.com | 5

IMPORTANT SAFEGUARDS

WARNING

Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by

the manufacturer.

CAUTION

Incorporated ice makers must be installed by the manufac-

turer or its service agent.

WARNING

Do not expose this appliance to rain.

IMPORTANT NOTE: Allowing doors or drawers to remain open

for an extended period increases the temperature inside the

appliance.

Safety Precautions

WARNING

DANGER: Risk of child entrapment. Before you throw away

your old refrigerator or freezer, take o the doors and leave

shelves and drawer dividers in place so that children may

not easily climb inside.

This appliance is intended to be used in household and similar

applications such as:

• sta kitchen areas in shops, oces and other working

environments

• farm houses and by clients in hotels, motels and other

residential type environments

• bed and breakfast type environments

• catering and similar non-retail applications

6 | English

Designer Series Features

FEATURES

1Product Rating Plate

2Touch Control Panel

3Freshness Cards

4Adjustable Door Shelves

5Flip-Up Dairy Compartment

6Refrigerator Shelves

7Refrigerator Storage Drawers

8Freezer Shelves

9Freezer Storage Drawers

10 Removable Ice Bin

11 Air Puriﬁcation System

12 Water Filtration System

13 Automatic Ice Maker (ice maker models)

14 Internal Water Dispenser (dispenser models)

15 Condenser (behind grille)

Column all refrigerator

Column all freezer

Tall all freezer

13 10

Tall combination

13 10

Drawer all refrigerator

Drawer combination

subzero.com | 7

Touch Controls Storage

Touch Control Panel

For initial start-up, touch and hold on the control panel

for 2 seconds.

The recommended temperatures are preset at -18°C for

a freezer and 3°C for a refrigerator. The temperatures are

adjustable in one-degree increments. The combination

model has two temperature zones.

To adjust temperature:

1 Touch the temperature to be adjusted.

2 Touch + or – until the desired temperature is displayed.

Refer to the illustration below.

To adjust additional settings, touch on the control

panel. Refer to the illustration below.

SETTINGS

Adjust refrigerator drawer temperature and humidity

Turn ice maker and max ice on or o

Turn air puriﬁer on or o

Adjust soft on lighting and accent lighting (if applicable)

Turn night mode on or o

Turn the dispenser on or o

Turn door alarm on or o and adjust duration

Adjust door alarm volume and tone

Turn water ﬁlter reminder on or o

Turn the unit on or o

Turn Sabbath on or o

Adjust temperature units

Select language

System information

View troubleshooting and service information

Refrigerator Storage

ADJUSTABLE DOOR SHELVES

To reposition a door shelf or dairy compartment:

1 To remove, lift the shelf from the bottom and slide out.

Refer to the illustration below.

2 To install, place in the desired position and slide the

shelf down onto the guides.

IMPORTANT NOTE: If the door opening is limited to 90°,

door shelves may need to be removed before removing a

storage drawer or glass shelf.

FLIP-UP DAIRY COMPARTMENT

The bottom of the dairy compartment rotates upward

to accommodate taller items below. For models without

vertical dividers in the compartment, the entire bottom

rotates upward. For models with a vertical divider, one

section rotates upward. Refer to the illustration below.

Door shelf removal

Flip up dairy compartment

Dual Refrigeration®

This Sub-Zero features a unique Dual Refrigeration®

system to keep food fresher longer.

With the Sub-Zero Dual Refrigeration®system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual

Refrigeration®eliminates transfer of fresh food odors to

frozen food and ice and does not freeze the moisture out

of the air in the fresh food section.

-18 3

Dual-zone home screen

Single-zone home screen

8 | English

Storage

Refrigerator Storage

GLASS SHELVES

To reposition a glass shelf:

1 To remove, tilt the shelf up, then lift up and out. Refer

to the illustration below.

2 To install, insert the shelf in the tracks along the back

wall, then lower the front until it locks into position.

IMPORTANT NOTE: Use care when handling glass shelves

to prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature

before immersing in warm water.

Glass shelf removal

REFRIGERATOR STORAGE DRAWERS

To remove and install a refrigerator drawer:

1 To remove, pull the drawer open until it stops.

2 Lift the front of the drawer slightly and pull straight out.

Refer to the illustration below.

3 To install, pull the drawer carrier out and align the

bottom of the drawer with the carrier.

4 Slide the drawer back into position.

To reposition a refrigerator drawer divider:

1 To remove, pull the divider straight up.

2 To install, align tabs on the divider with notches in the

drawer and push down.

Refrigerator drawer removal

DRAWER REMOVAL

To remove/install a storage drawer:

1 To remove, pull the drawer open until it stops. Raise the

front of the drawer slightly and pull straight out. Refer

to the illustration below.

2 To install, raise the front of drawer and place onto the

slides. Align the back of the drawer with hooks on the

slide, then align the white pegs at the front of the slide

with holes at the front of the drawer.

IMPORTANT NOTE: For drawer models, the upper drawer

has a control cable that must be disconnected before

removing the drawer. Refer to the illustration below.

Storage Drawers

CRISPER COVER

The crisper cover in the upper storage drawer can be slid

closed, left open, or removed.

To remove the crisper cover:

1 Pull the upper storage drawer all the way out.

2 Raise the front edge of the crisper cover and pull it

forward and out of the drawer. Refer to the illustration

below.

DRAWER DIVIDERS

To reposition a drawer divider:

1 To move a short divider, slide the divider forward or

backward. Refer to the illustration below.

2 For 30" and 36" wide drawers only, one long divider in

the top drawer is adjustable. To remove a long divider,

pull the long divider up until it stops, rotate counter-

clockwise, then pull upward.

3 To install a long divider, align the grooves with the

drawer tabs, rotate clockwise, then slide down.

SHORT DIVIDER

Crisper cover

Drawer dividers

Drawer removal

Control cable (drawer model)

subzero.com | 9

Storage

Freezer Storage

FREEZER STORAGE DRAWERS

To remove a freezer drawer:

1 Pull the drawer open until it stops.

2 Locate the two plastic tabs at the front of the drawer

behind the bottom corners.

3 Pull the tabs forward, then lift up and out. Refer to the

illustrations below.

If the door opening is limited to 90°, the top drawer must

be removed before removing the middle or lower drawer.

To install a freezer drawer:

1 Push the drawer slides in.

2 Align the drawer with the slides and push back until it

stops.

3 Press down on the front of the drawer to engage the

slides.

TAB

Column freezer drawer

Freezer drawer tab

ICE BIN

To remove the ice bin (column model):

1 Pull the freezer drawer open until it stops.

2 Lift the ice bin out. Refer to the illustration below.

To remove the ice bin (tall and drawer models):

1 Pull the freezer drawer open until it stops.

2 Lift the ice bin out. Refer to the illustration below.

Column ice bin

Tall and drawer ice bin

Humidity

HUMIDITY CONTROL

Some foods, particularly vegetables, require enhanced

levels of humidity to maximize freshness. The refrigerator

drawer humidity level is adjustable. Select “Enhanced“ to

make sure produce lasts to its full potential. All drawers are

set to the same level and cannot be adjusted individually.

To adjust humidity:

1 Touch .

2 Touch .

3 Touch to toggle between settings.

Temperature

TEMPERATURE CONTROL

To optimize food preservation, the refrigerator drawer

temperature is adjustable automatically or manually. All

drawers are set to the same temperature and cannot be

adjusted individually.

Auto Mode—automatically adjusts the refrigerator drawer

temperature 2° below the refrigerator set temperature, but

cannot go below 1°C.

Manual Mode—manually adjust the refrigerator drawer up

to 2° above or below the refrigerator setpoint, but cannot

go below 1°C or above 6°C.

To adjust temperature:

1 Touch .

2 Touch .

3 Touch “A“ or “M“ to toggle between modes.

4 Touch + or – to adjust the temperature manually.

Product Operation

10 | English

Product Operation

WATER FILTER

The water ﬁlter is rated for 300 gallons (1136 L) or one year,

whichever comes ﬁrst. "Snooze/Refresh" appears on the

control panel when the ﬁlter needs to be replaced. Touch

“Snooze” to delay the reminder for 24 hours or until the

ﬁlter can be replaced.

To replace the water ﬁlter:

1 To access the water ﬁlter, pull out on the bottom edge

of the access door and rotate upward. Refer to the

illustration below.

2 To remove the old ﬁlter, rotate counterclockwise

one-quarter turn, then pull out. It is normal for a small

amount of water to drip when the ﬁlter is removed. It

should be wiped up with a paper towel or cloth.

3 Remove the new ﬁlter from packaging and remove the

plastic cap.

4 Insert the new ﬁlter into the manifold and turn clock-

wise.

5 Once the new ﬁlter has been installed, follow instruc-

tions on the control panel. The ﬁlter life cycle will reset

for approximately one year.

Water Filtration System

The water ﬁltration system supplies ﬁltered water to the ice

maker and water dispenser (dispenser models) to produce

great-tasting water and ice.

IMPORTANT NOTE: When using the water ﬁltration system

for the ﬁrst time and after ﬁlter replacement, it is neces-

sary to clear any air from the system and allow the ﬁlter

to assist in cleaning the water lines. For non-dispenser

models, discard the ﬁrst two full containers of ice. For

dispenser models, dispense several glasses of water for a

period of two minutes.

If the water ﬁltration system will not be used, it can be

placed in water ﬁlter bypass mode by removing the ﬁlter.

WATER FILTER

ACCESS DOOR

Water ﬁlter

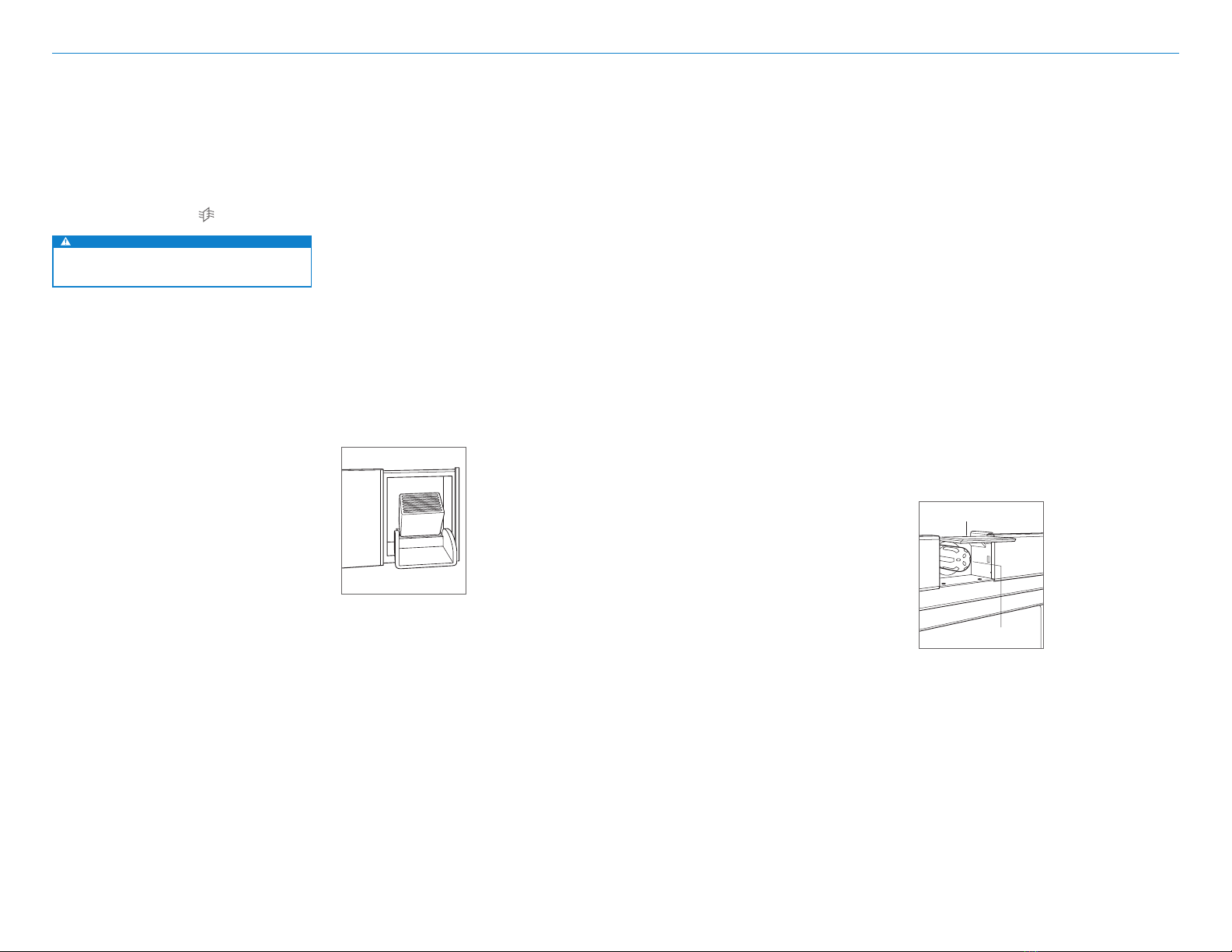

AIR PURIFICATION CARTRIDGE

The air puriﬁcation cartridge lasts approximately one year.

"Snooze/Refresh" appears on the control panel when the

cartridge needs to be replaced. Touch “Snooze” to delay

the reminder for 24 hours or until the cartridge can be

replaced.

To replace the air puriﬁcation cartridge:

1 To access the air puriﬁcation cartridge, slide the door

to the left.

2 Grasp the black cover from the top and rotate down-

ward. The cartridge pops out and can be removed.

Refer to the illustration below.

3 Remove the new cartridge from packaging and insert

with the connector pointing downward.

4 Close the black cover, then slide the door to the right.

5 Follow the instructions on the control panel. The

cartridge life cycle resets for approximately one year.

Air Puriﬁcation System

Many fresh foods emit ethylene gas, a naturally-occurring

compound that hastens food ripening and spoilage. If your

unit is equipped with an air puriﬁcation system, the car-

tridge has been factory installed and is located on the back

wall of the refrigerator.

To turn on air puriﬁcation, touch on the options screen.

WARNING

This appliance contains a UV emitter. Do not stare at

the light source.

AIR PURIFIER

Air puriﬁcation cartridge

Andere Handbücher für Designer Series

Inhaltsverzeichnis

Sprachen:

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero BI-30UG Bedienungsanleitung

Sub-Zero

Sub-Zero 400 Series Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24C Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36UFD Bedienungsanleitung

Sub-Zero

Sub-Zero 424FS Leitfaden

Sub-Zero

Sub-Zero 700BR Montageanleitung

Sub-Zero

Sub-Zero 700BC-3 Betriebsanleitung

Sub-Zero

Sub-Zero 600 Series BI-36R Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30UG Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24BG Montageanleitung

Sub-Zero

Sub-Zero UC24CLH Bedienungsanleitung

Sub-Zero

Sub-Zero BI-36S Montageanleitung

Sub-Zero

Sub-Zero 700BC Bedienungsanleitung

Sub-Zero

Sub-Zero 532 Kurzanleitung zur Einrichtung

Sub-Zero

Sub-Zero Built-In Refrigeration Betriebsanleitung

$Sub-Zero \601RG Bedienungsanleitung$

Sub-Zero

Sub-Zero \601RG Bedienungsanleitung

Sub-Zero

Sub-Zero Built-In Refrigeration Bedienungsanleitung

Sub-Zero

Sub-Zero 700TR Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30UA/S/PH-RH Bedienungsanleitung

Sub-Zero

Sub-Zero 700 Series Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42S Montageanleitung

Sub-Zero

Sub-Zero PRO3650GRH Bedienungsanleitung

Sub-Zero

Sub-Zero PRO 48 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
