Undercounter Refrigeration Installation Guide

UNDERCOUNTER REFRIGERATION

Contents

3Undercounter Refrigeration

4Opening Dimensions

5Electrical

5Plumbing

6Preparation

6Anti-Tip Bracket

7Installation

9Custom Door Panel

11 Full-Scale Template

Features and specications are subject to change at any

time without notice. Visit subzero.com/specs for the most

up-to-date information.

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

subzero.com

Product Information

Important product information including the model and

serial number are listed on the product rating plate. The

rating plate is located inside the cabinet, in the upper left

area of the unit. Refer to the illustration below.

If service is necessary, contact Sub-Zero factory certied

service with the model and serial number. For the name

of the nearest Sub-Zero factory certied service or for

questions regarding the installation, visit the contact & sup-

port section of our website, subzero.com or call Sub-Zero

customer care at 800-222-7820.

UNDERCOUNTER REFRIGERATION

Tools and Materials

•Screwdrivers—standard and Phillips.

•Power drill and drill bits.

•Standard socket and wrench set.

•2' level.

•Tubing cutter (model UC-24CI).

•3' of 1/4" OD copper, braided stainless steel or PEX

tubing (model UC-24CI).

•Saddle valve (model UC-24CI).

•Material to protect home, ooring and cabinetry during

installation.

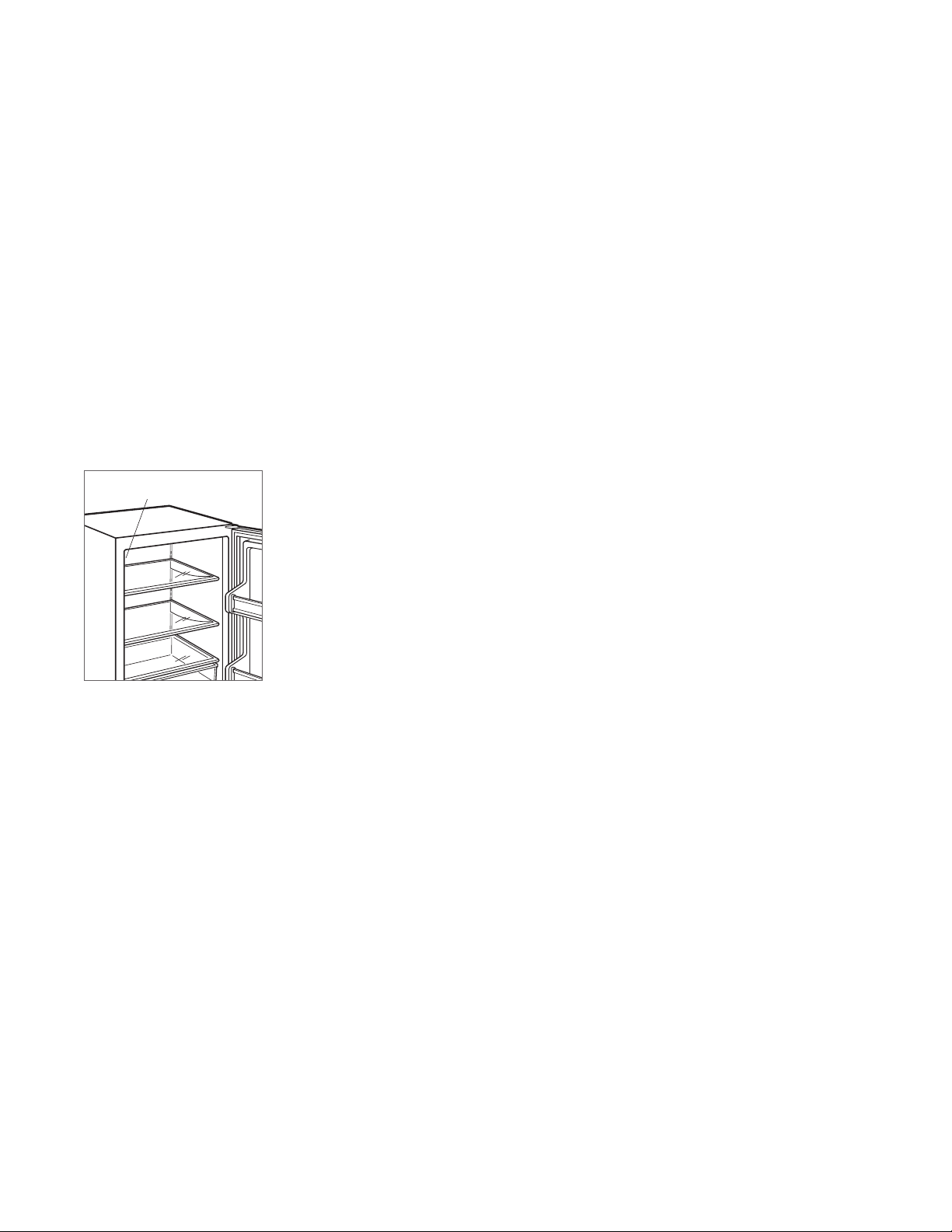

Rating plate location.

RATING PLATE

Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Opening Dimensions

UNDERCOUNTER MODELS

OPENING WIDTH

341/2"

(876)

OPENING

HEIGHT

24" (610)

OPENING

DEPTH

TOP VIEW

SIDE

VIEW FRONT VIEW

DUAL INSTALLATION

If two units are installed side by side, a dual installation kit

may be required. Installations without a custom ller strip

require a dual installation kit. If a dual installation kit is not

specied, a 2" (51) ller strip is recommended between units.

Dual installations without a ller strip can only be accom-

plished using two units with opposite hinges. Refer to the

illustrations below.

Dual installation kits are available through an authorized

Sub-Zero dealer. For local dealer information, visit the nd a

showroom section of our website, subzero.com. For ques-

tions regarding the installation, call Sub-Zero customer care

at 800-222-7820.

WITHOUT FILLER STRIP FILLER STRIP

Opposite hinges.

Same side hinges.

OPENING WIDTH

MODEL W

UC-24R 24" (610)

UC-24BG 24" (610)

UC-24C(I) 24" (610)

UC-24RO 24" (610)

DUAL OPENING WIDTH

MODELS W

Two 24" Models 481/8"(1222)

Dual installation kit required.

subzero.com

SITE PREPARATION

Electrical

Installation must comply with all applicable electrical codes.

The electrical supply should be located within the shaded

area shown in the illustration below. A separate circuit,

servicing only this appliance is required.

IMPORTANT NOTE: The electrical outlet must be placed so

the grounding prong is to the right of the thinner blades.

The outlet must be ush with the back wall.

Model UC-24RO is designed and safe for use in outdoor

applications. When installed outdoors, a ground fault

circuit interrupter (GFCI) is required to reduce the risk of

electrical shock. A GFCI is not recommended for use with

other undercounter models and may cause interruption of

operation.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp

Receptacle 3-prong grounding-type

WARNING

Do not use an extension cord, two-prong adapter or

remove the power cord ground prong.

Plumbing

Installation must comply with all applicable plumbing codes.

For model UC-24CI, the water supply should be located

within the shaded area shown in the illustration below.

The water supply line should be connected to the house

supply with an easily accessible shut-off valve. Do not use

self-piercing valves.

A reverse osmosis system can be used provided there is

constant water pressure of 20–100 psi (1.4–6.9 bar) supplied

to the unit at all times. A copper line is not recommended

for this application.

PLUMBING REQUIREMENTS

Water Supply 1/4" OD copper, braided

stainless steel or PEX tubing

Pressure 20–100 psi (1.4–6.9 bar)

Excess Line for Connection 36" (914)

3" (76)

151/2"

(394)

(51)

LEFT SIDE

OF OPENING

FLOOR

Electrical supply location.

3" (76)

151/2"

(394)

(51)

LEFT SIDE

OF OPENING

AREA EXTENDS 1/2"(13)

FORWARD ON FLOOR

Water supply location.

Sub-Zero Customer Care 800.222.7820

Preparation

To operate properly, the door must open a minimum of 90°.

Use a minimum 3" (76) ller in corner installations to assure

a 90° door opening.

Uncrate the unit and inspect for damage. Remove and

recycle packing materials. Do not discard the kickplate, anti-

tip bracket, hardware and the leveling legs which hold the

wood base to the bottom of the unit.

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip

bracket must be installed.

The anti-tip bracket should be attached to the wall behind

the unit with the bracket ange located 1/4"(6) above the top

of the unit. Refer to the illustration below. Failure to properly

position the anti-tip bracket will prevent proper engagement.

1/4"(6)

ANTI-TIP

BRACKET

Anti-tip bracket.

SITE PREPARATION

subzero.com

Installation

CAUTION

Before moving the unit into position, secure the door

closed and protect any nished ooring.

Use an appliance dolly to move the unit near the opening.

If the unit has been on its back or side, it must stand upright

for a minimum of 24 hours before connecting power.

LEVELING

Level the unit before sliding it into position. Turn each of the

four leveling legs clockwise to raise the unit and counter-

clockwise to lower. Refer to the illustration below.

DOOR ADJUSTMENT

The top and bottom cabinet hinges are held in place with

three permanent adjustment screws. For adjustments,

loosen the screws, adjust the door and tighten screws.

Refer to the illustration below.

PLACEMENT

Plug the power cord into the grounded outlet and slide the

unit into position.

It may be necessary to install the unit 1/4"(6) beyond the

front surface of adjacent cabinetry to prevent interference

when the door is opened to 145°. Refer to the full-scale

template on page 11.

LEVELING LEGS

Leveling.

INSTALLATION

TOP DOOR

HINGE

ADJUSTMENT

SCREWS

Top door hinge.

Sub-Zero Customer Care 800.222.7820

Installation

WATER LINE (MODEL UC-24CI)

Purge the water line prior to nal connection to the unit. This

will remove any debris that may be present in the tubing

from installing the new water line.

For model UC-24CI, connect the plastic tubing from the unit

to the house water supply line with the tting connection kit

provided. Check all water line ttings for leaks.

IMPORTANT NOTE: Water lines can not be exposed to

freezing temperatures.

INSTALLATION

ANCHORING

To anchor, use the optional countertop bracket provided, to

secure the unit to the underside of the countertop. Refer to

the illustration below. If the countertop bracket can not be

utilized, install shims along the top and sides of the unit.

KICKPLATE

Install the kickplate using the two screws provided. Refer

to the illustration below. The kickplate must be removable

for service. The oor cannot interfere with removal. Do not

cover the louvered section of the kickplate.

COUNTERTOP

BRACKET

KICKPLATE

Anchoring.

Kickplate installation.

subzero.com

Custom Door Panel

For overlay applications, a custom door panel must be

installed. Panel size is critical for a proper t. To verify panel

requirements and dimensions, refer to the Sub-Zero design

guide at subzero.com/specs.

Finish all sides of custom panels. They may be visible

when the door is open or through the window of glass door

models.

MODELS UC-24R AND UC-24C(I)

Remove the two panel mounting brackets attached to the

front of the door. Place the custom overlay door panel face

down on a protected work surface. Position the plastic tem-

plate provided, ush with the lower edge of the panel. Verify

proper location for right-hand (RH) or left-hand (LH) door

swing. Mark the holes, remove template and drill pilot holes

for the brackets. Secure mounting brackets with screws

provided.

If the template is not available, position mounting brackets

as indicated in the illustration below.

To install the custom door panel, partially insert a screw in

the center of each mounting position on the hinge side of

the door. Engage the tabbed bracket to the handle side

of the door, then slide the hinge side mounting bracket onto

positioning screws. Slotted holes on the mounting bracket

should slide under screw heads to support the panel. Refer

to the illustration below. Panel can be adjusted 1/4"(6) up

and down and side to side.

Once the custom panel is in place and properly adjusted,

attach remaining screws to the hinge side mounting bracket,

and install magnetic decorative caps as shown in the illus-

tration below.

DOOR

PANEL

BRACKET

CAP

SCREW

Panel installation.

301/16"

(764) LH DOOR SWING

233/4" (603)

151/16"

(382)

31/2"

(89)

35/8"

(92)

215/8" (549)

RH DOOR SWING

7/8"

(22)

Panel mounting brackets.

PANEL INSTALLATION

Sub-Zero Customer Care 800.222.7820

Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service

marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.

All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.

PANEL INSTALLATION

Custom Door Panel

MODEL UC-24BG

The custom overlay door panel is attached using screws

provided through the door frame. Screw locations are

marked on the back of the custom panel using tenon cen-

ters inserted into holes of the door frame.

With the unit secured and door closed, hold the custom

panel in desired position on the door. Lightly tap the front

of the panel to locate mounting positions. Remove tenon

centers. Refer to the illustration below.

The door frame has mounting holes to accommodate

Sub-Zero accessory handles. If handle mounting holes are

not utilized, the handle should be attached to the custom

panel prior to mounting. Screw heads may need to be coun-

tersunk into the panel for proper alignment.

To mount the custom panel, open the door and use pre-

drilled holes to position the panel. Drive screws into the

panel through black tape on the door frame. Screw holes

are hidden behind the door gasket. Use as many screws as

necessary to secure the custom panel. Refer to the illustra-

tion below.

Adjustments can be made to the custom panel with a few

mounting screws in place, but not fully tightened. Once the

proper position is achieved, install and secure all screws.

Cover holes on the inside of the door frame with the cover

patches or plugs provided.

WARNING

Follow all city and state laws when storing, recycling or

discarding unused refrigerators and freezers.

GASKET

GLASS

13/32" (11)

DIAMETER

1/4" (6)

DIAMETER

Tenon center.

Door frame cross section.

DOOR

FRAMEPANEL

TENON CENTER

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Sub-Zero Kühlschrank Handbücher

Sub-Zero

Sub-Zero 650G Bedienungsanleitung

Sub-Zero

Sub-Zero 601R Gebrauchsanweisung

Sub-Zero

Sub-Zero ICB648PRO Leitfaden

Sub-Zero

Sub-Zero 600 Series BI-30U Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-48SD Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24C(I) Bedienungsanleitung

$Sub-Zero \601RG Bedienungsanleitung$

Sub-Zero

Sub-Zero \601RG Bedienungsanleitung

Sub-Zero

Sub-Zero BI-42SD Bedienungsanleitung

Sub-Zero

Sub-Zero PRO3650GRH Bedienungsanleitung

Sub-Zero

Sub-Zero 736TC Bedienungsanleitung

Sub-Zero

Sub-Zero 600 Series BI-42S Bedienungsanleitung

Sub-Zero

Sub-Zero 200 Series Bedienungsanleitung

Sub-Zero

Sub-Zero 648PRO Bedienungsanleitung

Sub-Zero

Sub-Zero ICB648PRO Bedienungsanleitung

Sub-Zero

Sub-Zero BI-30UA/S/PH-RH Bedienungsanleitung

Sub-Zero

Sub-Zero 650G Bedienungsanleitung

Sub-Zero

Sub-Zero 700TCI Gebrauchsanweisung

Sub-Zero

Sub-Zero 542 Bedienungsanleitung

Sub-Zero

Sub-Zero UC-24R Bedienungsanleitung

Sub-Zero

Sub-Zero 632 Bedienungsanleitung

Sub-Zero

Sub-Zero DEU2450R Leitfaden

Sub-Zero

Sub-Zero INTEGRATED REFRIGERATION Bedienungsanleitung

Sub-Zero

Sub-Zero IT-30RID Bedienungsanleitung

Sub-Zero

Sub-Zero UC24CILH Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
