Sub-Zero CBBI-36R Leitfaden

BUIL -IN DESIGN GUIDE

Contents

Built-In Design Options 4

Model Specifications 6

Planning Information 9

Overlay Panels 12

Flush Inset Panels 26

Dispenser Specifications 22

Side Panels 23

Dual Installations 24

Accessories 31

Full-Scale Templates 32

Features and specifications indicated herein and on our

website are subject to change at any time without notice.

Check our website, subzero.com, for the most up-to-date

specifications.

SUB-ZERO®is a registered trademark of Sub-Zero, Inc.

Introducing New Built-In Refrigeration. Beginning in Fall, 2008, you will have a new line of built-in refrigeration

to offer your clients. We have re-engineered—exterior and interior—our built-in product line to offer you the best in design

options, and your clients the best in food preservation. The 600 series as you understand it now will be gone and the new

offering will take its place. We will have new panel sizes, model numbers and many new features. Review this design

guide for general specification information and keep coming back to the trade section of our website, subzerotrade.com,

for new information during the coming months.

Built-In Refrigeration 3

Model Numbers. The cross-reference chart below

provides a listing of the new built-in model numbers and

the existing 600 series model numbers they are replacing.

New Built-In Model 600 Series

ALL REFRIGERATOR / ALL FREEZER

ICBBI-36R 601R

ICBBI-36RG 601RG

ICBBI-36F 601F

OVER-AND-UNDER

ICBBI-30U 611

ICBBI-30UG 611G

ICBBI-36U 650

ICBBI-36UG 650G

SIDE-BY-SIDE

ICBBI-36S 661

ICBBI-42S 642

ICBBI-42SD 685

ICBBI-48S 632

ICBBI-48SD 695

EXAMPLES

ICBBI-30UG/O-RH 611G/O-RH

ICBBI-48SD/S 695/S

Model Number Key

MODEL IC BBI -3 6U G/S /P H- RH

PRODUCT TYPE

WIDTH

STYLE

FEATURE

DESIGN

HANDLE

DOOR SWING

PRODUCT TYPE

Built-In Refrigeration BI

WIDTH

762 mm 30

914 mm 36

1067 mm 42

1219 mm 4

STYLE

All Refrigerator R

All Freezer F

Over-and-Under U

Side-by-Side S

FEATURE

Glass Door G

Ice and Water Dispenser D

DESIGN

Overlay or Flush Inset /O

Classic Stainless Steel /S

HANDLE (classic stainless steel models)

Tubular Handle /TH

Curved Handle /CH

Pro Handle /PH

DOOR SWING

Right-Hand Swing -RH

Left-Hand Swing -LH

subzerotrade.com

Built-In Design Options 4

Built-In Design Options. Adesign classic is now even better. Three distinct design approaches provide limitless

flexibility for creating a beautiful kitchen. New lower profile hinges enable the new built-in units to merge more seamlessly

with surrounding cabinetry. Three handle options coordinate with Wolf cooking products.

Overlay. Custom cabinet

overlay panels can be

combined with unique hard-

ware for design flexibility.

Shown with curved handle

option to compliment Wolf

E Series ovens.

Flush Inset. This brand new

design option allows for a

flush door and grille. Classic,

platinum and carbon stainless

steel panels are available as

sales accessories. Shown with

tubular handle option to mirror

Wolf L Series ovens.

Built-In Design Options 5

Stainless Steel. For a

professional look, classic

stainless is standard and

requires no customization.

To compliment the look of

Wolf ranges, choose the pro

handle option shown here.

subzerotrade.com

Model Specifications 6

Model ICBBI-36F

ALL FREEZER

914 mm

762 mm

914 mm

2134 mm

610 mm

914 mm

2134 mm

610 mm

Model ICBBI-36RG

ALL REFRIGERATOR

GLASS DOOR

Model ICBBI-36R

ALL REFRIGERATOR

Model ICBBI-30UG

WITH GLASS DOOR

Model ICBBI-30U Model ICBBI-36UG

WITH GLASS DOOR

Model ICBBI-36U

All Refrigerator / All Freezer Models

Over-and-Under Models

SIDE VIEW

IMPORTANT NOTE:

The heights of the All

Refrigerator / All Freezer

Models have increased

from 1854 mm to

2134 mm.

Model Specifications 7

914 mm

1067 mm

1219 mm

1067 mm

2134 mm

610 mm

1219 mm

2134 mm

610 mm

Model ICBBI-42SD

WITH DISPENSER

Model ICBBI-42SModel ICBBI-36S

Model ICBBI-48SD

WITH DISPENSER

Model ICBBI-48S

Side-by-Side Models

Models are shown in the stainless

steel design.

SIDE VIEW

subzerotrade.com

Model Specifications 8

The doors of all built-in models open to a maximum of 110 .

A 90 door stop is shipped with all units. For additional

information, refer to the full-scale templates at the end of this

guide. The handle depth reflects the tubular, curved and pro

handles.

IMPORTANT NOTE: For flush inset applications, add 13 mm

to dimension (A).

Door Clearance

All Refrigerator / All Freezer Models Over-and-Under Models Side-by-Side Models

606 mm

BEHIND

FRAME

60 mm

606 mm

BEHIND

FRAME

60mm

606 mm

BEHIND

FRAME

Interior Capacity / Weight

Refrigerator (R) and freezer (F) interior capacities are listed in

liters. Shipping weights (W) are listed in kilograms and are

based on stainless steel models.

Door Clearance

ALL REFRIGERATOR / ALL FREEZER AC

ICBBI-36R, ICBBI-36RG, ICBBI-36F 946 mm 432 mm

OVER-AND-UNDER ABC

ICBBI-30U, ICBBI-30UG 796 mm 600 mm 368 mm

ICBBI-36U, ICBBI-36UG 946 mm 600 mm 432 mm

SIDE-BY-SIDE ACD

ICBBI-36S 565 mm 260 mm 216 mm

ICBBI-42S, ICBBI-42SD 668 mm 318 mm 222 mm

ICBBI-48S, ICBBI-48SD 762 mm 356 mm 248 mm

Capacity / Weight RFW

ICBBI-36S 346 L227 L244 kg

ICBBI-42S 455 L227 L264 kg

ICBBI-42SD 452 L230 L276 kg

ICBBI-48S 532 L269 L286 kg

ICBBI-48SD 530 L272 L298 kg

Capacity / Weight RFW

ICBBI-36R 660 L191 kg

ICBBI-36RG 665 L195 kg

ICBBI-36F 646 L184 kg

ICBBI-30U 361 L116 L210 kg

ICBBI-30UG 367 L116 L216 kg

ICBBI-36U 450 L148 L234 kg

ICBBI-36UG 447 L142 L240 kg

Planning Information 9

Standard Installation Opening Dimensions

Overlay and Classic Stainless Steel Models

Opening Width A

ICBBI-36R, ICBBI-36RG and ICBBI-36F 902 mm

ICBBI-30U and ICBBI-30UG 746 mm

ICBBI-36U and ICBBI-36UG 902 mm

ICBBI-36S 902 mm

ICBBI-42S and ICBBI-42SD 1054 mm

ICBBI-48S and ICBBI-48SD 1206 mm

IMPORTANT NOTE: If two units are installed side by side,

refer to pages 24–25 for dual standard installations.

Classic stainless steel models are ready to install out of the

box.

SIDE VIEW

610 mm

OPENING DEPTH

2127 mm

OPENING

HEIGHT

2108 mm

min

610 mm

OPENING

DEPTH

FRONT VIEW

TOP VIEW

OPENING WIDTH

OUTLINE

OF UNIT WITH

19mm PANEL

subzerotrade.com

Planning Information 10

Electrical Requirements. A220-240 V AC, 50/60

Hz, 10 amp circuit breaker and electrical supply are

required. A separate circuit, servicing only this appliance

is required.

All built-in models are equipped with a power supply cord

with a 3-prong grounding plug which must be plugged

into a mating 3-prong grounding-type wall receptacle.

Follow local codes and ordinances when installing the

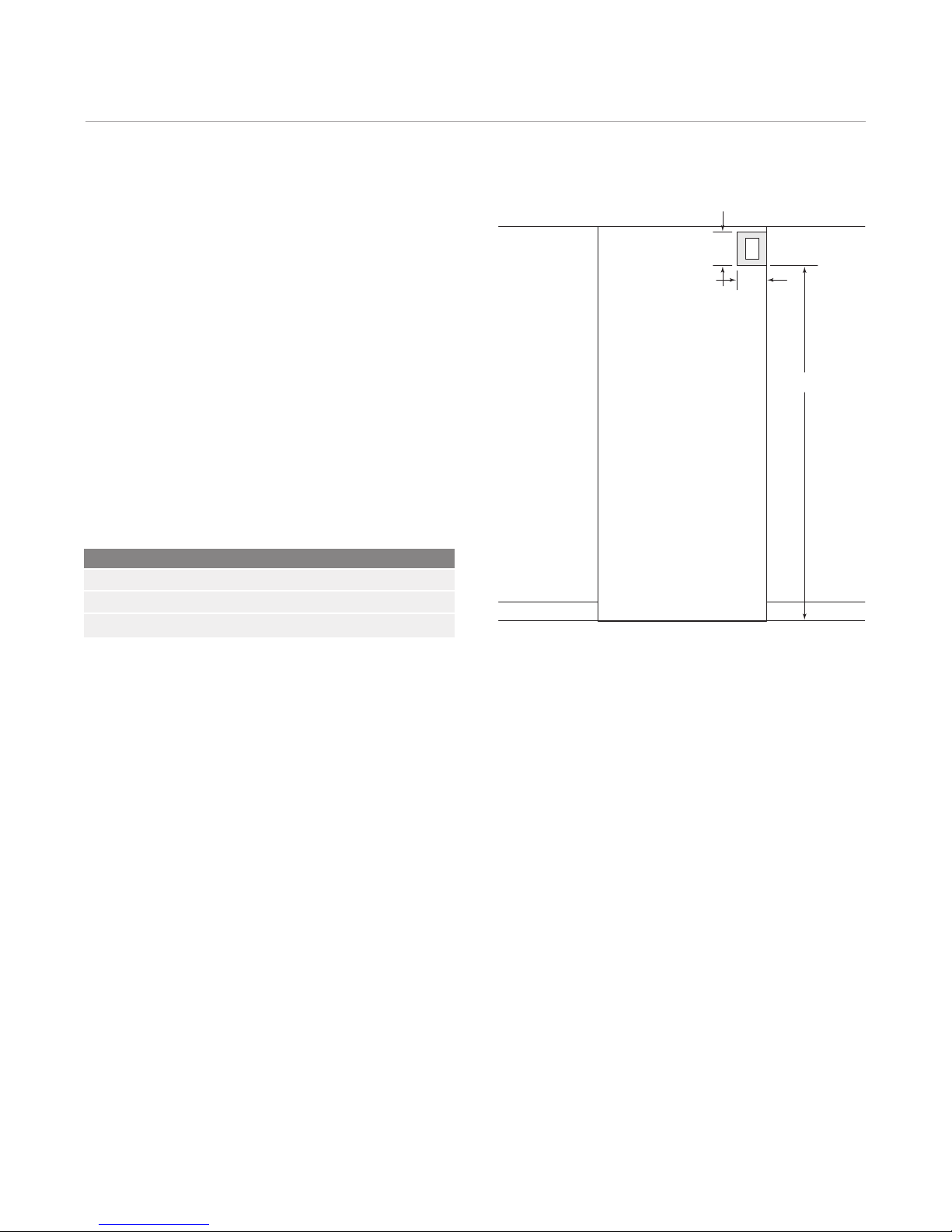

receptacle. For all built-in models, the electrical supply

should be located within the shaded area shown in the

illustration.

IMPORTANT NOTE: A ground fault circuit interrupter

(GFCI) is not recommended and may cause interruption

of operation.

Electrical Requirements

Power Supply 220-240 V AC, 50/60 Hz

Circuit Breaker 10 amp

Receptacle 3-prong grounding-type

1918 mm

178

152

FRONT VIEW

Location of electrical supply.
