Suki EUR 505 Bedienungsanleitung

SUKI

Dehumidier EUR 505

User’s Manual

Lion Healthcare

PO Box 566, Cottesloe, WA, 6911

Phone 1800 011 653 Email [email protected] www.salinplus.com

Structure and principle

Features...........................................................................................................................3

Specications................................................................................................................. 4

How dehumidifying works............................................................................................ 4

Device overview .............................................................................................................5

Operation

Control panel ..................................................................................................................5

Operation instructions.................................................................................................. 6

Continuous draining ......................................................................................................7

Maintenance

Storing the dehumidier .............................................................................................. 8

Important safeguards ................................................................................................... 8

Caring for the dehumidier.......................................................................................... 9

Troubleshooting .......................................................................................................... 10

Warning ........................................................................................................................10

Cautions ........................................................................................................................10

Contents

Before using your dehumidiﬁer, please read the user’s manual carefully, in order to

ensure correct and safe use. After reading the manual, make sure it is stored in a safe

place for future reference if necessary.

Features

Powerful dehumidifying capability

The dehumidiﬁer powerfully removes excess

moisture from the air creating a drier, healthier

home environment.

Excellent drying laundry function

The dehumidiﬁer dries laundry quickly. This can

prevent laundry and furniture from becoming

damp and musty in a rainy season.

Quiet operation

The dehumidiﬁer is suitable for over night

operation.

Drainage tank with a large capacity

8 litre capacity water tank means the

dehumidiﬁer requires emptying less often.

Using refrigerant for protecting environment

The dehumidiﬁer uses no CFC refrigerant

therefore protecting the environment.

Modern Design

The dehumidiﬁer is compact with a streamlined

appearance and modem design.

The castors at the bottom allow easy mobility.

SAVE

Saving energy

The power consumption is low.

Specications

Power Supply

Moisture removal

Power input

Size of shell

Weight

Operating temperatureOperating temperature

Water tank

220 240V ~ 50Hz

(W x H x D) 591 x 381 x 305mm

50 L/D (30oC 80%RH)

740W

20kg

8 litres

0oC ~ 35oC

MODEL EUR 505

• If the power cord on this unit is damaged it must be replaced by the manufacturer, its service agent or

qualiﬁed persons in order to avoid a hazard.

• This appliance is not intended for use by children or other persons without assistance or supervision

if their physical, sensory or mental capabilities prevent them from using it safely. Children should be

supervised to ensure that they do not play with the appliance.

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

It draws in room air, cools it with a cooling unit,

and changes the humidity to drops of water.

The drops of water fall into a drainage tank.

The dehumidiﬁed air is re-heated by a heating

unit and discharged.

Steps ,,and are repeated to remove

humidity from the room.

After the air passes through the re-heating unit, its temperature will rise a little, so that the

temperature of the room will rise by 2 to 4oC. This is normal operation.

Cooling unit Re-heating unit

Moist air Dried air

Compressor Drainage tank

If you pour cold water into a cup, the air around the cup is cooled, and drops of water form on the

surface of the cup. The dehumidier takes advantage of this phenomenon to remove moisture.

How Dehumidifying Works

Device Overview

CONTROL

PANEL

AIR

FILTER

DRAIN

BUCKET

CONTINUOUS

DRAINAGE HOLE

Control panel

OUTLET FOR

DEHUMIDIFIED

DRY AIR

ROLL

CASTORS

INTAKE OF

MOIST AIR

HANDLE

Operation Instructions

1. Place the device in an upright position on a ﬂat, steady, stable, heat-resistant surface. Make sure

there is nothing ﬂammable or heat sensitive within 100 cm (39 inches). Operating the device in

any other position could cause a hazard.

2. Make sure the plug is ﬁrmly plugged into the wall socket.

3. Make sure the device water tank is placed in its correct

position. (After powering on the device for the ﬁrst time,

if the full tank light lights up, just pull out the water tank,

check the “ﬂoat” lever is able to move freely, then push it

back to the proper position).

WHEN FULL TANK LIGHT IS ON

When the water tank is full, the indication light will light up, the device will stop operating. Remove

the water in the tank, then place the water tank back in it’s proper position, the device will start

operating again.

DEFROST

When operating in low temperatures (less than 12oC) the surface of the evaporator will accumulate

frost and eﬀect the eﬃciency of the dehumidiﬁer. When this happens the device will go into periodic

defrost mode automatically. This is quite normal. Defrost light will come on. The device will operate

in temperatures down to 5oC in the area it is being used. Defrost times may vary. If the dehumidiﬁer

freezes up turn the device oﬀ and let ice melt then turn the device back on. If the device freezes up

again it may be that the temperature is lower than 5oC, if it is, then you should not run the device until

the temperature rises. If the device continues to freeze up it may need looking at, return it to the place

of purchase to be sent back for service.

START OPERATION

Remove the water in the water tank

with two hands

CONTINUOUS DRAINAGE OPTION

THE PROPER WAY TO PLACE THE WATER DRAINAGE PVC HOSE

When using continuous drainage, the PVC hose must be placed below the drainage hole. Avoid

uneven ground and kinking drainage hose.

Continuous Drainage

1. To save having to periodically empty the water tank,

this unit can be conﬁgured for continuous drainage.

You can use the supplied drain hose to connect to the

continuous drainage connector.

2. Unscrew and remove the drain cover at the rear of the unit.

Remove the soft rubber pad. Put the rubber pad into the

water tank for safe keeping.

3. Insert the drain hose through the hole of the drain cover.

4. Connect the drain hose to the drain port.

5. Tighten the drain cover in clockwise direction onto the rear

of the unit.

6. Place the bucket on its original location.

When the device is not to be used for a long period of time

1. Fold up the power supply cord.

2. Discard any water left in the drainage tank and wipe away any remaining drops with a cloth.

3. Clean the air ﬁlter.

4. Store the device. Package the device to keep it free of dust, and keep it upright and store it in a

cool, dry place.

Storing the Dehumidier

Important Safeguards

Please note the following safety precautions when using the unit:

1. When the dehumidiﬁer is used in the laundry, ensure there is adequate clearance between any

clothes and the device to prevent water dripping on the unit.

2. Before cleaning the device or when it is not in use for a long period of time, unplug the power cord.

3. Do not use the dehumidiﬁer in the immediate surroundings of a bath, shower, or swimming pool.

4. Do not place the device close to a heater, or any appliance which will have a high temperature.

5. Do not place any objects into the air inlet or outlet.

6. Do not sit or stand on the unit.

7. Discard water that has collected in the tank regularly.

8. Do not place the dehumidiﬁer in an enclosed area, ie. closets, which will prevent air circulation.

9. Do not use the dehumidiﬁer for any purpose other than for which it was originally intended.

10. Install the external drain piping on a downhill gradient to ensure that condensed water can be

drained continuously.

11. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualiﬁed person in order to avoid hazard.

12. The device is not intended for use by young children without supervision.

Before cleaning your dehumidier, rst ensure that the device is disconnected from power

supply.

1. Outer case:

Wipe the shell with a soft, slightly damp cloth. Do not

immerse in any liquid. Dry with a dry cloth. Do not use harsh

abrasives or solvents.

2. Air ﬁlter cleaning:

For best results, clean your air ﬁlter regularly, as it will

become clogged with dust over time.

• Pull out the ﬁlter gently.

• To clean the air ﬁlter, run a vacuum cleaner

lightly over the surface of the air ﬁlter to

remove dirt. If the air ﬁlter is very dirty,

wash it with warm water and a neutral

cleaning solvent and dry it thoroughly.

4. Insert to its original position.

Caring for your Dehumidier

Problem Possible cause Solution

Both fan and compressor not

working.

No power to unit. Check power to socket. Check

power switched on.

Compressor or fan not working. Motor failure. Faulty electronics. Return for service.

Not collecting water. Air intake ﬁlter blocked.

Refrigerant is low. Temperature

and humidity are too low.

Clean ﬁlter. Return for service.

Normal function.

Noisy unit. Floor uneven. Place on a level surface.

Condenser frozen. Filter is dirty. Temperature is too

low.

Clean ﬁlter. Switch oﬀ and wait for

temperature to rise.

Leaks. Bucket not installed properly.

Micro switch failure. Unit has

frozen.

Fit properly. Return for service.

Unplug and allow ice to melt.

Troubleshooting

In case your dehumidier shows any abnormality, please check the items mentioned below rst:

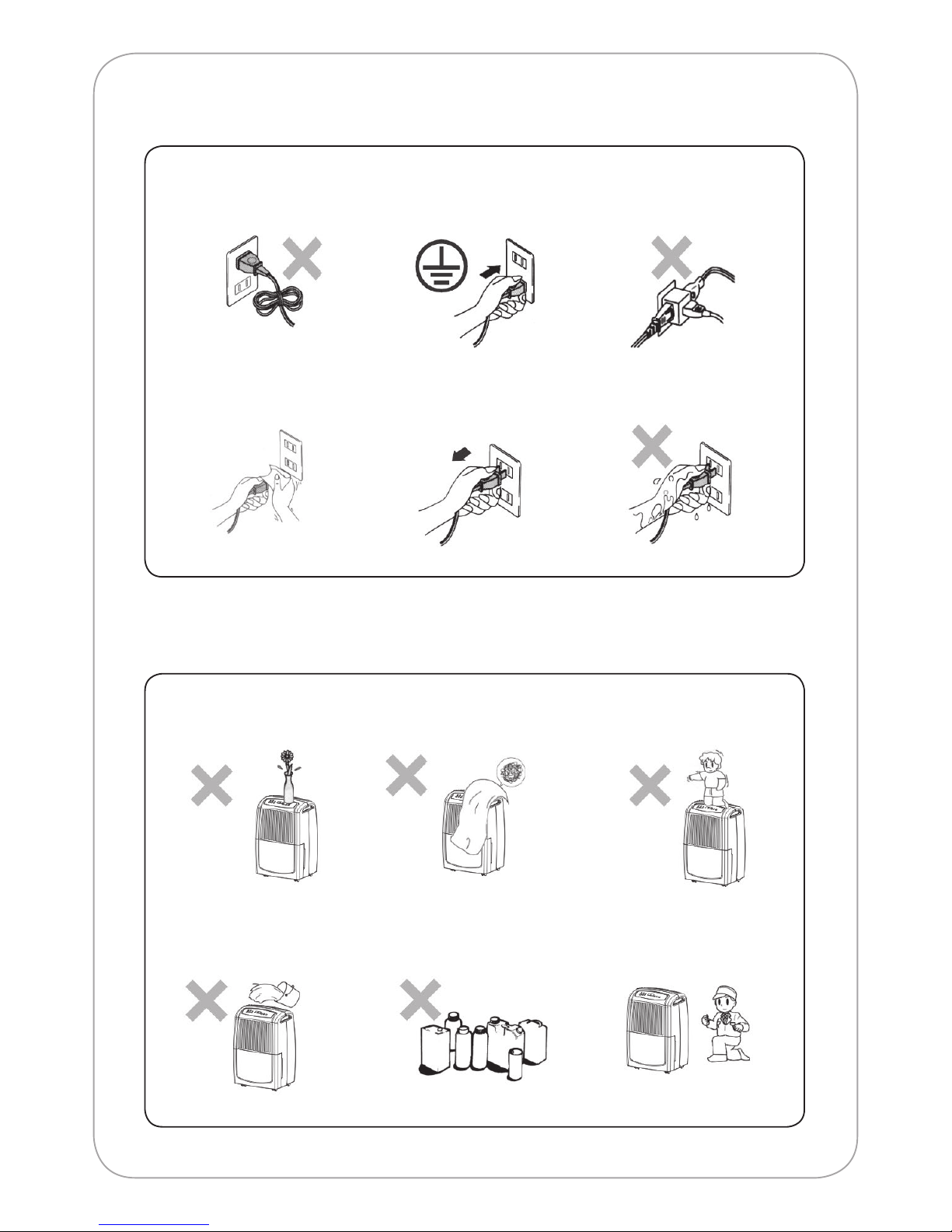

Warning

Do not fold or knot the power

cord as shown below!

Make sure the plug is inserted

ﬁrmly and properly into the

outlet!

Do not insert multiple plugs

into the electrical socket as

shown below!

Make sure the plug is clean! After turning oﬀ the device,

unplug the power cord!

Do not plug in the power cord

if hands are wet!

Cautions

Do not place anything on top

of the control panel!

Do not cover the device’s air

vents!

Do not allow children to climb

on or play with the device!

Do not wet the device or

control panel!

Keep ﬂammable materials away

from the device!

Contact a professional for

service repair!
