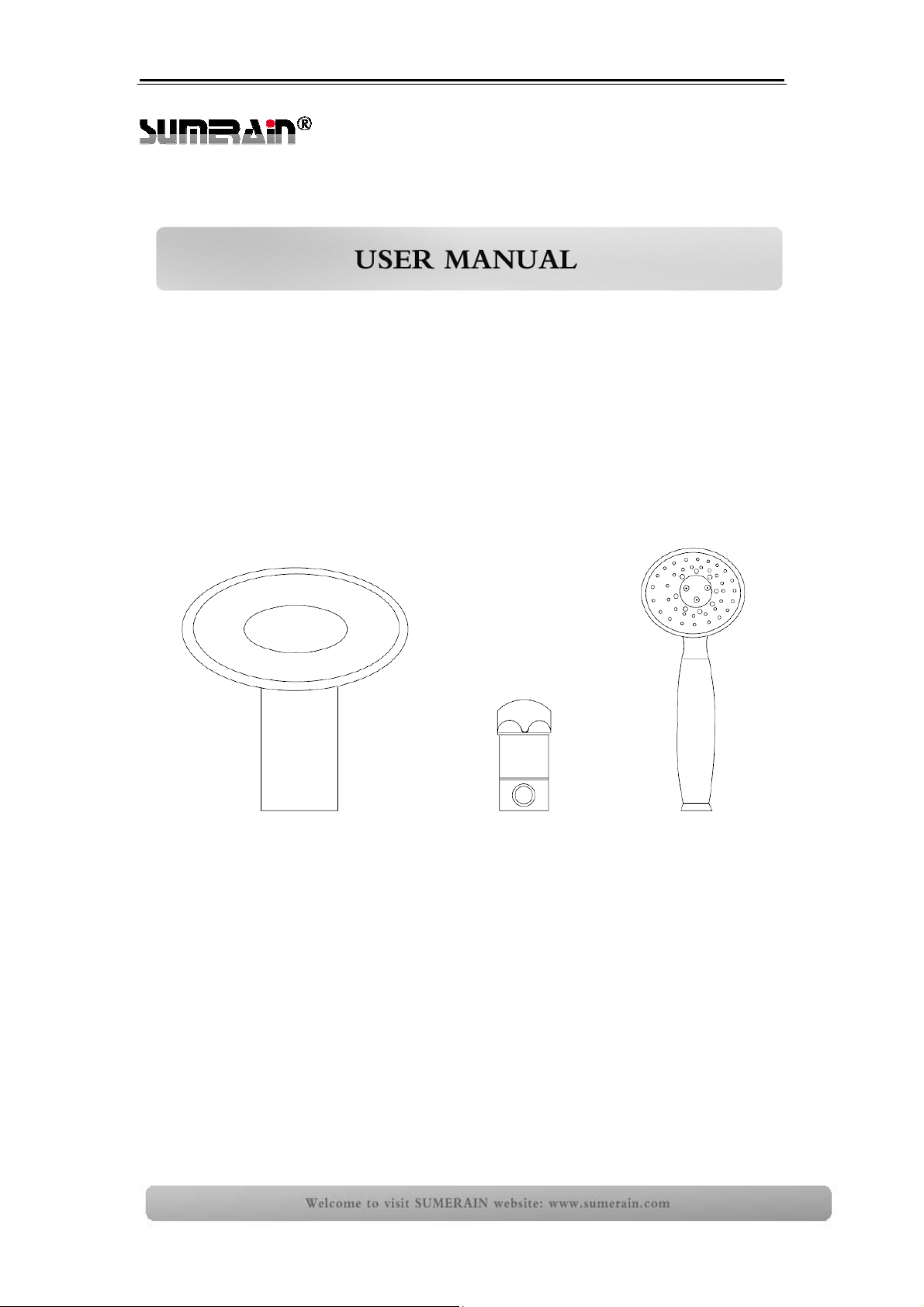

SUMERAIN S2082CM Bedienungsanleitung

MODEL: S2082CM

Version: 1.1

LED THERMAL WATERFALL BATHTUB FAUCET

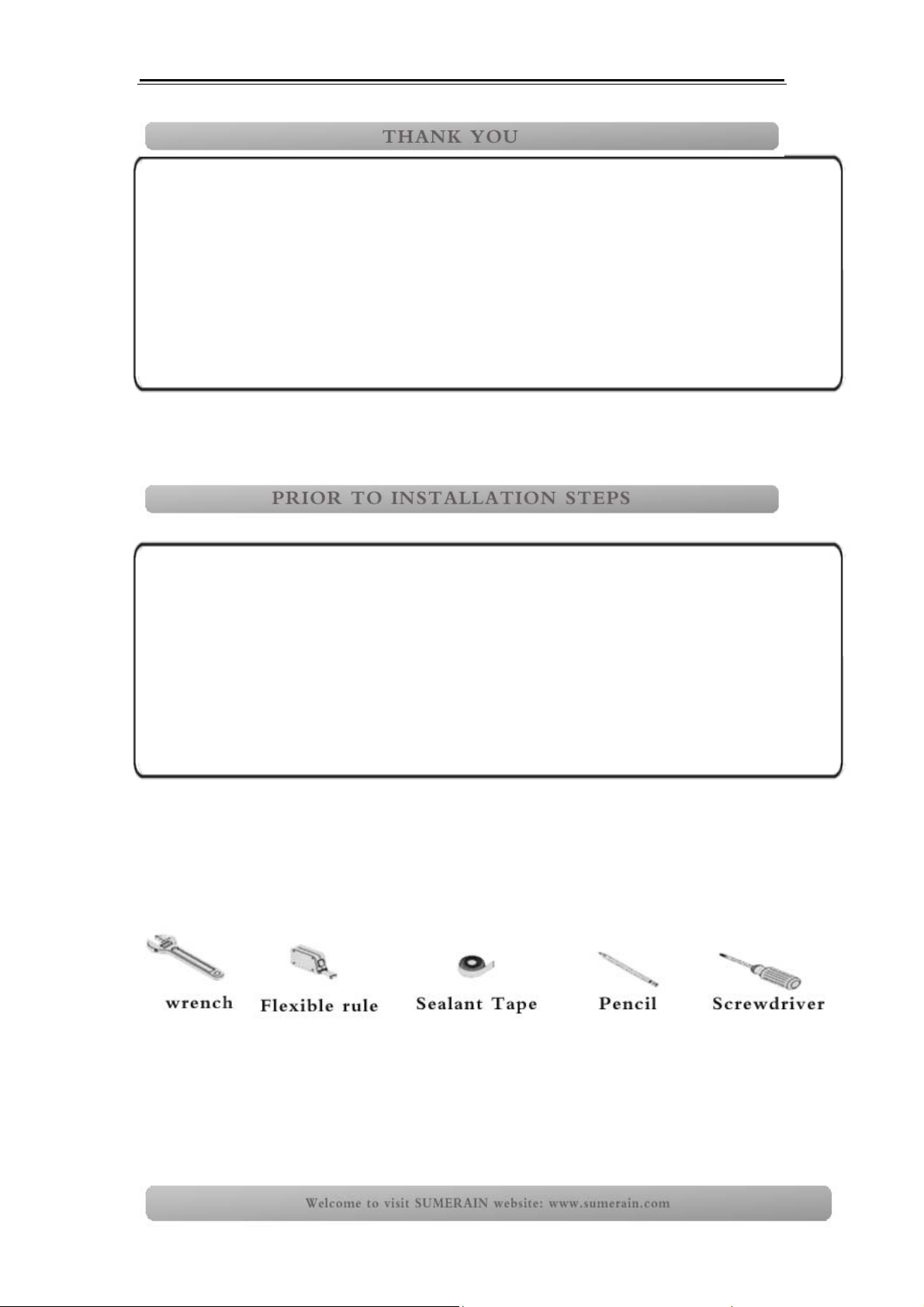

Dear Valued Customer,

SUMERAIN would like to take this opportunity to thank you for

purchasing SUMERAIN products. It is our sincere hope that you are

completely satisfied with your new purchase. We welcome any

questions or comments you may have and look forward to assisting you

in the future.

Sincerely,

SUMERAIN customer service department

1. Unpack your new product and ensure that all the parts are contained

in the packaging. Keep the product in its original box until you ready

to install it.

2. Shut off the water supply if replacing a previously-installed faucet.

3. Observe all plumbing and building codes in your area.

4. It is recommended that installation of the product be done by a

professional plumber.

5. SUMERAIN reserves the right to make revisions in the design of

faucets without notice, as specified with the price book.

Tools you may need when installing the faucet

Specification

Function Bathtub Faucets

Feature LED Thermal, Waterfall

Style Contemporary

Finish Chrome

Installation Holes Three Holes

Handle type Lever

Number of Handles One

Faucet Total Height 210mm [8.27 Inch]

Spout Reach 90mm [3.54 Inch]

Spout Width 175mm [6.85 Inch]

Spout Height 150mm [5.91 Inch]

Max deck thickness 32mm [1.26 Inch]

Valve Type Ceramic disc Valve

Faucet Body Material Brass

Faucet Spout Material Glass

Hand shower Material ABS plastic

Hand shower length 1500mm [59 Inch]

Spout Net Weight 2.6 KG [5.73 lbs]

Gross Weight 3.4 KG [7.49 lbs]

Glow rate 5.7L/M [1.5 GPM ]

Working water press 0.2 ~0.8 Mpa

LED power supply Water flow generator

LED Color changing

Water temperature < 28 ℃Blue color

Water temperature 28 ℃~ 38 ℃Green color

Water temperature > 38 ℃Red color

Packing box 315mm[12.4”] x 280mm[11”] x 300mm[11.8”]

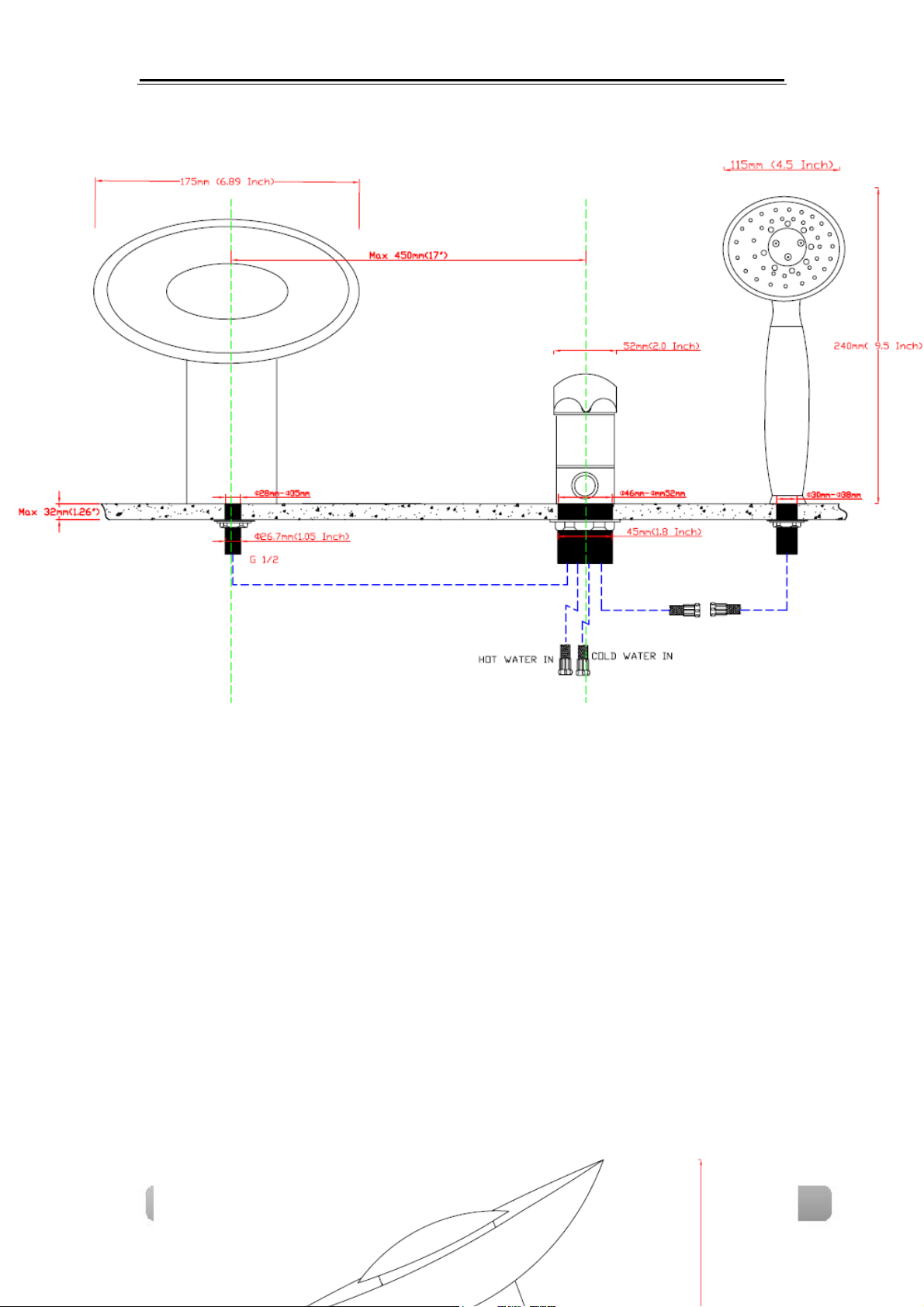

Dimension

Frontview

Sideviewofspout

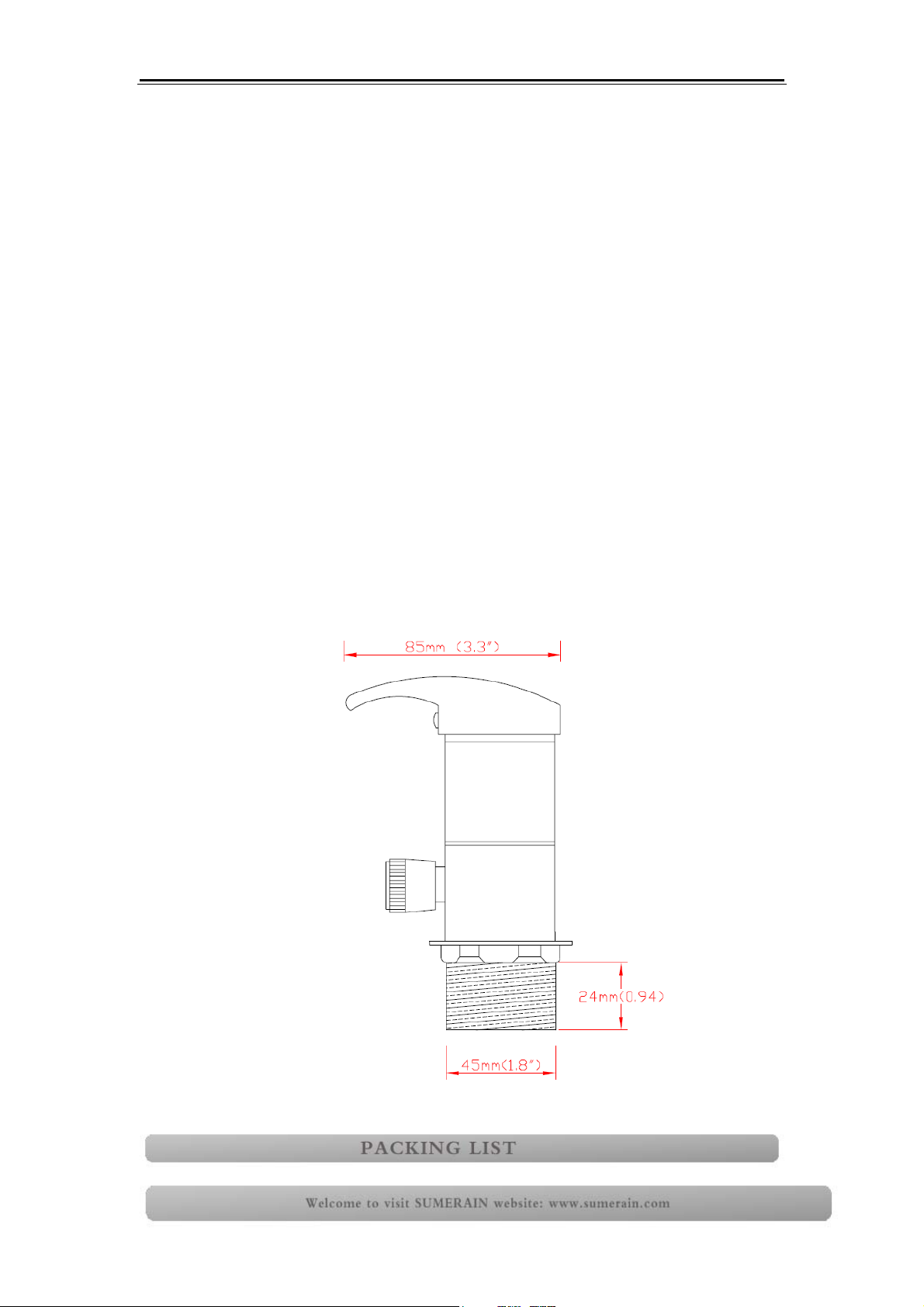

Sideviewofcontrolvalve

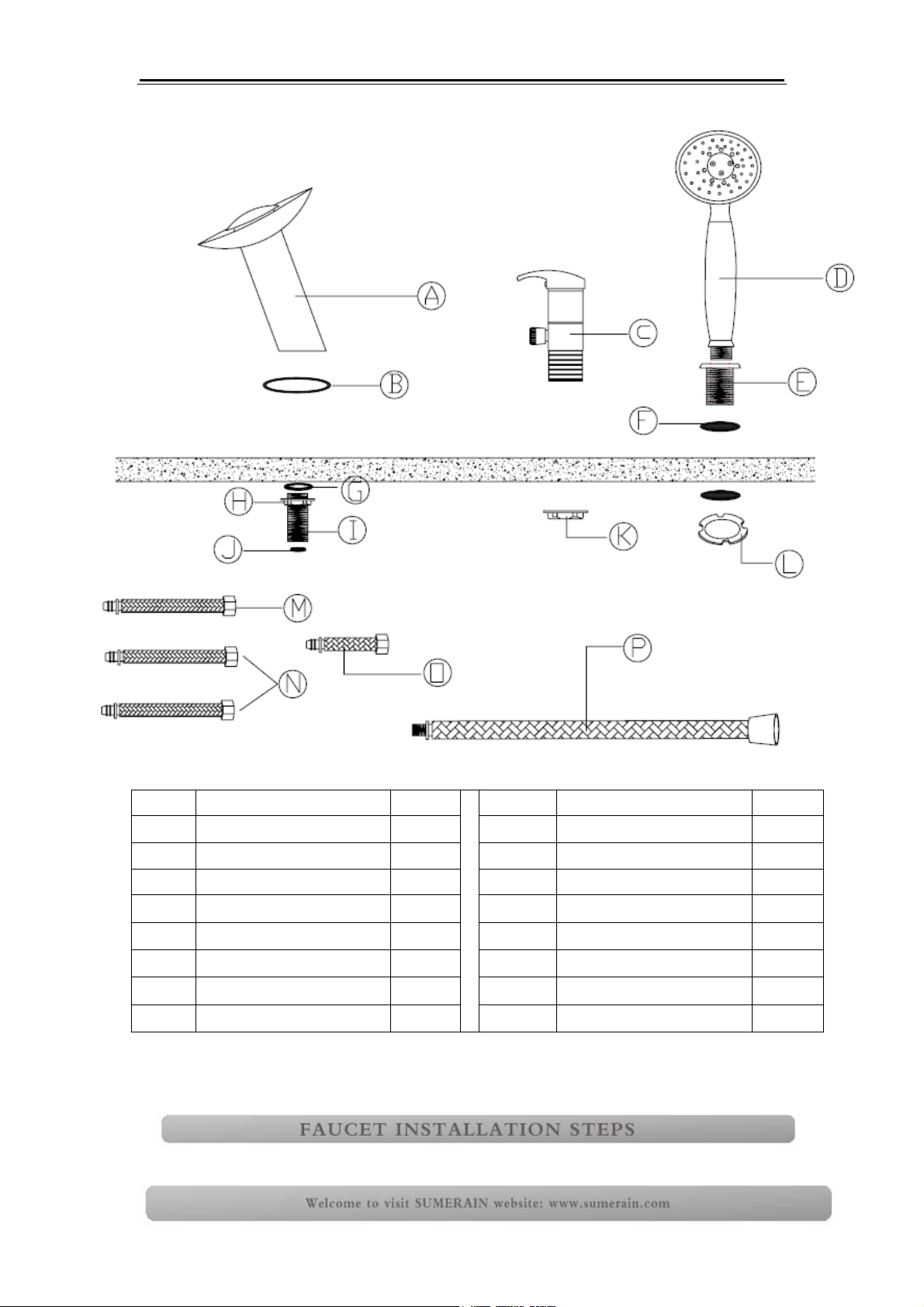

CODE ITEM NAME QTY CODE ITEM NAME QTY

A Faucet Body 1PCS B O-Ring 1PCS

C control valve 1PCS D Hand shower 1PCS

E Sprayer holder 1PCS F Rubber gasket 2PCS

G Rubber washer 1PCS H Shank Nut 1PCS

I Shank 1PCS J Strainer 1PCS

K Lock Nut 1PCS L Plastic nut 1PCS

M G1/2’’ hose 1PCS N G1/2” (G3/8) hose 2PCS

O Extended hose 1PCS P 1.5m Sprayer hose 1PCS

Step 1:

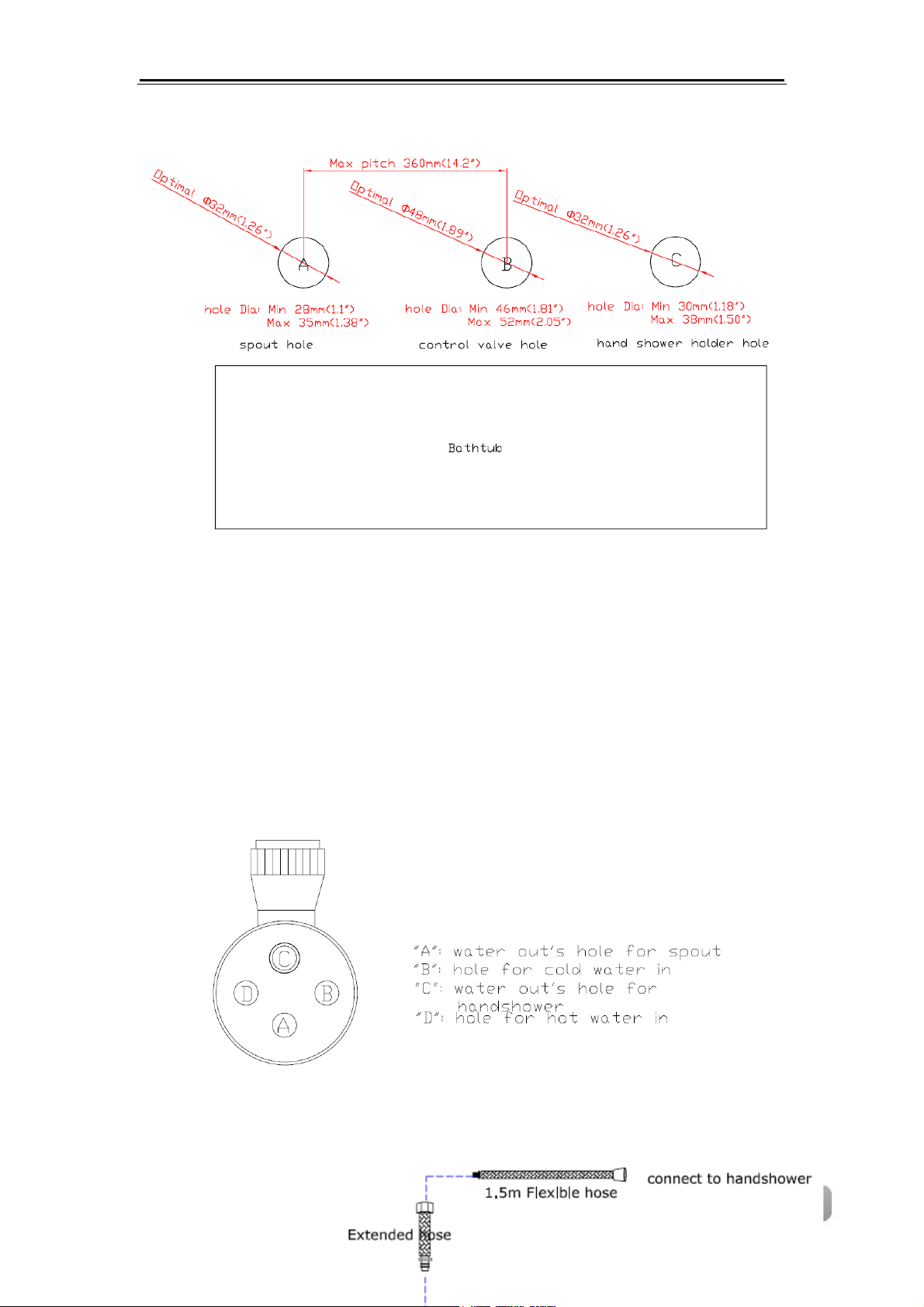

Dig hole “A”, hole “B” and hole “C” according to below dimension.

Step 2:

Screw the Shank ”I” with the faucet body “A” on the bathtub through

the O-Ring ”B” ,screw nut ”H” and Rubber gasket “G” in order to

fasten the faucet body to your bathtub.

Step 3:

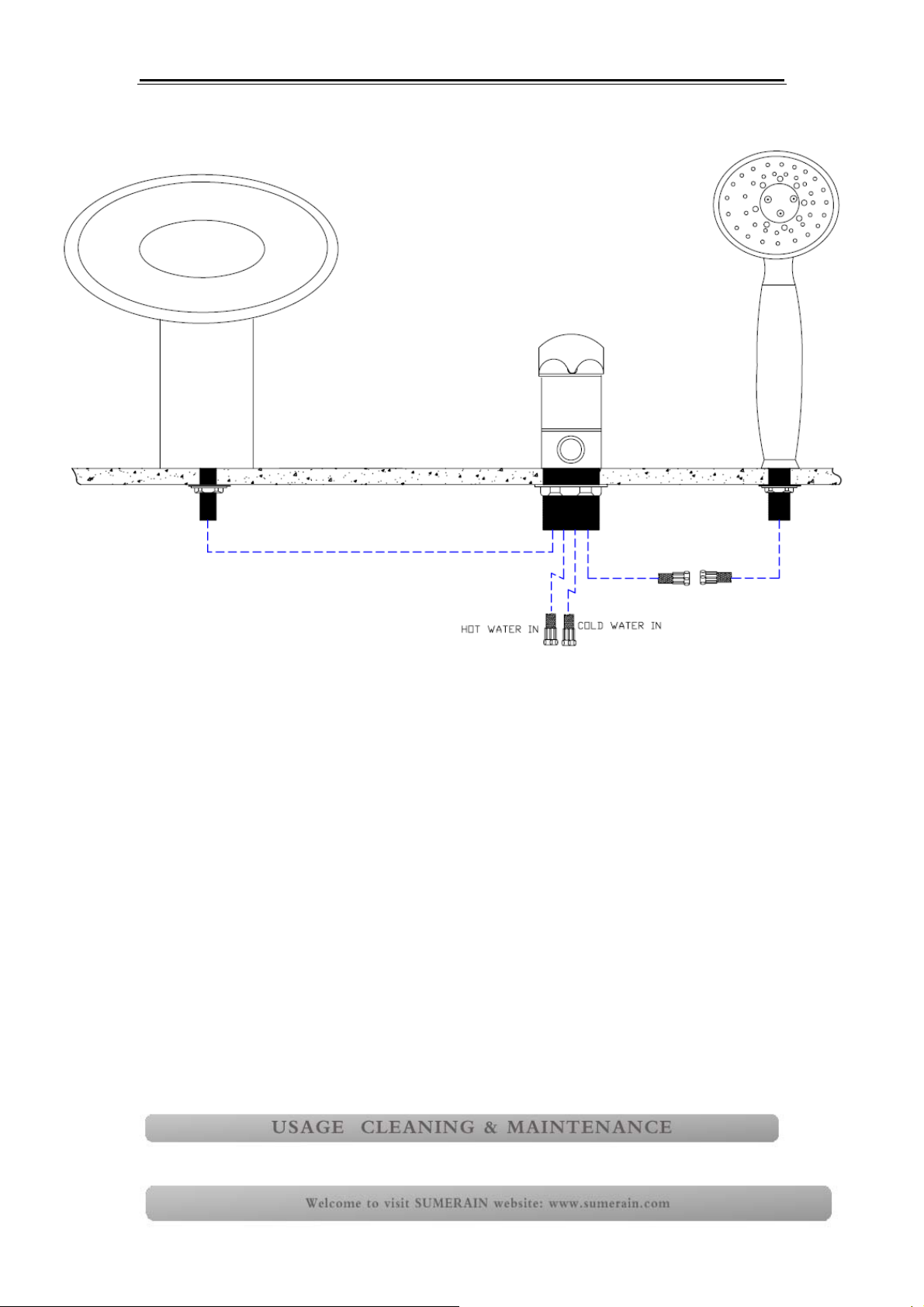

Connect the hoses to the connecter of thermostatic valve base as below

drawing

Bottom view

Step 3:

Through the thermostatic valve body with hoses into the hole “B” of

bathtub and screw it with nut “K”

Step 4:

Put the rubber gasket into sprayer holder and through into the hole “C”

of bathtub and screw it to bathtub with another rubber gasket and

plastic nut “L”.

Step 5:

5.1 Connect thermostatic valve with spout water inlet connecter.

5.2 Connect sprayer hose ” P” to extended hose ”O ” and then

connect to sprayer water inlet connecter

Step 6:

Inspect hot and cool water supply tube, please clean it at first if

necessary.

Step 7:

Connect your house hot water supply tube and cool water supply tube

with thermostatic valve body’s hot water inlet connector and cold

water inlet connector separately.

Clean the faucets and sh■owers as and when required. Regular

cleaning can prevent calcification.

Never use cleaning materials contain hydrochloric, formic,■

phosphoric or acetic acid, which may cause considerable damage.

Never use cleaning materials or appliances with an abrasive■effect,

such as unsuitable cleaning powders, sponge pads, or micro fiber

cloths.

After cleaning, rinse thoroughly■the faucet with clean water to

remove any cleaner residue.

■Unscrew and clean the aerator regularly.

TROUBLESHOOTING

Symptom Solution

Faucet leaks from

the handle

A. Tighten the packing nut

B. Replace the "O" ring or packing

The water

pressure is too

low

A. Make sure the water supply valves under the sink are

turned on all the way

B. Clean or replace the aerator

C. Check plumbing system for water pressure problems

The spout sprays

water all over A. Clean or replace the aerator

B. Replace the aerator washer

Water is leaking

from the faucet

under the sink

A. Check the water supply connections to the faucet

B. Inspect the water supply lines or hoses for leaks

Handle is loose

A. Remove the cap and tighten the screw

B. Locate and tighten the hex set screw

C. Remove the handle and check for stripped teeth on the

stem.

LED does not

illuminate A. Increase the water press

B. Clean the strainer of hot and cold water inlet
