COUNTER-HEIGHT REFRIGERATORS

Models:CFF6W/L series

FF6BK series

FF7W/L series

FF7BK/LBK series

SCR600GL series

SCR600BGL series

405 CM411L

Instruction Manual

BEFORE USE, PLEASE READ AND FOLLOW

ALL SAFETY RULES AND OPERATING INSTRUCTIONS

FELIX STORCH, INC.

An ISO 9001:2015 registered company

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

Write Model & Serial Nos. (on back

of unit) here:

__________________________

________

__________________________

______

THIS PAGE INTENTIONALLY LEFT BLANK

IMPORTANT SAFEGUARDS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read

and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can

kill or injure you and others. All safety messages will follow the Safety Alert Symbol

and either the words ”DANGER”or “WARNING”.

DANGER means that failure to heed this safety

statement may result in severe personal injury or

death.

WARNING means that failure to heed this safety

statement may result in extensive product

damage, serious personal injury, or death.

Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury,

and let you know what can happen if the instructions are not followed.

Before the refrigerator is used, it must be properly positioned and installed as

described in this manual, so read the manual carefully. To reduce the risk of fire,

electrical shock or injury when using the appliance, follow basic precautions,

including the following:

Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter, and do

not use an extension cord.

It is recommended that a separate circuit, serving only your refrigerator, be provided. Use receptacles

that cannot be turned off by a switch or pull chain.

Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.

And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance. The fumes can create a fire hazard or explosion.

Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is

disconnected.

Do not connect or disconnect the electric plug when your hands are wet.

Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so can result

in electrical shock or death.

Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended

in this material. All other servicing should be referred to a qualified technician.

Use two or more people to move and install the refrigerator. Failure to do so can result in back or other

injury.

To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.

Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit

must be installed in an area protected from the elements, such as wind, rain, water spray or drips.

The appliance should not be located next to ovens, radiators or other sources of high heat.

The appliance must be installed with all electrical connections in accordance with state and local

codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with the

National Electrical Code and local codes and ordinances, is required.

Do not kink or pinch the power supply cord of the appliance.

The fuse (or circuit breaker) size should be 15 amperes.

It is important for the refrigerator to be leveled in order to work properly. You may need to make

several adjustments to level it.

Never allow children to operate, play with or crawl inside the refrigerator.

Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or

discolor the interior.

Do not use this apparatus for other than its intended purpose.

THE FF6 AND FF7 SERIES MODELS, AS WELL AS MODEL SCR600L, ARE DESIGNED FOR

COMMERCIAL OR GENERAL PURPOSE USE ONLY. THEY ARE NOT INTENDED FOR USE AS

HOUSEHOLD REFRIGERATORS. MODEL SCR600BL IS DESIGNED AS A COMMERCIAL BEVERAGE

MERCHANDISER.

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators and

freezers are still dangerous, even if they will “just sit in the garage a few days.”

Before you throw away your old refrigerator or freezer: Take off the doors. Leave the

shelves or drawers in place so that children may not easily climb inside.

Never allow children to operate, play with, or crawl inside the refrigerator/freezer.

THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERONS

UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO

ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE

SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

- SAVE THESE INSTRUCTIONS -

Table of Contents

Important Safeguards ....................................................................................................3 - 4

Location of Parts ............................................................................................................5 - 6

Technical Information .........................................................................................................7

Installation Instructions ...............................................................................................8 - 10

Before Using Your Appliance .........................................................................................8

Installing the Refrigerator ...............................................................................................8

Electrical Connection / Extension Cord .....................................................................8 - 9

Reversing the Door Swing .......................................................................................9 - 10

Door Handle Installation................................................................................................10

Operating Your Refrigerator .............................................................................................11

Temperature Control

Defrosting Your Appliance

Care and Maintenance ......................................................................................................12

Cleaning Your Appliance / Power Failure / Vacation Time /

Moving your Appliance / Energy-Saving Tips

Troubleshooting ................................................................................................................13

Notes………………………………………………………………………………………………14-15

Limited Warranty ...............................................................................................................16

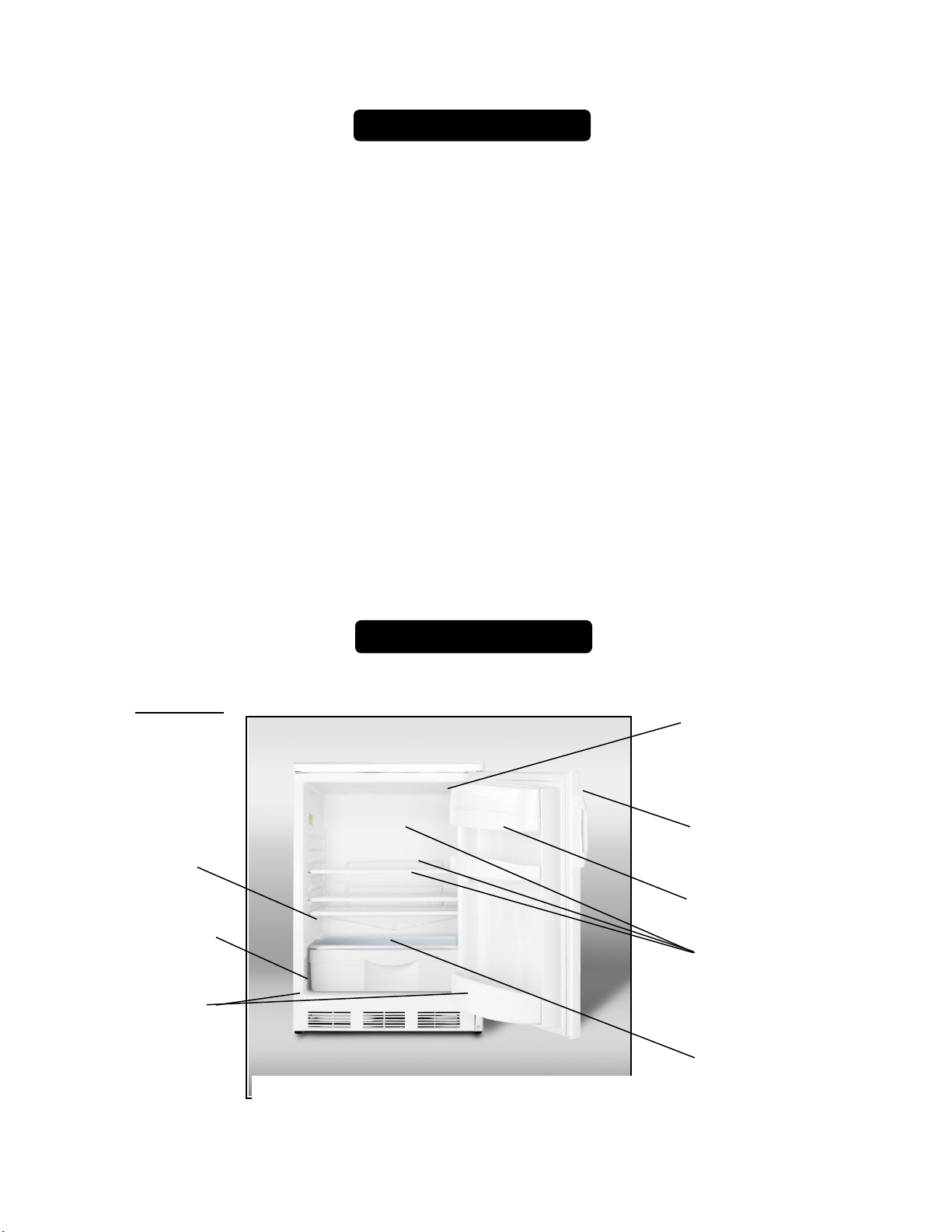

Location of Parts

FF6 series

Temperature control dial

(thermostat) and interior

light

Door with storage

compartments

Front ventilation

slots (kick plate)

Leveling legs

Adjustable shelves

(wire for FF6W & FF6LW;

glass for FF6BK)

Defrost water

outlet

(behind crisper)

NOTE: Lock on model FF6LW is located on the front of

the door, near the top center.

Handle

Crisper and

glass cover

Temperature control dial

(thermostat), light switch

and interior light

Door

Front ventilation

slots (kick plate)

Leveling legs

Adjustable shelves

(wire for FF7 & FF7L;

glass for FF7B &

FF7LBLK)

Defrost water

outlet

NOTE: Lock on models FF7LW and FF7LBLK is located on

the front of the door, near the top center.

Handle

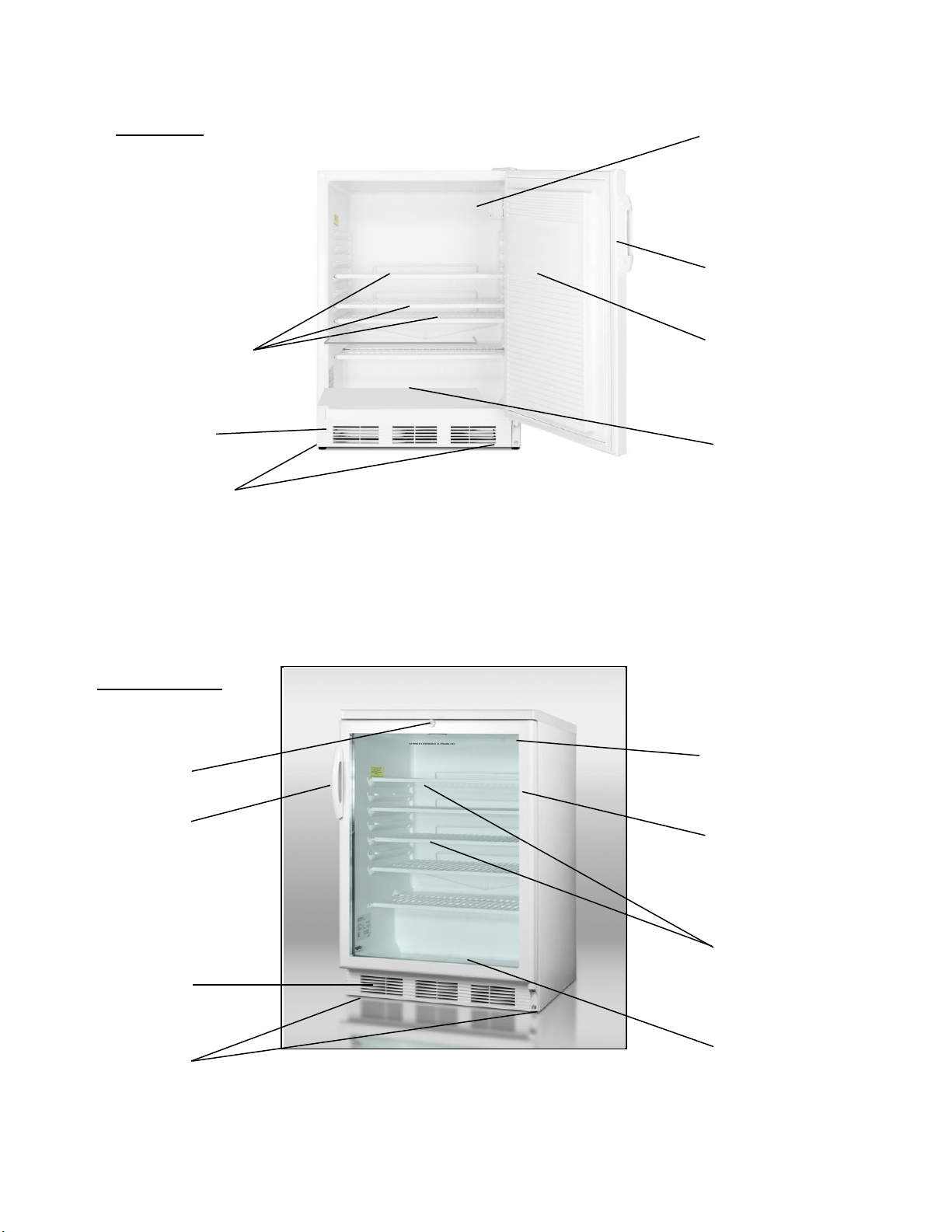

FF7 series

Temperature control dial

(thermostat),light switch

and interior light

Glass door

Front ventilation

slots (kick plate)

Leveling legs

Adjustable shelves

(wire for SCR600GL;

glass for SCR600BGL)

Defrost water

outlet

Handle

SCR600 series

Lock

Technical Information

Model Numbers

and

Descriptions

FF6W (white with wire shelves and no lock; door storage)

FF6LW (white with wire shelves and lock; door storage)

FF6BK (black with glass shelves and no lock; door storage)

FF7W (white with wire shelves and no lock; flat door liner)

FF7LW (white with wire shelves and lock; flat door liner)

FF7BK (black with glass shelves and no lock; flat door liner)

FF7LBLK (black with glass shelves and lock; flat door liner)

SCR600GL (white with wire shelves and lock; glass door)

SCR600BGL (black with glass shelves and lock; glass door)

Capacity

5.5 cu. ft.

Electrical Input

115V AC/60Hz

Rated Current

1.0A

Refrigerant

R600a (1.8 oz.)

Installation

Free-standing

Unit

Dimensions (W

x D x H)

23.63" x 23.5" x 33.5"

NOTES: 1. FF6 and FF7 series models and SCR600GLW are suitable for general purpose

storage. They can also store foodstuffs at an ideal temperature. However, they are

not designed for household use since they utilize an oversized commercial

compressor.

Model SCR600BGL is designed as a commercial beverage merchandiser.

2. Specifications are subject to change without notice.

Improper use of the grounded plug can result in the risk of electrical shock. If the power

cord is damaged, have it replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Installation Instructions

Before Using Your Appliance:

Remove the exterior and interior packing.

Before connecting the unit to a power source, let it stand for approximately 2 hours. This will

reduce the possibility of a malfunction in the cooling system from handling during

transportation.

Remove the shelves and clean them and the interior surfaces of the unit with lukewarm water

using a soft cloth.

Installing the Refrigerator:

Place the unit on a floor that is strong enough to support the appliance when it is fully loaded.

To level the unit, adjust the two leveling legs at the front.

Your appliance is designed to be free-standing only and not recessed or built into an

enclosure. When installing, allow at least 4” (102mm) of space at the sides, top and rear of

the unit to allow for proper air circulation to cool the compressor and condenser. Take care

that the air vents at the front of the appliance are never covered or blocked in any way.

Locate the unit away from direct sunlight and sources of heat (oven, heater, radiator, etc.).

Direct sunlight may affect the acrylic coating and heat sources may increase electrical

consumption. Extremely cold ambient temperatures may also affect the unit's performance.

Avoid locating the unit in moist areas. Too much moisture in the air will cause frost to form

quickly on the evaporator, requiring more frequent defrosting of the interior.

Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions

concerning power and/or grounding should be directed toward a certified electrician or

authorized service center.

Electrical Connection:

This unit should be properly grounded for your safety. The power cord of this unit is equipped

with a three-prong plug which mates with a standard three-prong wall outlet to minimize the

possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord

supplied. For personal safety, this appliance must be properly grounded.

This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground. Have

the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly

grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and

obligation to have it replaced with a properly grounded 3-prong wall outlet.

To prevent accidental injury, the cord should be secured behind the unit and not left exposed or

dangling.

The unit should always be plugged into its own individual electrical outlet which has a voltage

rating that matches the rating label on the appliance. This provides the best performance and

also prevents overloading house wiring circuits that could cause a fire hazard from overheated

wires. Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull

straight out from the receptacle. Repair or replace immediately any power cord that has become

frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along

its length or at either end. When moving the unit, be careful not to damage the power cord.

Extension Cord:

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified

electrician or service technician install an outlet near the appliance.

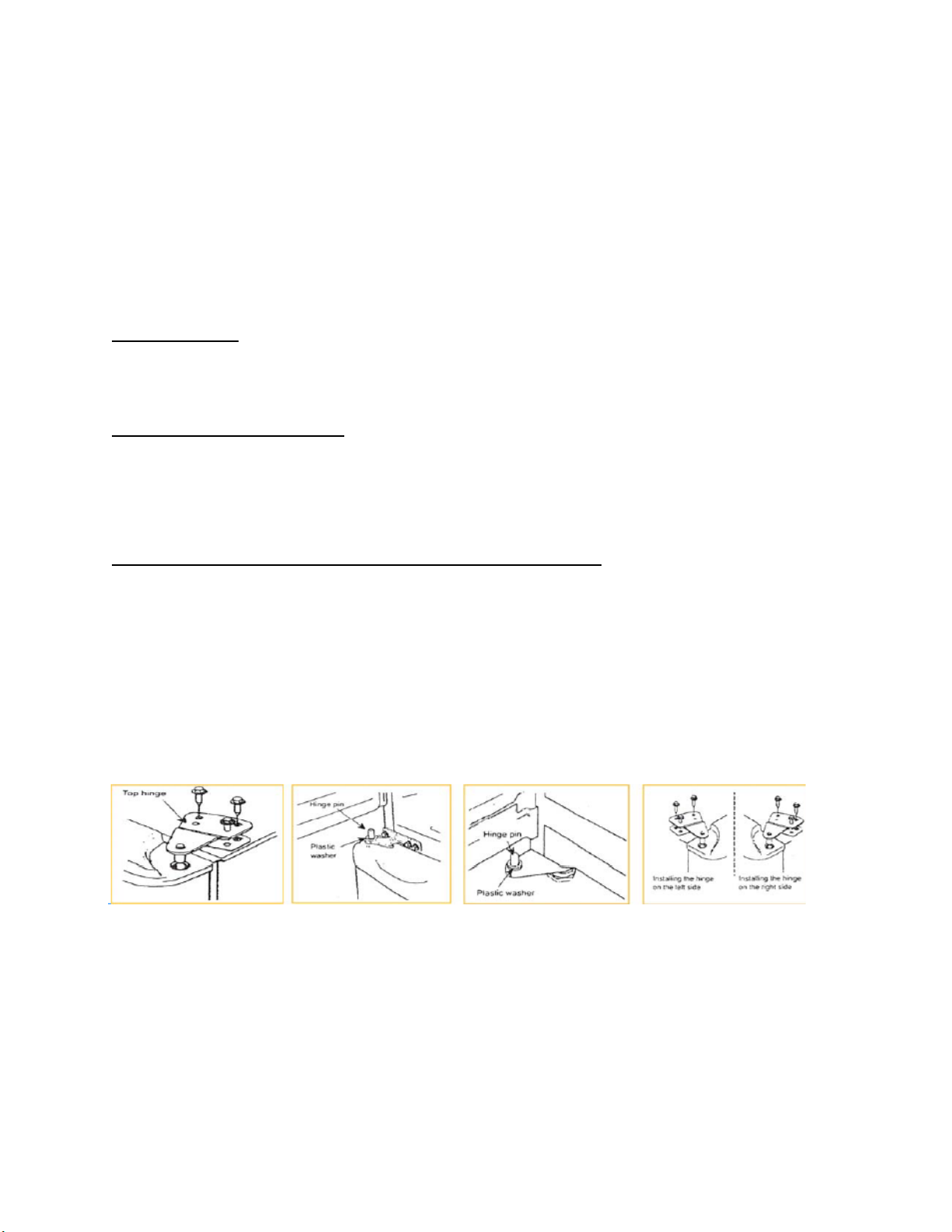

Reversing the Door Swing:

If you find the direction of opening the door of the appliance inconvenient, you can change it.

Holes on the opposite side have already been prepared at the factory.

This appliance can be opened from either the right side or the left. By default, the door hinge is

on the right side. If you prefer it on the left, please follow the appropriate instructions:

For models FF6BK, FF7W, FF7WCOM, FF7BK and FF7BKCOM:

1. Take off the upper hinge cover from the door and remove the screws that hold the top hinge.

2. Lift the hinge straight up to free the hinge pin from the socket in the top of the door.

3. Lift the door up and away to free its bottom socket from the hinge pin.

4. Remove the screws to the bottom hinge.

5. Remove the decorative caps from the opposite side and plug the holes from the original side

with the decorative caps.

6. Move the bottom hinge to the opposite side and tighten the screws. Use any lock washers or

nuts if they were installed in the original installation.

7. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door. Insert

screws into the top hinge and tighten.

If you notice the door not hanging straight, loosen the top hinge screws, adjust the door until it is

level and tighten the screws.

For models FF6W, FF6LW, FF7LW, FF7LBLK, SCR600GL and SCR600BGL:

NOTES: See illustration below.

All of the parts that are removed must be kept for the reinstallation of the door.

1. Unscrew the lower hinge and take off the door.

2. Push the kick plate to the right in the new position.

3. Undo the upper hinge fastener and fix it to the opposite side of the housing, where you have

already removed and replaced the fastener with the hole to the opposite side,

4. Put the door on the upper hinge fastener.

5. Fix the lower hinge in the new position.

6. Unscrew the handle and place it on the opposite side.

7. Some screws are covered with caps. Take off these caps before undoing the screws.

8. Check the door gasket. It should not be creased and should seal well.

1. Upper hinge fastener 4. Handle

2. Lower hinge 5. Door hinge fixture

3. Kick plate 6. Door hinge fixture plug

Door Handle Installation:

The door has two screw holes on each side, allowing you to install a handle (included). To do

so, align the handle with the screw holes on the side you prefer. Fix the handle in place with the

included screws, then cover the screw heads with the handle seal (included).

Models FF6W,

FF6LW, FF7LW,

FF7LBLK,

SCR600GL and

SCR600BGL

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Summit Kühlschrank Handbücher

Summit

Summit FF590 Bedienungsanleitung

Summit

Summit R17FF Bedienungsanleitung

Summit

Summit CT661WBI Series Bedienungsanleitung

Summit

Summit CT66L Leitfaden

Summit

Summit BI605FR Bedienungsanleitung

Summit

Summit SP6DS Bedienungsanleitung

Summit

Summit FF63B Bedienungsanleitung

Summit

Summit FF41SS-AL Bedienungsanleitung

Summit

Summit FF101W Bedienungsanleitung

Summit

Summit FF1085SS Bedienungsanleitung

Summit

Summit CT66 Series Bedienungsanleitung

Summit

Summit FF412ES Bedienungsanleitung

Summit

Summit accucold FFAR21LMAN Bedienungsanleitung

Summit

Summit FF29K Bedienungsanleitung

Summit

Summit BDR190NACSS Leitfaden

Summit

Summit S19L Leitfaden

Summit

Summit SCR-1300 Bedienungsanleitung

Summit

Summit CT66BADACSS Bedienungsanleitung

Summit

Summit FFBF285SS Bedienungsanleitung

Summit

Summit BDR190NASSHH Leitfaden

Summit

Summit Accucold FF7LBIVAC Bedienungsanleitung

Summit

Summit SUM-P01061 Bedienungsanleitung

Summit

Summit FF7BI SERIES Leitfaden

Summit

Summit FF7B Leitfaden

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
