COMPACT REFRIGERATOR

Model FFAR21LMAN

Instruction Manual

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES

AND OPERATING INSTRUCTIONS. KEEP THIS MANUAL IN A SECURE LOCATION.

Felix Storch, Inc.

770 Garrison Avenue

Bronx, New York 10474

www.summitappliance.com

Write Serial Number (on back of unit) here:

_______________________________

TABLE OF CONTENTS

Technical Information ........................................................................................1

Important Safeguards ...................................................................................2 - 3

Location of Parts ................................................................................................4

Installation .....................................................................................................4 - 5

Placement ................................................................................................ 4

Electrical Connection ................................................................................5

Before the First Use ..................................................................................5

Operation ........................................................................................................... 6

Temperature Adjustment

Defrosting

Food Storage

Normal Phenomena

Cleaning and Maintenance ...........................................................................7 - 8

Cleaning Your Refrigerator ........................................................................7

Vacation Time ...........................................................................................7

Moving Your Refrigerator ..........................................................................7

Energy-Saving Tips ..............................................................................7 - 8

Reversing the Door Swing of Your Refrigerator ........................................8

Locking the Refrigerator ............................................................................8

Wiring Diagram ..................................................................................................9

Troubleshooting .............................................................................................. 10

Limited Warranty ............................................................................................. 11

Technical Information

Model Number: FFAR21LMAN

Capacity: 1.77 cubic feet

Electrical Rating: 115V AC / 60Hz

Input Power: 87 watts

Energy Consumption: 248 kWh/year

Refrigerant: R134a, 1.17 oz

Weight: 37.49 lbs

Unit Dimensions: 18.63"W x 17.25"D x 19.38"H

IMPORTANT SAFEGUARDS

Before the refrigerator is used, it must be properly positioned and

installed as described in this manual, so read the manual carefully.

To reduce the risk of fire, electrical shock or injury when using the

refrigerator, follow basic precautions, including the following:

•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an

adapter, and do not use an extension cord.

•It is recommended that a separate circuit, serving only your refrigerator be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

•If the power cord is damaged, it must be replaced by the manufacturer, its service agent

or a similarly-qualified person in order to avoid an electrical hazard.

•The power supply to the refrigerator must match the indicated power supply on the

nameplate. Otherwise the refrigerator will be damaged and the manufacturer's warranty

will be invalidated.

•Do not place or use anything flammable, such as gasoline, gas cylinders, solvent-based

cleaning fluids, near the refrigerator due to the risk of fire. Substances with a high

percentage of alcohol must be stored in tightly sealed bottles or other containers and

should always be placed in an upright position.

•Do not locate the refrigerator in a damp or wet environment or in a position where it is

likely to get splashed. Such an environment would weaken the electrical insulation or

expose live wires, possibly causing an electric shock or fire.

•The refrigerator must be disconnected from its power source if it stops working or when it

is being cleaned or repaired.

•To remove the plug from the socket, grasp the plug firmly and pull it out. Do not pull on

the cable. Do not connect the machine to electrical outlets while your hands are wet or

damp.

•If a gas leak is discovered in the same room as the refrigerator, turn off the gas supply.

Do not open the refrigerator door and do not remove the plug from the main electrical

supply. A small spark resulting from such actions could cause a gas explosion. Open all

of the doors and windows in the room to disperse the gas.

•Risk of child entrapment

√Before you throw away your old refrigerator: Take off the doors. Leave the

shelves in place so that children may not easily climb inside.

Child entrapment and suffocation are not problems of the past. Junked or abandoned

refrigerators are still dangerous, even if they will "just sit in the garage a few days."

√Never allow children to operate, play with, or crawl inside the refrigerator.

•Use two or more people to move and install refrigerator. Failure to do so can result in

back or other injury.

•To ensure proper ventilation for your refrigerator, the front of the unit must be completely

unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and

below 90°F (32°C). This unit must be installed in an area protected from the elements,

such as wind, rain, water spray or drips, and away from direct sunlight.

•The refrigerator should not be located next to ovens, grills or other sources of high heat.

•The refrigerator must be installed with its electrical connection in accordance with state

and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded

in accordance with the National Electrical Code and local codes and ordinances is

required.

•Do not kink or pinch the power supply cord of the refrigerator.

•The fuse (or circuit breaker) size should be 15 amperes.

•It is important for the refrigerator to be leveled in order to work properly. You may need to

make several adjustments to level it.

•In order to ensure normal operation of the refrigerator, after moving it a considerable

distance, you must wait for ½ to 1 hour before turning the unit on.

•After an electrical failure, wait at least 5 minutes before turning on the refrigerator

again or the compressor may be damaged.

•This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

•IMPORTANT: Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

•IMPORTANT: Do not damage the refrigerant circuit.

•IMPORTANT: Do not use electrical appliances inside the food storage compartment of

the appliance, unless they are of the type recommended by the manufacturer.

•Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners

may damage or discolor the interior.

•Do not use this apparatus for other than its intended purpose.

SAVE THESE INSTRUCTIONS

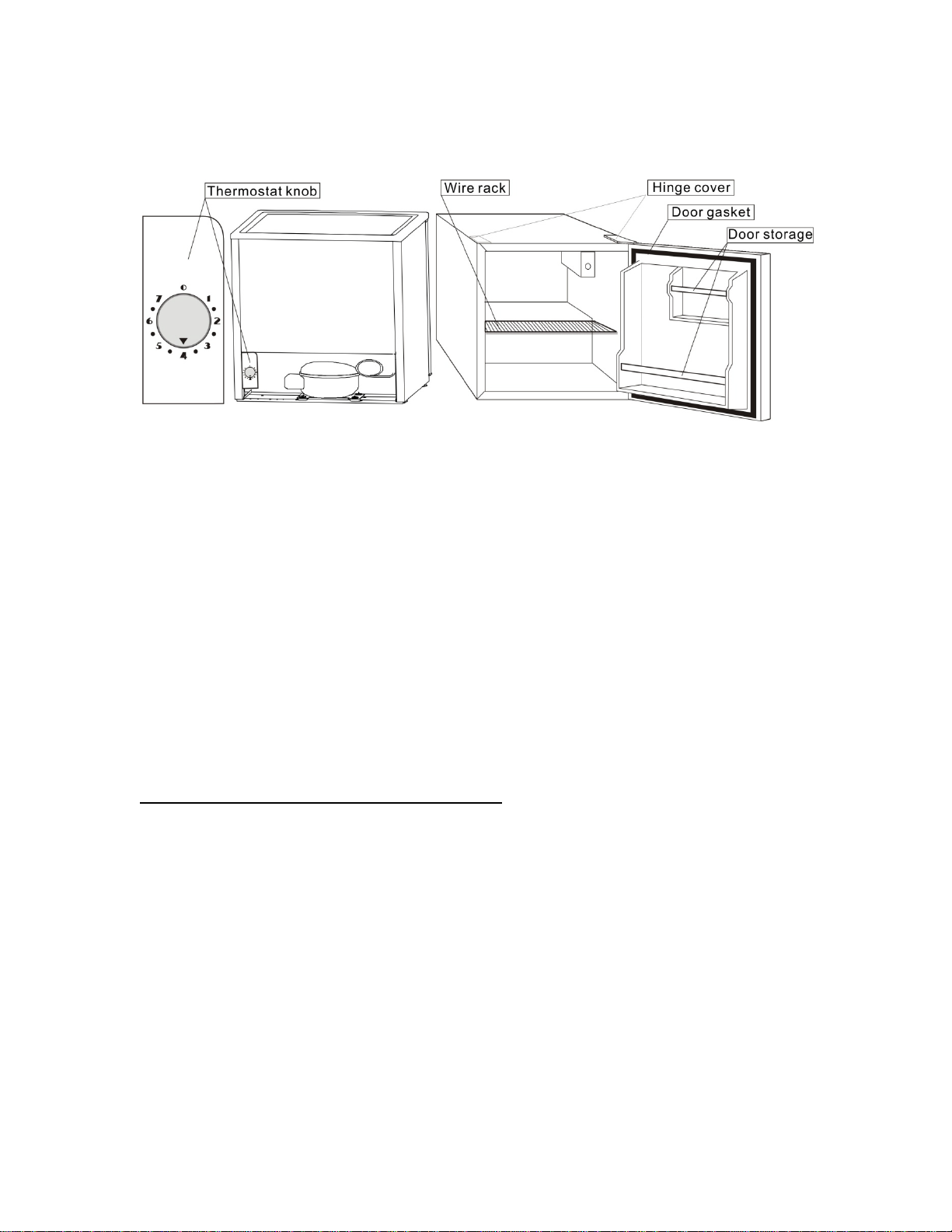

LOCATION OF PARTS

INSTALLATION

PLACEMENT

•The refrigerator should not be placed in direct sunlight or close to heat sources such

as oven, grill, radiator, etc. Also avoid locations where the unit will be exposed to

moisture or can be easily splashed.

•Place the unit on a firm flat surface. An uneven floor will cause vibration and noise.

•Good ventilation around the refrigerator allows heat to escape smoothly, improving

cooling efficiency and saving energy. To maintain high operating efficiency, do not

place anything on top of the refrigerator.

•This refrigerator is meant to be installed free-standing, and not built-in or enclosed.

Be sure to leave space around the appliance to allow for proper air circulation for

cooling the compressor. This improves efficiency and saves energy.

•After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3

hours before placing food into the refrigerator.

When installing the unit on a table or countertop

•Surface (countertop) must be flat, level, and strong enough to support the unit once it

is fully loaded.

, keep the following in mind:

•Surface must be wide enough to accommodate the unit without any overhang.

•Surface must be deep enough to accommodate the unit when the door is opened to

90º.

ELECTRICAL CONNECTION

•Plug the refrigerator into an exclusive, properly installed, grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) prong from the power

cord. Any questions concerning power and/or grounding should be directed toward a

certified electrician or an authorized service center.

•This refrigerator should be properly grounded for your safety. The power cord of this

refrigerator is equipped with a three-prong plug that mates with standard three-prong

wall outlets to minimize the possibility of electrical shock.

•This refrigerator requires a standard 115/120-volt, 60Hz electrical outlet with three-

prong ground.

•To prevent accidental injury, the cord should be secured behind the refrigerator and

not left exposed or dangling.

•Never unplug the refrigerator by pulling on the power cord. Always grip the plug

firmly and pull straight out from the receptacle.

•The use of an extension cord is strongly discouraged.

BEFORE THE FIRST USE

CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2

hours to allow the lubricant and refrigerant to drain back into the compressor and stabilize.

Failure to do so may adversely affect performance and the lifetime of the unit.

•All the accessories have been installed. Remove all packing materials and tape.

•Clean the interior surface with lukewarm water using a soft cloth. Any plastic odor

that you notice when you first open the door will dissipate once the appliance is

operating.

•Put food into refrigerator after the cabinet temperature has had time to reach its

lowest point. For initial operation, it will be about 3 hours.



Warning



Improper use of the grounded plug can result in the risk of electrical shock. If the power

cord is damaged, have it replaced by an authorized service center.

OPERATION

TEMPERATURE ADJUSTMENT

•The cabinet temperature is controlled by a thermostat located at the back of the

unit, to the left of the compressor. Rotate the dial to adjust the cabinet temperature.

•The optimum position of the thermostat depends on the temperature you prefer.

Cabinet temperature is affected by the ambient temperature, frequency of door

opening, the number of stored items and the placement of the refrigerator. You can

adjust the thermostat according to current conditions.

•Generally, the thermostat knob is set at the midpoint of the dial. When room

temperature is lower than usual, place the dial at a lower setting. Conversely, if the

room temperature is higher than normal, adjust the thermostat to a higher setting.

DEFROSTING

This appliance’s static cooling system requires manual defrosting. When the frost and

ice layer in the refrigerator reaches a thickness of 1/8” to 1/4”, it is necessary to defrost

the unit.

1. First turn the thermostat knob to OFF and disconnect the power supply. Remove the

contents of the refrigerator and temporarily store them in another refrigerator or

cooler.

2. Place a tray or other suitable container on the compartment floor to collect the defrost

water. Leave the door open to accelerate defrosting.

3. When the frost and ice have melted, dump the defrost water and dry the interior of the

refrigerator thoroughly with paper towels or a soft, clean cloth.

4. Plug in the refrigerator and reset the thermostat to its normal setting.

5. Close the door and let the unit cool down before returning contents to the refrigerator.

If you notice excessive ice build-up on the rear wall, try setting the temperature slightly

higher (i.e., a lower setting of the thermostat). Also, be sure that the door gasket is

sealing well.

FOOD STORAGE

•Hot food should not be stored until it has completely cooled.

•In order to allow air to circulate, when placing food in the refrigerator, allow proper

spacing between food items. To prevent drying out and to keep odors from mixing,

pack stored food carefully.

NORMAL PHENOMENA

•It is normal that both side panels and the top of the refrigerator be warm because of

the built-in condenser.

•There may be condensation on the surface of the appliance when it is placed in an

area of high humidity or when the weather is hot. It resembles the moisture that

condenses on a glass of cold liquid during summer. Dry it with a clean, soft cloth.

•Occasionally the sound of a gurgling liquid can be heard. This is the refrigerant

flowing through the condensing tubes. The sound can also be heard when the

refrigerator stops working.

CLEANING AND MAINTENANCE

CLEANING YOUR REFRIGERATOR

•Turn the thermostat off, unplug the refrigerator, and remove the food, shelf and any

trays.

•Wash the inside surfaces with a solution of a warm water and baking soda. The

solution should consist of about 2 tablespoons of baking soda to a quart of water. If

you use a spray bottle, do not spray in the area of the temperature control, vents or

any electrical connections.

•Clean the door gasket with a soft cloth dampened in warm water or mild detergent

solution.

•Wash the shelf and trays with a mild detergent solution.

•The outside of the refrigerator should be cleaned with mild detergent and warm water.

Rinse well and wipe dry with a clean, soft cloth.

•Wring excess water out of the sponge or cloth when cleaning the area of the controls,

or any electrical parts.

•Dust on the compressor and condensing coils (at the back of the appliance) will affect

the diffusion of heat. Clean them periodically with a soft brush or dusting utensil.

VACATION TIME

•Short vacations: Leave the refrigerator operating during vacations of less than three

weeks.

•Long vacations: If the appliance will not be used for several months, remove all food

and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor

and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING YOUR REFRIGERATOR

1. Remove all the food.

2. Securely tape down all loose items inside your refrigerator.

3. Tape the door shut.

4. Be sure the refrigerator stays secure in the upright position during transportation.

Also protect the outside of the refrigerator with a blanket or similar item.

ENERGY-SAVING TIPS

•The refrigerator should be located in the coolest area of the room, away from heat-

producing appliances and out of direct sunlight.

•Let hot foods cool to room temperature before placing in the refrigerator. Overloading

the refrigerator forces the compressor to run longer.

•Be sure to wrap foods properly, and wipe containers dry before placing them in the

refrigerator. This cuts down on frost build-up inside the refrigerator.

•To allow proper air circulation, keep a space between stored foodstuffs. To inhibit

drying and to cut down on odors, be sure food is packed well.

•Refrigerator shelves should not be lined with aluminum foil, wax paper, or paper

toweling. Liners interfere with cold air circulation, making the refrigerator less

efficient.

•Organize and label food to reduce door openings and extended searches. Remove

as many items as needed at one time, and close the door as soon as possible.

REVERSING THE DOOR SWING OF YOUR REFRIGERATOR

This appliance has the capability of the door opening from either the left or the right side.

The unit is delivered to you with the door opening from the left side. Should you desire

to reverse the opening direction, you can refer to the diagrams below. If you have a

problem, call SUMMIT Customer Service at 1-800-932-4267.

LOCKING THE REFRIGERATOR

Your refrigerator comes with two keys and a lock at the bottom center of the door. Turn

the key a quarter-turn to the left to lock the door, and a quarter-turn to the right to unlock

it. Keep keys in a secure place.

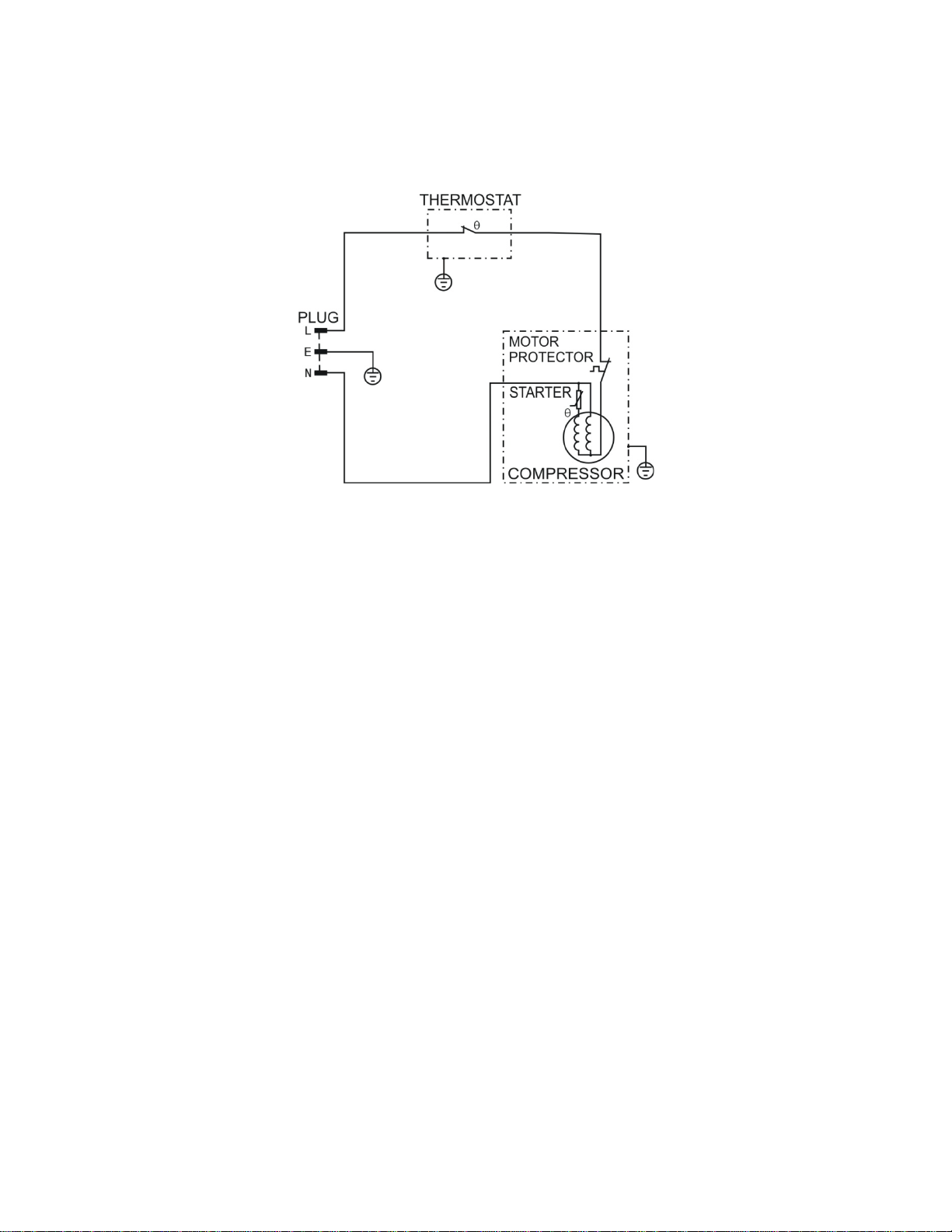

WIRING DIAGRAM

WARNING: DO NOT USE AN EXTENSION CORD!

Inhaltsverzeichnis

Andere Summit Kühlschrank Handbücher

Summit

Summit FF1325SS Bedienungsanleitung

Summit

Summit AL750LSSHH Leitfaden

Summit

Summit FF28LWH Bedienungsanleitung

Summit

Summit SCR-600BL Series Bedienungsanleitung

Summit

Summit CL65ROS Bedienungsanleitung

Summit

Summit FF82W Bedienungsanleitung

Summit

Summit FF28L Bedienungsanleitung

Summit

Summit SP6DS2DOS SERIES Leitfaden

Summit

Summit BAR77S Bedienungsanleitung

Summit

Summit FFBF101SS Bedienungsanleitung

Summit

Summit FF711ES Bedienungsanleitung

Summit

Summit FF7BBISSTB Leitfaden

Summit

Summit ASDR1524 Bedienungsanleitung

Summit

Summit FF22BDRSS Bedienungsanleitung

Summit

Summit FF-874W Bedienungsanleitung

Summit

Summit FFBF241W Bedienungsanleitung

Summit

Summit FFBF249SS2 Bedienungsanleitung

Summit

Summit FF1843B Bedienungsanleitung

Summit

Summit MB41B Bedienungsanleitung

Summit

Summit CT66BI series Bedienungsanleitung

Summit

Summit FF31L7BI Bedienungsanleitung

Summit

Summit AL750 series Leitfaden

Summit

Summit ALF620 series Bedienungsanleitung

Summit

Summit AL650 series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Summit accucold FFAR21LMAN Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken
