Summit FF43ES Bedienungsanleitung



COMPACT REFRIGERATOR

Instruction Manual

Model FF41ES Model FF43ES



BEFORE USE, PLEASE READ AND FOLLOW

ALL SAFETY RULES AND OPERATING INSTRUCTIONS

FELIX STORCH, INC.

770 Garrison Avenue

Bronx, NY 10474

www.summitappliance.com

Write Model and Serial Numbers here:

______________________________

TABLE OF CONTENTS

Important Safeguards .......................................................................2 – 3

Location of Parts .....................................................................................4

Installation ..........................................................................................5 – 7

Test Run ...............................................................................................5

Reversing the Door Swing ..............................................................6 – 7

Operation ..................................................................................................8

Temperature control

How to remove ice cubes from the tray

Defrosting .................................................................................................9

Cleaning and Maintenance ...................................................................10

Limited Warranty ........................................................................... 11 - 12

1



IMPORTANT SAFEGUARDS

Your safety and the safety of others are very important to us. We have provided several

important safety messages in this manual. Always read and obey all safety messages. Serious

injury or even death can result if you do not follow these instructions. To reduce the risk of fire,

electrical shock or injury when using the refrigerator, follow basic precautions, including the

following:

Plug into a grounded 3-prong outlet.

Do not remove grounding prong, nor use a 3/2 adapter.

Do not use an extension cord.

This appliance is designed for free-standing installation only. It should not be recessed or

built in.

It is recommended that a separate circuit, serving only your refrigerator, be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

Disconnect power before servicing.

After service, replace all parts and panels before operating.

Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or

explosion. And do not store or use gasoline or other flammable items in the area of this or

any appliance, as the fumes can create a fire hazard or explosion.

Do not use flammable sprays in the vicinity of the refrigerator.

When replacing a light bulb, unplug the appliance or turn off power at the circuit breaker or

fuse box in order to avoid touching a live wire. Turning the thermostat to OFF turns off the

compressor, but does not disconnect power to other electrical components.

Do not connect or disconnect the electric plug when your hands are wet.

Never unplug your appliance by pulling on the power cord. Always grip the plug firmly and

pull straight out from the socket.

Be careful not to roll over or damage the cord when moving the appliance.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

Unplug the refrigerator or disconnect power before making repairs or cleaning. Failure to do

so can result in electrical shock or death.

Do not attempt to repair or replaced any part of your refrigerator unless it is specifically

recommended in this manual. All other servicing should be referred to a qualified technician.

DANGER! RISK OF CHILD ENTRAPMENT !

Old appliances can represent a suffocation hazard to children.

Remove door(s) from your old appliance.

Leave shelves or baskets in place.

If an old appliance contains refrigerants, it must be recycled by a licensed service or

disposal agency.



2



This unit is not designed to operate in enclosed spaces. When placing your unit,

make sure you allow adequate airflow on all sides.

Use two or more people to move and install this appliance. Failure to do so can result in

back or other injury.

To ensure proper ventilation for you refrigerator, the front end of the unit must be completely

unobstructed. Choose a well-ventilated area with temperatures above 60ºF (16ºC) and

below 90ºF (32ºC). This unit must be installed in an area protected from the elements, such

as wind, rain, water spray or drips.

The refrigerator should not be located next to ovens, grills or other sources of high heat.

The refrigerator must be installed with all electrical, water and drain connections in

accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz),

properly grounded in accordance with the National Electrical Code and local codes are

ordinances is required.

Do not pinch, knot or bend the power cord in any manner.

The fuse or circuit breaker size should be 15 amperes.

It is important for the refrigerator to be leveled in order to work properly. You may need to

make several adjustments to level it.

Check for leaks after connection.

Never allow children to operate, play with or crawl inside the refrigerator.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

IMPORTANT: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

IMPORTANT: Do not damage the refrigerant circuit.

IMPORTANT: Do not use electrical appliances inside the food storage compartment of the

appliance, unless they are of the type recommended by the manufacturer.

Do not use solvent-based cleaning agents or abrasives on the interior. These cleansers may

damage or discolor the interior.

Do not use this appliance for other than its intended purpose.

If your electricity goes off, follow this procedure:

Call your power company to see how long the power will be out.

If service is to be interrupted for less than 24 hours, keep the appliance closed as much as

possible. This will help keep food from spoiling.

If service is to be interrupted for more than 24 hours, remove food and store in a refrigerated

food locker or other refrigerator.

‒SAVE THESE INSTRUCTIONS ‒



3



LOCATION OF PARTS



















1. Freezer Compartment – plastic ice cube tray included

2. Drip Tray – catches melt water during defrosting

3. Temperature Control Knob – rotate this to adjust refrigerator temperature

and to defrost

4. Slide-out Shelves – odor resistant, rustproof, plastic-coated steel

5. Crisper with Glass Cover – keeps vegetables fresh

6. Adjustable Feet – help to level the refrigerator

7. Bottle Racks

8. Rack for small items

4



INSTALLATION

To use the refrigerator with the most efficiency and safety, select a suitable place to

install it according to the following guidelines:

1. This refrigerator is designed for free-standing installation only and should not be

recessed or built in.

2. The refrigerator should be installed on a sturdy, level floor or counter. If the floor

is not quite level, adjust the front feet of the unit.

3. Allow 4 inches of space between the back of the refrigerator and the wall behind.

4. Avoid any direct sunlight, heat or moisture.

5. The refrigerator is equipped with a three-prong plug and is grounded to minimize

electrical hazards. To make it effective, the refrigerator must be plugged into a

grounded electrical socket.

6. Do not use an extension cord.

Test Run

Before using the refrigerator, clean it and make a test run to see if it follows the behavior

described here. If not, check the electricity supply. If the cause of the trouble cannot be

located, contact your Summit dealer.

1. Set the Temperature Control Knob at the OFF position and then plug the power

cord into an electrical outlet of 115 volts, 60Hz. The compressor should not run.

2. Set the Temperature Control Knob at the MAX position and let the refrigerator

operate for 20 minutes. The freezer compartment should get slightly frosted and

the compressor should run smoothly with no noise but a soft hum.

3. Then rotate the Temperature Control Knob counter-clockwise toward the MIN

position. Before the pointer of the knob reaches MIN, the compressor should turn

off.

ATTENTION

Your refrigerator is equipped with a special thermostat control

device. If the unit is turned off or unplugged, YOU MUST

ALLOW THREE (3) MINUTES BEFORE RESTARTING OR

REPLUGGING THE UNIT.

The unit will not start if you attempt to restart it in less than

three (3) minutes.

5



Reversing the Door Swing

Refer to the Disassembly Diagram on page 7 and change the door hinges following

this procedure: (The numbers in the diagram indicate the procedure order in the

instructions.)

1. Remove the hinge cap by twisting it off.

2. Remove the upper hexagonal head screws. The refrigerator door can now be

removed.

3. Tilt the refrigerator back or lay it on its back for steps 4, 5 and 6. Use a pad or

blanket to protect the floor and to avoid scratching the painted finish.

4. Remove the leveling legs by turning them counter-clockwise. Remove the lower

hexagonal head screws, two on the hinge side and one near the front corner of

the other side.

5. Attach the left side leg spacer to the other side hole which is positioned

symmetrically.

6. Attach the bottom hinge symmetrically to the other side of the cabinet.

7. Remove the upper hinge plastic pins and insert them in the holes from which the

screws were removed in procedure 2.

8. Take off the hinge collar caps using a screwdriver and insert them in the hinge

collar on the opposite side.

9. Attach the shaft to the refrigerator door. Attach the door to the bottom hinge and

secure them with the screws from procedure 4.

10.Attach the upper hinge to the refrigerator door. Do not tighten the screws

completely.

11.The direction in which the door opens has now been changed. However, the

following points should be checked:

a. Make sure the door is on straight.

b. Make sure there is no space between the door gasket and the refrigerator

unit itself when the door is closed.

c. Make sure the gasket on the hinge side is not caught between the door

and the unit when the door is opened or closed. (If the door is forced

closed when the gasket is caught, the gasket may be damaged.)

When checking the above points, if it is discovered that the door is not

installed properly (this is apt to happen on the first try), loosen the screws

holding the upper hinge, straighten the door and tighten the screws slowly

with the socket wrench. After making sure the door is installed correctly,

tighten all the screws holding the hinge. If they are not tightened, the door

may slip out of position or there may be an opening between the door and

the unit.

12.Stand the unit back in the upright position.

6



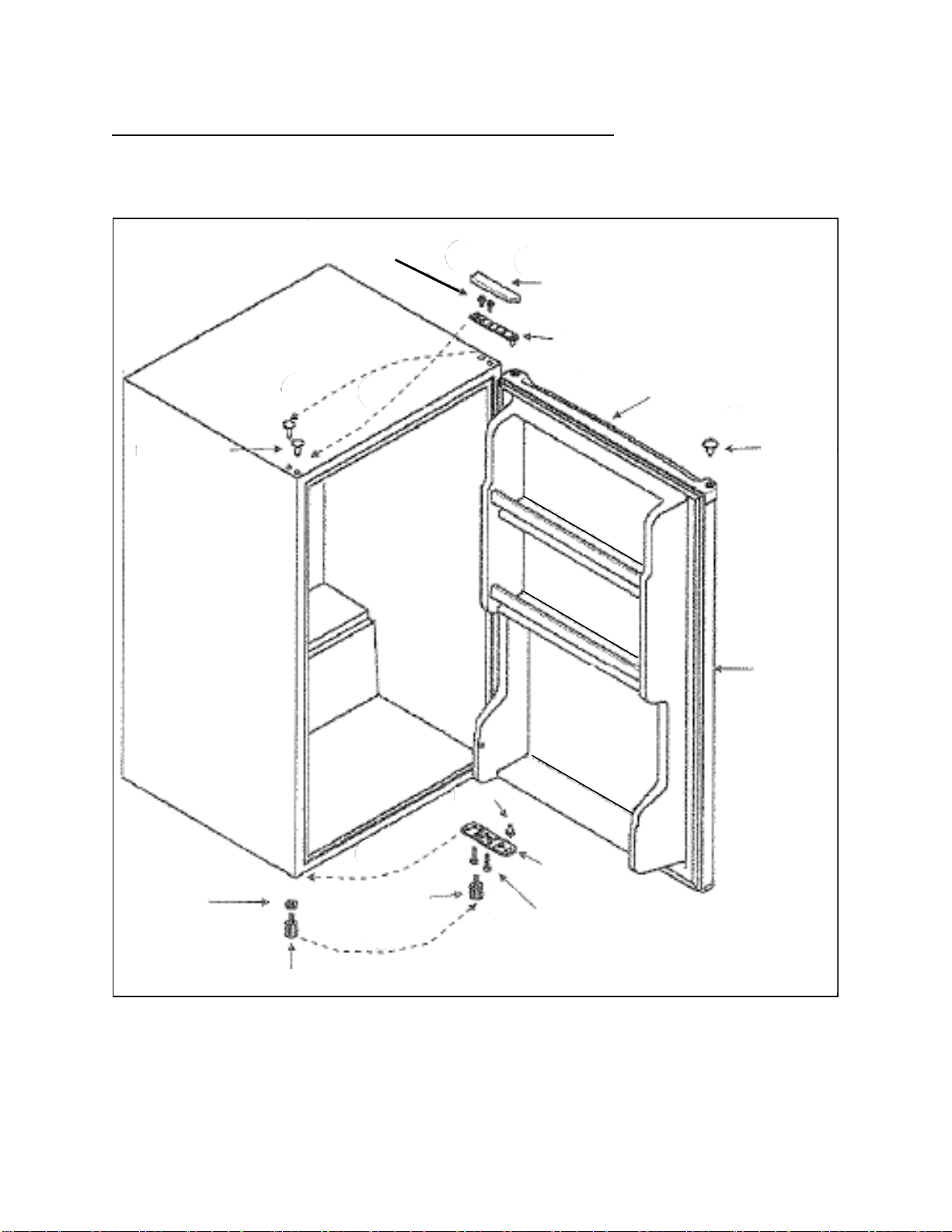

Disassembly Diagram for Reversing the Door Swing

Upper Hexagonal Head

Scre

Shaft

Bottom

Hinge

Lower Hexagonal

Head Screw

Leg

Spacer Leg

Top Hinge

Hinge Cap

Door

Hinge Cap



















7



OPERATION

Temperature Control

The temperature in the refrigerator compartment can be adjusted colder or warmer by

turning the Temperature Control Knob. Colder temperatures can be achieved by turning

the knob clockwise toward the MAX position. Warmer temperatures can be selected by

turning the knob counter-clockwise toward the MIN position.

The refrigerator temperature will vary depending on the quantity of food stored and on

the frequency with which the door is opened. Set the Control Knob at the MAX position

only when ice cubes are needed in a hurry.

This refrigerator may turn on and off more frequently than regular-size refrigerators.

This is normal for a compact refrigerator.



Normally the Temperature

Control Knob should be set at

the MED position.

How to remove ice cubes from the tray

The ice cube tray is flexible. Twist the tray to remove ice cubes.

Do not use boiling water or a metal instrument such as a knife or screw driver to remove

the ice cube tray because this could damage plastic parts or the evaporator.

8



DEFROSTING

The automatic defrost timer must be set prior to the operation of the refrigerator.

1. Plug the power cord into a 115 volt electric power outlet.

2. Set the timer to local time:

a. Using a pen or other similar nonconductive object, push the black button

and hold for three seconds until the LED illuminates.

b. Set the timer to local time by pushing the black button following the

instructions in the table below:

NOTE: This step must be completed within 10 seconds once the LED

illuminates.

Local

Time 1:00 -

2:59 3:00 -

4:59 5:00 -

6:59 7:00 -

8:59 9:00 -

10:59 11:00 -

12:59 13:00 -

14:59 15:00 -

16:59 17:00 -

18:59 19:00 -

20:59 21:00 -

22:59 23:00 -

0:59

Setting

Time 2:00 4:00 6:00 8:00 10:00 12:00 14:00 16:00 18:00 20:00 22:00 24:00

Switch

Pushing

Times 1 2 3 4 5 6 7 8 9 10 11 12

c. Once the time is set, the LED will blink the number of times the knob was

pushed.

Example: If the local time is 16:00 at the time of the installation, the following procedure

would be followed:

a. Push the black button and hold for three seconds until the LED

illuminates.

b. Then push the black button 8 consecutive times within 10 seconds.

c. Confirm that the LED blinks 8 times.

After the timer is set, the refrigerator will defrost automatically between 1:00AM and

4:00AM daily.

9



Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Summit Kühlschrank Handbücher

Summit

Summit FF7BBISSHH Leitfaden

Summit

Summit FF6BIADAFR Bedienungsanleitung

Summit

Summit AZRF7W Bedienungsanleitung

Summit

Summit FFBF279SSBI Bedienungsanleitung

Summit

Summit FF28L Bedienungsanleitung

Summit

Summit AL750 series Leitfaden

Summit

Summit FF-874 Series Bedienungsanleitung

Summit

Summit FF1410 Bedienungsanleitung

Summit

Summit FF1118W Series Bedienungsanleitung

Summit

Summit CM40BL Bedienungsanleitung

Summit

Summit SPR275OS2D Bedienungsanleitung

Summit

Summit CP34W Bedienungsanleitung

Summit

Summit FFAR12W7 Bedienungsanleitung

Summit

Summit FF19524 Bedienungsanleitung

Summit

Summit Accucold FF7LBIVAC Bedienungsanleitung

Summit

Summit FFBF240W Bedienungsanleitung

Summit

Summit CT66BI series Bedienungsanleitung

Summit

Summit CP-35 Bedienungsanleitung

Summit

Summit FF27BSS Bedienungsanleitung

Summit

Summit BDR190NASSTB Leitfaden

Summit

Summit FF7L-BLSSTB Leitfaden

Summit

Summit SCR600LOS SERIES Bedienungsanleitung

Summit

Summit FF41 Leitfaden

Summit

Summit CP72W Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
