Sunbeam StickMaster SM8650 Bedienungsanleitung

SM8650 Variable Speed 600W Stick Mixer

SERVICE MANUAL

SM8650

VARIABLE SPEED 600W STICK

MIXER

ISSUE: A

DATE: 04th February 2005

SM8650 Variable Speed 600W Stick Mixer

Spare Parts List

Note: Not all parts are available as spare parts. Please check price list.

QTY

PART NAME

Supplier’s Part No

Sunbeam’s Part No

SPEED COVER

ASA

SM-ASA-04

SPEED LEVER

POM

SM-POM-03

SPEED COVER

BASE

ASA

SM-ASA-03

TERMINAL BLOCK

PA66+30%GF

SM-PA-01

TOP COVER

ASS'Y

PP+TPE

SM-PP-ASM-04

GROMMET

PVC 60

WFK-PVC-01

MOTOR

230VAC

ELE-MOT-01

PCB ASS'Y

MOTOR TERMINAL

t=0.5mm

SM-ME-09

SWITCH PLATE

t=0.4mm

SM-ME-07

SWITCH SPRING

Φ=0.8mm

SM-ME-08

SWITCH

PA66+30%GF

SM-PA-02

UPPER KNOB

PA66+30%GF

SM-PA-03

LOWER KNOB

PA66+30%GF

SM-PA-04

MOTOR FRAME

PA66+30%GF

SM-PA-06

SHAFT SLEEVE

PA66+30%GF

SM-PA-05

TOP COVER

LOCKER

POM

SM-POM-09

FIX FRAME

SM-PP-02

SCREW

M3.0x8.0 PM

CARBON STEEL,

3.5x8.0-PM-CS-Ni

STEEL LOCK

BASE

SM-PP-03

STEEL

SM-ME-17

SM8650 Variable Speed 600W Stick Mixer

ENCLOSURE

Stainless Steel

STEEL

ENCLOSURE

BASE

STEEL

SM-ME-18

STEEL HORN

Stainless Steel

SM-ME-16

STEEL

ENCLOSURE

ASS'Y

STEEL

HORN+STEEL

ENCLOSURE+STE

EL ENCLOSURE

BASE

SM-ME-ASM-05

LOCKER RING

PA66+30%GF

SM-PA-07

CONNECT O-RING

NITRILE RUBBER

SM-RUB-01

CONNECTOR

POM

SM-POM-15

SEAL RING

NITRILE RUBBER

SM-RUB-02

WASHER A

ID=5.2 OD=9.0,

T=0.5

BW-ID5.2-OD9

SLEEVE BASE

POM

SM-POM-04

SINTER SLEEVE

sinter brass

SM-CU-01

STEEL BASE

ASS'Y

steel base

ass'y+LSR

SM-ASA-ASM-01

STEEL ROD

Stainless Steel

SM-ME-20

E-RING

SUS T=0.7 ID=4.0

OD=9.0

ER-SUS-ID4-OD9

BLADE

Stainless Steel

SM-ME-02

STEEL BLADE

ASS'Y

STEEL

ROD+BLADE

SM-ME-ASM-06

BLENDER

CONNECTOR

POM

SM-POM-12

SM8650 Variable Speed 600W Stick Mixer

BLENDER COVER

SM-PP-08

BLENDER SEAL

RING

NITRILE RUBBER

SM-RUB-03

SEAL RING

COVER

POM

SM-POM-10

WASHER

ID=4.7 OD=8.0

T=0.40

PW-ID4.7-OD8

BLENDER DRIVER

SHAFT

Die Cast

SM-ME-12

BLENSER GEAR

SHAFT

STEEL

SM-ME-11

BLENSER GEAR

FRAME

STEEL

SM-ME-10

BLENDER GEAR

ASS'Y

BLENSER GEAR

FRAME+BLENDER

DRIVER SHAFT

SM-ME-ASM-01

BLENDER GEAR

POM

SM-POM-11

BLENDER DRIVER

FRAME

POM

SM-POM-13

BLENDER

ENCLOSURE

PP+STEEL RING

SM-PP-ASM-02

STEEL RING

Stainless Steel

SM-ME-14

BLENDER O-RING

NITRILE RUBBER

SM-RUB-04

BLENDER DRIVER

GEAR

POM

SM-POM-14

BLENDER BLADE

CONNECTOR

POM

SM-POM-02

BLENDER BLADE

ASS'Y

POM+BLENDER

BLADE

SM-POM-01

BLENDER BLADE

Stainless Steel

SM-ME-13

SM8650 Variable Speed 600W Stick Mixer

BLENDER BLADE

PLUG

POM

SM-POM-17

BLENDER BLADE

ASS'Y

BLENDER BLADE

ASS'Y+BLENDER

BLADE

CONNECTOR

SM-POM-ASM-01

BLENDER JUG

SAN+ FIXER PIN

SM-SAN-ASM-01

FIXER PIN

Stainless Steel

SM-ME-15

BLENDER COVER

ASS'Y

PP+TPE

SM-PP-ASM-01

EGG STIRING

RIBBON

POM

SM-POM-16

EGG STIRING

COVER

SM-PP-06

EGG STIRING

SHAFT

CONNECTOR

POM

SM-POM-08

WASHER B

ID=4.2

OD=7.8，T=0.5

BW-ID4.2-OD7.8

EGG STIRING

SHAFT

Die Cast

SM-ME-05

EGG STIRING

SLEEVE

sinter brass

SM-CU-02

EGG STIRING

GEAR SHAFT

Stainless Steel

SM-ME-04

EGG STIRING

GEAR FRAME

steel

SM-ME-03

EGG STIRING

GEAR ASS'Y

EGG STIRING

GEAR FRAME+

EGG STIRING

GEAR SHAFT

SM-ME-ASM-02

EGG STIRING

GEAR

POM

SM-POM-05

EGG STIRING

GEAR COVER

SM-POM-07

SM8650 Variable Speed 600W Stick Mixer

POM

EGG STIRING

DRIVER BASE

POM

SM-POM-06

EGG STIRING

STEEL RING

Stainless Steel

SM-ME-06

EGG STIRING

ENCLOSURE

SM-PP-05

EGG STIRING ROD

ASS'Y

Stainless Steel

SM-ME-ASM-03

MEASURING CUP

SAN

SM-SAN-01

MEASURING CUP

COVER

PP+TPE

SM-PP-ASM-03

SUCTION CAP

SILICON 40

SM-RUB-06

1.30

POWER CORD

ASS'Y

H03VVH2-F

2×0.75m㎡

EL-H03-2P-01

SCREW

M4X10

ALUMINIUM

WASHER

Aluminum ID=5.1

OD=8.0 T=0.8

PW-ID5.1-OD8

EXTERNAL RING

STEEL T=0.6

ID=4.7 OD=6.5

STW-D5-ID4.7-

OD6.5

TOP SEALER

NBR 70 Black

Plating

SM-RUB-05

Metal Chasse

Bottom Lid

Stainless Steel

SM-ME-19

Metal Blender Base

ASA+ Metal Chasse

Bottom Lid

SM-ASA-ASM-02

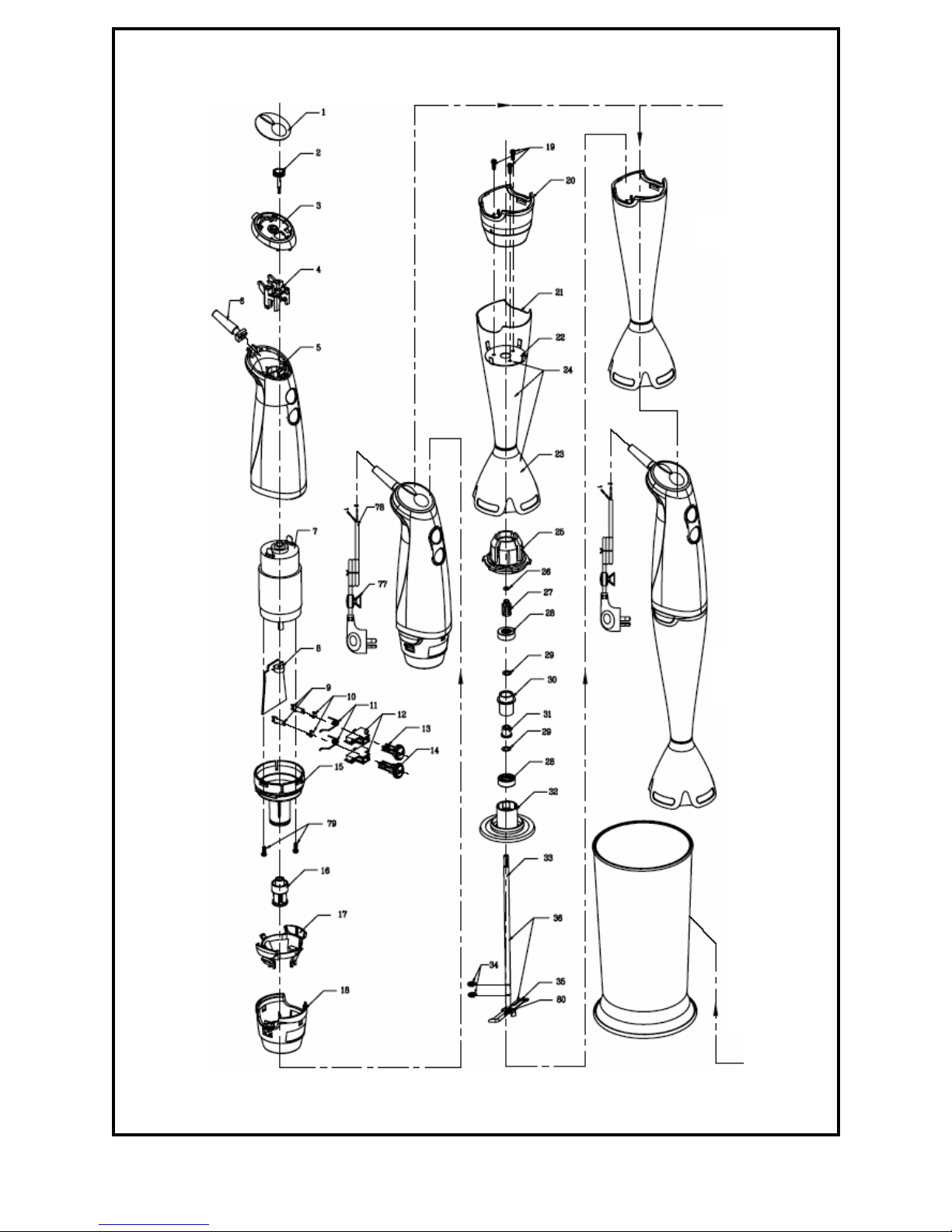

Drawing of Appliance

SM8650 Variable Speed 600W Stick Mixer

Circuit Diagram
