MAGNUS
Variable Speed DC Pump
User Manual
VSG6000 / VSR9000 / VSB12000
P01
English
Ultra high pressure height
Excellent closed impeller design with the highest pressure.
Smart controller
6 speeds with 10 minutes feed mode (pause and auto resume).
High reliability
Non-electronic component in the pump.
Used in fresh water and salt water, inline or submersed.
Quietness
20k Hz working frequency created extremely low-noise operation.
High quality
Selected raw materials of key parts and provided proven reliability test result.
IPX 8 international waterproof
Ceramic rotor shaft and bearing
Titanic screws and nuts
ABS pump and controller case
Silicone keypad & gaskets (cushion)
MAGNUS
DC Pump
AC/DC
Adapter
Power Cord
Water inlet / outlet unions
and gaskets package
Console
Cable
Controller

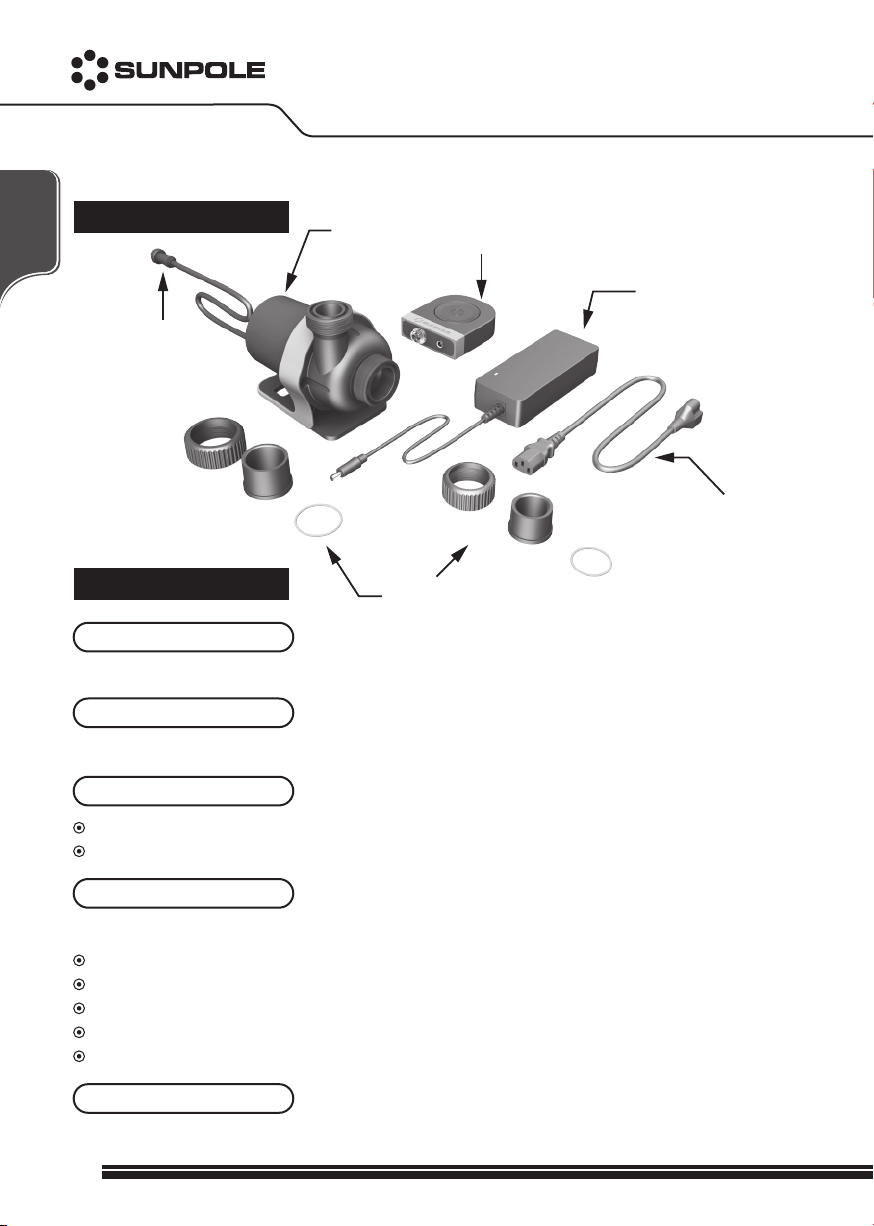

Package Contents
Product Features
MAGNUS
Variable Speed DC Pump
P02
English

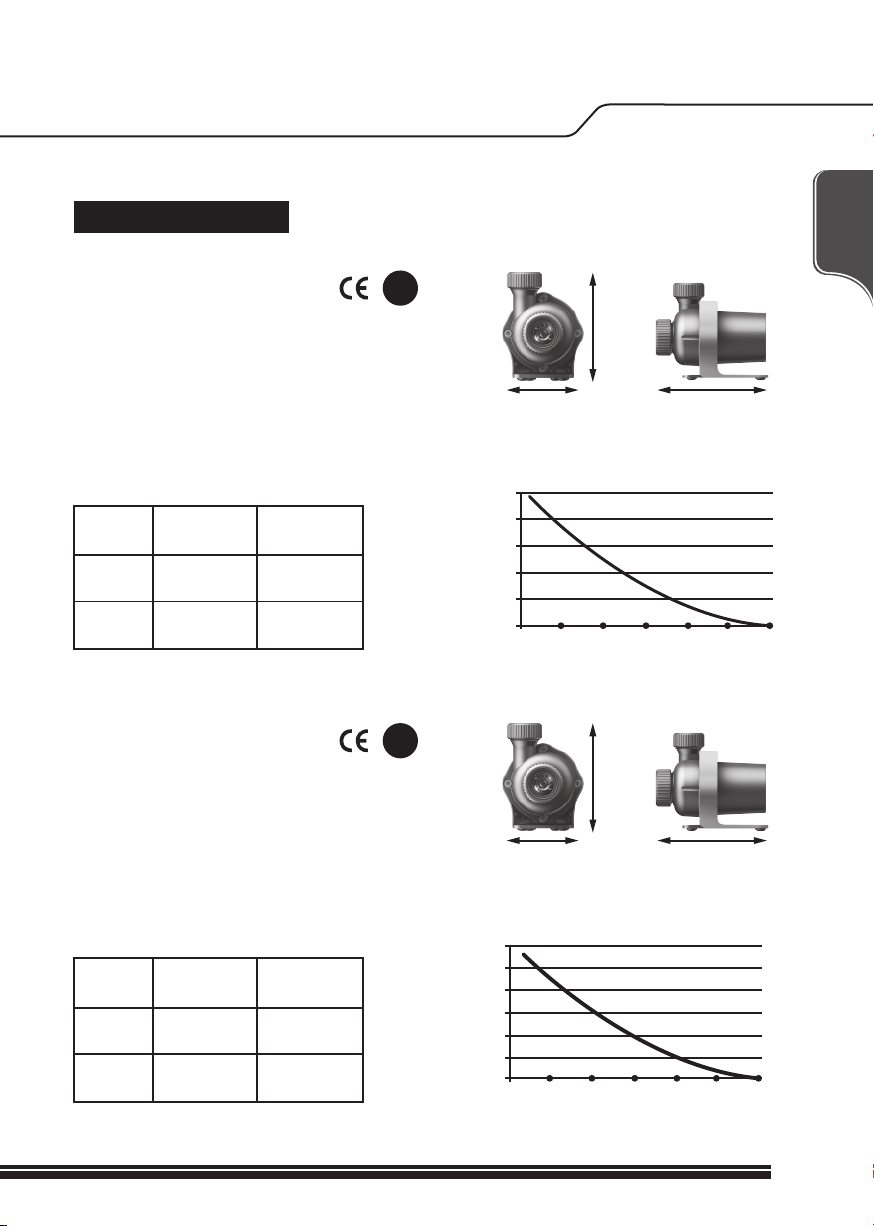

Product Specifications
Flow : 6,000 lph (1,580 gph)
Pressure : 4.9 m (16
’)
Wattage : 50 W
Operating Voltage : 110-230 V / 50-60 Hz
Weight : 1.52 kg (The pump)
Cable Length : 3 m (The pump to the controller)
Color : Green VSG-6000 CONSTANT POWER
m
5
4
3
2
1
0lph
1,000 2,000 3,000 4,000 5,000 6,000
Threaded
Quick
couple
Inlet Outlet
11/2”(40mm)
1”(25mm)
11/4”(32mm)
3/4”(20mm)
IPX8
Certified
148mm
(5.8”)
112mm (4.4”) 171mm (6.7”)
VSG-6000
lph
9,000
VSR-9000 CONSTANT POWER
m
6
5
4
3
2
1
01,500 3,000 4,500 6,000 7,500
Flow : 9,000 lph (2,370 gph)
Pressure : 5.6 m (18’)
Wattage : 85 W
Operating Voltage : 110-230 V / 50-60 Hz
Weight : 1.52 kg (The pump)
Cable Length : 3 m (The pump to the controller)
Color : Red
IPX8
Certified
148mm
(5.8”)
112mm (4.4”) 171mm (6.7”)
VSR-9000
Threaded
Quick
couple
Inlet Outlet
11/2”(40mm)
1”(25mm)
11/4”(32mm)
3/4”(20mm)
VSG6000 / VSR9000 / VSB12000
P03
English
Feed Mode
Press FEED button for pasuing
10 mins or press again to resume.
Hangable
Hook design,more convenient to
prevent scratches by the rubber mat.
Smart Controller
Flow Adjustment
Six-step speed adjustment
(Adjusted Range 10%-100%).
VSB-12000 CONSTANT POWER
m
7
6
5
4
3
2
1
0lph
2,000 4,000 6,000 8,000 10,000 12,000
Flow : 12,000 lph (3,170 gph)
Pressure : 6.5 m (21’)
Wattage : 150 W
Operating Voltage : 110-230 V / 50-60 Hz
Weight : 2.17 kg (The pump)
Cable Length : 3 m (The pump to the controller)
Color : Blue
Threaded
Quick
couple
Inlet Outlet
2”(50mm)
11/4”(32mm)
11/2”(40mm)
1”(25mm)
IPX8
Certified
172mm
(6.8”)
129mm (5.1”) 191mm (7.5”)
VSB-12000
Memory Function
Automatically remembers and resumes
the last flow ratio value after the power
is restored.
Over Load Protection Function
If the pump gets stuck or abnormal current occurs, this may cause the pump to malfunc-
tion. The controller will display an error indicator (as the left figure) and the pump will
stop working instantly. Please disconnect the power and clean the pump.
MAGNUS
Variable Speed DC Pump
P04
English
Flexibility Setup
Submersed and Inline
Typical Installations
The MAGNUS is a return pump which can be run either submersed or inline.
Adjustable Volute
The volute can be rotated for alternative plumbing configurations.
Submersed
Pump
Sump
Pump
power cable
Aquarium
Internal
Overlow
Area
Submersed
The pump should be
placed under water face
Inline
The pump should be
placed under water level
1 2 3 4
Inline
Pump
Sump
Pump
power cable
Aquarium
Internal
Overlow
Area
VSG6000 / VSR9000 / VSB12000
P05
English
Maintenance
Installation instruction
After disconnect the power,unscrew the
pump volute and check if any stocks in
the pump impeller and volute.
Pull out the shaft to check if any mud,
sands on the surface and clean the
shaft house inside with fresh water or
detergent. Make sure wash out the
detergent by fresh water.
Installation of the connector requires the correct size ABS plumbing and cement.
Make sure the ABS plumbing and the pump are indeed engaged, and then allow the ABS cement
to properly dry before operating.
Muddy fresh water
Salt water
Hard water, high K-value water, high mineral water
Very rare maintains to MAGNUS DC pumps are required in clear fresh water, but while MAGNUS DC
pump is being used in the following situation, we recommend the users should check and clean the
pump in every 6 months or even in shorter period.
1
2
3
ABS
1Install the O-rings on the intel and outlet.
2Slide the union coller onto the pipe.
3Apply ABS cement to the inside of the union
coupling and slide on to the bottom of the pipe.
MAGNUS
Variable Speed DC Pump
P06
English
Warning
Limited Warranty
The MAGNUS DC pump is guaranteed for a period of 24 months from date of purchase for material or
manufacturing defects.
The warranty is valid only when the warranty card is properly completed, and upon presentation of the proof
of purchase consisting of original invoice or sales slip indicating the date of purchase, retailer's name, type
and serial number of the product.
If the warranty card is not available, the MAGNUS DC pump is guaranteed only for a period of 13 months from
manufacture date.
This limited warranty does not cover any damage to this product that results from below specific conditions.
Malfunction of products results from improper installation accident, natural disaster, and artificial
operation.
Un-authorized disassembly, repair or modification of the product or accessories.
Warranty card or identification information has been altered, obliterated or removed.
Serial number of product does not match or be damaged or not clear enough to identify.
Products gave been sold not through authorized agent, direct distributors, and resellers as well.
Using any other thing than the specified consumables.
The warranty excludes normal depletion of consumable parts unless failure has occurred due to a defect
in materials or workmanship.
Failure or damage caused during transport or fall after the purchase.
Failure and damage occurred after the warranty period.
Do not connect the pump controller to others power except original power adapter.
Do not use the pump in flammable liquid. Use this pump in clean fresh water or salt water only.
Do not use the pump in water over 40℃.
Do not run the pump at the place 2.5m deeper underwater.
Do not use the pump in swimming pool.
Children are not allowed to operate or use the pump without adult supervision.
Do not put fingers or others object in front of the inlet or outlet of the pump.
Do not pull or drag the cables which connected with the pump, controller and adapter.
The pump can't be cleaned and maintained unless disconnect the power.
Every MANGUS DC pump is having series number on the body of pump. If you need to have after
sale service or technical support, you might need to show your S/N no. to your local retailers or
distributors, as well as your purchasing evidence, like sales invoice or warranty card.
If the controllers or the AC/DC adaptor is not working, contact your retailers and ask for a new
replacement with your pump still in Warranty.
Please do not dispose this product as unsorted municipal waste.
P07
Warranty Card
User Memo
Name：
Phone：
E-mail：
Address：
Type：
Serial No.：
Distributor：
Retailer：
Date of Purchase：
Yea 20 Month Day
Retailer’s Se a l：
