Overview

CrossFire H2 is a digital transport platform supporting cellular and wideband public safety technologies on fibre optic cable

using the CPRI protocol. The power amplifier technology adopts Digital Pre-Distortion, allowing for a significant

improvement in power consumption compared with analogue technology. This platform is ideal for multi-operator multi-

band deployments of cellular services into large coverage areas, and as an alternative for single operator RAN solutions.

The product is used in industrial environment, and doesn’t support home/personal use.

Key Features

Up to 43dBm Output Power per Band

2 x 3GPP Bands per Remote

External Alarm Interface

600 to 6000MHz Range

Optical cascading of E2-O’s & RU’s

Up to 100MHz per Band

System Elements

Block Diagram

H2RU

High Power

Remote Unit

E2-O

Optical

Expansion Unit

Access Unit

HIGH POWER

43dBm Dual Band

Digital Radio

Contact

today:

www.sunwave.com

cf_support

@sunwave.com

Technical Specifications

System

Maximum RF Bands per Access Unit 4

Maximum RF Bands per Remote Unit 2

Maximum RF Bands per System 12

Maximum Access Units per System 3 (1 x Master / 2 x Slaves)

Maximum EUs per Master A2 8

Maximum EUs cascaded 5

Maximum RUs cascaded 6

Frequency Range (Non-Contiguous) 600MHz – 6000MHz

Bandwidth per Channel (Downlink & Uplink) ≤100MHz (Contiguous)

Digital Bandwidth per Channel (Downlink & Uplink) 20 / 30 / 40 / 50 / 60 / 80 / 100 MHz

Bandwidth per System (Downlink & Uplink) ≤400MHz (in each direction)

MIMO 2x2: 1 x RU | 4x4: 2 x RU | 8x8: 4 x RU

System Delay Adjustment Up to 80.00µs

Forward Path (Downlink)

Output Power Accuracy ±2dB

Maximum Gain 43 ± 1dB

Maximum Input Power +15dBm

Error Vector Magnitude <3.5% @ 256 QAM

Ripple 3dB Typical

Manual Gain Control 45dB @ 1dB/step (AU:30dB, RU:15dB)

System Delay (AU+EU+RU) 12µS

VSWR (AU/RU) 1.5:1

HIGH POWER

43dBm Dual Band

Digital Radio

Contact

today:

www.sunwave.com

cf_support

@sunwave.com

Technical Specifications

Supported Bands

Band 3GPP Band Uplink(RX) Downlink(TX) Max Bandwidth

BRS/EBS 7 2620-2690 2500-2570 70

Note: The unit is MHz.

Interfaces

Antenna Interface (All bands) 4.3-10 Female

Antenna Gain 12dBi

Access Unit RF Interface QMA Female

Optical Connector Type SFP+, Standard LC

Optical Transmission Rate 10.1376Gb/s

Optical Fibre Length

1.4km / 10km / 30km

0.87mi / 6.21mi / 18.64mi

Physical Alarms DB9, Female (4x in, 4x out)

Maintenance Interface Ethernet RJ45 / Wi-Fi / USB

Electrical

Electromagnetic Compatibility/Interference (EMC/EMI) 3GPP TS36.113 | 3GPP TS25.113

Maximum Power Consumption (A2/E2-O/RU) 80W / 60W / 250W

AC Power 100-240V AC, 50/60Hz

DC Power 48VDC ±20% (A2/E2-O)

Technical Specifications

Environmental

Mean Time Between Failure (MTBF) >100,000 hours

Operating Temperature (A2/E2) -10°C to +50°C / 14°F to +122°F

Operating Temperature (RU) -40°C to +50°C / -40°F to +122°F

Storage Temperature -40°C to +70°C / -40°F to +158°F

Humidity 5% to 85% (Non-Condensing)

Cooling Passive

Installation A2/E2: Wall or 19” Rack | RU: Wall or Pole

Ingress Protection Rating A2/E2: IP30 (Indoor) | RU: IP65 (Outdoor)

Mechanical

A2 (Width / Height / Depth / Weight)

440mm / 44mm / 329mm / 8.0kg

17.32in / 1.73in / 12.95in / 17.64lb

HIGH POWER

43dBm Dual Band

Digital Radio

Contact

today:

www.sunwave.com

cf_support

@sunwave.com

E2-O (Width / Height / Depth / Weight)

440mm / 44mm / 220mm / 5.0kg

17.32in / 1.73in / 8.66in / 11.02lb

H2RU (Width / Height / Depth / Weight)

excluding Bands 12, 13 & 14

400mm / 125mm / 300mm / 16.0kg

15.75in / 4.92in / 11.81in / 35.27lb

H2-7 (Width / Height / Depth / Weight)

for Bands 12, 13 & 14

400mm / 135mm / 300mm / 18.0kg

15.75in / 5.31in / 11.81in / 39.68lb

Preface

Safety Instructions

All the following “Safety Precautions” must be observed during the entire installation and operation of the CrossFire system.

The CrossFire system components are designed for maximum safety and reliability when they are installed, used, and maintained by

trained and qualified technicians in accordance with the procedures and instructions contained in this manual. To assure the safe

operation of your system, always follow the safety and operational recommendations in this manual.

1. The shells of the device have protective ground terminals. During installation, connect the ground terminals securely to the

protective building ground with yellow and green conductors or with braided ground wire. The aerial and feeder must be

adequately grounded.

2. The power source must be within the required range of the device. The rated voltage range for the AC power supply system is

100 ~ 240VAC, and the rated frequency range is 50Hz / 60Hz. The rated power of the A2, E2, and H2RU is 80W, 60W, and

250W, respectively. The ground terminal of the three-core power socket used at the device installation site must be securely

connected to the protective building ground.

3. To avoid injuries or damage, use care, and obtain assistance before lifting any heavy system components or equipment.

4. While fiber optic power levels used in this system are very low, it is advisable to avoid exposing the human eye to the laser light

emanating from a fiber port or plug.

5. Signals coupled from the BTS shall be no greater than +15dBm, otherwise, the device will not operate normally, and damage

may occur to the circuit.

6. Reserve at least 40mm of height above the radiation fins during device installation; otherwise, the device temperature may rise

and affect the service life of the device.

7. Please use Shielded Twisted Pair (STP) cables for WLAN application.

8. Low path loss cables connected to antennas are highly recommended.

Element Management

OMT (Operations and Maintenance Terminal) Yes. Access via A2, E2 or RU (Web Based)

LMS (Local Management System) Yes (Ordered separately)

NMS (Network Management System) Yes (Ordered separately)

HIGH POWER

43dBm Dual Band

Digital Radio

Contact

today:

www.sunwave.com

cf_support

@sunwave.com

Site Considerations

1. CrossFire complies with FCC RF exposure limits for an uncontrolled environment. This equipment must be installed and

operated with a minimum distance of 400 cm for H2RU between the antennas and any person’s body.

2. The system delay should be taken into consideration when there are neighboring BTS sites that are overlapping in coverage.

Normal use of the system will not damage the base station; however, with the increase of RU during network coverage for

indoor distribution, the uplink output noise level may affect the sensitivity of the base station, which should be considered

during engineering design. Pick an ideal easy-to-reach location for installation convenience.

3. Pick an ideal easy-to-reach location for installation convenience.

4. Verify that there is a minimum of a 50cm radius of space around CrossFire equipment for the convenience of maintenance and

on-site inspection.

5. Install CrossFire close to the service area for monitor and debugging.

Environmental Considerations

Humidity and temperature can adversely effort reliability of the CrossFire system. Therefore, it is highly recommended to install the

equipment in locations with stable humidity, temperature, and ventilating.

The equipment has to operate at humidity level and temperature range as follow:

Maximum humidity: 85%

Operating Temperature range: -10°C to +50°C

Storage Temperature range: -25°C to +70°C

HIGH POWER

43dBm Dual Band

Digital Radio

Contact

today:

www.sunwave.com

cf_support

@sunwave.com

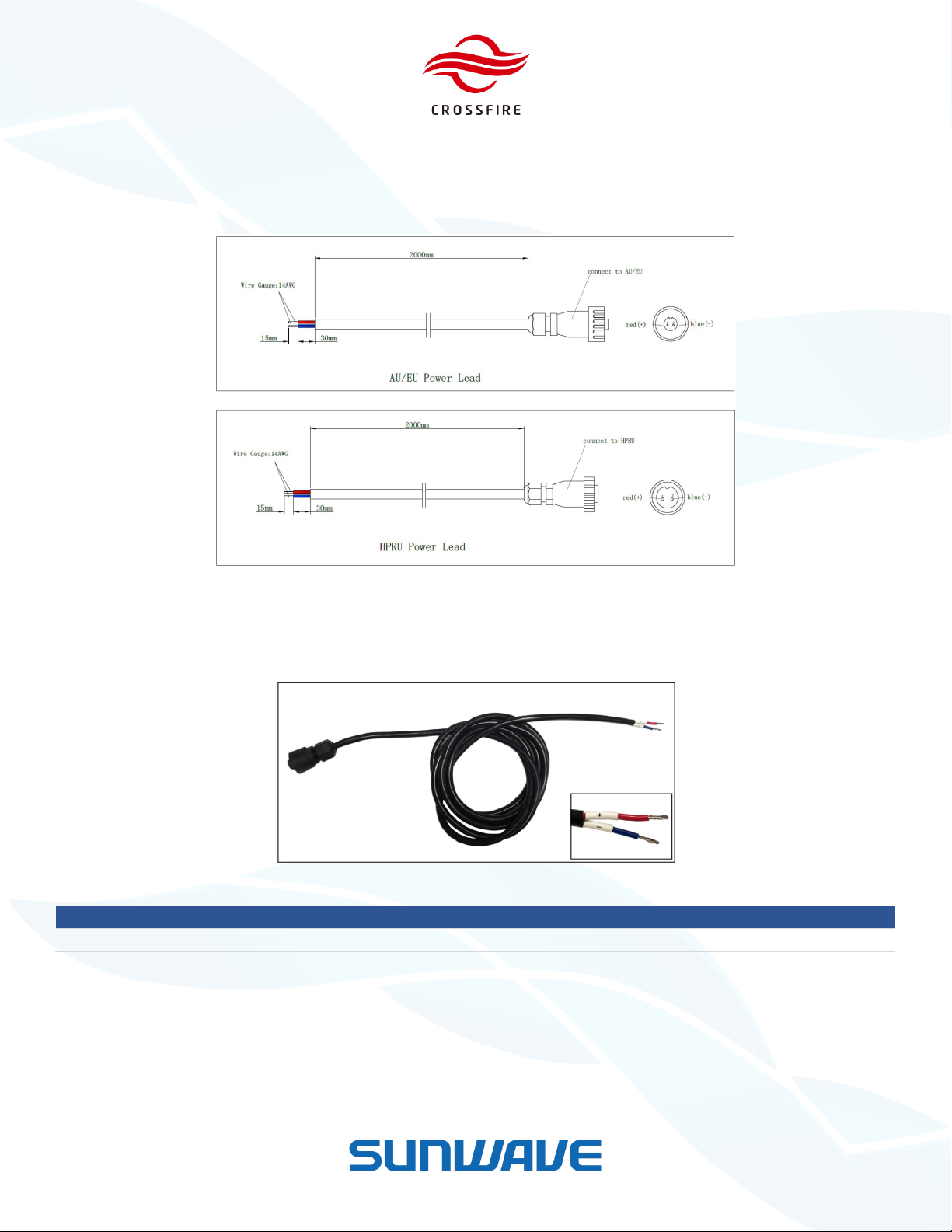

DC Power Connections

Referring to the diagram, connect the power cables as follows:

Higher voltage wire linked to RED cable / Lower voltage wire linked to BLUE cable.

Connect “+” to a high potential (+48VDC from a +48VDC power supply; 0VDC from a -48VDC power supply)

Connect “-” to a low potential (0VDC from a +48VDC power supply; -48VDC from a -48VDC power supply)

Cable Core Cable Length Maximum Expandable Length

14AWG 2m 10m

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sunwave Netzwerk-Hardware Handbücher

Sunwave

Sunwave CROSSFIRE N2 NANO POWER Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
