VENTILATOR USER GUIDE MODEL V20-BD

POSITIVE PRESSURE VENTILATOR

V20-BD PPV User GuideRevised 11-2022

USER GUIDE

This manual covers the description, cautions, operation, and maintenance of the Super Vac V20-BD.

Read this manual before operating the ventilator.

Save this guide for future reference.

CONTENTS

1. BREAKAGE OR DAMAGE DURING SHIPMENT ......................................................................................................... 2

2. GENERAL DESCRIPTION AND SPECIFICATIONS...................................................................................................... 3

3. PRODUCT SAFETY PRECAUTIONS ........................................................................................................................ 3

4. BEFORE OPERATING VENTILATOR ........................................................................................................................ 4

5. OPERATION ........................................................................................................................................................ 5

6. CHARGING THE BATTERY PACKS.......................................................................................................................... 6

7. MAINTENANCE AND REPAIR................................................................................................................................. 6

8. WARRANTY......................................................................................................................................................... 7

9. CONTACT INFORMATION...................................................................................................................................... 8

10. BEST PRACTICES FOR BATTERY LIFE ................................................................................................................... 9

11. PARTS LIST ...................................................................................................................................................... 10

12. EXPLODED VIEW ............................................................................................................................................... 11

POSITIVE PRESSURE VENTILATOR

2V20-BD PPV User Guide Revised 11-2022

1. Breakage or Damage During Shipment

The transportation company is fully responsible for all shipping damage and will resolve problems promptly if you handle it

correctly. Please read these instructions carefully.

Examine the contents of all shipping cases. If you ﬁnd any damage, call your transportation agent at once and have them make a

description on the freight or express bill describing the damage and the number of pieces. Then write us and we will send you the

original bill of lading. Get a claim blank from the express or truck company. Fill the claim form out. Attach the claim blank to the

original bill of lading together with a copy of our invoice. Attach a memo on which you show the value of the damaged goods. Mail

or hand these papers to your local transportation agent. They will process your claim with reasonable promptness.

Please note, we cannot and will not enter claims for damages. If we ﬁled claim here, it would be sent to your local freight agent for

veriﬁcation and investigation. This time can be saved by your ﬁling the claim directly. Every consignee is on the ground ﬂoor and

in contact with the local agent who inspects the damaged goods, and thus, each claim can be given individual attention.

Since our goods are packed to comply with the regulations of all railroad, truck, and express companies, we cannot allow

deduction from any invoice because of any damage, however, be sure to ﬁle your claim promptly. Our goods are sold F.O.B.

factory. We take receipt from the transportation company certifying that the goods were delivered to them in good order, and our

responsibility ceases.

It is seldom that any breakage or damage occurs in any of our shipments, and in no case will the customer be out any expense if

they follow the above instructions.

Be sure to keep all damaged goods subject to examination of the truck or express company inspector, who may call on you some

time later. These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of

these damaged goods, your claim may not be paid.

POSITIVE PRESSURE VENTILATOR

V20-BD PPV User GuideRevised 11-2022

2. General Description and Specications

Super Vac ventilators are speciﬁcally designed to provide a convenient and portable source of air. Super Vac positive pressure

ventilators are tested to AMCA Standard 240-15, for use in extreme conditions.

Model # RPM Motor HxWxD Weight

V20-BD 2,100 1 HP Variable Speed DC 28.25” x 28.75” x 12.5” 62 lbs

Specications are subject to change without notication. Refer to model decal afxed to ventilator to determine actual specications.

This ventilator is designed for high powered air movement. Each blade is dynamically balanced for high efﬁciency and long life.

3. Product Safety Precautions

• Do not use the ventilator for purposes other than its’ intended use.

• Wear eye and ear protection when operating the ventilator.

• Never operate ventilator while fatigued.

• Do not disassemble or modify the ventilator in any way. Doing so may lead to mechanical failure or personal injury.

• Do not wear loose clothing that could become entangled in the operating ventilator.

• Never permit anyone to operate ventilator without proper instruction.

• Do not operate ventilator without proper inlet or outlet guards in place. If guards are missing or damaged, contact factory for

replacements.

• Do not place ﬁngers or other foreign objects through inlet or outlet guards. Should a foreign object enter the ventilator, immediately stop

motor. Be certain all mechanical motion has stopped. Do not use with any power voltage other than the indicated voltage.

• Never handle energized power cords with wet hands.

• Do not place or operate ventilator on unsteady tables, slanted surfaces or other unstable surfaces. Never use this ventilator in any

explosive environment.

• Never let extension cords or plug connections lay in water. Locate the ventilator so that it cannot fall into water inadvertently.

• Never store or carry the battery pack so that metal objects can contact exposed battery terminals. Transporting batteries can possibly

cause ﬁres if the battery terminals contact loose nails, screws, keys, hand tools and the like

POSITIVE PRESSURE VENTILATOR

4V20-BD PPV User Guide Revised 11-2022

4. Before Operating Ventilator

1. This ventilator operates on any two of the DeWalt FlexVolt batteries of the same Amp-Hour rating.

2. A complete inspection of the ventilator should be made prior to operation.

a. Check all threaded fasteners for proper tightness.

b. Inspect inlet and outlet guards for damage or missing pieces. Replace damaged or missing guards before operating

ventilator.

3. If using shore or mains power, then:

a. Never use power cords with frayed, cut, or brittle insulation.

b. Inspect power cord plug for proper connections to the ground fault interrupter circuit.

The Air Movement and Control Association International Inc. (AMCA) is a not-for-proﬁt international association of the world’s leading manufacturers of air system equipment. Super Vac ventilators have been

tested through this third-party organization for over 30 years in order to provide our customers conﬁdence that our airﬂow values are correctly measured and advertised. In order to view all AMCA Certiﬁed

Products according to ANSI/AMCA Standard 240, follow this link. http://www.amca.org/certiﬁed-listed/type_company.php?pid=13&pn=Positve%20Pressure%20Ventilator.

21 ft 18 ft 15 ft 12 ft 9 ft 6 ft 3 ft 0

6.5 m 5.5 m 4.5 m 3.6 m 2.7 m 1.8 m 1m

13,000

12,000

11,000

10,000

9,000

8,000

7,000

6,000

AMCA Airow (cfm)

Setback (ft, m)

13,000

25º20º15º5º 10º 30º

12,000

12,500

12,700

12,500

11,000

MAXIMUM

AIRFLOW

Airow VS Setback

POSITIVE PRESSURE VENTILATOR

V20-BD PPV User GuideRevised 11-2022

5. Operation

• Use caution not to direct toxic fumes into conﬁned spaces with the ventilator.

• Insert (2) DeWalt FlexVolt batteries until they click.

• Battery removal will get easier with more remove/replace cycles.

• Fan will need to be reset (turned off & on) if a new battery is inserted.

• If fan is not reset, then the fan will not recognize the new battery and run until previous battery is empty.

• If using shore (mains) power, use an extension cord to connect to 110 – 240V AC.

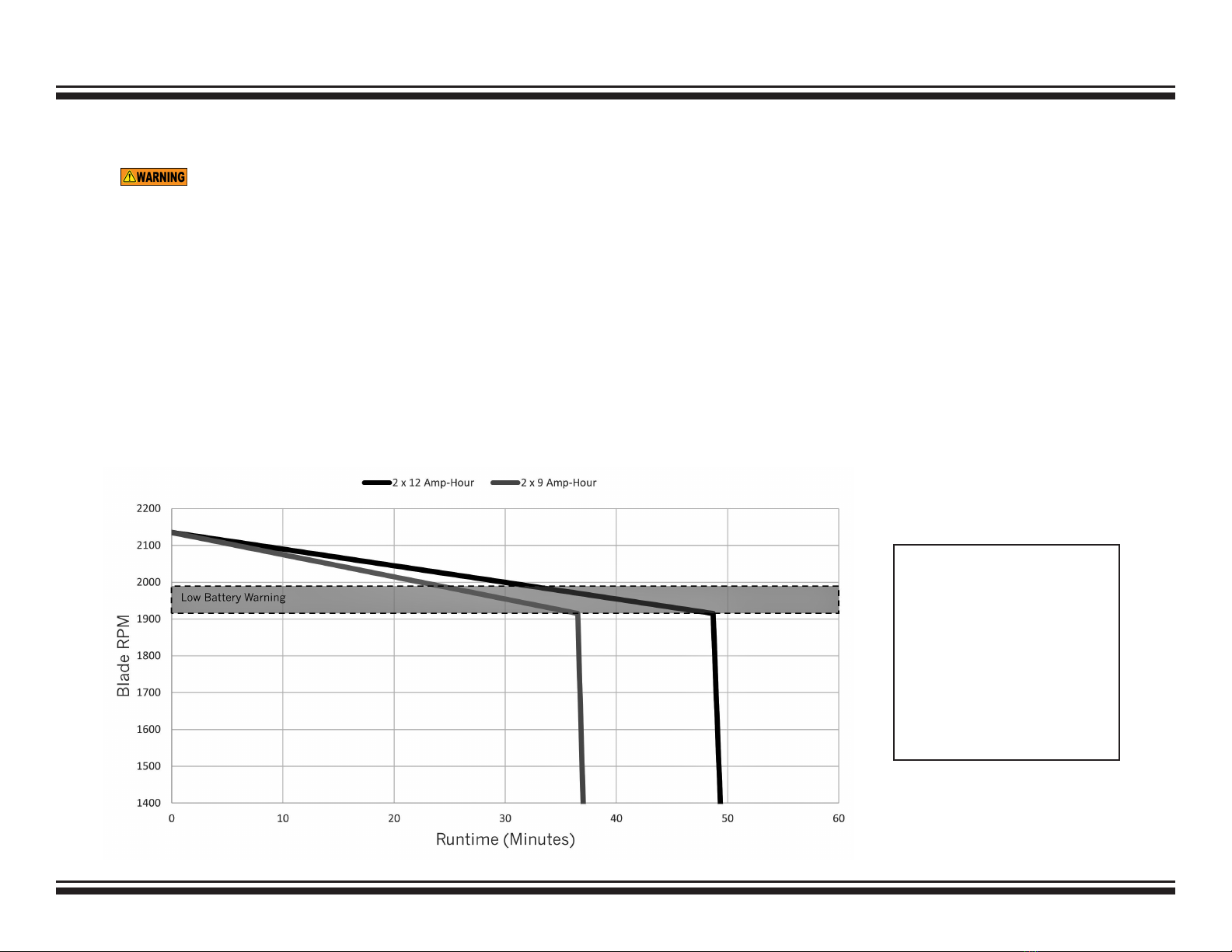

• Press and hold power button until blue backlight indicates powering up.

• When the fan is on, it will need to run at the minimum speed allowed by DeWalt. (This feature is to protect the batteries from

small parasitic draws)

• Power button will indicate approximate power left. (It is normal for colors to ﬂicker back and forth.)

• Green: 50 - 100%

• Yellow: 20 - 50%

• Red: 0 - 20% (Low Battery Warning: Front Facing LED will also ﬂash if turned on)

*Runtimes dependent on air density,

temperature and battery condition.

Test data shown taken at 5000ft

elevation, 25% RH, 70°F with new

batteries.

*Air density is primarily affected by

elevation, humidity and temperature.

*At temperatures below freezing

expect battery life to decrease.

*Other DeWalt FlexVolt Batteries

will operate the fan, but at reduced

runtimes.

POSITIVE PRESSURE VENTILATOR

6V20-BD PPV User Guide Revised 11-2022

6. Charging the Battery Packs

Remove both DeWalt FlexVolt batteries from fan.

Insert in DeWalt Charger. Use only DeWalt brand battery chargers.

Using DeWalt AC Fast Charger, batteries will recharge in 60-120 minutes,

depending on Amp-Hour rating.

Other DeWalt chargers, including units that work with vehicle DC power,

may take longer to fully charge the batteries.

• Do not store battery packs or chargers

above 120ºF (50ºC) or in direct sunlight

• Never use/charge chargers or batteries

in explosive atmospheres.

• Never attempt to open the battery pack.

If cracked or damaged, return it to a

service center for recycling.

• Do not splash or immerse charger in

water or other liquids.

Maintenance should only be performed by experienced and trained personnel.

If you have any questions, contact Super Vac before attempting any maintenance at [email protected] or 1-800-525-5224.

7. Maintenance and Repair

Daily/After Each Use:

• Charge batteries completely

• Check that Guards are undamaged

and effectively prevent objects from

contacting the blade

• Wheels and feet are in place and tight

• Tilt Mechanism works properly

• If tilt adjust is too loose, tighten

knurled nut on the Tilt Mechanism.

• For larger adjustments, tighten nut

with 9/16” (14mm) wrench.

Weekly/Monthly/Quarterly:

• Calibrate Battery

• Fully charging, then fully discharging,

and fully charging once again before

storage

• Replace battery (-ies) if battery

shows signs of damage from

dropping or excessive heat

• Check for loose fasteners

• Check condition of the power cord (if

purchased with Shore Power) (14mm)

wrench.

Yearly:

• Battery Condition

• Check runtime in low wind and

average temperature conditions

•If runtime is below 75% of advertised

runtime, replacing batteries is

recommended

• Excessive vibration

• Blade imbalance due to

accumulation of dirt on blade

• Check Blade interference

• Remove front guard and rotate

manually to check for interference

To-Do Checklists:

POSITIVE PRESSURE VENTILATOR

V20-BD PPV User GuideRevised 11-2022

8. Warranty

DeWalt products carry a separate 3 year limited warranty. For further information contact them at www.dewalt.com or 1-800-4-DeWalt.

Super Vacuum Manufacturing Company warrants that the equipment is free from defects in materials and workmanship when used and

operated for a period of ﬁve years, excluding the motor which has a 3-year warranty. The responsibility of Super Vacuum Manufacturing

Company under this limited warranty is limited to the repair and replacement of any parts which are found defective and which are

returned to Super Vacuum Manufacturing Company at 3842 Redman Dr, Fort Collins, CO 80524 with transportation charges prepaid

(C.O.D. shipments will not be accepted).

Prior to returning defective parts to SUPER VACUUM MANUFACTURING COMPANY, the original purchaser shall make a claim in writing

to SUPER VACUUM MANUFACTURING COMPANY at the above address indicating the model number and type of defect. No parts or

equipment will be received by SUPER VACUUM MANUFACTURING COMPANY for repair or replacement under this warranty without

speciﬁc written authority from it in advance.

Any parts damaged by improper installation, overloading, abuse or accident of any type or cause are not covered by this warranty.

All equipment manufactured by us is pre-run and tested before leaving our plant, and is shipped in good working order and condition. We

therefore extend to the original purchasers the following Limited Warranty for the period of ﬁve years from the original date of purchase:

1. This warranty does not apply to defects caused by accident, misuse, neglect, or wear and tear, nor can we be held responsible for

incidental and consequential expense and loss, nor does this warranty apply to equipment where alterations have been executed

without our knowledge or consent. These conditions are readily discernible when the equipment is returned to us for inspection.

2. On all component parts not manufactured by SUPER VACUUM MANUFACTURING COMPANY, their warranty is to the extent that

the manufacturer of such component warrants them to SUPER VACUUM MANUFACTURING COMPANY, if at all. Look in your local

business phone directory for the nearest repair station for the brand of parts you have or write to us for the address.

3. If equipment received is found to have been damaged in transit, a claim should be made against the carrier within three days, as we

assume no responsibility for such damage.

4. Any service other than our Authorized Service voids this warranty.

5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties

of MERCHANTABILITY or FITNESS for a particular purpose.

POSITIVE PRESSURE VENTILATOR

8V20-BD PPV User Guide Revised 11-2022

9. Contact Information

For parts or service information, contact:

Super Vacuum Manufacturing Company, Inc.

3842 Redman Dr.

Fort Collins, CO 80524

Phone: 800-525-5224

970-297-7100

Fax: 970-297-7099

Email : [email protected]

Internet: www.supervac.com

Inhaltsverzeichnis

Andere Super Vac Lüfter Handbücher

Super Vac

Super Vac V16-BW Bedienungsanleitung

Super Vac

Super Vac V18-BK Bedienungsanleitung

Super Vac

Super Vac 718WT Bedienungsanleitung

Super Vac

Super Vac 716WT Bedienungsanleitung

Super Vac

Super Vac V18-ES Bedienungsanleitung

Super Vac

Super Vac F164E Bedienungsanleitung

Super Vac

Super Vac 724BCB Bedienungsanleitung

Super Vac

Super Vac V20-EV Bedienungsanleitung

Super Vac

Super Vac 716GC Bedienungsanleitung

Super Vac

Super Vac V18-BD Bedienungsanleitung

Super Vac

Super Vac 724EXP Bedienungsanleitung

Super Vac

Super Vac P124S Bedienungsanleitung

Super Vac

Super Vac V18-GX Bedienungsanleitung

Super Vac

Super Vac V20-EX Bedienungsanleitung

Super Vac

Super Vac F244i Bedienungsanleitung

Super Vac

Super Vac V20-BH-SP Bedienungsanleitung

Super Vac

Super Vac V16-BL Bedienungsanleitung

Super Vac

Super Vac V18-GB Bedienungsanleitung

Super Vac

Super Vac F200i Bedienungsanleitung

Super Vac

Super Vac 724-EVS Bedienungsanleitung

Super Vac

Super Vac 718-EXP Bedienungsanleitung

Super Vac

Super Vac 724BCX Bedienungsanleitung

Super Vac

Super Vac 724BCG-H Bedienungsanleitung

Super Vac

Super Vac 716-EVS Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
