Superbrightleds FLSC Series Bedienungsanleitung

LED Flood Light Fixture

User Manual

Important: Read all instructions prior to installation. FLSC Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V2 03/31/2021

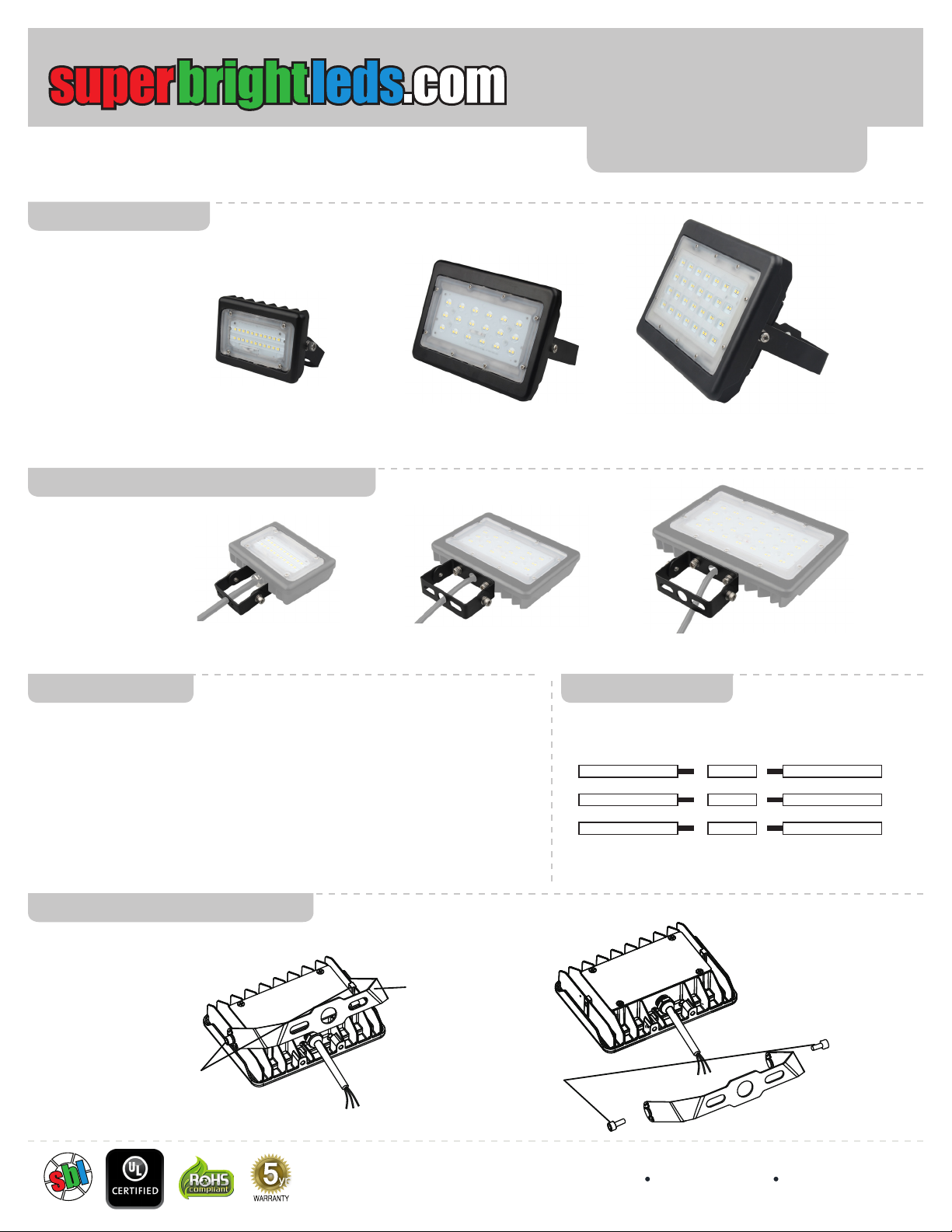

Included Parts

1 - FLSC Light Fixture

1 - U-bracket Mount

Wiring DiagramSafety and Notes

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Green

Trunnion Mount Accessory (sold separately)

U-Bracket Removal Instructions

FLSC-40K15-C,

FLSC-50K15-C

FLSC-HBS

FLSC-40K30-C,

FLSC-50K30-C

FLSC-HBL

FLSC-40K50-C,

FLSC-50K50-C

FLSC-HBL

M5 Hex Screw

Bracket

M5 Hex Screw

Bracket

0.81in

[20.67mm]

0.99in

[25.24mm]

0.67in

[17.04mm]

0.67in

[17.04mm]

0.99in

[25.24mm]

0.582in

[14.78mm]

0.8185in

[20.78mm]

0.25in

[6.4mm]

0.25in

[6.4mm]

0.8185in

[20.78mm]

Bracket

M5 Hex Screw

M5 Hex

Screw

5yr

• Product should be installed and serviced in accordance with applicable

national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power source and

circuit breakers are switched o󰀨 before performing any installation or

wiring procedures.

• Avoid looking directly into lamp when illuminated.

• Ensure all mounts are securely attached and will support the weight of the

xture. Failure to properly support xture may result in damage or injury,

for which the manufacturer does not assume responsibility.

120–277 VAC Input

LED Flood Light Fixture

Important: Read all instructions prior to installation. FLSC Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V2 03/31/2021

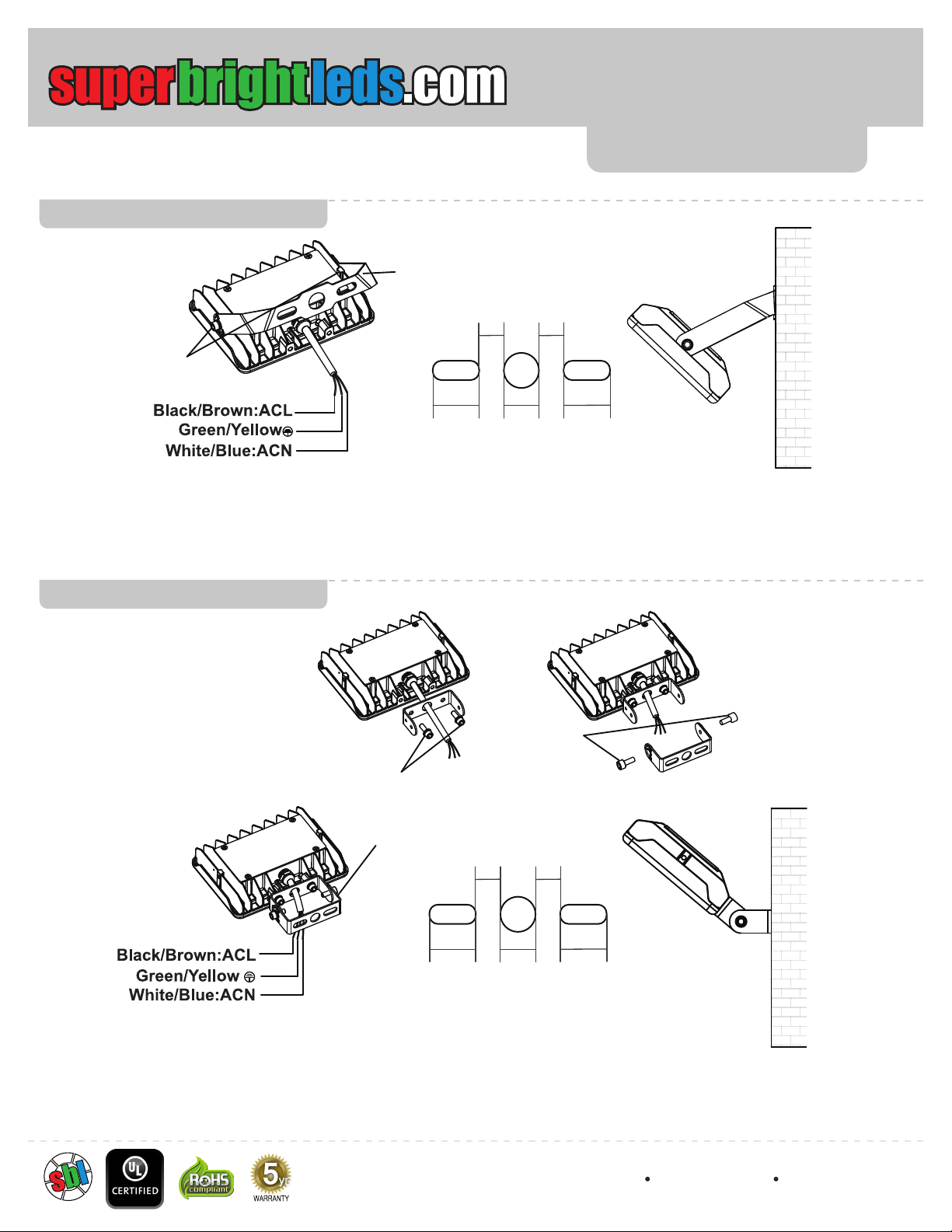

U-bracket Mounting Installation

Trunnion Mounting Installation

M5 Hex Screw

Bracket

M5 Hex Screw

Bracket

0.81in

[20.67mm]

0.99in

[25.24mm]

0.67in

[17.04mm]

0.67in

[17.04mm]

0.99in

[25.24mm]

0.582in

[14.78mm]

0.8185in

[20.78mm]

0.25in

[6.4mm]

0.25in

[6.4mm]

0.8185in

[20.78mm]

Bracket

M5 Hex Screw

M5 Hex

Screw

M5 Hex Screw

Bracket

M5 Hex Screw

Bracket

0.81in

[20.67mm]

0.99in

[25.24mm]

0.67in

[17.04mm]

0.67in

[17.04mm]

0.99in

[25.24mm]

0.582in

[14.78mm]

0.8185in

[20.78mm]

0.25in

[6.4mm]

0.25in

[6.4mm]

0.8185in

[20.78mm]

Bracket

M5 Hex Screw

M5 Hex

Screw

1. Remove U-Bracket before mounting.

2. Use Fig. 2 as dimensions to drill mounting holes. Use Dimensions provided to mount using hardware

appropriate for application.

3. Re-attach U-Bracket to xture using 2 M5 Hex screws, lock washers, washers, and nuts.

4. Wire according to the wiring diagram.

1. Remove U-Bracket before mounting.

2. Use Dimensions provided to mount using hardware appropriate for application. Drill mounting holes.

3. Attach Trunnion mount to xture using 4 M5 Hex Screws, lock washers, washers, and nuts.

4. Wire according to the wiring diagram. Product should be installed by a fully certied electrician in

accordance with local building and electrical codes.

5yr
