Superbrightleds WPG Series Bedienungsanleitung

LED Parking Garage Light

Important: Read all instructions prior to installation. LPG Series

User Manual

5yr

Rev Date: V2 03/31/2021Rev Date: V2 03/31/2021

LED Parking Garage Light

User Manual

WPG Series

Dimensional Drawings

LPG Series

User Manual

Rev Date: V2 03/31/2021Rev Date: V2 03/31/2021

Specications

Safety and Notes

Installation

LED Parking Garage Light

Important: Read all instructions prior to installation.

Model LPG-50K55P LPG-50K75P

Operating Temperature -4°–113° F(-20°–45° C)

IP Rating IP65

Fixture Weight 5.3 lb (2.4 kg) 7.71 lb (3.5 kg)

• This product should be installed by a fully certied electrician in

accordance with local building and electrical codes.

• Due to risk of electric shock, ensure that the main power source and

circuit breakers are switched o󰀨 before performing any installation or

wiring procedures.

• Failure to properly support the xture during installation may cause

damage or injury, for which the manufacturer is not responsible. Ensure

the mount is securely attached and will support the weight of the xture.

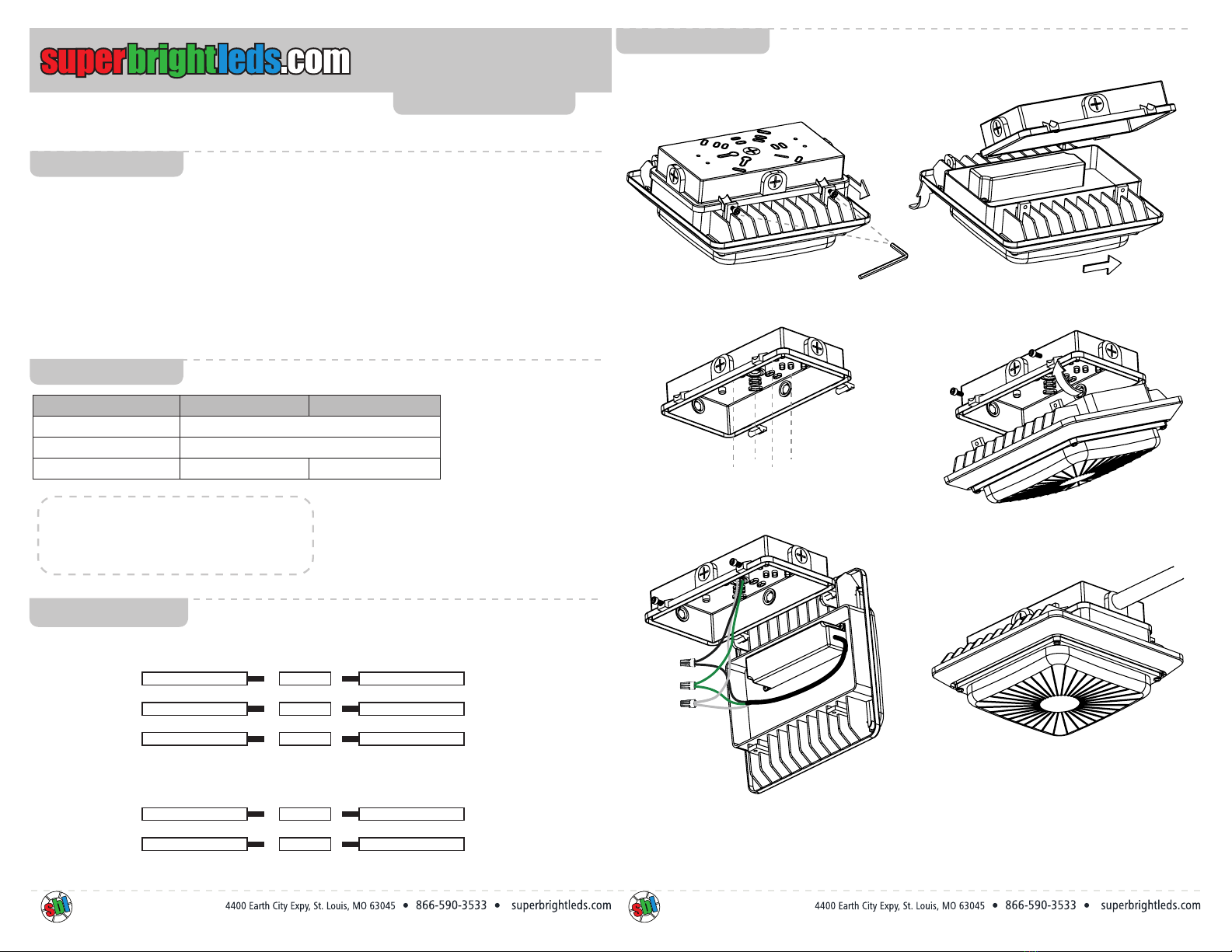

UNSCREW LOCK SCREWS

OPEN LID AND SLIDE OFF CHASSIS

DRILL HOLES THROUGH TEMPLATE

AND MOUNT TO J-BOX

HANG LIGHT ON FIXTURE BASE

CONNECT WIRING

CLOSE LID AND TIGHTEN LOCK SREWS

ALTERNATE: MOUNT TO CEILING

AND WIRE THROUGH CONDUIT

Wiring Diagram

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Green

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Green

100–277 VAC Input

0–10 Dimming

Check product label for specific electrical

specifications related to installation.

Improper installation will void warranty.
