Supermicro C9Z790-CG Bedienungsanleitung

C9Z790-CG

C9Z790-CGW

C9Z790-CG/-CGW QUICK REFERENCE GUIDE Product Safety Information

Standardized Warning Statements

Motherboards

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which can potentially

cause a bodily injury. Should you have questions or experience di󰀩culty, contact Supermicro's Technical Support De-

partment for assistance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the Supermicro chassis.

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-

lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理

廢棄舊電池。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理

废旧电池。

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のもの

を使用下さい。使用済電池は製造元の指示に従って処分して下さい。

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한

종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.









Note: For complete product safety information, refer to http://www.supermicro.com/about/policies/safety_information.cfm.

C9Z790-CG/-CGW QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書

限

用

物

質

含

有

情

況

標

示

聲

明

書

設備名稱：主機板 /

Motherboard

型號（型式）：C9Z790-CG, C9Z790-CGW

單元Ｕnit

限用物質及其化學符號

鉛Lead

(Pb) 汞Mercury

(Hg) 鎘Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr+6)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚

Polybrominated

diphenyl ethers

(PBDE)

主機板

(Motherboard)

－○○○○○

備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準

值。

備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

備考3.〝－〞係指該項限用物質為排除項目。

Equipment name

Type designation (Type)

Restricted substances and its chemical symbols

Declaration of the Presence Condition of the Restricted Substances Marking

Note 1

：

“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the

reference percentage value of presence condition.

Note 2

：

“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.

Note 3

：

The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes

About AMI BIOS POST Codes

The table below lists some of AMI BIOS POST codes for this motherboard. For more information, refer to https://www.

supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.

Code Description

0x32 CPU post-memory initialization is started

0x55 No Memory detected or memory failed

0x63 CPU DXE initialization is started

0x69 North Bridge DXE initialization is started

0x70 South Bridge DXE initialization is started

0x92 PCI Bus initialization is started

0x99 Super IO Initialization

0x9A USB initialization is started

0xA0 IDE initialization is started

0xA9 Boot into BIOS setup menu

0xAE Legacy Boot event

0xB2 Legacy Option ROM Initialization

0xB4 USB hot plug

0xD6 No console output devices are found

0xD7 No console input devices are found

0xF2 Recovery process started

0xF9 Recovery capsule is not found

C9Z790-CG/-CGW QUICK REFERENCE GUIDE AMI BIOS POST Codes

M.2 Device/Heatsink Installation

C9Z790-CG/-CGW QUICK REFERENCE GUIDE M.2 Device/Heatsink Installation

This motherboard has three PCIe M.2

M-key sockets that support the M.2

2260/2280/22110 modules (M.2-P1 and M.2-

P2 only) and 2260/2280 modules (M.2-C1

only).

Three stando󰀨s are pre-installed in the posi-

tion of 22110 mounting holes (M.2-P1 and

M.2-P2 only) and 2280 mounting hole (M.2-

C1 only).

Refer to the illustration on the right for the

locations of M.2 sockets and mounting

holes. Follow the steps below to install the

M.2 device/heatsink.

1. Remove the mounting screws on the M.2

heatsink.

* If you use the M.2 heatsink that comes

with this motherboard, M.2 heatsinks for

M.2-P1 and M.2-C1 are with LED boards

pre-installed.

LED Board

2. Locate the intended M.2 socket and mounting hole.

Mounting Holes without Pre-installed Stando󰀨sMounting Holes with Pre-installed Stando󰀨s

Note: It is strongly recommended to use the M.2 heatsinks that come with this motherboard. Using

other M.2 heatsinks may cause a short circuit if your heatsink comes in contact with the pogo pins on

the motherboard.

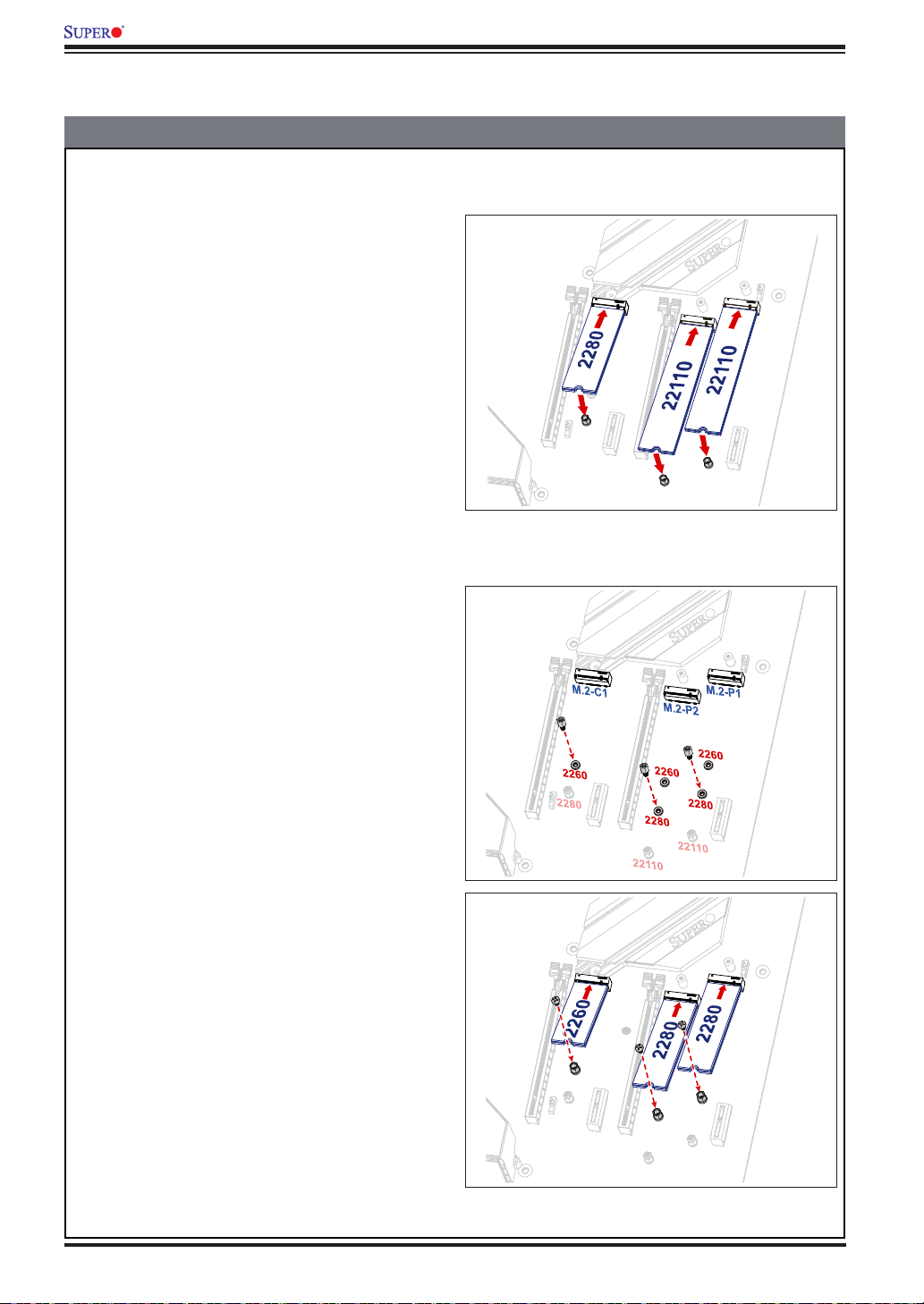

M.2 Device/Heatsink Installation (Continued)

C9Z790-CG/-CGW QUICK REFERENCE GUIDE M.2 Device/Heatsink Installation (Continued)

Tighten the M.2 device with the screw to

secure the device into place.

3. Installation WITH the pre-installed stando󰀨:

Insert the M.2 device into the M.2 socket

at a 30-degree angle and press it down.

Installation WITHOUT the pre-installed stando󰀨:

Install the stando󰀨 to the intended

mounting hole rst. Then insert the M.2

device into the M.2 socket at a 30-de-

gree angle and press it down.

M.2 Device/Heatsink Installation (Continued)

C9Z790-CG/-CGW QUICK REFERENCE GUIDE M.2 Device/Heatsink Installation (Continued)

4. Remove the thermal pad protective lm

from the M.2 heatsink.

6. Resecure the M.2 heatsink in place with

the mounting screws removed in Step 1.

5. To install the heatsink correctly, make

sure the pogo pin contacts are prop-

erly touching the pogo pins on the

motherboard. Refer to the illustration on

the right for the locations of pogo pin

contacts and pogo pin headers (JLED_

POGO1 and JLED_POGO2).

Pogo Pin Header

(JLED_POGO2)

Pogo Pin Header

(JLED_POGO1)

Pogo Pin

Contacts

Heatsink with

LED for M.2-C1

Heatsink with

LED for M.2-P1

Pogo Pin

Contacts

Audio Conguration

C9Z790-CG/-CGW QUICK REFERENCE GUIDE Audio Conguration

Audio Conguration

2 Channel 4.1 Channel 5.1 Channel 7.1 Channel

1Orange

(Center/LFE Out) Center/Subwoofer Center/Subwoofer

2Black

(Surround) Rear Speaker Out Rear Speaker Out Rear Speaker Out

3Light Blue

(Line In/Side Speaker Out) Line In Line In Line In Side Speaker Out

4Lime

(Line Out/Front Speaker Out) Line Out Front Speaker Out Front Speaker Out Front Speaker Out

5Pink

(Mic In) Mic In Mic In Mic In Mic In

SUPERMICR R

C9Z790-CG/-CGW

QuiCk RefeRenCe Guide Rev. 1.0a

Motherboard Layout and Features

= mounting hole

C9Z790-CGW

DESIGNED IN USA

REV:1.00

MAC CODEMAC CODE BAR CODE

BIOS

LICENSE

PCH

JLED_POGO2

JLED_POGO1

JRLED2

JRLED1 JTPM1

JLED_IO

SW1

JSTBY1

JD1

JSD1

JPW1

LED4801

LED18

LED17

LED1

LED3

LED2

JPW2

JL1

LED4

JPME2

JLED1

SYS_FAN1

SYS_FAN2

JWD1

22110

2260

2280

PCH SLOT1 PCIe 3.0 X1

USB12 (3.2, 20Gb)

USB7 (3.2, 20Gb)

USB6 (3.2, 10Gb)

M.2-C1

12V_PUMP_PWR1

USB9 (3.2, 20Gb)

USB8 (3.2, 10Gb)

2280

SP1

2260

2280

BOOT LED

VGA LED

DIMM LED

CPU LED

DP/HDMI

LAN2 LAN1

JF1

AUDIO FP COM1

USB4/5

USB10/11

(3.2, 5Gb)

M.2-P1

PCH SLOT5

PCIe

3.0 X1

CPU SLOT4

PCIe

5.0 X8 (IN X16)

CPU SLOT7

PCIe

5.0 X16

M.2-P2

SYS_FAN3

HD AUDIO

USB0/1/2/3

POWER

BUTTON

DIMMB1

DIMMB2

DIMMA1

DIMMA2

RESET

BUTTON

CPU_FAN1 CLEAR CMOS

CPU_FAN2

I-SATA4

I-SATA5

I-SATA2

I-SATA3

I-SATA0

I-SATA1

M.2-E1 (CNVi)

LGA 1700

BACK PANEL I/O
