Supermicro AOC-STG-I2 Bedienungsanleitung

Rev. 1.0

AOC-STG-I2

USER'S GUIDE

Add-on Card User's Guide

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software, if any,

and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or

reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the

laws of Santa Clara County in the State of California, USA. The State of California, County of

Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's

total liability for all claims will not exceed the price paid for the hardware product.

WARNING: Handling of lead solder materials used

in this product may expose you to lead, a chemical known

to the State of California to cause birth defects and other

reproductive harm.

Manual Revision 1.0

Release Date: December 7, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not

copy or otherwise reproduce/distribute any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Safety Information and Technical Speciﬁcations

Table of Contents

Introduction

Overview .............................................................................................................v

Product Features.................................................................................................v

Supported Operating Systems...........................................................................vi

Required Cables ................................................................................................vi

Contacting Supermicro...................................................................................... vii

Chapter 1 Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 An Important Note to Users ............................................................................ 1-2

Chapter 2 Add-on Card Components

2-1 Front Connectors and LEDs ........................................................................... 2-1

2-2 Front Connector and LED Deﬁnitions............................................................. 2-2

3-1 Before Installation ........................................................................................... 3-1

3-2 Hardware Installation ...................................................................................... 3-1

3-3 Windows 2003/XP/2000 Installation ............................................................... 3-2

3-4 Linux Installation ............................................................................................. 3-2

Build a Binary RPM Package ........................................................................ 3-2

Manually Build the Driver................................................................................ 3-2

Add-on Card User's Guide

Notes

Safety Information and Technical Speciﬁcations

Introduction

Overview

This manual is written for system integrators, PC technicians and knowledgeable

PC users who intend to integrate Supermicro's AOC-STG-I2 Add-on Card.

Product Features

The AOC-STG-I2 offers the following features:

High-performing, PCI-E 10Gb Ethernet connection ideally suited for demanding

enterprise applications.

Dual-port Intel®82598EB with two CX4 connectors.

CX4-to-Optical module/cable (optional).

PCI-E x8 to maximize performance (PCI-E Gen 2 compatible).

Intel I/O Acceleration Technology (I/O AT) for improved CPU utilization.

x16 Virtual Machine Device queues (VMDq) for virtualized environment.

Direct Cache Access (DCA) to eliminate cache misses and reduce CPU load.

Tx/Rx, IP, TCP, and UDP checksum ofﬂoading (IPv4, IPv6) capabilities to in-

crease throughput and lower processor utilization

Simple Network Management Protocol (SNMP) and Remote Network Monitoring

(RMON) statistic counters.

iSCSI boot.

Preboot eXecution Environment (PXE) support.

Energy-efﬁcient design (maximum 6.5W).

RoHS Compliant 6/6.

•

Add-on Card User's Guide

Supported Operating Systems

The AOC-STG-I2 supports the following Operating Systems (OS):

Windows 2000/Windows XP/Windows 2003

Linux

VMWare ESX Server

Required Cables

The AOC-STG-I2 requires the following cables:

CX4 copper-based cable. Maximum length 15 meters.

InﬁniBand 4x DDR cable (converts CX4 to optical). Maximum length 100 me-

ters.

•

vii

Safety Information and Technical Speciﬁcations

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Paciﬁc

Address: Super Micro Computer, Taiwan

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Technical Support:

Email: [email protected]

Tel: 886-2-8228-1366, ext.132 or 139

1-1

Safety Information and Technical Speciﬁcations

Chapter 1

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

Use a grounded wrist strap designed to prevent static discharge.

Touch a grounded metal object before removing a component from the antistatic

bag.

Handle the add-on card by its edges only; do not touch its components, periph-

eral chips, memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.

Put the card and peripherals back into their antistatic bags when not in use.

1-2 General Safety Guidelines

Always disconnect power cables before installing or removing any components

from the computer.

Disconnect the power cable before installing or removing any cables from the

system.

Make sure that the add-on card is securely and properly installed on the moth-

erboard to prevent damage to the system due to power shortage.

•

1-2

Add-on Card User's Guide

1-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB

Revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

•

2-1

Safety Information and Technical Speciﬁcations

Chapter 2

Add-on Card Components

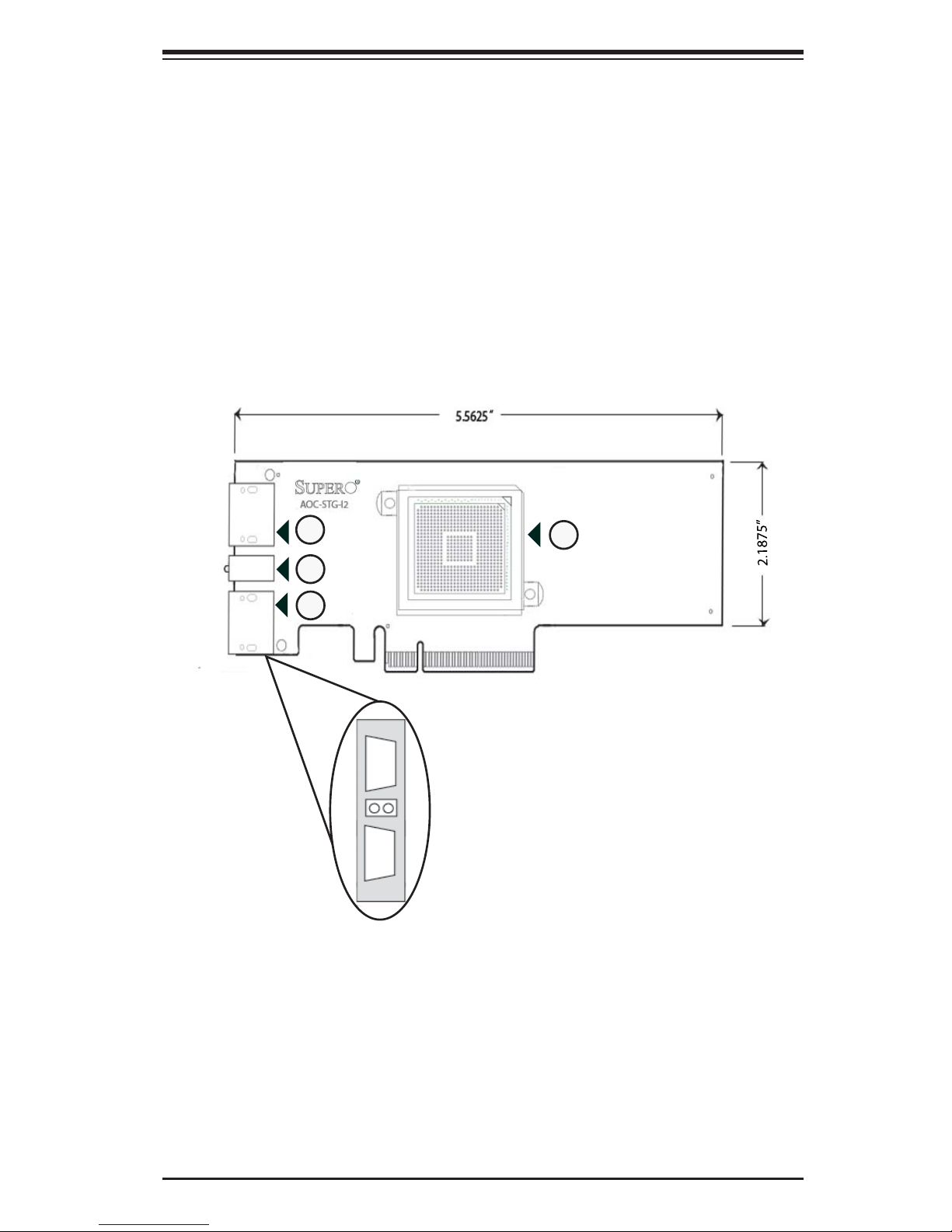

2-1 Front Connectors and LEDs

Components

1. LAN Connector Ports

2. LAN Port LEDs

3. Intel®82598EB
