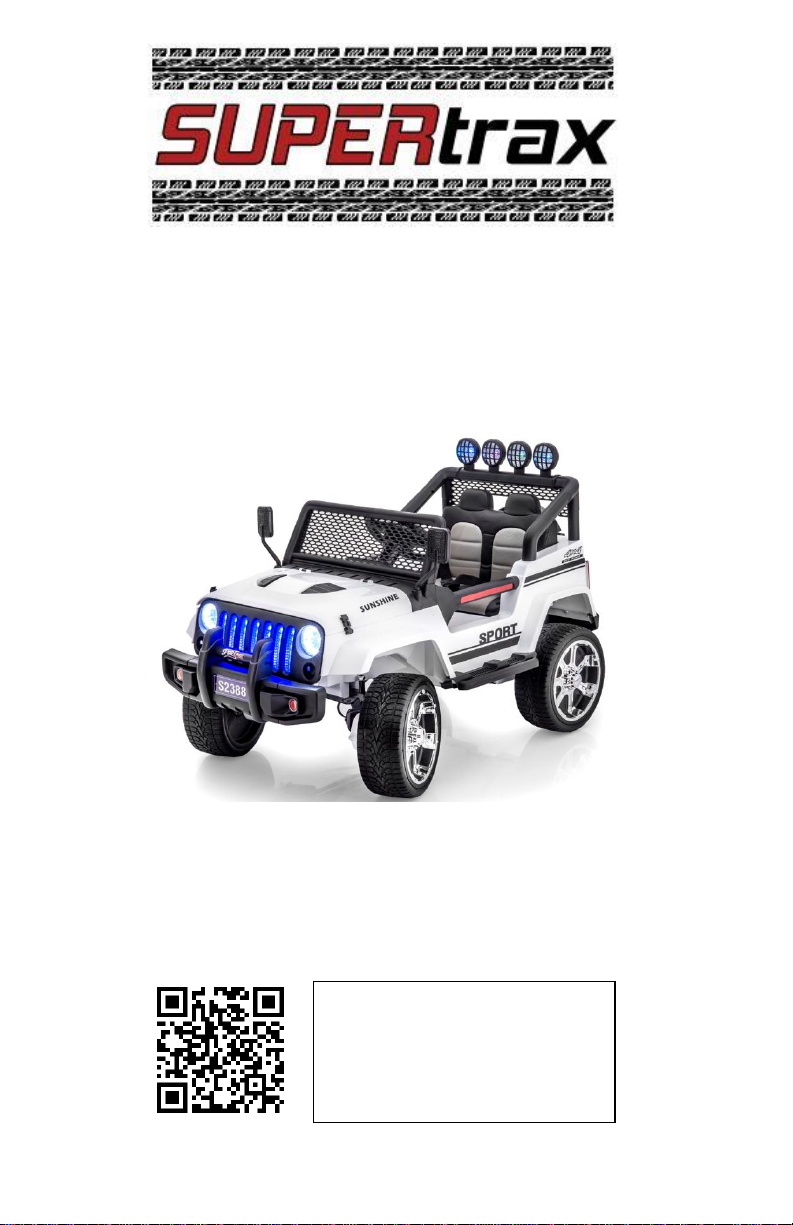

Supertrax Rancher Bedienungsanleitung

Rancher

Kids Ride on Car

Installation and Operation Instructions

Please read this instruction manual carefully. It is important to

read and follow all the steps during assembly to ensure proper

operation and safety of the child. Please keep this manual for

future reference.

Scan this QR Code

to view the

Assembly Video

SPECIFICATIONS:

Battery Type:

12V10AH

Avg. Speed:

2 –5 MPH

Age Range:

2 –6 Years

Charging time:

8-12 hrs –Minimum

1 Charge per month

Max. Weight:

70 lbs

Avg. Use Time:

48-90 Minutes

(depending on use)

Product Size:

51”L x 30”W x 25”H

Remote Battery:

2 - AAA (not

included)

IMPORTANT!

•Assembly of car and charging of

battery is only to be done by an

adult.

•WARNING!! NOT TO BE USED

ON STREETS or IN TRAFFIC.

•Never modify the electric

circuit system or tamper with

electric system. Can cause

permanent damage.

•Please check the product

regularly for any loose parts or

wires to ensure proper

operation.

•Adult supervision is

recommended during

operation by child to avoid

injury. Safety equipment is

recommended.

•Please make sure that the child

uses caution to avoid falls and

collisions causing injury to the

child or third party.

•Do not pick up vehicle by

steering wheel.

•Do not pick up battery by wires

or charger.

•Keep all plastic bags out of the

reach of young children.

•Not recommended for children

under the age of 2 yrs. due to

small parts that could cause a

choking hazard.

•Battery must be charged for a

minimum of 8-12 hours prior to

first use of the car to avoid

damage to the battery. Power

switch must be in off position

when charging.

•Battery charger should be

examined for damage prior to

each use. It is important to

inspect the cord and both ends

for damage. If damage is

found, DO NOT USE THE

CHARGER! Contact us for

replacement charger.

•Please retain instruction

manual for future reference.

•Please retain packaging in the

event it is necessary to return.

If the charger is plugged into the charging port, the car will not

power up regardless if the charger is plugged into the wall

outlet or not.

PARTS LIST

Name

Qty

Name

Qty

Seat

Spare Tire Storage

Steering Wheel

Windshield

Wheels

Mirrors

Wheel Cover

Charger

Front Bumper

Wheel Nut Wrench

Steering axle

assembly

Screws, Nuts, & Washers

Searchlight kit

All assembly videos can be found on

YouTube under SPORTrax

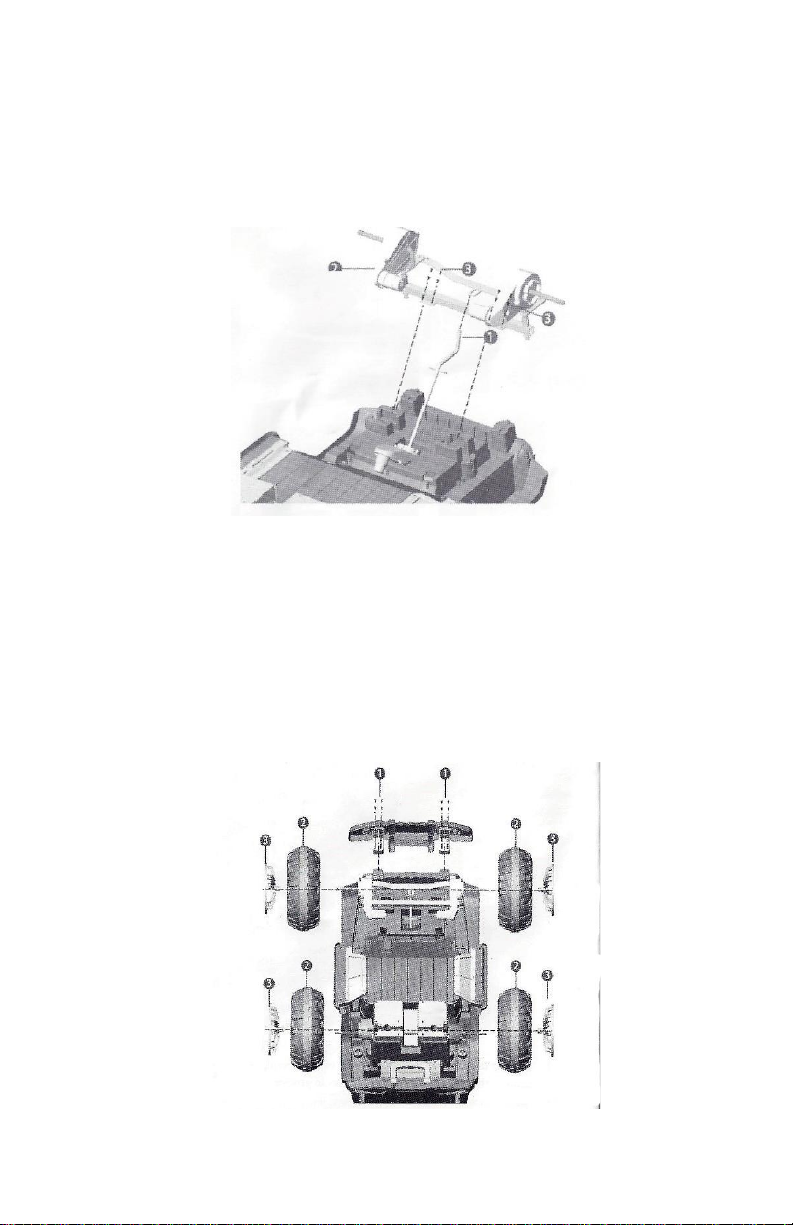

1: Install Front Steering Axle Assembly:

Turn car upside down. Insert steering rod, into the steering motor

located in the center on the car, towards the front. Make sure

steering rod is aligned with the motor, and coming out the

dashboard. Place the steering axle assembly with the motors into

place on the body of the car (as shown in the photo). Secure into

place with 4 screw per side.

2: Installation of the wheels, wheel covers & front bumper:

Place front bumper into place as shown in picture. Secure with 4

screws on each side. Remove lug nut and washer from each side of

axle. Slide wheel into place, and make sure to align hub adaptor to

motor. Slide washer, then nut back on and tighten down with wheel

nut wrenches. Do not over tighten tires because this could cause

premature motor failure. Repeat process for back wheel assembly.

Place wheel covers on with 3- screws each on all 4 wheels.

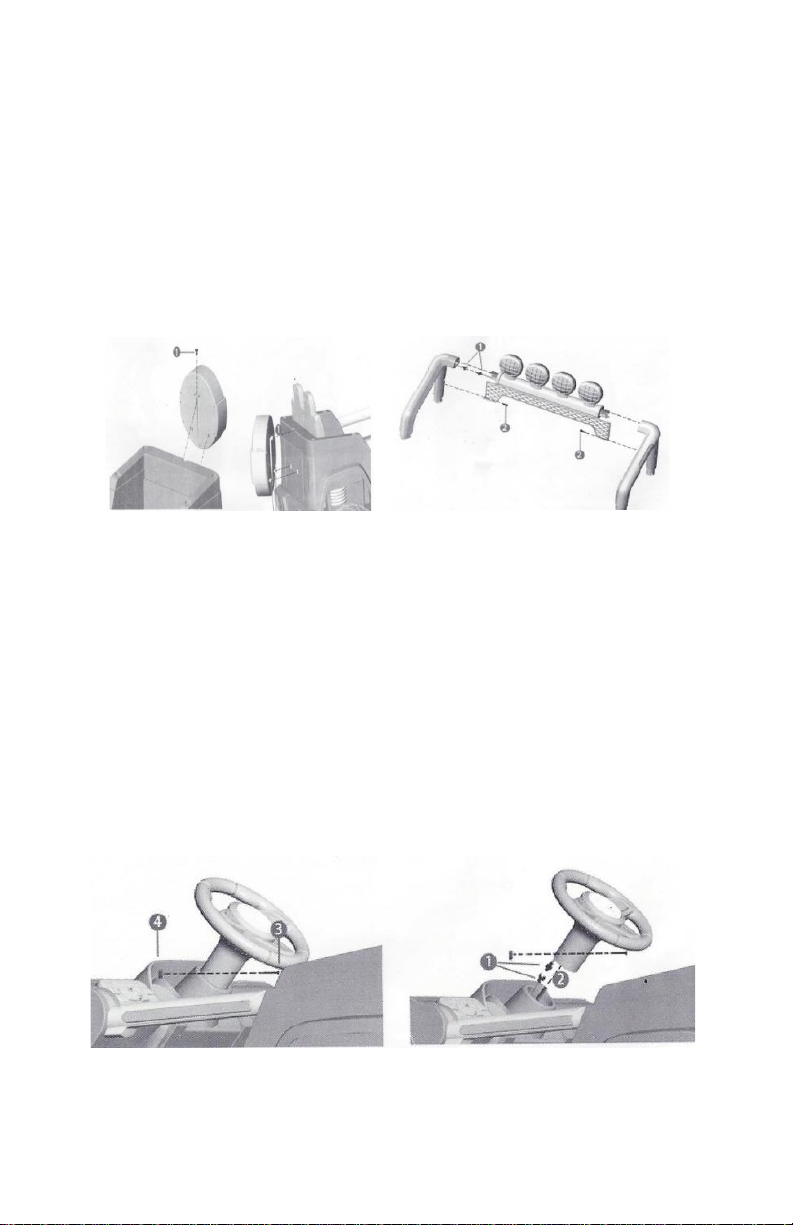

3: Installation of the spare tire storage and searchlight assembly:

Turn the car right side up. Install spare tire storage box onto the rear

of the body. Secure with 1 screw at top of the box. Connect wire

connector on end of light bar to corresponding connector from side

bracket. Feed wire from bar down threw hole you are inserting bar

into. Connect with body wiring. Secure mesh with 2- screws on each

side.

4: Installation of the steering wheel:

Connect the wire connector from the steering wheel to the

corresponding wire connector from the steering column. Remove

supplied steering wheel nut and bolt from the steering wheel. Slide

steering wheel onto the steering shaft and secure it back on with

the nut and bolt. May be necessary to push up from the steering

rod on the bottom of vehicle to align the hole to finish connecting

steering wheel.

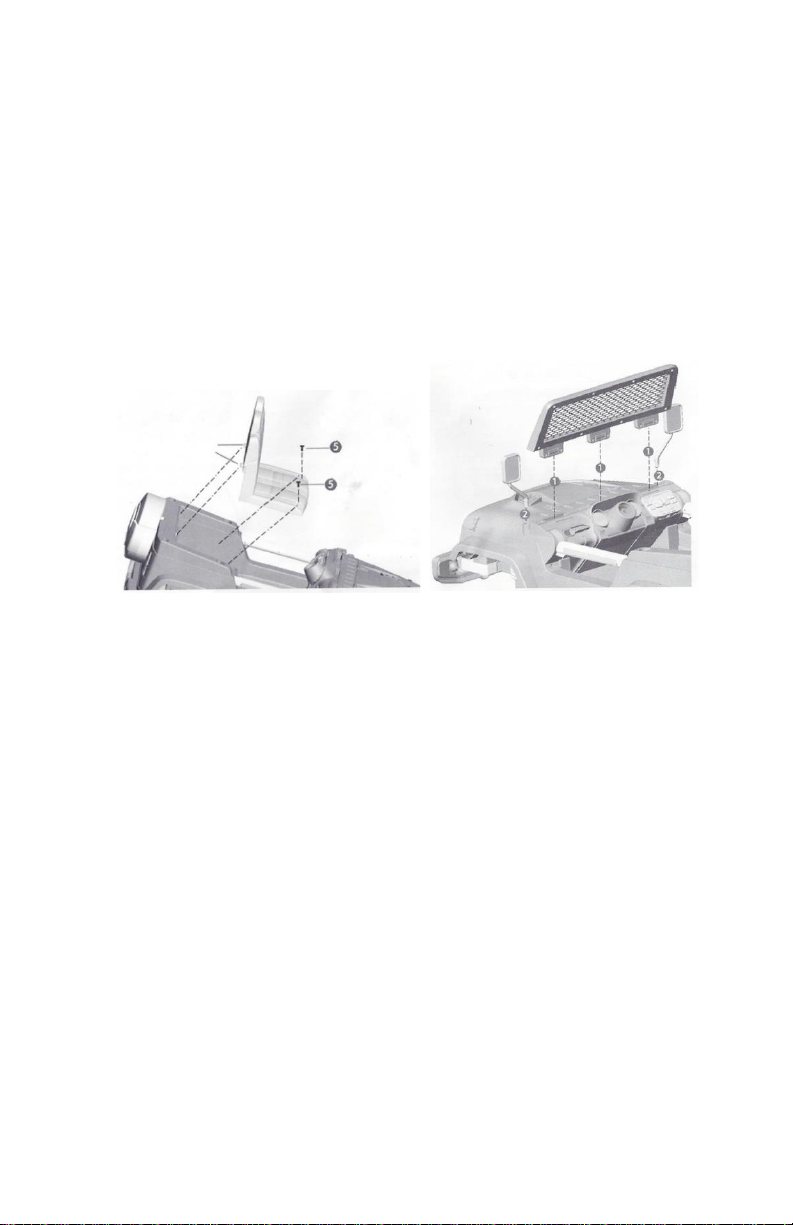

5. Installation of seat, windshield, and mirrors:

Place the seat into position and secure with 2 - screws. If you would

like to use the seat belt, make sure they are hanging out of vehicle

before installing seat. Put the windshield into place and push down

until you hear it click into place. In the same way, place each side

mirror into place and push down until you hear it click into place.

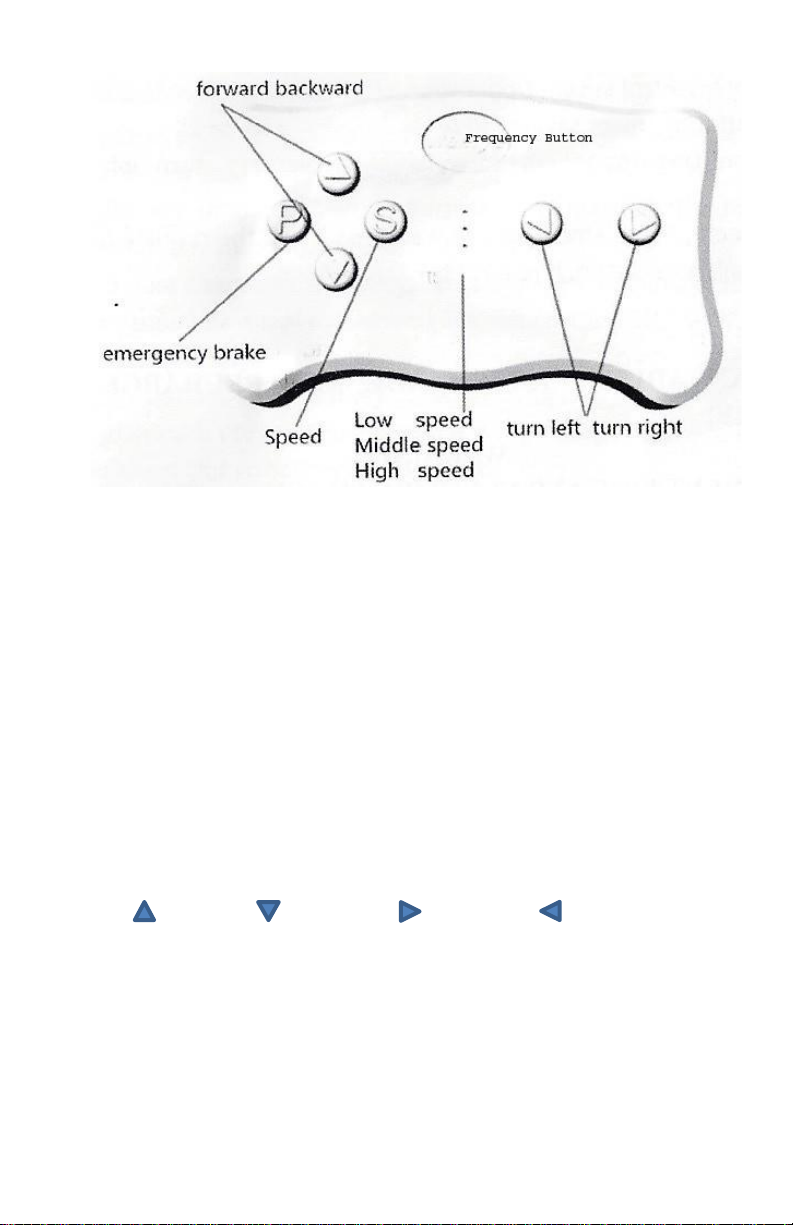

Remote Control Function

Remote Control Instructions: For the first time use of remote control

or after replacing the battery, you need to sync the remote to the car.

a) Install the remote-control batteries (AA not included).

b) Hold the frequency button (Large button at top of remote)

2-4 seconds, the Low speed LED light should be flashing.

c) Turn on the car by pressing the Power button, the Low

speed LED light should still be flashing and then turn to a

steady light. If correct, then sync succeeded.

d) If the syncing failed (Low speed LED light still flashing),

remove the batteries and repeat steps a –b.

e) Without operation of remote after 10 seconds the remote-

control indication light will go off and into power saving mode.

f) Button Descriptions:

Forward Backward Turn Right Turn Left

S = Speed –Push button P = Emergency brake, press it once to stop

motion

for speed selection. of car. Pressing it again will release the

3 speed selections emergency brake, restoring the functions

of the

car.

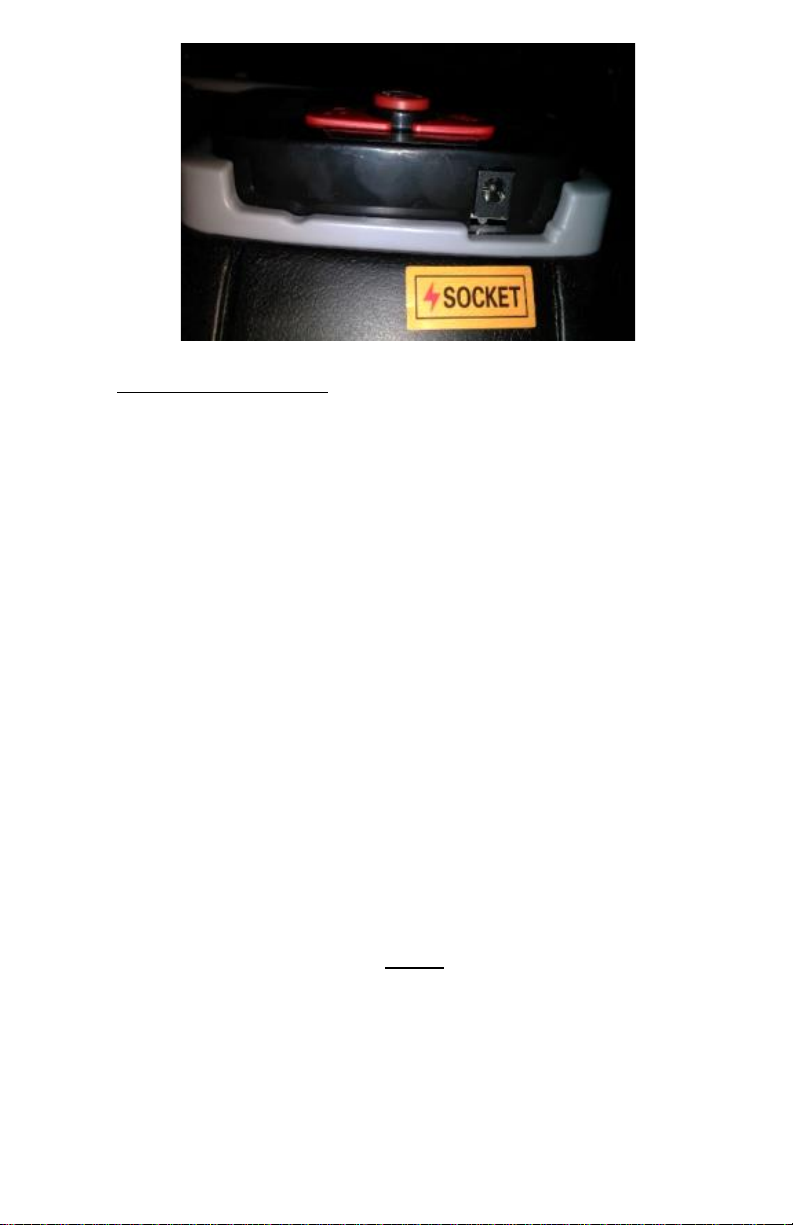

Charging the battery:

The charging port is located on the right side of the dashboard under

the power button. Plug the charger into the charging port first, then

plug the charger into a wall outlet.

Please Note: As a safety precaution and to avoid damage to the

charger, the car will not power up while charger port is plugged into

the car.

BATTERY MUST BE CHARGED FOR A MINIMUM OF 8 HOURS BEFORE

INITIAL USE TO AVOID DAMAGE TO THE BATTERY. ONLY AN ADULT

SHOULD CHARGE AND RECHARGE THE BATTERY!

BATTERY REPLACEMENT AND DISPOSAL:

The battery will eventually lose the ability to hold a charge. Depending

on the amount of use, and varying conditions, the battery should

operate for one to three years. Follow these steps to replace and/or

dispose of the battery:

•Turn the locking button on the hood to unlock position & open

hood.

•Disconnect the battery connectors

•Remove the metal battery bracket

•Carefully lift the battery - you may want to wear protective

gloves before removal - Do Not lift the battery by its

connectors or cables

•Place the dead battery in a plastic bag

•Replace the battery and reconnect the connectors

•Replace the metal battery bracket

•Close the hood and turn the locking button on the hood to the

lock position.

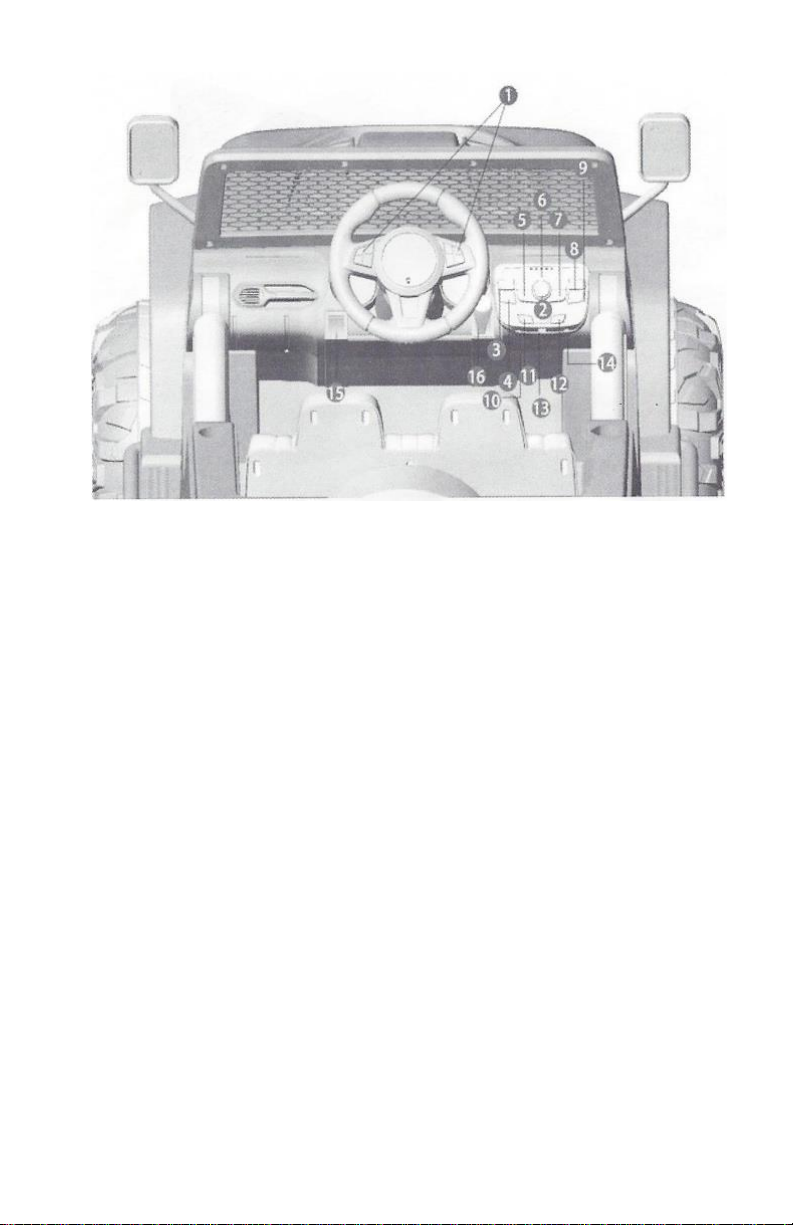

Main Functions

1. Music Button: Press these buttons to start the onboard music

2. Power Button: Turn vehicle on and off

3. Back Button: press to go back to previous song, hold button to

increase volume

4. Forward Button: Press to go to next song, hold button to decrease

volume

5. Pause Button: Press button to pause music, press button again to

restart music

6. Power Display: Displays the level of charge in the battery

7. Music Button: Press button to start the music

8. Bluetooth Speaker: Press button, connect mobile phone, then the

car

can play music and perform calling functions from the phone.

9. FM Button: Switch between Storytelling, music, and radio

10. MP3 Slot

11. No Use

12. Light Button: turn lights on and off

13. Charging Socket: Plug charger in to charge the vehicle

14. Micro SD Card Slot

15. No Use

16. Shift Switch: Changes the direction the vehicle moves, forward or

backward

WARNING:

- Use only the rechargeable battery and charger supplied with

your vehicle. NEVER substitute the battery or charger with

another brand. Using another battery or charger may cause

damage.

- NEVER modify the electric circuit system. Tampering with the

electric system may cause permanent damage to the system.

- Do not allow direct contact between battery terminals.

- Do not allow any type of liquid on the battery or its

components.

- Charge the battery in a well-ventilated area ONLY. Do not

charge near or around flammable materials.

- NEVER pick up the battery by the wires or charger. Damage can

occur to the battery and may cause a fire. Pick up the battery by

the case ONLY.

- Charge the battery in a dry area ONLY.

Wash hands after handling.

- Do not open the battery. Battery contains lead acid and other

materials that are toxic and corrosive.

- Do not open the charger. Exposed wiring and circuitry inside

case could cause electric shock. NEVER allow a child to handle

or charge the battery. Battery is heavy and contains lead acid

(electrolyte).

- Do not drop the battery. Permanent damage to the battery

could occur or cause serious injury.

- Before charging the battery, check for wear or damage to the

battery, charger, its supply cord and the connectors. DO NOT

charge the battery if any damage to parts has occurred.

- Do not allow the battery to drain completely. Recharge the

battery after each use or once per month if not used regularly.

- Do not charge the battery upside down.

-Always secure the battery with the bracket. Battery can fall out

and injure a child if vehicle tips over.

- The Power Switch must be turned in the OFF position when

charging.

- When the car begins to run slowly, recharge the battery.

Inhaltsverzeichnis

Andere Supertrax Motorisiertes Spielzeugauto Handbücher

Supertrax

Supertrax WideTrack Stücklistenhandbuch

Supertrax

Supertrax Rolls Royce Style Bedienungsanleitung

Supertrax

Supertrax Mustang GT5000 Leitfaden

Supertrax

Supertrax BMW i8 Style Bedienungsanleitung

Supertrax

Supertrax Porsche Macan S Style Benutzerhandbuch

Supertrax

Supertrax Licensed Lexus LX Stücklistenhandbuch

Supertrax

Supertrax BMW Style Baja 4WD Bedienungsanleitung

Supertrax

Supertrax Kids Ride On Big Rig Rescue Stücklistenhandbuch

Supertrax

Supertrax Can Am Style Bedienungsanleitung

Supertrax

Supertrax Mercedes Benz G63 Bedienungsanleitung

Supertrax

Supertrax Audi Q3 Betriebsanleitung

Supertrax

Supertrax Bugatti Style Bedienungsanleitung

Supertrax

Supertrax Licensed Audi RS5 Bedienungsanleitung

Supertrax

Supertrax Ghost Bedienungsanleitung

Supertrax

Supertrax Revelation Bedienungsanleitung

Supertrax

Supertrax Cosmic Bedienungsanleitung

Supertrax

Supertrax UTV SCREEMER Stücklistenhandbuch

Supertrax

Supertrax Volkswagen Beetle Bedienungsanleitung

Supertrax

Supertrax Warrior Stücklistenhandbuch

Supertrax

Supertrax Licensed Volvo XC90 Bedienungsanleitung

Supertrax

Supertrax Thar XL Stücklistenhandbuch

Supertrax

Supertrax Porsche Carrera Style Bedienungsanleitung

Supertrax

Supertrax BMW i8 Style Betriebsanleitung

Supertrax

Supertrax Thar Bedienungsanleitung

Beliebte Motorisiertes Spielzeugauto Handbücher anderer Marken

Eduard

Eduard Humber Scout Car Mk.I exterior Bedienungsanleitung

Traxxas

Traxxas 4995X Bedienungsanleitung

Jamara

Jamara VW T1 Bus Bedienungsanleitung

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Bedienungsanleitung

Schumacher

Schumacher Pro Cat Bedienungsanleitung

Tamiya

Tamiya TT-01 TYPE E Bedienungsanleitung

Eduard

Eduard Krupp Protze 6x4 1/48 Bedienungsanleitung

New Bright

New Bright 61072UEP Bedienungsanleitung

Team Durango

Team Durango DEX410v5 Bedienungsanleitung

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Bedienungsanleitung

PLAYMOBIL

PLAYMOBIL 9536 Bedienungsanleitung

Atomic

Atomic BZ3 Bedienungsanleitung

Aiyaplay

Aiyaplay 370-290V00 Bedienungsanleitung

Power Wheels

Power Wheels GRJ53 Bedienungsanleitung

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Bedienungsanleitung

INJUSA

INJUSA 412 Bedienungsanleitung

Maverick

Maverick MSC-30BR-WP Bedienungsanleitung

Land of B.

Land of B. Rollin' Riders Bedienungsanleitung
