Suptek ML5074-3 Bedienungsanleitung
Installation of base and column and the adjustment of height
Panel x1 Base x1
Short square tube x2Long square tube x2
Lower Shelf x1 Hook x2
Plate for fixing column x1 Castor x4
Screw package (for TV installation)
Screw package (for floor stand)
Holder for lower shelf x2
ML5074-3
WARNING!
Step 1 Step 2
Base installation
Parts
Plastic fixing cover X2 Column x1
F:M8x60
(X6)
H:M8 Nut
(X4)
I:M8x12
(X8)
J:S6 allen key
(X1)
K:bubble level
(X1)
L:wrench
(X1)
G:
φ
8xφ16x1.5
Washer
(X10)
M:M5 Cap nut (X4)
Screw package (for lower shelf )
M5x20 (x4)
(G1)
M6x20 (x4)
(G2)
M8x20 (x4)
(H1)
D8 Higher
spacer (x4)
(H2)
D5 Washer(x4)
(F)
D6 Washer(x4)
(O)
INSTALLATION MANUAL
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before
beginning.
●If you do not understand the instructions or have any concerns or
questions, please contact a qualified local installer.
●Do not install or assemble if the product or hardware is damaged or
missing. If you require replacement parts, please contact your local
distributor for assistance.
●This product fits most 32"-75" LCD/plasma screen; load capacity up
to 165 lbs/75kg; lower shelf max load: 10 lbs/4.5kg.
●Do not use this product for anything other than the original purpose.
●This product contains moving parts, please use with caution.
32"-75"165lbs
（75KG ）
VESA Pattern
MAX 600x400
Insert four square tubes
into the base as shown
Tighten screw I with wrench J
1.1
1.2
1.3
IJ
Tighten screw F with wrench J as shown.
2.1
2.3 2.4
2.5
2.2

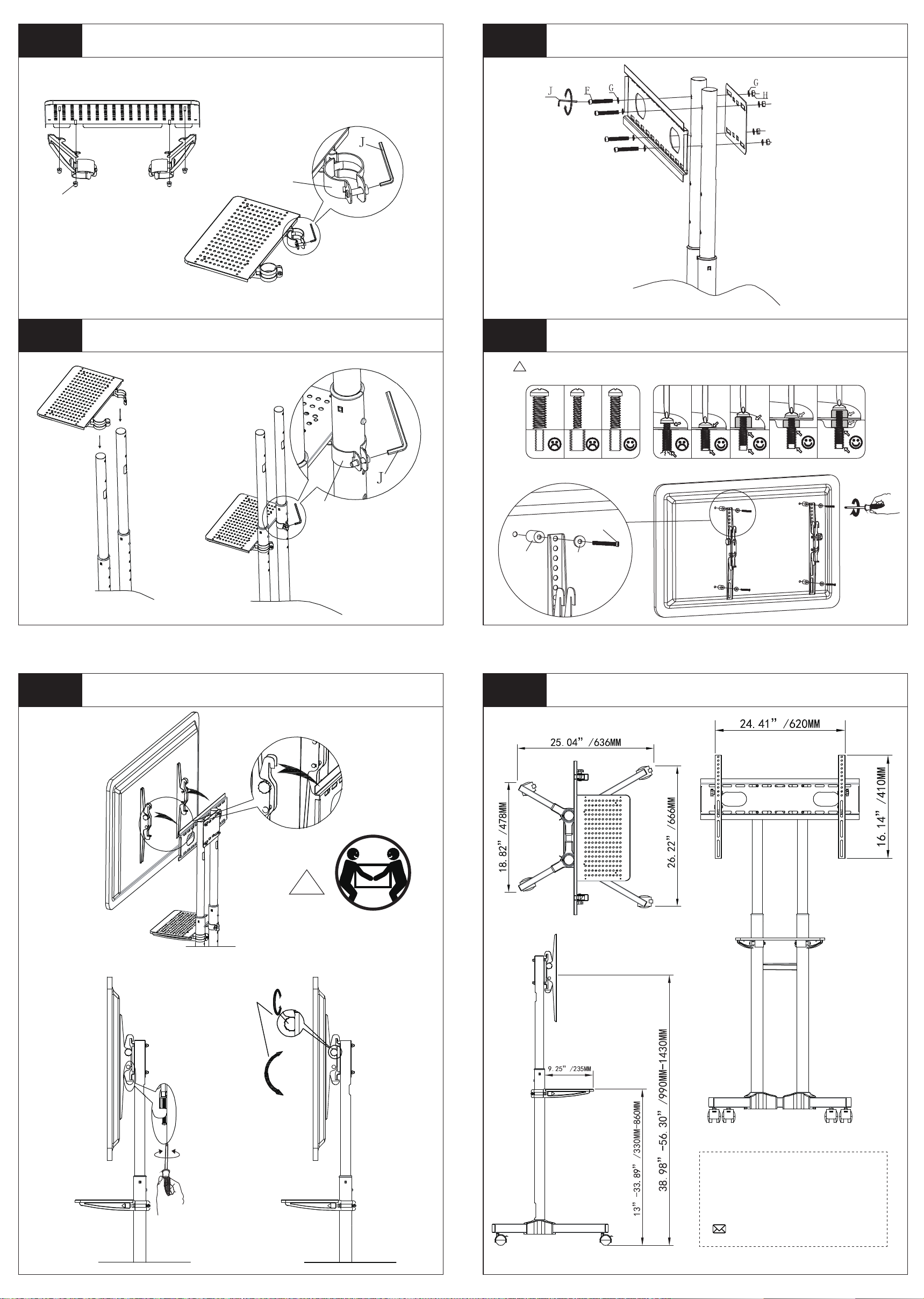

Specifications
Step 8
:after-sales@suptekmount.com
We hope you never have the need,but
if you do,our service is friendly and
hassle-free.
Connect panel and column
Connect TV and hook
Please use proper screws; leave room between tv and screw
(please use higher spacer for long screws in case of tv damage).
!
Step 5
Step 6
H2
F O
G1 G2 H1
Connecting column and lower shelf
Step 3
Connect TV and floor stand
!
Step 7
7.1
7.2 7.3
±15°
3.1
3.2
clamping piece
Unscrew the screw
anticlockwise with
allen key, then you
get 2 clamping pieces.
M
Connecting column and lower shelf
Step 4
Put lower shelf on the
proper height. Screw 2
clamping pieces and tighten
it clockwise with allen key.
Combine lower shelf with column.
4.1 4.2
clamping piece
