Suresign Resure Bedienungsanleitung
TM
Blood Glucose
MONITORING SYSTEM
Quick Reference
Guide
Quick Reference
Guide
2

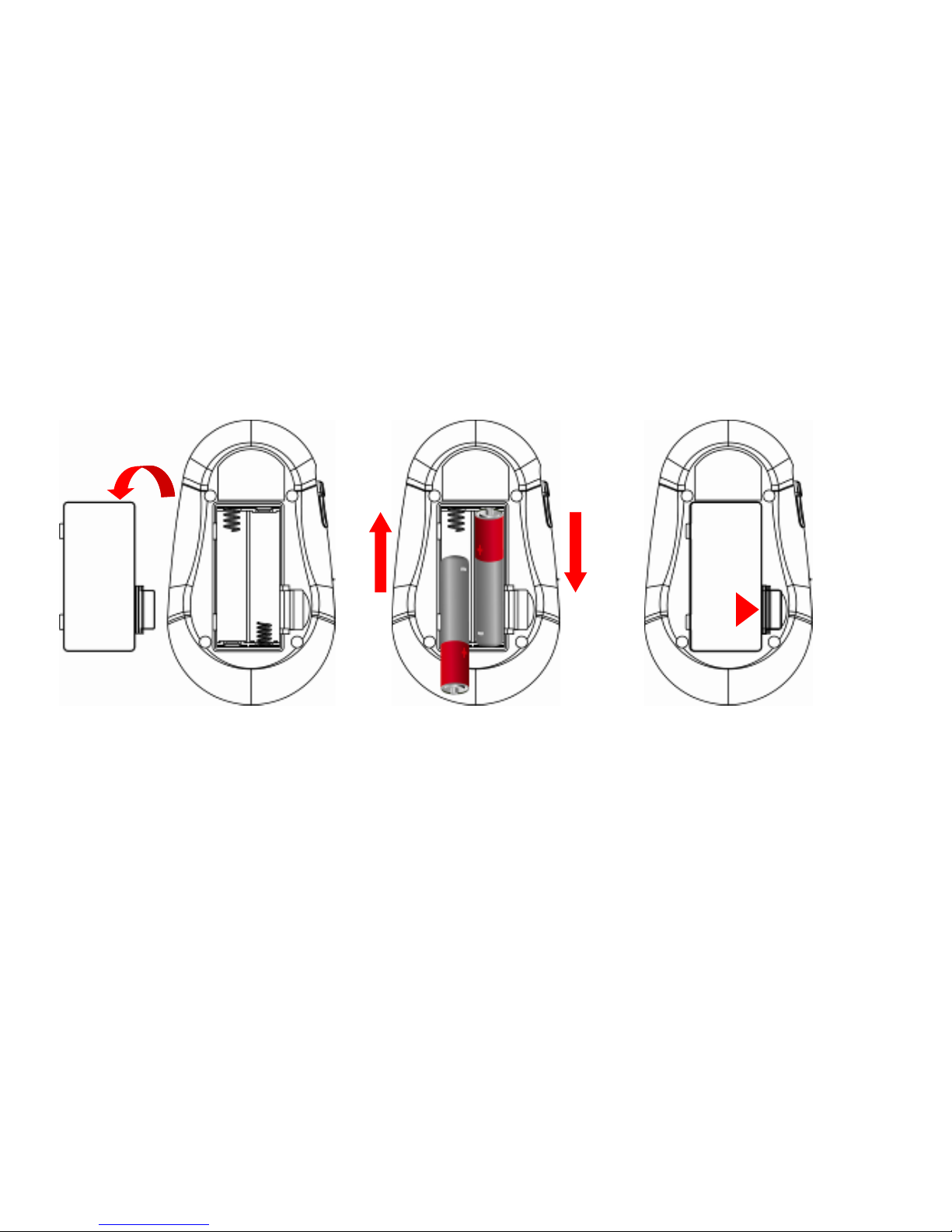

Inserting Batteries
1. Open the battery door on the
back of the meter by pushing
the tab in the direction of the
arrow and pulling the door up.
3. Put the battery door back in
place and snap it closed.
The meter turns on
automatically.
2. Insert two batteries and the
meter beeps.
3

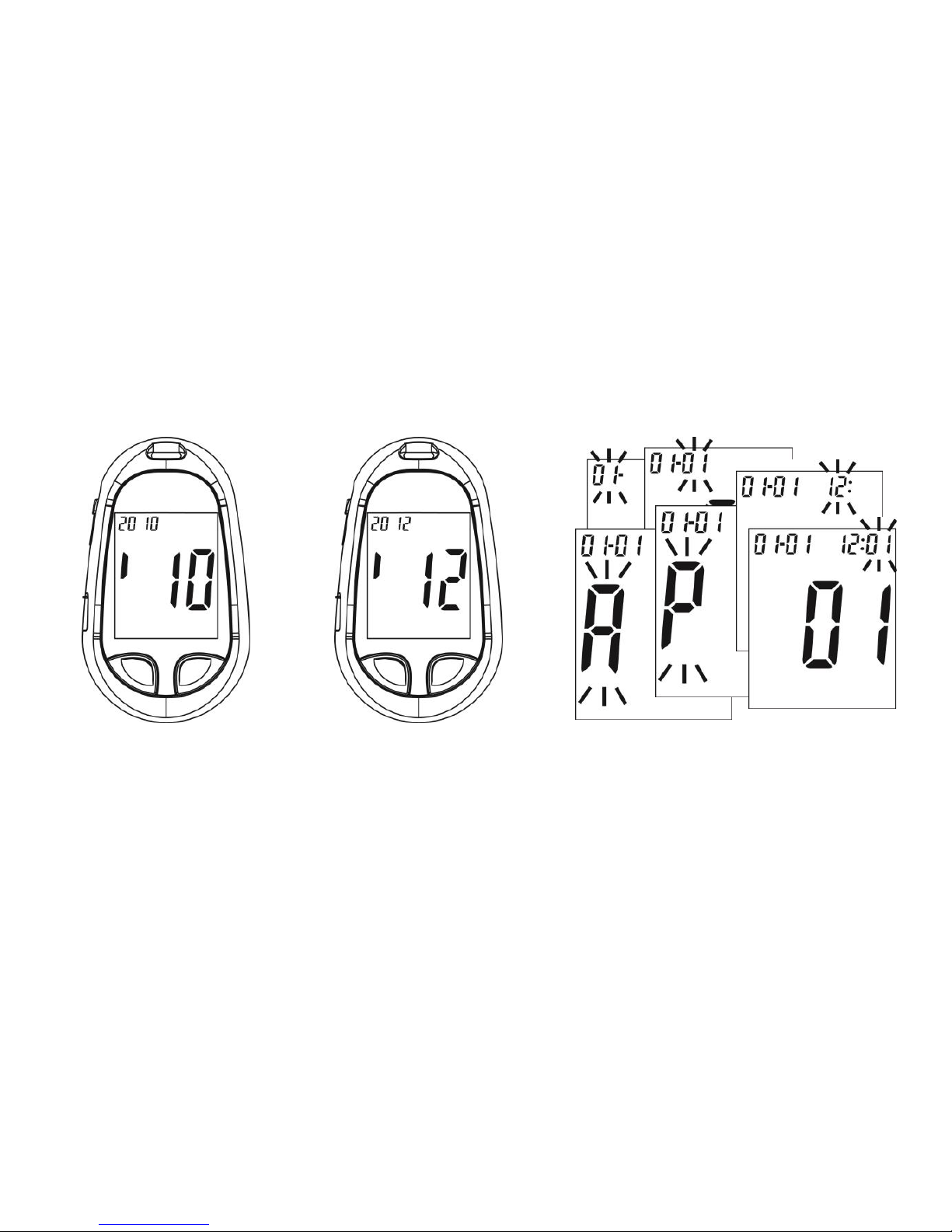

Setting The Time and Date
Setting the current time and date in your meter is important if you use the meter memory.
3. Repeat step 2 to set the date and
time. The flashing field is the one
you are currently setting. (A=AM,
P=PM)
1.Press (right button) to
turn the meter on.
2. The display shows the last
2-digit of the year that flashes at
the top of display as well. Press
(left button) to adjust the year
and press (right button) to
confirm the setting.
4

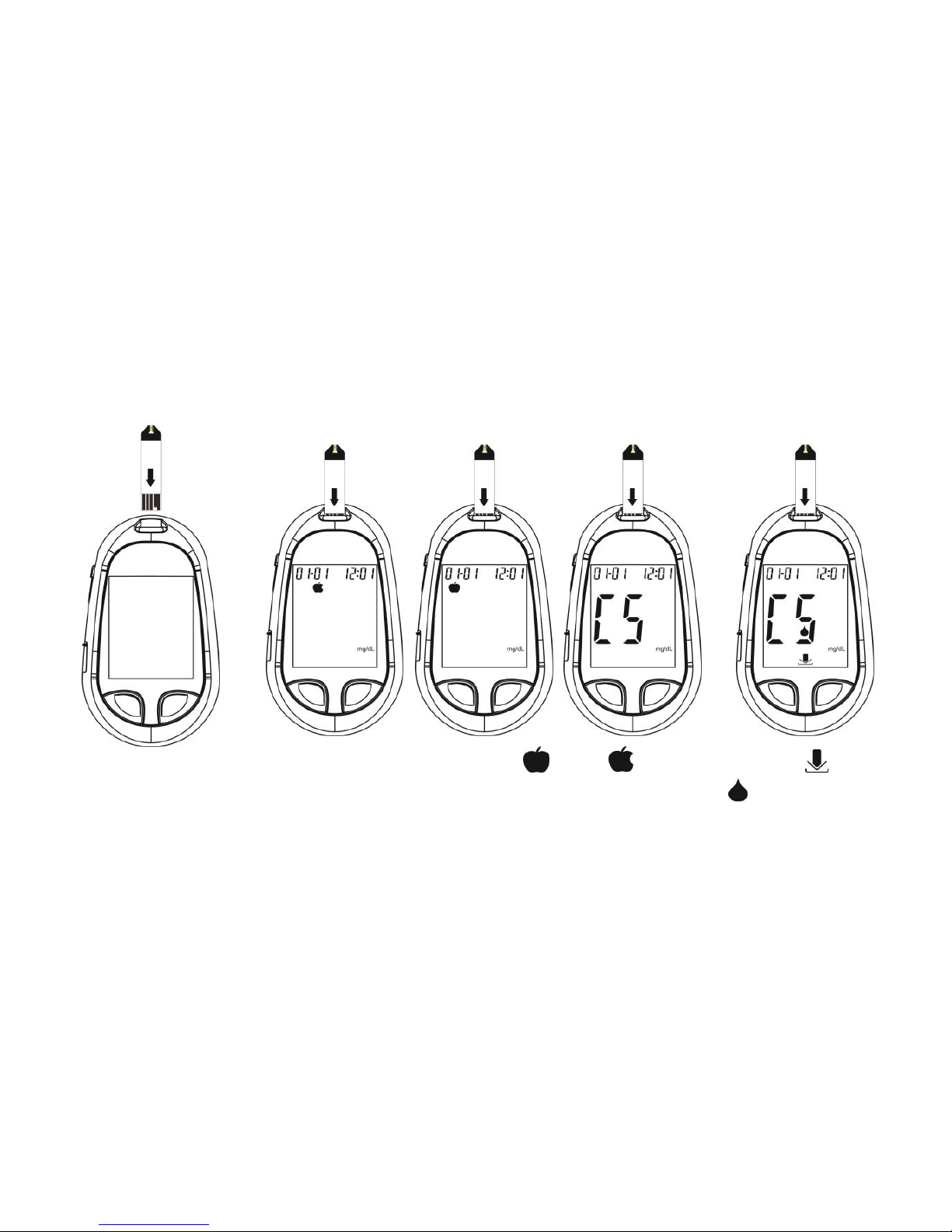

Running a Control Solution Test
You need the meter, a test strip, and control solution.
1. Put a test strip into the
meter according to the
direction of the arrow
on the test strip. The
meter turns on
automatically.
3. The icons and
are displayed.
2. Press (left button) to set (AC), (PC)
or CS Mode, then press (right button) to
confirm the setting.
5

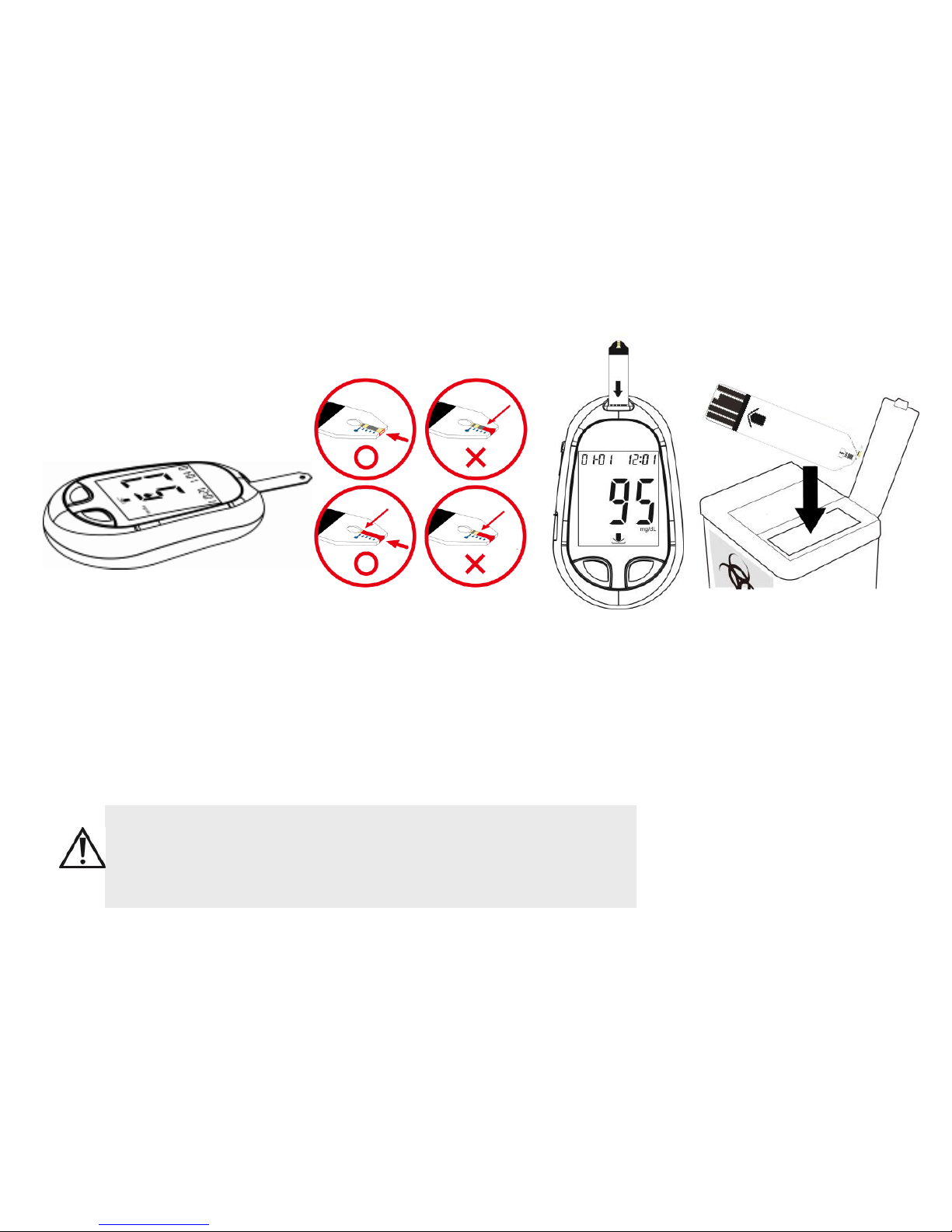

4.Place the meter on a flat
surface, like a table.
5. Remove the control solution
bottle cap and wipe the tip of the
bottle with a tissue.
6.Squeeze the bottle until a tiny
drop forms at the tip of the
bottle.
Be aware that there are Normal and High ranges listed on
your test strip bottle. The Normal and High refer to the three
different control solutions that are available. Please be sure
that you are looking at the correct range.
7.Touch the control solution drop
to the tip of the transparent
window of the test strip. Do not
put control solution drop on
top of the strip.
8.The meter starts to count down
from 5 seconds and then
shows the test result.
9. Do not remove the test strip yet.
Check if the reading falls within the
range printed on the test strip bottle.
10.Push the Strip Ejector to remove
the test strip.
11. Throw the test strip away after
you have compared the reading
to the range printed on the test
strip bottle.
6

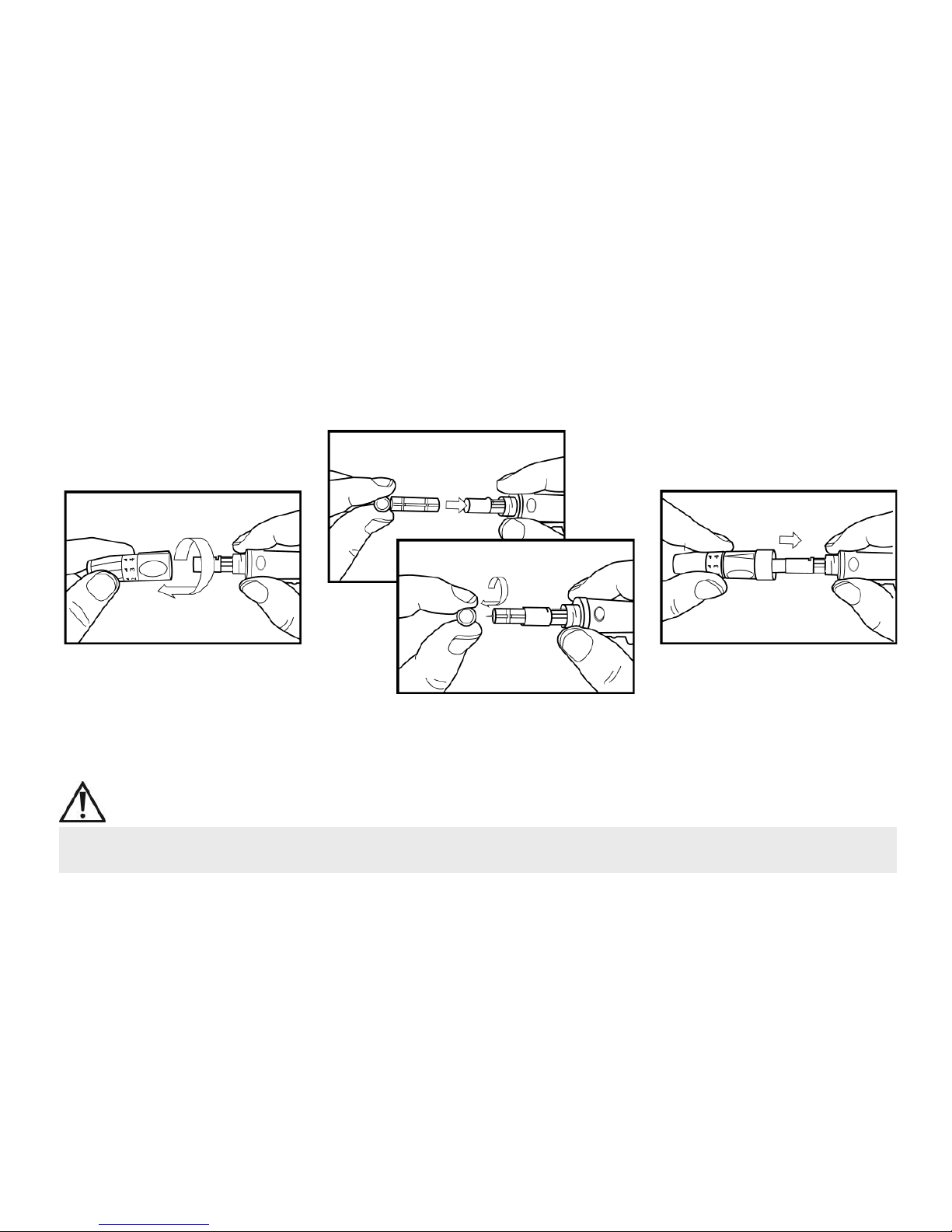

Inserting a Lancet into the Lancing Device
You must first load the lancet into the lancing device to get it ready for use.
1. Unscrew the Cap.
2. Insert the lancet into the lancing
device firmly then twist off the
protective cover.
3. Recap the front cap.
Lancets are for use only and a new, sterile lancet should be used each time you perform a test.
7

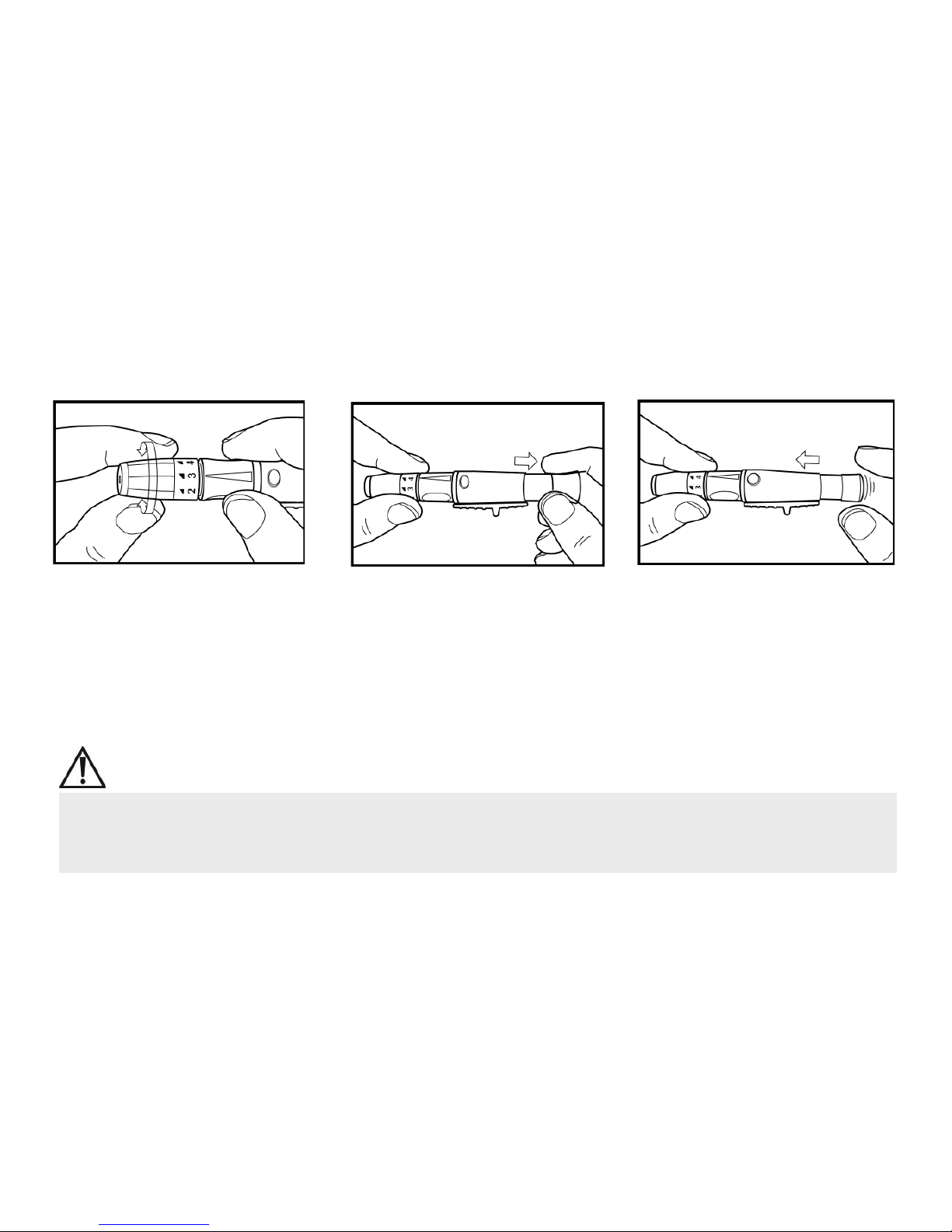

1. Select 1-2 for soft or thin skin, 3-4 for average, and 5 for thick or calloused skin.
2. Lancing device and lancets are not to be shared between users. Sharing lancing devices and
lancets may transmit blood borne pathogens, such as viral hepatitis.
6. Set the lancing device aside
until later in the test.
5. Pull on the sliding barrel of the
lancing device until it clicks and
then release.
Now the lancing device is ready.
Do not prick your finger until your
meter and strip are prepared.
4. Select the desired penetration
depth.
8

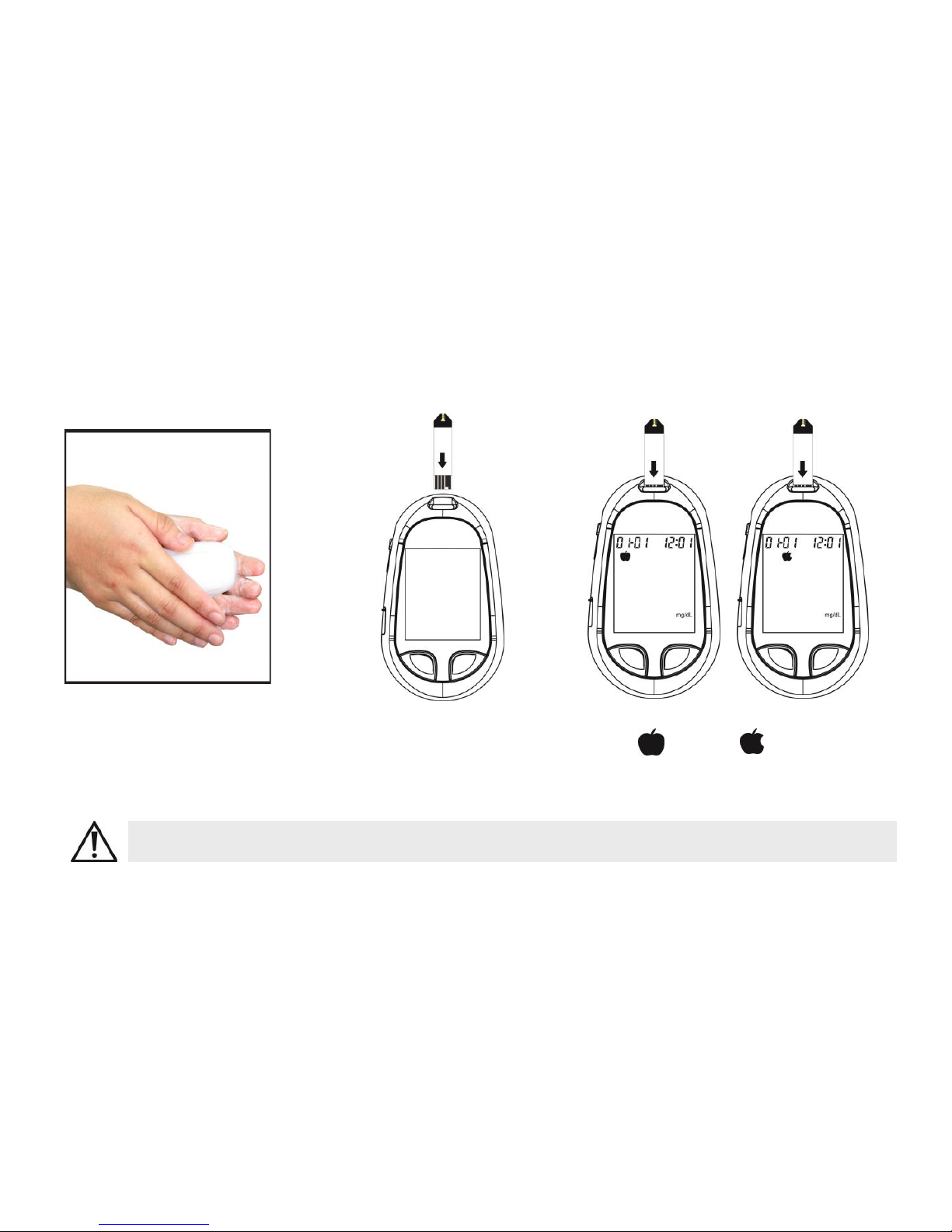

Running A Blood Glucose Test With Blood From Your Fingertips
You can also turn on the meter by inserting a test strip.
1. Wash your hands with
soap and warm water.
Rinse and dry thoroughly.
2. Put a test strip into the meter in
the direction of the arrow. The
meter turns on automatically.
3. Press (left button) to set
(AC) or (PC)
Mode, then press (right
button) to confirm the setting.
9

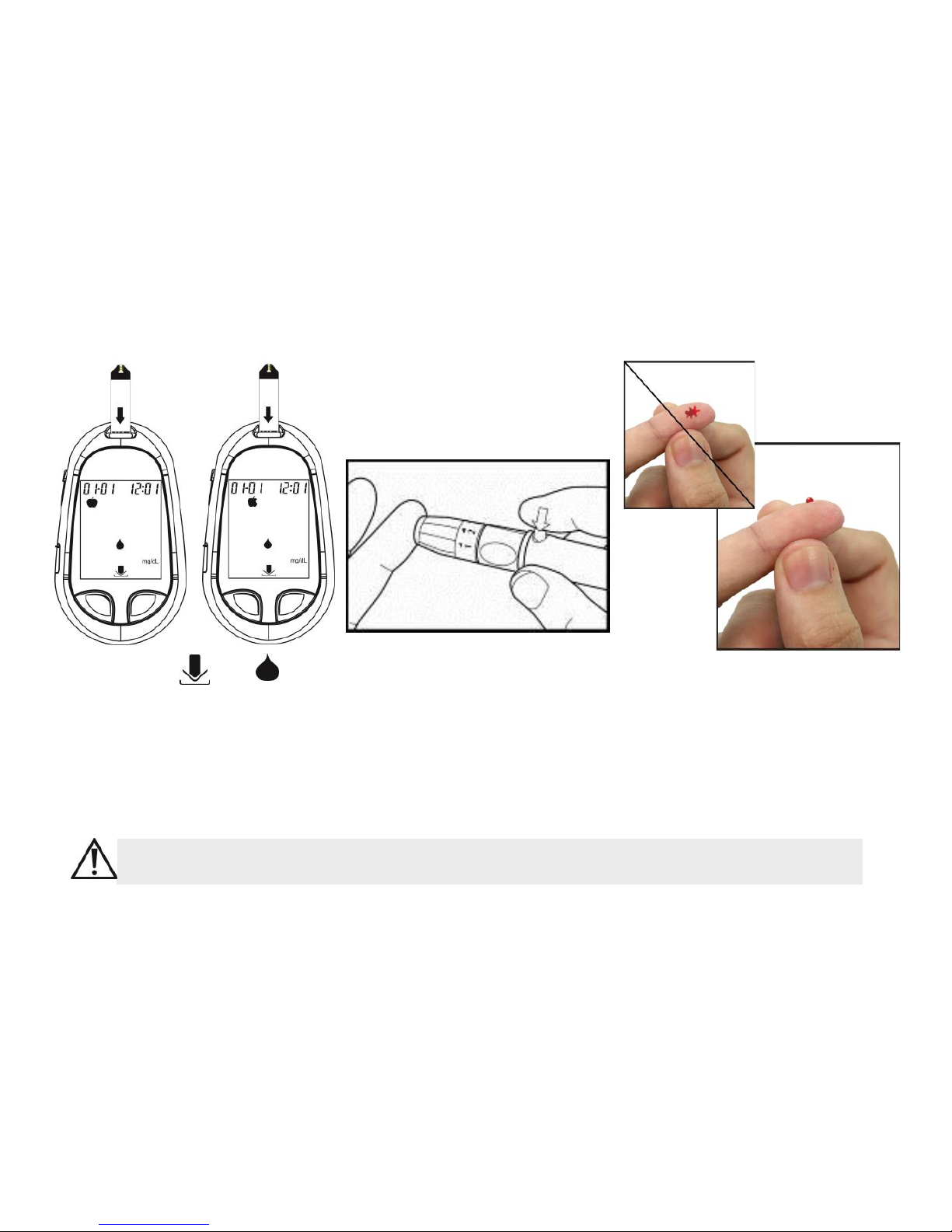

Please make sure to apply blood when the blood drop appears on the display.
5. Hold the lancing device firmly
against the side of your finger.
Press the trigger button. Then
remove the lancing device
from your finger.
6. Gently squeeze and/or massage
your fingertip until a round drop
of blood on your fingertip.
7. Wipe away the first drop with a
tissue and use the second drop.
4. The icons and
show themselves.
When the blood drop flashes
on the display, obtain a drop
of blood from your finger.
10

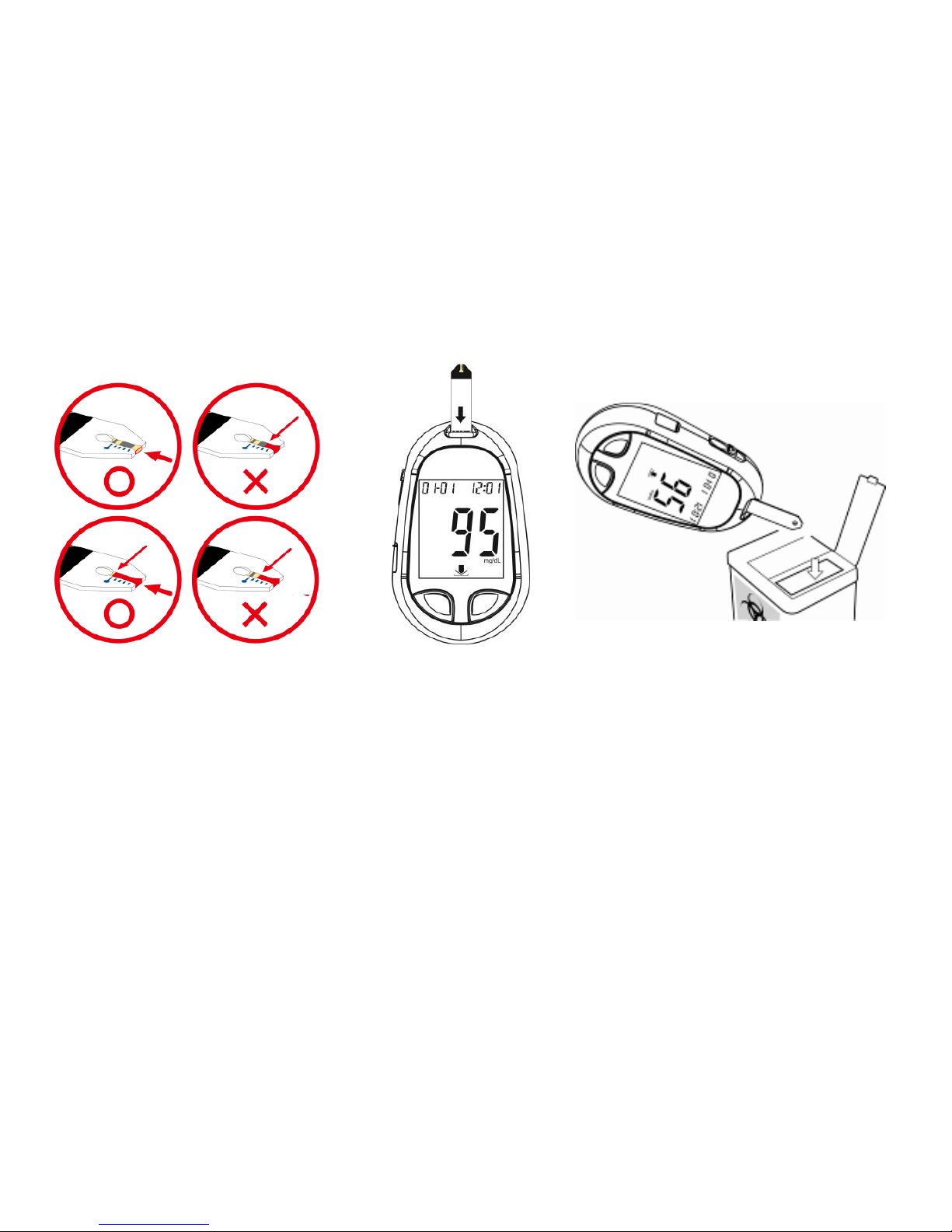

8. Touch the drop to the tip of the
transparent window of the test
strip.
Do not put blood on top of
the strip.
Be sure to get enough blood in
the strip’s confirmation window.
Otherwise, an inaccurate
reading may yield.
9. The meter starts to count
down from 5 seconds and
then shows the test result.
10.Push the Strip Ejector to remove
the test strip.
11. Throw it away after you have
compared the reading to the range
printed on the test strip bottle.
