GROUP INDEX

FOREWORD

This manual contains an introductory description

on the SUZUKI GSF600S and procedures for its

inspection/service and overhaul of its main com-

ponents.

Other information considered as generally known

is not included.

Read the GENERAL INFORMATION section to fa-

miliarize yourself with the motorcycle and its main-

tenance. Use this section as well as other sections

to use as a guide for proper inspection and ser-

vice.

This manual will help you know the motorcycle bet-

ter so that you can assure your customers of fast

and reliable service.

Inexperienced mechanics or mechanics with-

out the proper tools and equipment may not

be able to properly perform the services de-

scribed in this manual. Improper repair may

result in injury to the mechanic and may ren-

der the motorcycle unsafe for the rider and

passenger.

GENERAL INFORMATION

* This manual has been prepared on the basis

of the latest specifications at the time of pub-

lication. If modifications have been made since

then, differences may exist between the con-

tent of this manual and the actual motorcycle.

* Illustrations in this manual are used to show

the basic principles of operation and work pro-

cedures. They may not represent the actual

motorcycle exactly in detail.

* This manual is written for persons who have

enough knowledge, skills and tools, including

special tools, for servicing SUZUKI motor-

cycles. If you do not have the proper knowl-

edge and tools, ask your authorized SUZUKI

motorcycle dealer to help you.

Overseas Service Department

cCOPYRIGHT SUZUKI MOTOR CORPORATION 1999

PERIODIC MAINTENANCE

ENGINE

FUEL SYSTEM

CHASSIS

ELECTRICAL SYSTEM

SERVICING INFORMATION

GSF600Y (’00-MODEL)

GSF600SK1/GSF600SUK1

GSF600K1 (’01-MODEL)

GSF600K2/GSF600SK2

(’02-MODEL)

Front axle

Spacer

Collar

Brake disc (R)

Bearing (R)

Spacer

Bearing (L)

Brake disc (L)

Collar

Front wheel

Air valve

Balancer

Axle shaft

Brake disc bolt

HOW TO USE THIS MANUAL

TO LOCATE WHAT YOU ARE

LOOKING FOR:

1.The text of this manual is divided into sections.

2.The section titles are listed in the GROUP INDEX.

3.Holding the manual as shown at the right will allow you

to find the first page of the section easily.

4.The contents are listed on the first page of each section

to help find the item and page you need.

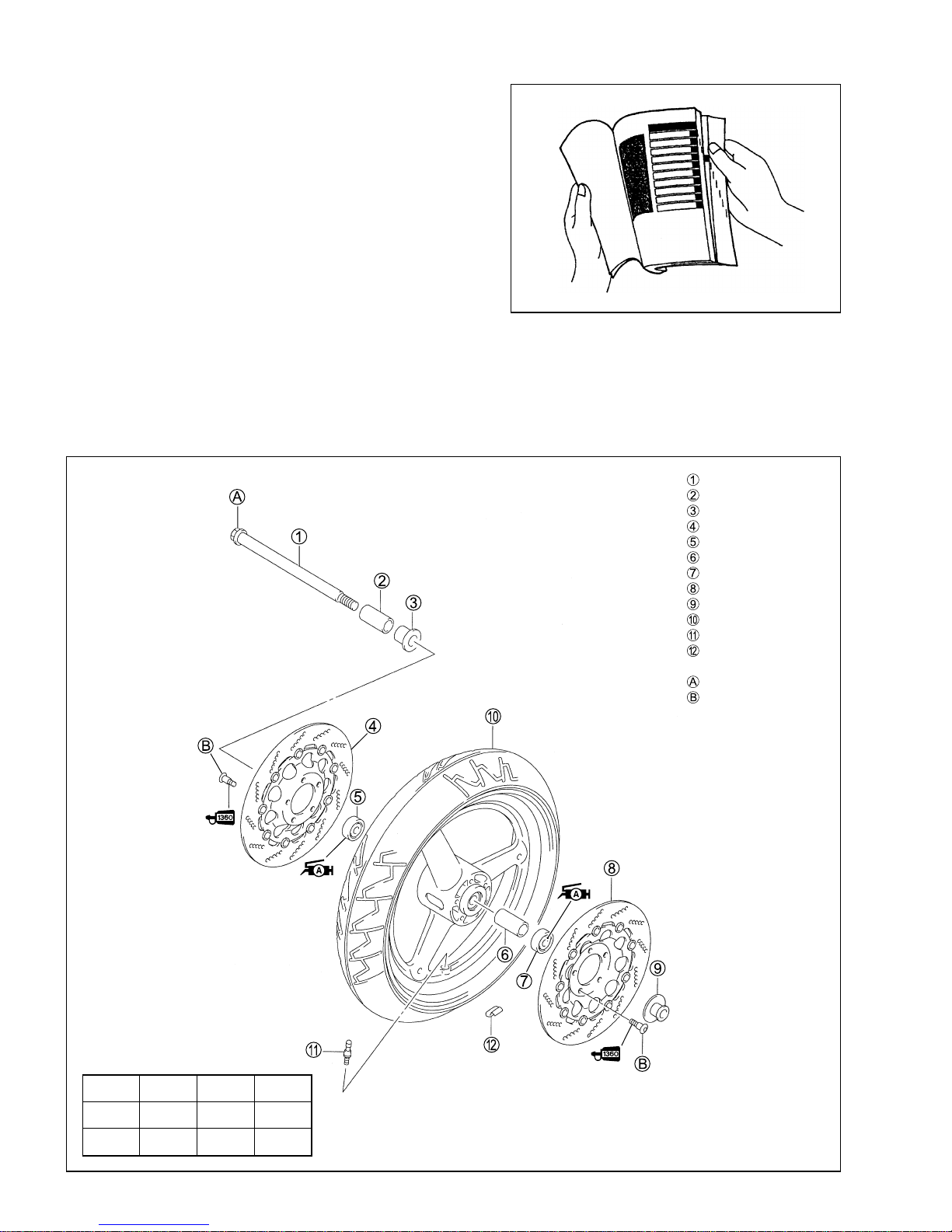

COMPONENT PARTS AND WORK TO BE DONE

Under the name of each system or unit, is its exploded view. Work instructions and other service information

such as the tightening torque, lubricating points and locking agent points, are provided.

Example: Front wheel

ITEM N.m kgf.m lb-ft

A65 6.5 47.0

B23 2.3 16.5

SYMBOL

Listed in the table below are the symbols indicating instructions and other information necessary for servic-

ing. The meaning of each symbol is also included in the table.

SYMBOL DEFINITION SYMBOL DEFINITION

Torque control required.

Data beside it indicates specified

torque.

Apply oil. Use engine oil unless

otherwise specified.

Apply SUZUKI SUPER GREASE “A”.

99000-25010

Apply THREAD LOCK “1342”.

99000-32050

Apply THREAD LOCK SUPER

“1360”.

99000-32130

Apply or use brake fluid.

Apply SUZUKI MOLY PASTE.

99000-25140

Apply SUZUKI BOND “1207B”.

99000-31140

Apply THREAD LOCK SUPER

“1303”.

99000-32030

Measure in voltage range.

Measure in resistance range.

Measure in current range.

Measure in diode test range.

Measure in continuity test range.

Use special tool.

Use fork oil.

99000-99044-10G

Indication of service data.

Apply molybdenum oil solution (mix-

ture of engine oil and SUZUKI MOLY

PASTE in a ratio of 1:1).

Apply SUZUKI SILICONE GREASE.

99000-25100

Apply THERMO-GREASE.

99000-59029

GENERAL INFORMATION 1-1

GENERAL INFORMATION

WARNING/CAUTION/NOTE ............................................................. 1- 2

GENERAL PRECAUTIONS .............................................................. 1- 2

SUZUKI GSF600SY (2000-MODEL) ................................................ 1- 4

SERIAL NUMBER LOCATION ......................................................... 1- 4

FUEL AND OIL RECOMMENDATION .............................................. 1- 4

FUEL .............................................................................................. 1- 4

ENGINE OIL ................................................................................... 1- 5

BRAKE FLUID ............................................................................... 1- 5

FRONT FORK OIL ......................................................................... 1- 5

BREAK-IN PROCEDURES ............................................................... 1- 5

CYLINDER IDENTIFICATION ........................................................... 1- 5

INFORMATION LABELS .................................................................. 1- 6

SPECIFICATIONS ............................................................................. 1- 7

COUNTRY OR AREA CODES .......................................................... 1- 9

CONTENTS

1-2 GENERAL INFORMATION

WARNING/CAUTION/NOTE

Please read this manual and follow its instructions carefully. To emphasize special information, the symbol

and the words WARNING, CAUTION and NOTE have special meanings. Pay special attention to the mes-

sages highlighted by these signal words.

Indicates a potential hazard that could result in death or injury.

Indicates a potential hazard that could result in motorcycle damage.

NOTE:

Indicates special information to make maintenance easier or instructions clearer.

Please note, however, that the warnings and cautions contained in this manual cannot possibly cover all

potential hazards relating to the servicing, or lack of servicing, of the motorcycle. In addition to the WARN-

INGS and CAUTIONS stated, you must use good judgement and basic mechanical safety principles. If you

are unsure about how to perform a particular service operation, ask a more experienced mechanic for ad-

vice.

GENERAL PRECAUTIONS

* Proper service and repair procedures are important for the safety of the service mechanic and

the safety and reliability of the motorcycle.

* When 2 or more persons work together, pay attention to the safety of each other.

* When it is necessary to run the engine indoors, make sure that exhaust gas is forced outdoors.

* When working with toxic or flammable materials, make sure that the area you work in is well-

ventilated and that you follow all of the material manufacturer’s instructions.

* Never use gasoline as a cleaning solvent.

* To avoid getting burned, do not touch the engine, engine oil, oil cooler and exhaust system until

they have cooled.

* After servicing the fuel, oil, exhaust or brake systems, check all lines and fittings related to the

system for leaks.

GENERAL INFORMATION 1-3

* If parts replacement is necessary, replace the parts with Suzuki Genuine Parts or their equiva-

lent.

* When removing parts that are to be reused, keep them arranged in an orderly manner so that

they may be reinstalled in the proper order and orientation.

* Be sure to use special tools when instructed.

* Make sure that all parts used in reassembly are clean. Lubricate them when specified.

* Use the specified lubricant, bond, or sealant.

* When removing the battery, disconnect the negative cable first and then the positive cable.

When reconnecting the battery, connect the positive cable first and then the negative cable,

and replace the terminal cover on the positive terminal.

* When performing service to electrical parts, if the service procedures not require use of battery

power, disconnect the negative cable the battery.

* When tightening the cylinder head and case bolts and nuts, tighten the larger sizes first. Al-

ways tighten the bolts and nuts diagonally from the inside working out and to the specified

tightening torque.

* Whenever you remove oil seals, gaskets, packing, O-rings, locking washers, self-locking nuts,

cotter pins, circlips and certain other parts as specified, be sure to replace them with new ones.

Also, before installing these new parts, be sure to remove any left over material from the mating

surfaces.

* Never reuse a circlip. When installing a new circlip, take care not to expand the end gap larger

than required to slip the circlip over the shaft. After installing a circlip, always ensure that it is

completely seated in its groove and securely fitted.

* Use a torque wrench to tighten fasteners to the specified torque. Wipe off grease and oil if a

thread is smeared with them.

* After reassembling, check parts for tightness and proper operation.

* To protect the environment, do not unlawfully dispose of used motor oil and other fluids: batter-

ies, and tires.

* To protect Earth’s natural resources, properly dispose of used motorcycle and parts.

1-4 GENERAL INFORMATION

SUZUKI GSF600SY (2000-MODEL)

SERIAL NUMBER LOCATION

The frame serial number or V.I.N. (Vehicle Identification Number) 1is stamped on the right side of the

steering head pipe. The engine serial number 2is located on the right side of the crankcase. These numbers

are required especially for registering the machine and ordering spare parts.

FUEL AND OIL RECOMMENDATION

FUEL (For Canada)

1.Use only unleaded gasoline of at least 87 pump octane ( ) method or 91 octane or higher rated by the

research method.

2.Suzuki recommends that customers use alcohol free, unleaded gasoline whenever possible.

3.Use of blended gasoline containing MTBE (Methyl Tertiary Butyl Ether) is permitted.

4.Use of blended gasoline/alcohol fuel is permitted, provided that the fuel contains not more than 10% etha-

nol. Gasoline/alcohol fuel may contain up to 5% methanol if appropriate cosolvents and corrosion inhibitors

are present in it.

5.If the performance of the vehicle is unsatisfactory while using blended gasoline/alcohol fuel, you should

switch to alcohol-free unleaded gasoline.

6.Failure to follow these guideline could possibly void applicable warranty coverage. Check with your fuel

supplier to make sure that the fuel you intend to use meets the requirements listed above.

FUEL (For the others)

Gasoline used should be graded 91 octane (Research Method) or higher. An unleaded gasoline is recom-

mended.

LEFT RIGHT

* Difference between photograph and actual motorcycle depends on the markets.

GENERAL INFORMATION 1-5

ENGINE OIL

Use a premium quality 4-stroke motor oil to ensure longer ser-

vice life of your motorcycle. Use only oils which are rated SF or

SG under the API service classification.

The recommended viscosity is SAE 10W-40. If an SAE 10W-40

motor oil is not available, select an alternative according to the

right chart.

BRAKE FLUID

Specification and classification: DOT 4

Since the brake system of this motorcycle is filled with a glycol-based brake fluid by the manufac-

turer, do not use or mix different types of fluid such as silicone-based and petroleum-based fluid

for refilling the system, otherwise serious damage will result.

Do not use any brake fluid taken from old or used or unsealed containers.

Never re-use brake fluid left over from a previous servicing, which has been stored for a long

period.

MULTIGRADE

TEMP.

FRONT FORK OIL

Use fork oil #10 or equivalent fork oil.

BREAK-IN PROCEDURES

During manufacture only the best possible materials are used and all machined parts are finished to a very

high standard but it is still necessary to allow the moving parts to “BREAK-IN” before subjecting the engine to

maximum stresses. The future performance and reliability of the engine depends on the care and restraint

exercised during its early life. The general rules are as follows.

• Keep to these break-in engine speed limits:

Initial 800 km (500 miles): Below 6 000 r/min.

Up to 1 600 km (1 000 miles): Below 9 000 r/min.

Over 1 600 km (1 000 miles): Below 12 000 r/min.

• Upon reaching an odometer reading of 1 600 km (1 000 miles) you can subject the motorcycle to full throttle

operation. However, do not exceed 12 000 r/min. at any time.

CYLINDER IDENTIFICATION

The four cylinders of this engine are identified as No.1, No.2, No.3 and No.4 cylinder, as counted from left to

right (as viewed by the rider on the seat).

1-6 GENERAL INFORMATION

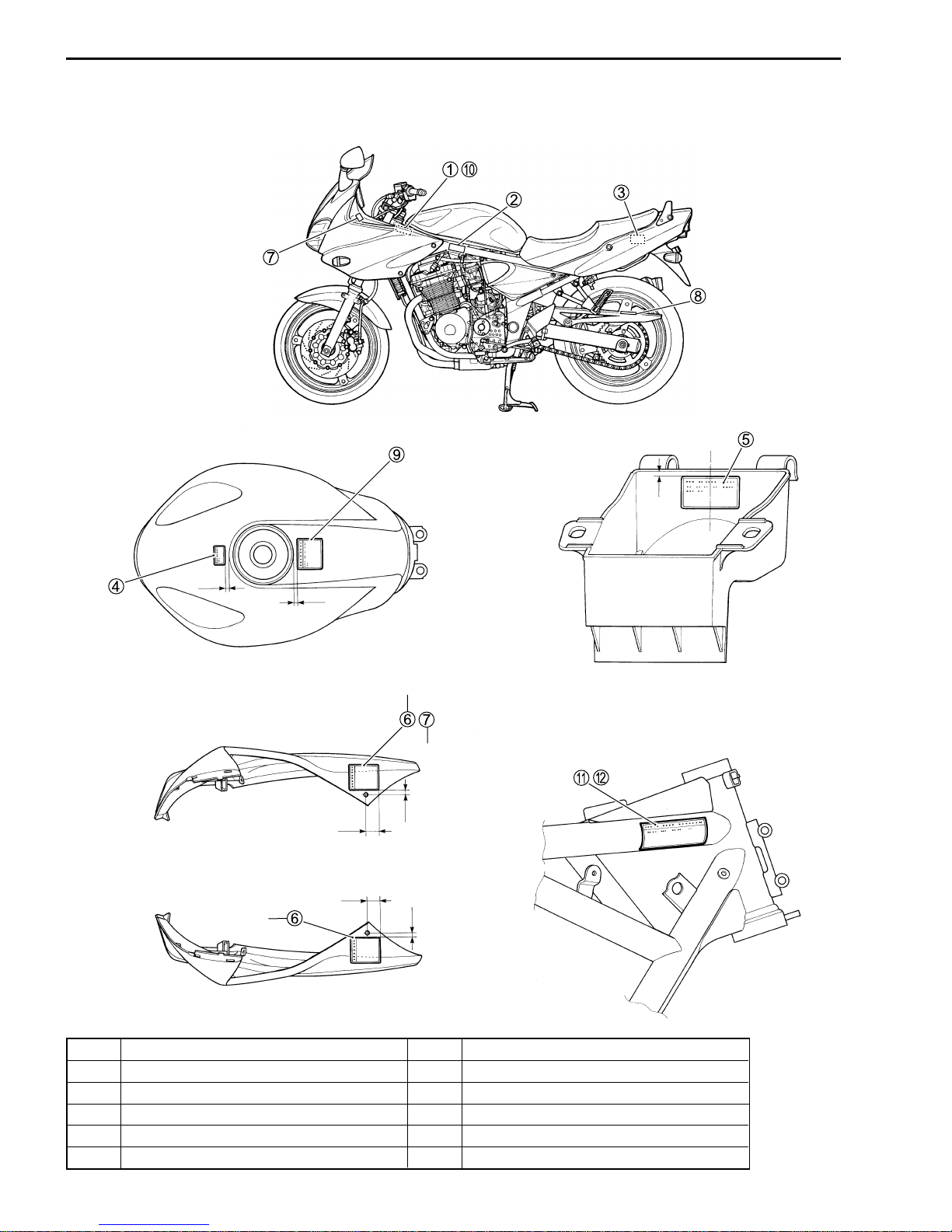

INFORMATION LABELS

10 mm

(0.4 in) 10 mm

(0.4 in)

10 mm

(0.4 in) 10 mm

(0.4 in)

28 mm

(1.1 in)

28 mm

(1.1 in)

10 mm (0.4 in)

(E-28 Only)

(For E-03, 33)

5 mm

(0.2 in)

Document tray

(Except E-28)

(Except E-03, 33)

(Attached on the left frame pipe) (Attached on the right side

of the rear fender)

1Noise label (For E-03, 33)

2Information label (For E-03, 28, 33)

3Vacuum hose routing label (For E-33)

4Fuel caution label (For E-02, 24)

5Manual notice label (For E-03, 33)

6Warning screen label

7Warning steering label

8Tire pressure label

9Warning safety label

0ICES Canada label (For E-28)

AID plate (Except E-03, 28, 33)

BSafety plate (For E-03, 28, 33)
