Sven KB-C7300EL Bedienungsanleitung

USER’S MANUAL

www.sven.ﬁ

Multimedia Keyboard

KB-C7300EL

CONTENTS

1. SPECIAL FEATURES ...............................................................................

2. PACKAGE CONTENTS ..............................................................................

3. SYSTEM REQUIREMENTS .........................................................................

4. INSTALLATION ........................................................................................

5. DESCRIPTION OF SHORTCUT KEYS FUNCTIONS .......................

......................

6. TROUBLESHOOTING ...........................................................................

7. TECHNICAL SPECIFICATIONS ..................................................................

Technical support is on www.sven.ﬁ.

Congratulations on your purchase of the Sven Multimedia Keyboard!

Please read this User's Manual before using the unit and retain this User's Manual in a safe place for

future reference.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some discrepancies may occur. The

information in this Manual is given on «as is» terms. The author and the publisher do not bear any

liability to a person or an organization for loss or damage which has arisen from the information

contained in this Manual.

UNPACKING

Unpack the device carefully. Make sure there are no accessories left in the box. Check up the

device for damage; if the product was damaged during transportation, address the ﬁrm which

carried out the delivery; if the product functions incorrectly, address the dealer at once.

ENG

Multimedia Keyboard

ENG

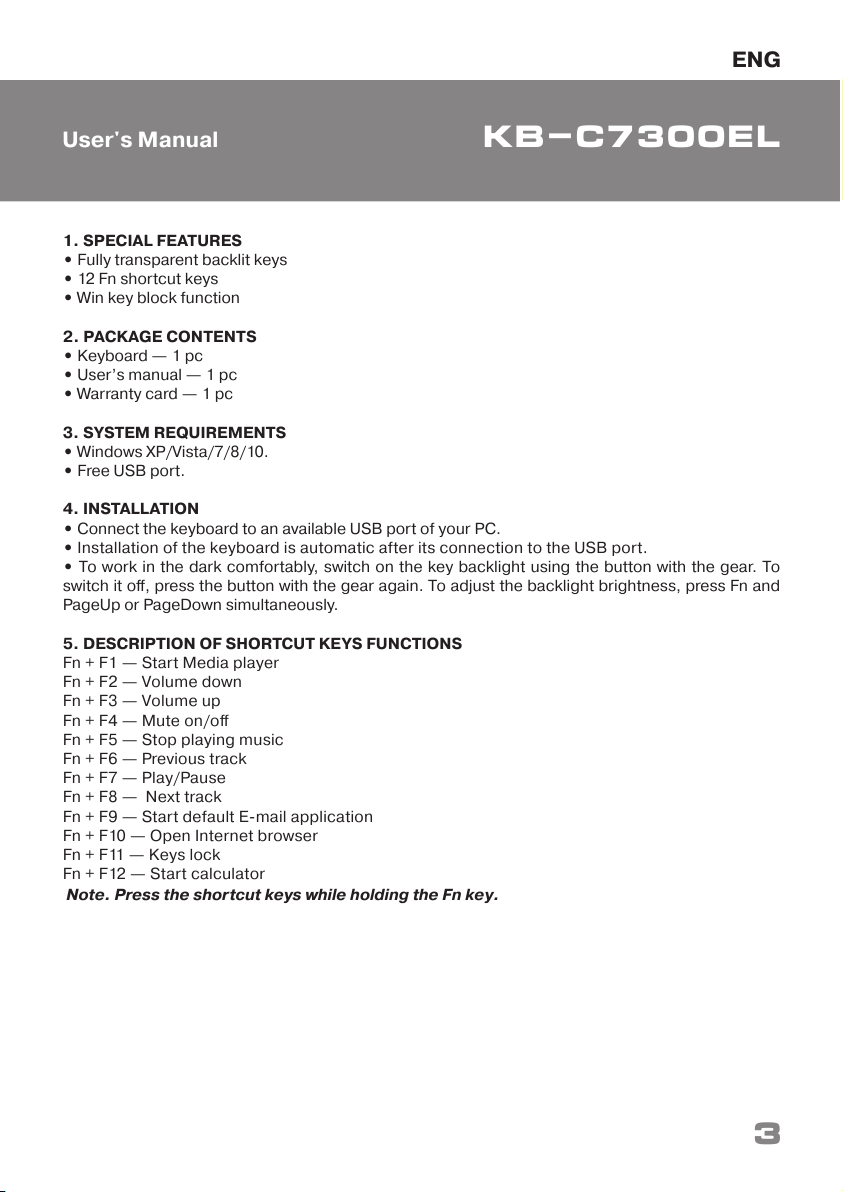

User's Manual KB-C7300EL

1. SPECIAL FEATURES

• Fully transparent backlit keys

• 12 Fn shortcut keys

• Win key block function

2. PACKAGE CONTENTS

• Keyboard — 1 pc

• User’s manual — 1 pc

• Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10.

• Free USB port.

4. INSTALLATION

• Connect the keyboard to an available USB port of your PC.

• Installation of the keyboard is automatic after its connection to the USB port.

• To work in the dark comfortably, switch on the key backlight using the button with the gear. To

switch it oﬀ, press the button with the gear again. To adjust the backlight brightness, press Fn and

PageUp or PageDown simultaneously.

5. DESCRIPTION OF SHORTCUT KEYS FUNCTIONS

Fn + F1 — Start Media player

Fn + F2 — Volume down

Fn + F3 — Volume up

Fn + F4 — Mute on/oﬀ

Fn + F5 — Stop playing music

Fn + F6 — Previous track

Fn + F7 — Play/Pause

Fn + F8 — Next track

Fn + F9 — Start default E-mail application

Fn + F10 — Open Internet browser

Fn + F11 — Keys lock

Fn + F12 — Start calculator

Note. Press the shortcut keys while holding the Fn key.

6. TROUBLESHOOTING

Problem

The keyboard is not working.

Problems using the additional

shortcut keys.

Solution

1. Make sure that BIOS of your PC has USB controller settings

for default operation.

2. Disconnect the keyboard from the PC and check connector

pins for possible damage. If there is no external damage found

and connector pins are OK, reconnect the keyboard to the PC.

3. Address your nearest authorized service center.

We recommend that you address your nearest authorized

service center.

Value

104

12 Fn

yes

Eng/Rus/Ukr

Windows XP/Vista/7/8/10

USB

more than 20,000,000 strokes

452 × 154 × 22

520

Parameter, measurement unit

Q-ty of keyboard keys

Q-ty of shortcut keys

Backlight on/oﬀ switch button

Keyboard layout

OS compatibility

Interface

Extrapolated mean life

Dimensions (W × H × L), mm

Weight, g

7. TECHNICAL SPECIFICATIONS

Notes:

• Technical speciﬁcations given in this table are supplemental information and cannot give

occasion to claims.

• Technical speciﬁcations are subject to change without notice due to improvement of

SVEN production.

If none of the above methods can solve the problem, please seek professional advice at your

nearest service center. Never attempt to repair the product yourself.

ENG

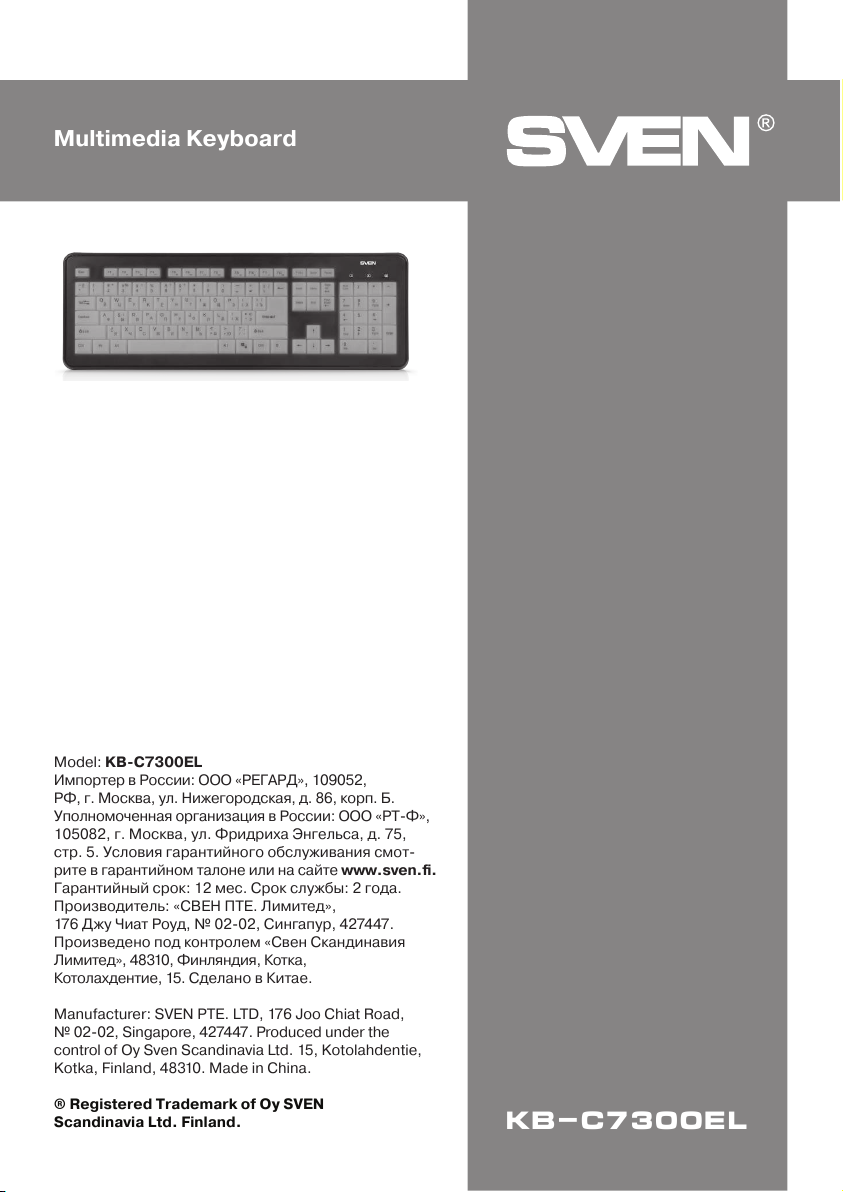

Multimedia Keyboard

Model: KB-C7300EL

Импортер в России: OOO «РЕГАРД», 109052,

РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.

Уполномоченная организация в России: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 75,

стр. 5. Условия гарантийного обслуживания смот-

рите в гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес. Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№ 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

Multimedia Keyboard

KB-C7300EL
