Swann PRO-750 Bedienungsanleitung

PRO-750 Dome

M750CAM190312E

English

Meijer.com

FCC Veriﬁcation:

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

IMPORTANT NOTE: Prohibition against eavesdropping

Except for the operations of law enforcement ofﬁcers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁcations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁxed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

FOR BEST RESULTS:

This is a semi-professional 360º PTZ dome camera, conforming to PELCO P/D stand-

ards. To obtain the best image quality, please use a high quality cable, particularly if

the cables required length exceeds 100ft/35m. For the highest video quality, use a

cable with a solid copper inner conductor and shielded with copper braid.

Before You Begin

Meijer.com

Before you Begin 2

Table of Contents 3

Quick Reference 3

Overview 4

Package Contents 4

Layout of the Camera and PTZ Controller 5

Layout of Remote Control 6

Connecting the Camera 8

Mounting the Camera 10

Setting the Command Address 12

Conﬁguring the PTZ Controller 12

Connecting Multiple PTZ Systems 13

Operating the Camera 14

Advanced Operation 16

Additional Functions 17

Troubleshooting Guide 18

Technical Speciﬁcations 19

Warranty / Technical Support Rear Cover

PRO-750 4” Pan, Tilt, Zoom Dome

Default PTZ Conﬁguration

Default Command Address: 1

Protocol: Pelco-D

Baud Rate: 2400bps

RS485 Polarity:

+A Purple Wire

- B White Wire

Contents

Quick Reference

Meijer.com

Congratulations on your purchase of this 360º PTZ Camera Dome! This system is

an ideal solution for monitoring a large area – a combination of a high quality CCD

image sensor mounted in a contained dome with the option to pan fully 360º.

Nothing will be out of sight for long!

Whether you wish to do this using the full complement of manual controls, or

program a detailed surveillance program for the camera to run, the PRO-750 gives

you all the options you need to simply and effectively monitor a large range of

locations without the hassle of multiple cameras.

The PRO-750 features an included fully functional PTZ controller, great low-light

performance and a 3x optical zoom – great for getting up close to what you want

to see. All this comes mounted in a simple but elegant 4” dome.

If any of these components are missing, contact Swann Technical Support.

Contact details are on the back cover of this booklet.

Overview

Package Contents

• PRO-750 pan & tilt 4” Dome Cam-

era

• Ceiling Mounting Arm/Bracket

• Wall Mount Arm

• Dome Controller

• Remote Control

• Mounting Screws

• Operating Instructions

• 18m (60ft) Hybrid Video/RS485

Cable

• Spare Camera Cable & Plug Board

• Power Adapter for Camera

• Power Adapter for Controller

Meijer.com

1. Wall-Mount Arm

For mounting the PRO-750 Dome to a wall, post or similar vertical surface.

2. Ceiling-mount Bracket

For mounting the PRO-750 Dome to the underside of a ceiling or overhang.

3. Camera Housing

Contains the camera, PTZ unit and associated circuitry and electronic components.

4. Dome Cover

Protects the camera.

5. LED Display

Displays the current status of the PTZ controller.

6. DC 12V

Connect the supplied power adaptor to this socket.

7. RS485 Port

Insert the RS485 plug into this socket.

8. RS485 Plug

Connect the end of the purple and white control wires into this plug, using the attached screws

to secure wires in position. The PURPLE wire is “+”, the WHITE wire is “-”.

Rear View

Front View

Layout of the Camera and PTZ Controller

Meijer.com

DISP (Display)

Toggles the display on the front of the PTZ Controller,

showing the Command Address, Protocol and Baud Rate.

PRESET (HOLD to deﬁne)

Changes or accesses preset points.

PATTERN (press and HOLD)

Allows for the programming of lists of preset points for

the camera to view in sequence.

DELETE (press and HOLD)

Will remove a Preset Point or Pattern.

RUN

Commands the system to begin executing the

programmed pattern.

HOME

Master Preset Point. Whilst not in Cruise Mode

(see page 15) the camera will automatically

return to this position whilst idle.

A & B

Master Preset Points. They are deﬁned in the same way

as other Preset Points (see page 14). They operate as

shortcut buttons thereafter.

0 – 9

The number buttons. Used to enter a numerical value

into the PTZ controller.

Clear. Removes the last digit entered into the controller,

somewhat like the ‘backspace’ key on your computer.

-/--

Allows for the entry of more than one digit at a time. “-”

represents a single digit, whilst “--” indicates space to

enter two digits.

S1 ~ S4

Shortcut to the SPEED setting for the

camera. 1 is the slowest shortcut speed,

4 is the highest.

P1 ~ P8

Shortcuts to PRESET POSITIONS. Pressing

the button will send the camera directly to

the corresponding PRESET POSITION.

Layout of Remote Control

Meijer.com

ZOOM + / -: Increases and decreases the level of magniﬁcation, respectively.

The PRO-750 features a 3x optical zoom.

FOCUS + / - and

IRIS OPEN / CLOSE

The PRO-750 PTZ Dome features automatic focus and exposure adjustment.

As a result, you will not need to use these buttons whilst operating the

PRO-750. They’ve been included on the remote so that the controller can be

used for multiple PTZ systems (including ones without automatic focus and

exposure adjustment) if you choose.

ARROWS

Used to move the camera.

SHOT

Readies the controller to accept a numerical

value for a Preset Position, noted on the

display by the letter “P”.

CAM

Readies the controller to accept a new

Command Address (use numerical buttons to

enter a new value).

ENTER

Confirms a selection. Whilst the camera is

moving, ENTER will hold it still.

SPEED

Adjusts the speed at which the camera moves.

Higher numbers represent faster speeds.

AUTO

Toggles Auto-scan Mode on and off. Whilst in

Auto-scan Mode, the camera will continually

move as it attempts to sweep the entire ﬁeld

of view as efﬁciently as it can.

FOR MORE detailed information about

operating the PTZ features of the PRO-750

Dome, see Operating the Camera on page 14.

ESC (Escape)

Stops the current action and returns to the

default interface. Aborts half completed

sequences, such as programming a cruise

pattern.

SETUP

Readies the PTZ Controller to accept new

values for Baud Rate and Protocol. The “p”

and “d” are protocols (Pelco-P and Pelco-D

respectively) and the numerical value is the

abbreviated Baud Rate.

Meijer.com

1. After running the camera cable through the mounting arm/bracket, attach to

the main plug on the camera circuit board (see opposite).

2. Connect the BNC connector and power connectors to an extension cable

(optional).

3. Connect the purple and white wires to the RS485 plug, and insert the RS485

plug into the RS485 port on the rear of the controller (see opposite).

4. Connect the BNC plug on the end of the extension cable to a BNC input on

your TV, VCR or DVR (as applicable). If your monitor/recorder does not have a

BNC connection, then use a BNC to RCA adaptor.

5. Connect the power connector on the end of the extension cable to the DC

plug of the camera’s power adapter (the larger of the two).

6. Connect the power connector on the rear of the PTZ controller to the DC

plug of the controller’s power adapter.

7. Plug the DC 12V power supply into mains power.

Connecting the Camera

Meijer.com

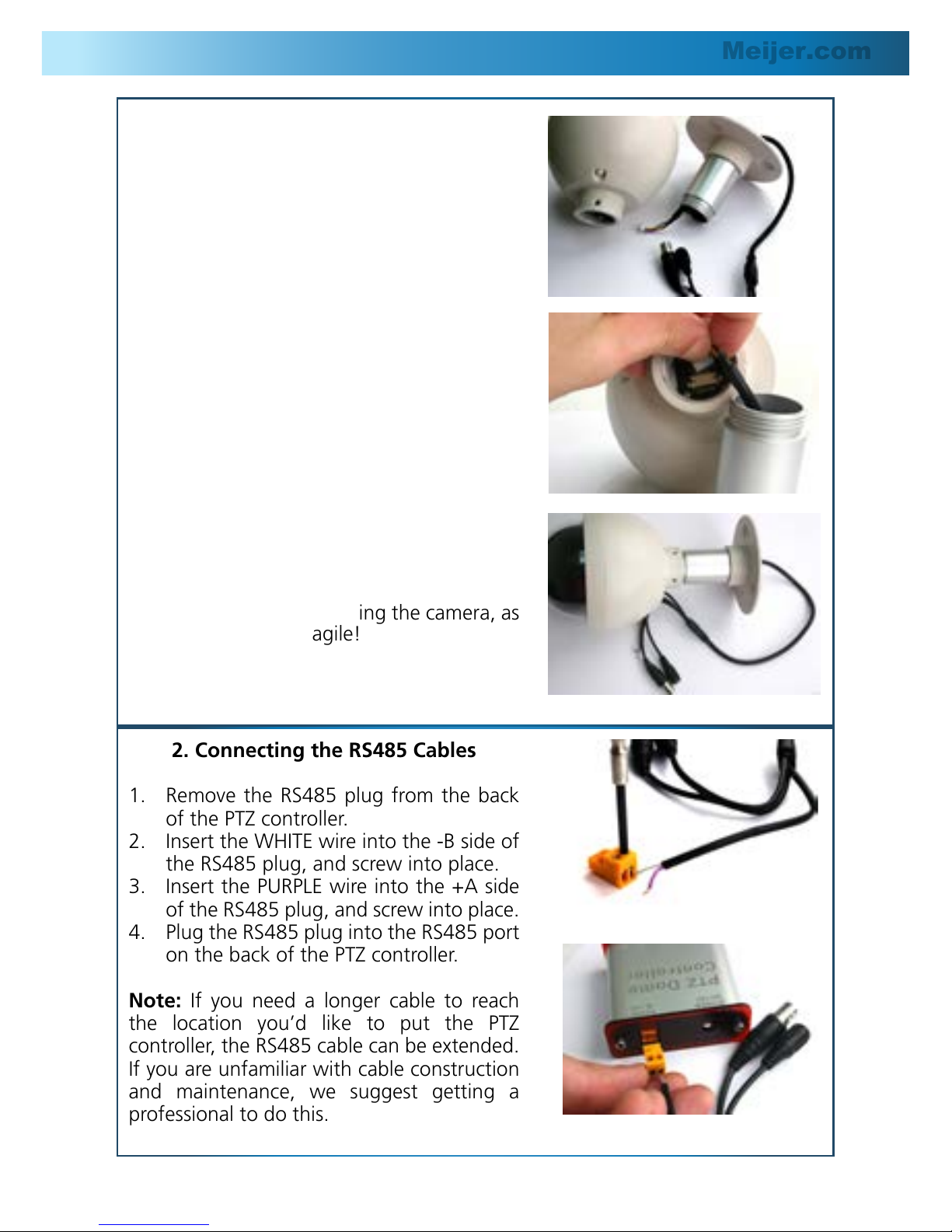

1. Connecting the Camera Cable

Before mounting the camera, it is important

to connect it correctly.

1. Run the cable through the mounting

arm or bracket you would like to use.

2. Make sure you run the cable through

starting with the camera end (not the

end with the BNC connectors - they’re

too big to ﬁt).

3. Once the cable has been pulled through,

plug it into the top of the camera.

4. If you’re planning to mount the dome

outside, cover the screw threads with

a silicon sealant before screwing the

unit together. Failing to do so will

compromise the waterprooﬁng of the

dome.

5. Then, screw the mounting arm/bracket

onto the dome.

Be careful not to damage the connectors

on the end of the cable or to the camera,

particularly when unplugging the camera, as

the connectors are fragile!

2. Connecting the RS485 Cables

1. Remove the RS485 plug from the back

of the PTZ controller.

2. Insert the WHITE wire into the -B side of

the RS485 plug, and screw into place.

3. Insert the PURPLE wire into the +A side

of the RS485 plug, and screw into place.

4. Plug the RS485 plug into the RS485 port

on the back of the PTZ controller.

Note: If you need a longer cable to reach

the location you’d like to put the PTZ

controller, the RS485 cable can be extended.

If you are unfamiliar with cable construction

and maintenance, we suggest getting a

professional to do this.

Meijer.com

NOTE: Before you begin, be sure that there are no live electrical cables in the area

you wish to mount the camera.

To mount the camera:

After connecting the camera as described on page 8 and installing the cables as

shown on page 9, place it in the desired location. Then, using an appropriate screw

for the surface you’re ﬁxing the dome to, screw the arm/bracket into place.

Ensure you have enough cable coming through the mounting arm/bracket to

connect it to your system. If you want to run the cables through a wall/ceiling, be

sure to drill a hole for the cable as well.

Placement Tips

For best results, carefully consider where you want to mount the dome. Whilst the

optimal placement solution will vary from application to application depending

on intent of installation, the environment of use and the lighting conditions

encountered there, there are a few points which are almost universal.

What you want to monitor:

The most obvious factor to consider when planning where to install your camera is

the question of what you wish to monitor, and how a movable PTZ system can be

incorporated into your speciﬁc environment.

• Ensure that the camera is located close enough to what you want to monitor

to capture the required details. For example, if you wish to capture the details

of a face, the camera should be located within a dozen feet (about 4m) of

the subject. This is also true if trying to read printed information - such as a

vehicle’s registration plate.

• Try to place the camera in a position that a potential security threat will ﬁnd it

difﬁcult to avoid.

• A strategy which is often effective is to monitor entrances and exits - after all,

a security threat has to get in somewhere.

Mounting the Camera

Meijer.com

Andere Handbücher für PRO-750

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Swann Sicherheitskamera Handbücher

Swann

Swann Security Cam Color Video Camera Bedienungsanleitung

Swann

Swann Maxi Day/Night Cam Day & Night CCD Camera Bedienungsanleitung

Swann

Swann SW-P-WOCEX Bedienungsanleitung

Swann

Swann SWIFI-4KFLOCAM-US Bedienungsanleitung

Swann

Swann Memory Camera Series Bedienungsanleitung

Swann

Swann SW245-SMD Bedienungsanleitung

Swann

Swann SW-P-ISDBN Hidden Camera Bedienungsanleitung

Swann

Swann Big Dome Deterrent Bedienungsanleitung

Swann

Swann PRO-600 Bedienungsanleitung

Swann

Swann DIY Security Cam SW211-DSX Bedienungsanleitung

Swann

Swann PRO-751 Bedienungsanleitung

Swann

Swann SWO-SVC01K SoundView Bedienungsanleitung

Swann

Swann MicroCam II Bedienungsanleitung

Swann

Swann SWIFI-ALERTCAM Bedienungsanleitung

Swann

Swann SWNVW-500CAM-EU Bedienungsanleitung

Swann

Swann SwannOne SoundView SWO-SV02K Bedienungsanleitung

Swann

Swann SW-C-DPCC Bedienungsanleitung

Swann

Swann SW331-PR6 Bedienungsanleitung

Swann

Swann SWN-SWWHD-PTCAM-AU Bedienungsanleitung

Swann

Swann Xtreem Bedienungsanleitung

Swann

Swann PRO-series Bedienungsanleitung

Swann

Swann C-510R Bedienungsanleitung

Swann

Swann AllSecure600 SWNVK-600SD2-EU Bedienungsanleitung

Swann

Swann PRO-655 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
