Swann SWNVW800CAMEU Bedienungsanleitung

Wi-Fi NVR

Security Camera

Add-on Camera with Controllable Lights For SecureAlert™ Systems

Instruction Manual

Security Made Smarter

Introduction

Congratulations on the purchase of your Swann Wi-Fi

NVR Security Camera.

• 4K Ultra HD video with sensor spotlight, siren

plus red & blue flashing lights

• True Detect™ Heat & Motion sensing for reli-

able alerts

• Powerful Night2Day™ color night vision

• Works in rain & snow all year round

Important instructions

1. Make sure the camera is fixed correctly and stable

if fastened in place.

2. Never place strain of any kind on the power con-

nection and/or power adapter.

3. Do not operate if wires and terminals are exposed.

Important Note: All jurisdictions have specific laws

and regulations relating to the use of cameras. Be-

fore using any camera for any purpose, it is the buy-

er’s responsibility to be aware of all applicable laws

and regulations that limit the use of cameras.

About this Manual: The content in this manual is for

information purposes only and is subject to change

without notice. While every effort is made to ensure

that this manual is accurate at the time of printing,

no liability is assumed for any errors that occurred.

For instructions on how to configure your camera

for motion detection, changing image settings,

and other functions available, please consult the

manual for your NVR. Go to support.swann.com,

search for your model, then download.

Connect the output on the power cable to the power input on the camera then connect the input on the power

cable to the power adapter. The pair/reset button is used to restore factory default settings and to pair the

camera to your NVR (if network settings are changed or when adding a new camera).

Connecting the Camera2

Power

Output

Power

Input

Power Cable

Power Adapter

Power

Input

Pair/Reset

Leave the antenna in a vertical

position for best reception.

Connect the power adapter to

a power outlet then press the

outlet’s switch to the ON posi-

tion to supply power.

Pairing the Camera3

1. In Live View mode, click a channel that you want to pair the camera to.

2. A Pair button appears. Press this button to commence pairing. A message will appear stating that you need

to press the pair button on the camera.

3. Remove the cap covering the pair button. Press and hold the pair button for 3 seconds then release. The

camera will commence pairing and the camera’s IR LEDs will start flashing.

4. After a short moment the camera will be paired and you will see the camera’s image on-screen. If the camera

fails to pair, repeat the above instructions and try again.

Channel 2 28/04/2021 01:14:41 PM

Channel 3 28/04/2021 01:14:41 PM Channel 4 28/04/2021 01:14:41 PM

Off-line

Press the Pair button to

commence pairing.

The camera can be mounted onto a flat surface using the screws and wall plugs provided. The surface must

have sufficient strength to hold the camera (the camera illustrated is for instructional purposes only).

→ Position the camera in the location you want to mount it, and mark the screw holes on the surface to

position the screws (a mounting template has been included). Then, using the appropriate screws for the

surface you’re fixing the camera to, secure the camera in place.

→ If you’re mounting to a wooden surface, then screw the camera directly to the surface.

→ If you’re mounting to a masonry surface (bricks, concrete or similar), then you’ll need to use wall plugs.

Mounting the Camera4

Aiming the camera

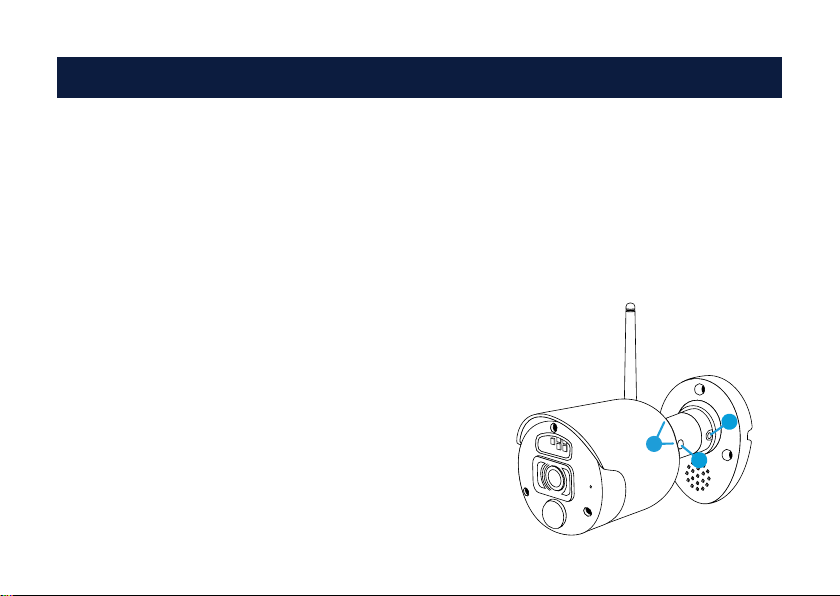

1. Loosen both screws (use a Phillips head screwdriver) to ad-

just the camera’s orientation. This enables you to rotate the

camera so no matter what direction it is facing, your images

will be the right way up. Tighten each screw to secure in place.

2. Loosen the screw to tilt the camera up or down. Tighten the

screw to secure in place.

3. To pan the camera left or right, loosen the screw and position

accordingly. Tighten the screw to secure in place.

1. Take into consideration what you want to monitor

and where you’ll get the best view of it.

2. How you’re going to connect the camera to your

monitoring system; remember that cables and con-

nections should be kept out of the weather.

3. How to keep the camera out of harm’s way. It’s

recommended to mount your camera at an elevated

position.

4. Place your camera as close to the area of inter-

est as practicable. The best position is from about

13ft/4m above looking slightly down, keeping in mind

the details you are looking for.

5. Although the sky looks nice when you look at the

live view from your camera, it is an unlikely direction

for an offender to approach. Make sure your camera

has minimal sky in it as the light in daylight can make

the foreground of the image darker.

6. Think about the most likely way a potential offend-

er may approach your home, use your camera to give

you the best coverage of these areas.

7. The camera’s casing is resistant to different weath-

er conditions and tampering. It would take an over-

whelming event to damage the housing.

8. Even though the camera is weather and water-

resistant, prolonged exposure to adverse weather

conditions such as sunlight or excessive moisture,

may eventually damage the internal components of

the camera and adversely affect its performance.

9. Run cables inside a wall cavity or other protected

enclosure, and ensure that all wiring and connectors

are insulated and protected from moisture.

10. Don’t put your cable near live electrical wiring. AC

electricity generates radio “noise” which can inter-

fere with the signal from your camera.

Camera Location Tips5
