Swann DIY Security Kit Bedienungsanleitung

Real & Imitation Camera Monitoring System

USER’S GUIDE

S E C U R I T Y

www.swann.com.au

Swann Technical Support

All Countries Email: [email protected]

AUSTRALIA

1300 13 8324 (Mon-Fri, 9am-6pm Aus EST)

0418 146 434 (Mon-Fri, 6pm-9pm Aus EST)

Melbourne Metro: 03 8412 4610

(Mon-Fri, 9am-5.30pm Aus EST)

UNITED STATES

877-274-3695 (Sun-Thurs, 2pm-10.30pm PST)

USA Exchange & Returns

562-777-2551 (Mon-Fri, 9am-4pm PST)

Security Kit

Real & Imitation Camera Monitoring System

Package Contents

1. Swann Security Monitor

2. Monitor DC Power Adaptor (design will vary according to country)

3. 2 Imitation Security Cameras

4. 2 Real Security Cameras with 18M(60ft) A/V & Power cable attached

5. This Instruction Sheet

Information regarding Swann Products can be

found at

www.swann.com.au

Any Questions?

Need Help or Assistance?

Email: [email protected]

Or see reverse

Having Troubles?

DO NOT RETURN TO

STORE

How the Imitation and Real Security Cameras Work

The Real Camera will allow you to view your customers or someone at the front door, while the Imitation

Security Camera gives people the impression that you have more working cameras than you really do. With

its realistic camera casing and camera cable, it looks like a real surveillance camera. You can easily mount the

imitation security camera indoors or outdoors to deter possible thieves and intruders. Your real camera can

be mounted in the areas you most want to observe to provide the highest level of security.

Your security cameras come with a wall mounting plate, camera cable, camera stand ( connected to the wall

mounting plate), three 1-inch (25.4mm) screws, and the three drywall anchors.

Mounting the camera on your wall or ceiling

1. Using the wall mounting plate as a template, use a pencil to mark the position of the three screw

holes on the mounting location.

2. Drill three 1-inch (25.4mm) holes in the marked positions.

3. If necessary, insert the three supplied drywall anchors into the screw holes.

4. Insert a 1-inch (25.4mm) screw through each of the three screw holes in the wall mounting plate

and into the mounting surface, then tighten the screws.

5. Insert the bolt at the top of the camera stand into the nut in the bottom of the imitation security

camera, then use a pair of pliers to firmly tighten it.

6. Turn the camera stand’s knob to tighten the swivel on the camera stand.

7. Connect the camera cable’s F connector to the plug on the back of the imitation security camera.

8. Push the end of the cable through the base (Imitation Camera) or through a hole in the wall or ceiling

Make sure you maintain the same method of securing the cable as the Real camera to ensure the

Imitation cameras are indistinguishable from the Real camera.

Camera Cable

Drywall Anchor

Knob

Camera Stand

1-Inch (25.4mm) Screws

Wall Mounting Plate

While the Swann Security Monitor is designed for use with the Real security cameras provided,

you can still connect almost any device capable of displaying video to the monitor.

Monitor Features

1. Input Channel Selector

2. Auto Switch mode selector

3. Channel switch timer knob

4. Volume knob

5. Power button

A. 2 x 9Volt DC Power output for cameras

B. 12 ~ 13.5Volt

. Video

E. Audio

F. Video

G. Vertical Hold knob

H. Brightness knob

I. Contrast knob

J. Video, Left and Right Audio Output RCA Sockets

DC Power In Socket

C. Audio In RCA Female Socket (Channel 1)

D In RCA Female Socket (Channel 1)

In RCA Female Socket (Channel 2)

Front View

Rear View

2 4 5

B D G

FC H

To connect the Real camera to the Monitor

1. Connect the Yellow plug at the end of each camera cable to either of the Video In sockets

on the back of the Monitor.

2. Connect the Red plug on the end of each camera cable to the Audio In sockets of the

corresponding channel to the video socket on the back of the Monitor.

3.Connect the Black DC plug at the end of the camera cable to either of the DC 9V out

sockets on the back of the Monitor.

4. Plug the DC Pllug on the end of the Monitor Power Adaptor into the DC in socket on the

back of the Monitor, then plug the Power Adaptor into a mains power socket on your wall.

Please Note: Please ensure that you only use the DC power supply that is supplied with

your Monitoring Kit. Use of any unauthorised power supplies may void your warranty.

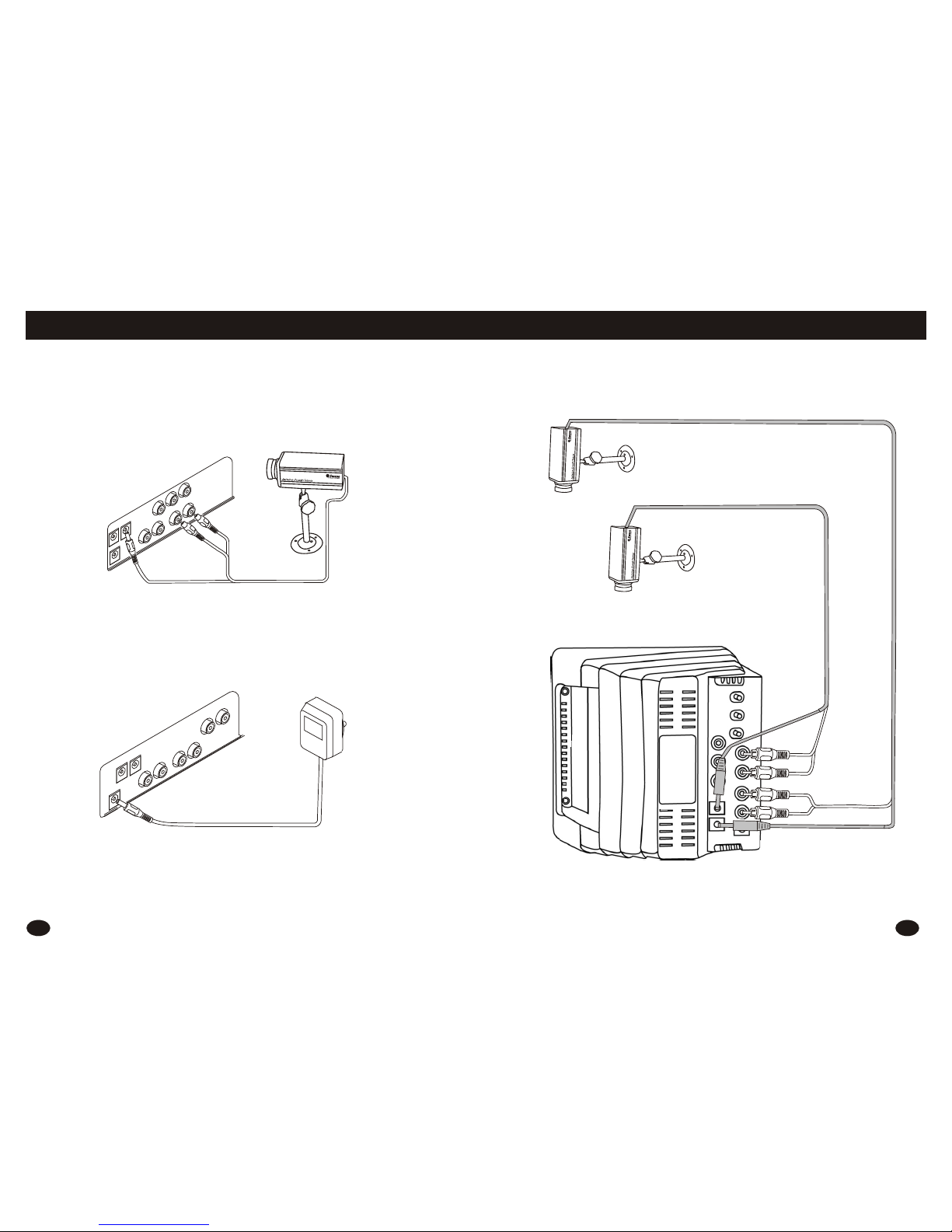

Connecting Diagram - standard

2d CAMER

Swann Security Monitor CAMERA

Monitor DC

Power Supply

Connecting the Cameras to the Monitor
