SWorkz APOLLO 11 Bedienungsanleitung
2
INSTRUCTION
1. Quality T7075 Aluminum Main Chassis.
2. Quality T7075 Front and Rear Shock Towers.
3. SWORKz S35-3 BBS Race Shock System.
4. High Performance CNC machined Crown Gears and Pinion Gears.
5. F/R Full CVA Drive Shafts.
6. Aluminum Adjustable Front and Rear Lower Plastic Insert Toe-In system.
7. Double Protection Bumper Design.
8. Sealed Front and Rear Arms design.
9. Adjustable Front Upper and Lower Suspension Arm System.
10. S350 Falcon II Pre-painted and Pre-Cut Body Shell (For EP Buggy) is included.
11. 2.4G Radio System (SW-T2 Radio t for AA battery).
12. Comes standard with SWORKz SE-100 100A 1/8 BL ESC (Made by HobbyWing)
13. SWORKz SP-2150 3670 BL MOTOR for 1/8 RTR motor system.
14. SWORKz SES-2S steering servo (with 12kg metal gear) made by the world famous brand SAVOX.
Introducing the new APOLLO II Pro Electric RTR 1/8th scale o-road professional ready to run
buggy from SWORKz. The 1/8th APOLLO II EP buggy is a Pro RTR based on the pro S350 but
with an updated S35-4E buggy center layout.
The APOLLO II EP Buggy incorporates many of the race-inspired features from the S35-3E and
S35-4E Pro Kit. This buggy provides precise feedback, a nimble and balance feel that will suit
drivers of all levels. The SWORKz design team put their eorts into proper weight distribution
for the APOLLO II EP Buggy. Proper weight distribution proved to be instrumental to the setup
during the testing phase of the APOLLO II EP Buggy.
The SWORKz APOLLO II Pro EP RTR buggy comes standard with many high quality parts
like a T7075 aluminum chassis (with the same S35-4E chassis hard coating process), front
and rear shock towers. It also has S35-3E Pro Kit's 16mm BBS Racing Shocks System, High
Performance Crown and Pinion Gears and oil lled dierentials providing traction and balance
on multiple o-road surfaces.
The APOLLO II EP buggy uses the S35-4E center new designed Motor mount makes it possible
to change very easily the motor or adjust the play of the gears.
The pivot ball steering system gives the driver sharp and accurate turning feedbacks. The
APOLLO II EP buggy comes with a race inspired base set up that is easy to drive.
The APOLLO II EP set comes with high quality electronics from HobbyWing (SWORKz SE-100)
100A 1/8 BL ESC and an S-ePOWER SP2150 BL 3670 MOTOR.
The SWORKz SES-2S steering servos (with 12kg metal gears) are made by SAVOX. This RTR
also includes a 2.4G Radio System.
A pre-cut painted body shell is also included.
APOLLO Kit Features:
3
WARRANTY
Your SWORKz APOLLO II Pro RTR kit warranty covers workmanship and
manufacturing defects of the original and unmodified parts. Warranty claims
resulting from crashes, abuse, improper operation, improper mounting, improper
adjustment or lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.
Specification
Length: 530mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325-330mm
Track: F:306mm / R:306mm
Gear Ratio:
C:(45~47)/15T, F/R 43/13T
Weight: 3700g
4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-33
Apollo II EP Part No. List 34-35
Apollo II EP Spare Part No. List 36-37
Apollo II EP Option Part No. List 38-39
End cover 40

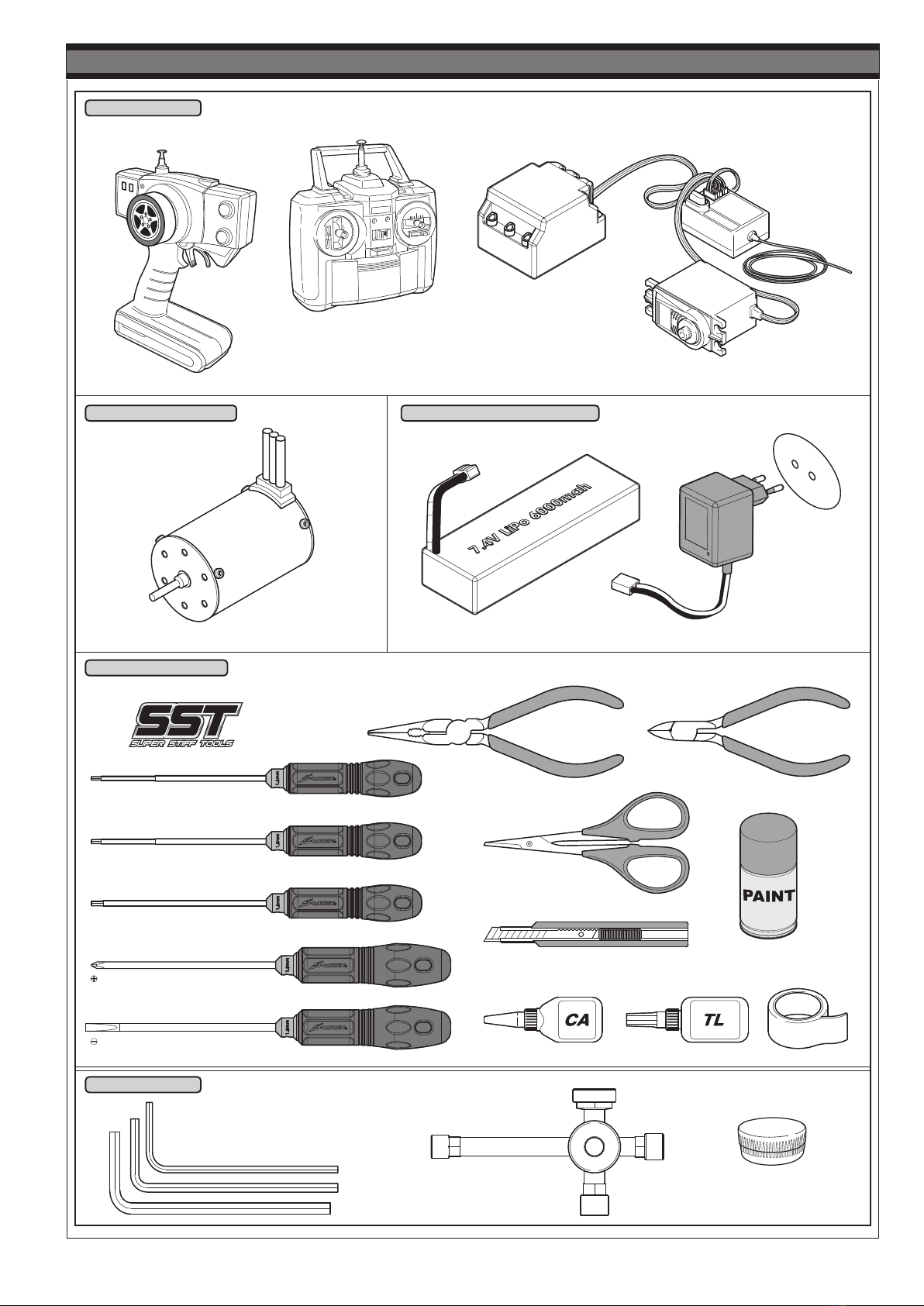

5
Charger and LiPo Battery
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear
Stick Type
ESC system
Wheel & Trigger Type
Receiver
Steering servo
Tools Recommended
Breshless Motor
Side cutter
Curved scissors
Grease
Required Equipment for Operation
6
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil
Operation Guide
Safety Precautions
The SWORKz APOLLO is a high performance radio controlled model which needs to be
operated with caution and common sense.
The APOLLO Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The LiPO Battery can be dangerous is improperly handled.
- Always keep your LiPO Battery in a cool area and never use near flame, sparks, or while
smoking.
- Keep your LiPO Battery, and all other ammables, out of the reach of children.
- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful
not to touch these parts.
- This model is controlled by your radio and that is vulnerable to interference from many
outside sources. This interference can cause a loss of control so it is necessary to operate this
model in an open area to avoid personal, or property damage. Always ensure turning on your
radio rst.
- Keep all the products included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instruction included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential for injury and or damage to people and or property.
- Always use original SWORKz spare and option parts.
- Always encure the buggy is in proper working condition before use.
- Always exercise caution when using any and all tools.
7
BAG B1
2
330014A
116006R
330015
320003 400002
320004
101004
101004
320004
101004
101004
610002
210002A
116006R
330164
330015
320003
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
101004
Washer 3.5X10X0.2mm x8
330013
Bevel Gear Shaft x4
Fill the differentials
with oil up to 70%
above the satellite
gears.
Put the SWORKz
Di. Oil 4000cps
for the front Di.
and 1500cps for the
rear Di.
Remember to apply a light coat
of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the di case.
Insert the pin through the hole
in the di case and through the
hole in the shaft of the out drive.
330013
OK! NG!
108003
108003
330014A
108003
M3x10mm FH/ST HEX Screw x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x4
8
4
3
BAG C
108003
320004 330013
610002
108003
101004
101004
108007
108007
101004
101004
2501469-01 (45T)
2501469-02 (46T)
2501469-03 (47T)
320004
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
108003
M3x10mm FH/ST HEX Screw x4
101004
Washer 3.5X10X0.2mm x4
330013
Bevel Gear Shaft x2
108007
M3x6mm FH/ST HEX Screw x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x4
116006R
330017
320003 400002
330015 210002A
116006R
330017
330241
330015
320003
400002
Apply a light coat of grease
to the o-ring, then slide it over
the outdrive shaft and place it
in the di case.
Insert the pin through the hole
of the out drive.
Fill the
dierentials
with Oil up to
80% full.
Use SWORKz
Di. Oil
6000cps for
the center
Di.
9
5
BAG D
116006R
116006R
104010
330160
2501114
2501114
2501529
108001 330227
108001
2501096
2501114
108001
M3x12mm FH/ST HEX Screw x4
101018
108001
101018
SHIM 13x16x0.2mm x3
106010
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
106010
M3x6mm Hex Socket OH/TP Screw x3
104010
M5x4mm Set Screw (Flat Bottom) x1
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2
10
6
7
106006R
116006R
Please use the SHIM 13x16x0.2mm
to adjust when the play was bigger
between the crown gear and pinion
gear.
106008
106008
101018
SHIM 13x16x0.2mm x3
108001
101018
104010
330160
330830
330227
106010
2501529
2501114
104010
M5x4mm Set Screw (Flat Bottom) x1
106021A
M4x10mm Hex Socket OH/TP Screw X2
2501093B
106005
2501093B
106021A
330136
2501121D
330134
106005
M3x15mm Hex Socket OH/TP Screw x2
106008
M3x12mm Hex Socket OH/TP Screw x2
108001
M3x12mm FH/ST HEX Screw x2
BAG E1
116006R
Ball Bearing 8x16x5mm (Red Rubber Case) x2
