SWorkz Apollo Bedienungsanleitung

※This RTR buggy comes with unpainted pre-cut body shell.

1. Quality T7075 Aluminum Main Chassis.

2. Quality T7075 Front and Rear Shock Towers.

3. SWORKz Pro 2.0 Shock System with 4mm Shock Shafts.

4. High Performance CNC machined Crown Gears and Pinion Gears.

5. F/R Full CVD Drive Shafts.

6. T7075 Aluminum Adjustable Front and Rear Lower Plastic Insert Toe-In system.

7. Double Protection Bumper Design.

8. Sealed Front and Rear Arms design.

9. Adjustable Front Upper and Lower Suspension Arm System.

10. Pre Cut Falcon II Body Shell included.

11. 2.4G Radio System (SW-T1 Radio with USB charge system).

12. Comes standard with SWORKz SE-100 100A 1/8 BL ESC (Made by HobbyWing)

13. SWORKz SP-2150 3670 BL MOTOR for 1/8 RTR motor system.

14. SWORKz SES-2S steering servo (with 12kg metal gear) made by the world famous brand SAVOX.

INTRODUCTION

Introducing the new APOLLO 1/8th scale o󰀨-road brushless powered professional ready to run

buggy from SWORKz. The 1/8th APOLLO buggy is a Pro RTR version based on the successful

S35-2E buggy.

The APOLLO (assembled in the same factory as the S350 BX1e ) incorporates many of the

same race-inspired features as the S35-2E Pro Kit. The buggy provides precise feedback and

a nimble yet balanced feel that suits drivers of all levels. The SWORKz design team focused

their efforts into the proper weight distribution on the APOLLO. Proper weight distribution

proved to be instrumental to the ease of setup during the testing phase of the APOLLO.

The SWORKz APOLLO 1/8th scale brushless powered o󰀨-road Pro RTR buggy comes standard

with many high quality parts as T7075 aluminum chassis, front and rear shock towers. It also

has S350 BK1 Pro Kit's Big Bore Shocks version 2.0 (4mm shock shafts), High Performance

Crown Gears and Pinion Gears and oil filled differentials providing traction and balance on

multiple o󰀨-road surfaces. The pivot ball steering system gives the driver sharp and accurate

feedback. The APOLLO also comes with a race inspired base setting that is easy to drive.

The APOLLO set comes with high quality electronics from HobbyWing (SWORKz SE-100) 100A

1/8 BL ESC and an S-ePOWER SP2150 BL 3670 MOTOR.

The SWORKz SES-2S steering servo (with 12kg metal gear) is made by SAVOX. All packages

also includes a 2.4G Radio System.

A pre-cut clear body shell is included.

APOLLO Kit Features:

Specification

Length: 530mm

Width: 308mm

Height: 220mm

Ground Clearance: 65mm

Wheelbase: 325-330mm

Track: F:306mm / R:306mm

Gear Ratio:

C:(45~47)/15T, F/R 43/13T

Weight: 3700g

WARRANTY

Your SWORKz APOLLO Pro RTR kit warranty covers workmanship and

manufacturing defects of the original and unmodified parts. Warranty claims

resulting from crashes, abuse, improper operation, improper mounting, improper

adjustment or lack of maintenance will not be honored.

Contact your local hobby shop or SWORKz distributor for all claims and

questions. Claims must be well documented. All Claims are subject to expert

examination approval by SWORKz.

INDEX

This radio controlled racing car is not a toy!

This high-performance R/C model is recommended for ages 14 and older.

INTRODUCTION 2

Warranty 3

Required Equipment for Operation 5

Operation Guide 6

Assembly Steps 7-33

Blank Set-up Sheet 34-36

APOLLO Key No. List 37-38

APOLLO Spare Part List 38-39

APOLLO Option Part List 39

End cover 40

Charger and LiPo Battery

Double-sided tape

Paint

Long nose pliers

Modeling knife

Instant cement Thread lock

Included items

Hex wrench

1.5mm

2mm

2.5mm

1.5mm

2mm

2.5mm

Glow plug wrench

Screwdriver

Radio Gear

Stick Type

ESC system

Wheel & Trigger Type

Receiver

Steering servo

Tools Recommended

Breshless Motor

Side cutter

Curved scissors

Grease

Required Equipment for Operation

overturn

Assemble for

4 sets

Assemble for

2 sets

Assemble both left

and right sides

Assemble in the

specied order

Assemble front

and rear

Thread Locking

Compound

Grease Pure Silicone Oil Air lter oil

Operation Guide

Safety Precautions

The SWORKz APOLLO is a high performance radio controlled model which needs to be

operated with caution and common sense.

The APOLLO Kit is not intended for children under the age of 14 without adult supervision.

SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of

nature, arising from the abuse or misuse of this product or any other product required while

operating this model.

- The LiPO Battery can be dangerous is improperly handled.

- Always keep your LiPO Battery in a cool area and never use near flame, sparks, or while

smoking.

- Keep your LiPO Battery, and all other ammables, out of the reach of children.

- After running your car, all parts of the Motor and ESC can become extremely hot. Be careful

not to touch these parts.

- This model is controlled by your radio and that is vulnerable to interference from many

outside sources. This interference can cause a loss of control so it is necessary to operate this

model in an open area to avoid personal, or property damage. Always ensure turning on your

radio rst.

- Keep all the products included in the package out of reach of children.

- This model contains many fast rotating parts. Never touch them during operation.

- Follow the instruction included with your radio gear.

- Never operate your model near people or property. The speed of this model has the

potential for injury and or damage to people and or property.

- Always use original SWORKz spare and option parts.

- Always encure the buggy is in proper working condition before use.

- Always exercise caution when using any and all tools.

BAG B1

330014A

116006

330015

320003 400002

320004

101004

320004

101004

610002

210002A

116006

330164

330015

320003

400002

330015

Pin M2.2x9.9mm x4

400002

O-ring S5 4.8X1.5 x4

116006

Ball Bearing 8x16x5mm x4

101004

Washer 3.5X10X0.2mm x8

330013

Bevel Gear Shaft x4

Fill the differentials

with oil up to 80%

above the satellite

gears.

Put the SWORKz

Di󰀨. Oil 7000cps

for the front Di󰀨.

and 3000cps for the

rear Di󰀨.

Remember to apply a light coat

of grease to the o-ring, then

slide it over the shaft of the out

drive and seat it in the di󰀨 case.

Insert the pin through the hole

in the di󰀨 case and through the

hole in the shaft of the out drive.

330013

OK! NG!

108003

330014A

108003

M3x10mm FH/ST HEX Screw x4

BAG C

116006

330017

320003 400002

330015

108003

320004 330013

610002

108003

101004

108007

101004

2501469-01 (45T)

2501469-02 (46T)

2501469-03 (47T)

210002A

116006

330017

330241

330015

320003

400002

108003

M3x10mm FH/ST HEX Screw x4

116006

Ball Bearing 8x16x5mm x2

330015

Pin M2.2x9.9mm x2

400002

O-ring S5 4.8X1.5 x2

101004

Washer 3.5X10X0.2mm x4

330013

Bevel Gear Shaft x2

Fill the

di󰀨erentials

with Oil up to

80% full.

Use SWORKz

Di󰀨. Oil

7000cps for

the center

Di󰀨.

Apply a light coat of grease

to the o-ring, then slide it over

the outdrive shaft and place it

in the di󰀨 case.

Insert the pin through the hole

of the out drive.

320004

108007

M3x6mm FH/ST HEX Screw x4

BAG D

116006

104010

330160

2501114

2501529-3

108001 330227

108001

2501096-4

2501114

108001

M3x12mm FH/ST HEX Screw x4

101018

SHIM 13x16x0.2mm

101018

106010

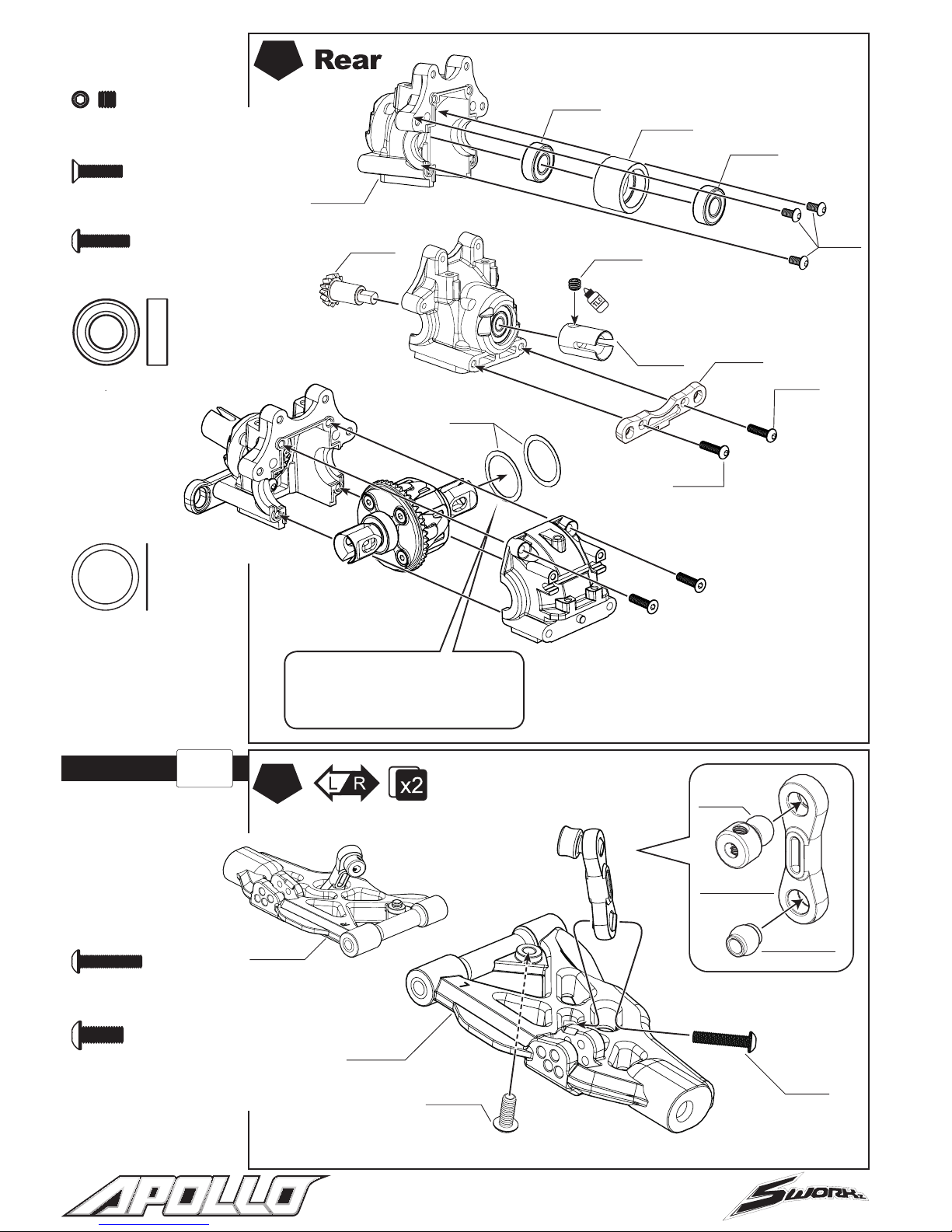

Please use the SHIM 13x16x0.2mm

to adjust when the play was bigger

between the crown gear and pinion

gear.

108001

106010

M3x6mm Hex Socket OH/TP Screw x3

106012

M3x35mmHex Soket OH/TP Screw x2

116006

Ball Bearing 8x16x5mm x2

104010

M5x4mm Set Screw (Flat Bottom) x1

106016

116006

Please use the SHIM 13x16x0.2mm

to adjust when the play was bigger

between the crown gear and pinion

gear.

106008

101018

SHIM 13x16x0.2mm x3

108001

101018

104010

330160

330830

330227

106010

2501529

2501114

116006

Ball Bearing 8x16x5mm x2

104010

M5x4mm Set Screw (Flat Bottom) x1

106021A

M4x10mm Hex Socket OH/TP Screw X2

200120A

106005

200121A

106021A

330136

2501121D-6

330134

106005

M3x15mm Hex Socket OH/TP Screw x2

106008

M3x12mm Hex Socket OH/TP Screw x2

108001

M3x12mm FH/ST HEX Screw x2

BAG E1
