Symbol LS 4208 Bedienungsanleitung

Symbol LS4208

Quick Reference Guide

2 Symbol LS4208

Motorola reserves the right to make changes to any product to improve reliability,

function, or design.

Motorola does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under

any patent right or patent, covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Motorola products might be used. An

implied license exists only for equipment, circuits, and subsystems contained in

Motorola products.

MOTOROLA, the Stylized M Logo and Symbol and the Symbol logo are registered

trademarks of Motorola, Inc. Other product names mentioned in this manual may be

trademarks or registered trademarks of their respective companies and are hereby

acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300

http://www.motorola.com/enterprisemobility

Warranty

For the complete Motorola hardware product warranty statement, go to:

http://www.motorola.com/enterprisemobility/warranty

Patents

This product is covered by one or more patents. For patent information go to:

http://www.motorola.com/enterprisemobility/patents

Quick Reference Guide 3

Introduction

The Symbol LS4208 scanner combines excellent scanning performance and advanced

ergonomics to provide the best value in a lightweight laser scanner. Whether used as a

hand-held scanner or in hands-free mode in a stand, the scanner ensures comfort and

ease of use for extended periods of time. Before programming the scanner, scan the

appropriate bar code(s), beginning on page 7, to communicate with the host.

Parts

Inserting and Removing the Interface Cable

To connect the interface cable, insert the interface cable’s modular connector into the

cable interface port.

To remove the interface cable, unplug the installed cable’s modular connector by

depressing the connector clip with the tip of a screwdriver.

Aiming

Interface cable

modular connector

To host

Beeper

LED

Trigger

Scan

Window Cable interface

port

Connector

clip

4 Symbol LS4208

Scanning

Beeper Definitions

The scanner issues different beep sequences and patterns to indicate status. The table

below defines beep sequences that occur during both normal scanning and while

programming the scanner.

Beeper Sequence Indication

Standard Use

Low/medium/high beep Power up.

Short high beep A bar code symbol was decoded (if decode beeper is

enabled).

4 long low beeps A transmission error was detected in a scanned symbol.

The data is ignored. This occurs if a unit is not properly

configured. Check option setting.

5 low beeps Conversion or format error.

Lo/hi/lo beep ADF transmit error.

Hi/hi/hi/lo beep RS-232 receive error.

Parameter Menu Scanning

Short high beep Correct entry scanned or correct menu sequence

performed.

Lo/hi beep Input error, incorrect bar code or “Cancel” scanned, wrong

entry, incorrect bar code programming sequence; remain

in program mode.

Hi/lo beep Keyboard parameter selected. Enter value using bar code

keypad.

012345 012345

012345

Quick Reference Guide 5

LED Definitions

In addition to beeper sequences, the scanner communicates with the user using a

two-color LED display. The table below defines LED colors that display during

scanning.

Hi/lo/hi/lo beep Successful program exit with change in the parameter

setting.

Low/hi/low/hi beep Out of host parameter storage space. Scan Set Defaults

on page 7.

Code 39 Buffering

Hi/lo beep New Code 39 data was entered into the buffer.

3 Beeps - long high beep Code 39 buffer is full.

Lo/hi/lo beep The Code 39 buffer was erased or there was an attempt to

clear or transmit an empty buffer.

Lo/hi beep A successful transmission of buffered data.

Host Specific

USB only

4 short high beeps Scanner has not completed initialization. Wait several

seconds and scan again.

Scanner gives a power-up

beep after scanning a USB

Device Type.

Communication with the bus must be established before

the scanner can operate at the highest power level.

This power-up beep occurs

more than once.

The USB bus may put the scanner in a state where power

to the scanner is cycled on and off more than once. This is

normal and usually happens when the host PC cold boots.

RS-232 only

1 short high beep A <BEL> character is received and Beep on <BEL> is

enabled.

LED Indication

Off No power is applied to the scanner, or the scanner is on and ready to

scan.

Green A bar code was successfully decoded.

Red A data transmission error or scanner malfunction occurred.

Beeper Sequence Indication

6 Symbol LS4208

Troubleshooting

Problem Possible Cause Possible Solutions

Nothing happens

when the trigger is

pulled.

No power to the

scanner.

Check the system power. Ensure the power

supply is connected if the configuration

requires a power supply.

Interface/power

cables are loose.

Check for loose cable connections.

Laser comes on,

but symbol does

not decode.

Scanner is not

programmed for

the correct bar

code type.

Ensure the scanner is programmed to read

the type of bar code scanned.

Refer to the Symbol LS4208 Product

Reference Guide, p/n 72E-69413-xx, for

more information.

Bar code symbol is

unreadable.

Check the symbol to ensure it is not defaced.

Try scanning test symbols of the same bar

code type.

Distance between

scanner and bar

code is incorrect.

Move the scanner closer to or further from

the bar code.

Symbol is decoded

but not transmitted

to the host.

Scanner is not

programmed for

the correct host

type.

Scan the appropriate host type bar code.

Scanned data is

incorrectly

displayed on the

host.

Scanner is not

programmed to

work with the host.

Ensure proper host is selected.

Check the scanner’s host type parameters or

editing options.

For RS-232, ensure the scanner’s

communication parameters match the host’s

settings.

For a keyboard wedge configuration, ensure

the system is programmed for the correct

keyboard type, and the CAPS LOCK key is

off.

Ensure editing options (e.g., UPC-E to

UPC-A conversion) are properly

programmed.

Refer to the Symbol LS4208 Product

Reference Guide, p/n 72E-69413-xx, for

more information.

Quick Reference Guide 7

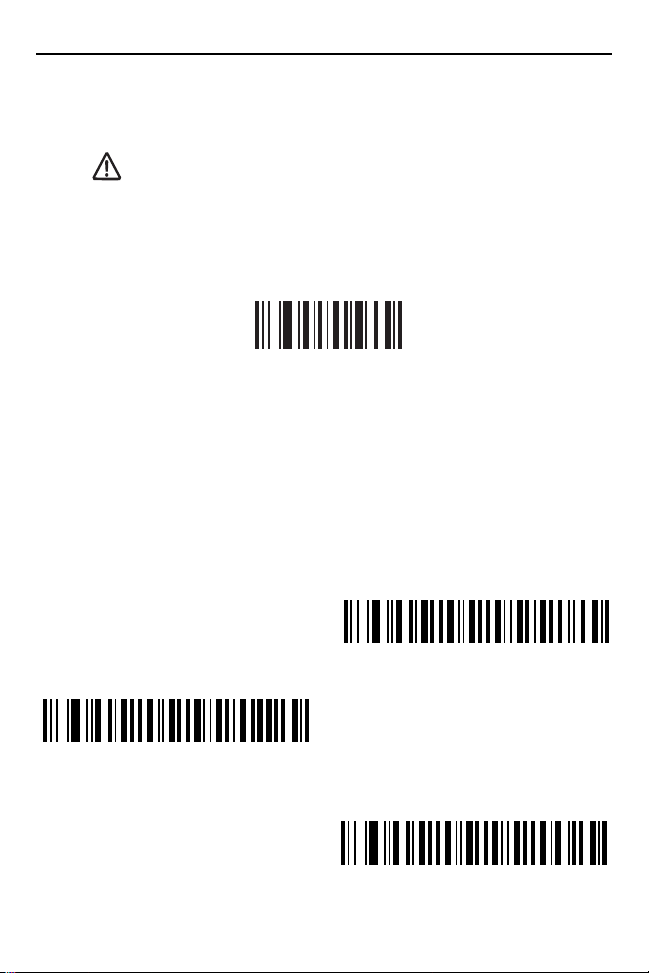

Programming Bar Codes

Following are some frequently used programming bar codes.

NOTE For additional host types, refer to the Symbol LS4208 Product

Reference Guide, p/n 72E-69413-xx, available on the LS4208 CD, or

on the Symbol website: http://www.motorola.com/enterprisemobility/manuals.

Set Defaults

Scan SET DEFAULTS to set all parameters to their default values.

SET DEFAULTS

Scanning Modes

Scan the appropriate bar code below to determine the scanning pattern.

•SINGLE LINE ONLY - No up and down scan line movement (no raster).

•MULTI-LINE SMART RASTER - The scan line begins as a single line and moves up

and down (rasters) when a partial scan of a bar code is detected, or no bar code is

decoded 500 ms after the trigger is pulled.

•MULTI-LINE ALWAYS RASTER (default) - Rastering (up and down scan line

movement) begins immediately.

SINGLE LINE ONLY

MULTI-LINE SMART RASTER

MULTI-LINE ALWAYS RASTER (Default)

8 Symbol LS4208

Host Type

If a Synapse cable is used (i.e., part number STIxx-xxxx), the scanner autodetects the

Synapse cable and there is no need to scan bar codes to enable the Synapse host.

If a USB interface is used, the scanner autodetects the USB and defaults to the HID

keyboard interface. See page 10 to select the IBM hand-held host type. Refer to the

Symbol LS4208 Product Reference Guide, p/n 72E-69413-xx, for additional USB host

types.

If a Keyboard Wedge, RS-232, Wand Emulation, Scanner Emulation, or IBM 46XX is

used, the appropriate host type must be scanned. Select the appropriate host type from

the bar codes that follow.

Keyboard Wedge Host Type

Country Keyboard Types (Country Codes)

IBM PC/AT and IBM PC COMPATIBLES

NORTH AMERICAN (Default)

FRENCH Windows

FRENCH CANADIAN Windows 95/98

GERMAN Windows

French Canadian Windows XP/2000

Quick Reference Guide 9

Country Keyboard Types (Country Codes)

RS-232 Host Types

SPANISH Windows

ITALIAN Windows

SWEDISH Windows

UK ENGLISH Windows

JAPANESE Windows

PORTUGUESE-BRAZILIAN Windows

STANDARD RS-232

ICL RS-232

10 Symbol LS4208

RS-232 Host Types

USB Host Types

IBM 46XX Host Types

NIXDORF RS-232 MODE A

NIXDORF RS-232 MODE B

FUJITSU RS-232

OPOS/JPOS

HID KEYBOARD EMULATION

IBM HAND-HELD USB

PORT 5B

PORT 9B
