Symmons SRT-4172 Kurzanleitung

Step 7

Connect handspray

to hose

Step 5

Connect supply lines

Step 2

Attach faucet handles

Step 6

Connect handspray hose

Step 8

Flush water supply lines

and check for leaks

Step 3

Attach faucet spout

Step 4

Attach handspray holder

Step 1

Attach supply valves

ﬁnished deck, front view

Hot supply Cold supply

3-mode

handspray

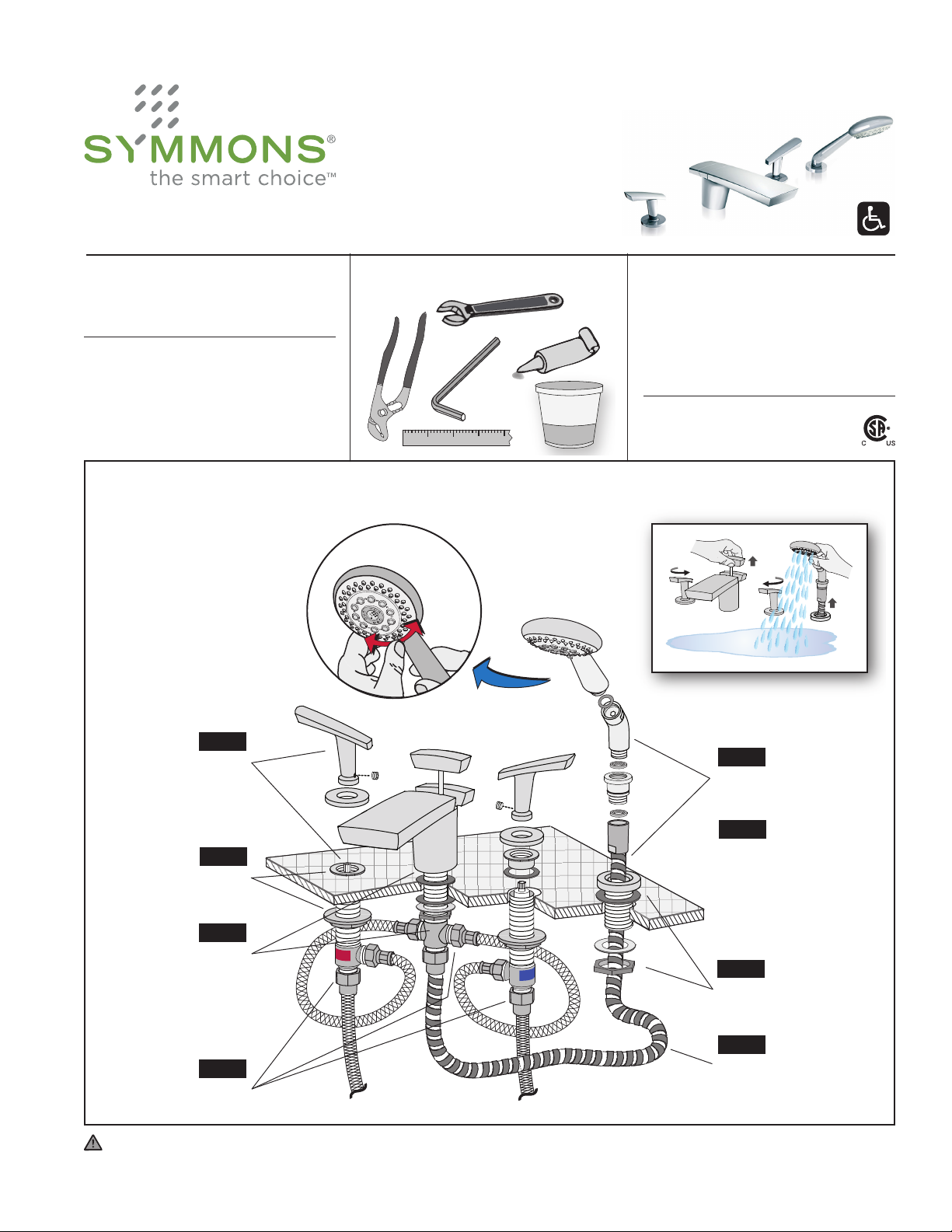

Quick Install Guide Naru Roman Tub Faucet, SRT-4172

Plumbers

Putty

Pipe

Sealant

3/32"

1 2 3 4

Model Numbers

SRT-4172 Faucet with handspray

Alternate Finish Options

-STN Satin nickel

-PNL Polished nickel nish

- Chrome (standard)

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects,

or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Compliance

ASME A112.18.1/CSA B125.1

Roman Tub Faucet SRT-4172

Installation and Service Instructions

Tools & Materials Need Help?

Symmons customer service:

Phone: (800) 796-6667

Email: [email protected]

Monday - Friday 7:30 am - 6:00 pm EST

www.symmons.com/service



Step 1 Attach supply valves to the deck

Step 2 Attach faucet handles

3/32" Allen

wrench

OFF OFF

OFF

nished deck

front view

Step 3 Attach spout

Step 4 Attach handspray holder

Caution: If replacing an older faucet ensure water supply is

turned OFF before removing and then turn faucet handles

ON to relieve water pressure.

screw mounting retainer

down until threads stop

HOT

(red label)

COLD

(blue label)

nished deck

front view

gasket

metal washer

brass nut

washer

CAUTION

Use care while

inserting to avoid

damaging O-rings

on sharp edges

O-rings

Do not loosen or

remove set screw

rear view

Factory

assembly

remove

Installation Instructions

Page 2

Step 5 Connect Supply lines

Step 6 Connect handspray hose

Step 7 Connect handspray to hose

Step 8 Run faucet and check for leaks

Care of faucet ﬁnish

Clean finish area by using mild soap and water or non-

abrasive cleaner and then rinse immediately. A non-

abrasive wax may be used to preserve finish area.

Valve cartridge replacement

Note: Turn on

water supply

Important: Flush supply

lines clean before attaching

to control valves.

HOT supply

COLD supply

supply hoses

not included

hoses are

included

3/32" Allen

wrench

OFF

position

OFF

position

Attaching handles

17 mm deep

socket wrench

3 mm" Allen

wrench

3/32" Allen

wrench

OFF OFF

washer

Page 3

Finished deck thickness

1-3/8" (35 mm) max

8" (203mm) min

16" (406 mm) max

9-1/4" (235 mm)

2-1/4"

(57 mm)

2" (51 mm) dia

Hole size

1-1/16" (27 mm) min

1-1/2" (38 mm) max

Note: Dimensions subject to change without notice

Hole size

1-3/8" (35 mm) min

1-3/4" (44 mm) max

3-1/4"

(84 mm)

3-7/8"

(98 mm)

4-7/8"

(124 mm)

2-1/4"

(57 mm)

7-1/4"

(184 mm)

2" (51 mm) dia

2-1/2" (64 mm)

4" (102 mm) min

1-7/8"

(48 mm)

1-1/8" (29 mm) dia

1/2" - 14 NPSM

exible hose

handspray hose

supply outlet

8-1/2" (214 mm)

handspray hose

supply inlet

Hole size

1-1/4" (32 mm) min

1-5/8" (41 mm) max

Dimensions Naru Roman Tub Faucet, SRT-4172

handle used in

either hot or cold

location

KN-113-EXT-KIT

(Cold cartridge kit)

KN-114-EXT-KIT

(Hot cartridge kit)

(2) Note: screw requires

3mm Allen wrench

(1) Note: screw requires

3/32" Allen wrench

Hot, KN-114

(OFF=CW)

Cold, KN-113

(ON=CCW)

handle

(1)

screw

collar

KN-113

identiﬁed

by groove

handle assy.

1 ea. / kit

RT-273-KIT*

Replacement Parts

Part Number Item

(2)

screw

extension

handle kit

assembly*

(ref. table)

handspray,

3-mode

washer

elbow mount

washer

connector

washer

hose

connection

base

gasket

metal washer

nut

Cartridge

(ref. table)

Handspray Assy.

412W-41*

spout, centerbody diverter

assembly RT-280

Ordering replacement parts:

Call Symmons customer service at (800) 796-6667, M-F 7:30 am - 6:00 pm EST or check our

website at www.symmons.com for a list of Symmons distributors.

Note: For decorative nish faucets add three letter nish sufx code to parts marked with an asterisk

mounting

retainer

gasket

1/2" hose

with 1/2-14

NPSM female

connectors

1/2" hose

with 1/2-14

NPSM female

connectors

nut, M28 x 1.5

(used when

attaching piping)

handspray hose,

0.20mm x 5 feet

ange nut

washer

metal washer

brass nut

ow

regulator

Parts Assembly Naru Roman Tub Faucet, SRT-4172

Symmons Industries, Inc. ■31 Brooks Drive ■ Braintree, MA 02184

Phone: (800) 796-6667 ■Fax: (800) 961-9621

Website: symmons.com ■ Email: [email protected]
