LF24W is an audio/visual warning panel, available in different models and
suited for any emergency situation such as fire, flooding, gas leaks, etc.,
where visual and audio information is needed
LF24W Fire Alarm System: Visual Alarm Device and Sounder
Installation Instructions
Assembly Instructions
•Make four holes into the wall to fit the holders (Fig. 2 )
•Fix the mounting box with the four screws (Fig. 2 )
•Connect the power suppy to the terminals (Figure 1)
• In the sounder is not needed, connect the SILENT jumper (Fig. 1)
• Fix the central part to the mounting box with the four screws (Fig. 2 )
• Place and press the external cover and fix it by screws (Fig. 2 )
1
2
3
4
Figure 1 Figure 2
1
2
3
4
TSD-FOP05-00D Instructions Manual ENG - Rev. date: 2020-10-12 10:18:22

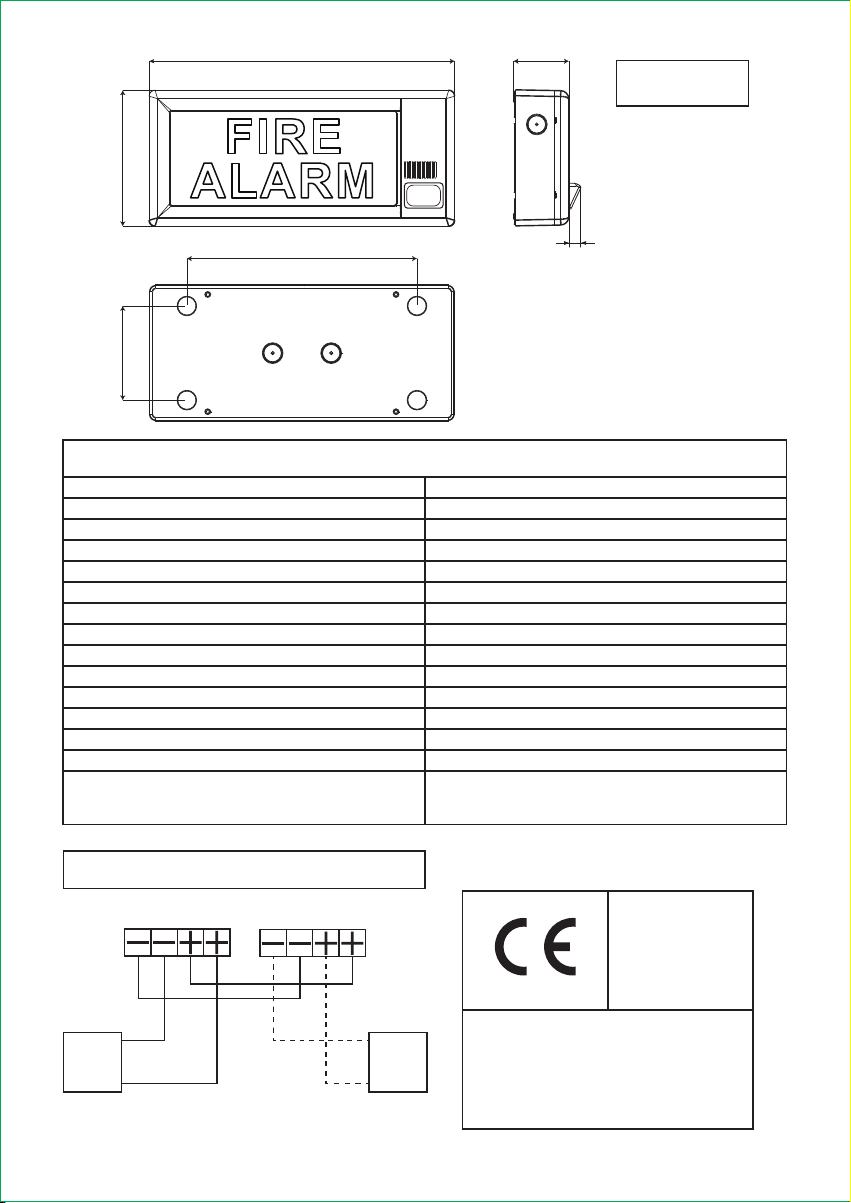

Connection
Technical Specifications
PANEL 1 PANEL 2
PW
24 Vcc EOL*
*POLARITY INVERSION or
LOW VOLTAGE SURVEY (max 8V)
Synaps Technology Srl
Via Pietraferrata, 9/1
34147 - Trieste
ITALY
292mm
130mm
55mm
220mm
90mm
Figure A
2852
20
Flammability grade
Protection Class
Nominal Voltage
Line consumption 24V
Line consumption 8V
Mounting Height
Code (square base)
Codice (rectangular base Fig. A)
Type of connection
Dimensions
Flash Light Color
Operating temperature
Optical specifications
Class
V2
IP21C
24Vd.c. (min 18 Vd.c., max 30Vd.c.)
50mA
10uA max
4,6m max
W-4,6-9,1
0-4,6-9,1-9,9
By terminals
292x130x55mm (L x H x P)
White
From -10°C to +55°C
Flash frequency: 1Hz
TYPE A
Sounder specifications Sound power (max, 90° plan V): >90dB(A) @ 1m
Buzzer frequency: 2,8KHz
Sound pulse frequency: 1Hz
11,2mm
2852-CPR-0162
EN 54-23:2010
EN 54-3:2001 +
A1:2002 +
A2:2006
