Synology DS1813+ Handbuch
Revision 1.0
THIS DOCUMENT CONTAINS PROPRIETARY
TECHNICAL INFORMATION WHICH IS THE
PROPERTY OF SYNOLOGY INCORPORATED AND
SHALL NOT BE DISCLOSED TO OTHERS IN
WHOLE OR IN PART, REPRODUCED, COPIED, OR
USED AS THE BASIS FOR DESIGN,
MANUFACTURING, OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION OF SYNOLOGY
INCORPORATED.
How to Replace Hard Disk Backplane
for 8 bay/5 bay DiskStation
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 2 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology ® Inc.
Table of Content
1. Introduction.................................................................................................................3
1.1 Applied Models & Required Components ..........................................................3
1.2 Required Tools ...................................................................................................4
2. Start to Replace ..........................................................................................................5
2.1 Dismantle the defective HDD backplane............................................................5
2.2 Install the replacement HDD backplane...........................................................22
Revision History
Revision
Number Date of Issue Summary of Change By
v.1.0 2014/4/11 Initial version Dennis Tang
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 3 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology ® Inc.
1. Introduction
This SOP explains about the detailed steps for replacing hard disk backplane (“HDD
backplane”) on Synology’s 8 bay/5 bay DiskStation products.
1.1 Applied Models & Required Components
HDD backplane of the DiskStation model for replacing:
Required
Module Item Code Description Applied Model
SATA
Backplane
80-18TBP0010 ASSY PCBA DS1812+ BP
SYNOLOGY V1.0
DS1813+
DS1812+
80-1512PSB11 ASSY PCBA DS1512+ SATA
BOARD SYNOLOGY V1.1
DS1513+
DS1512+
DX513 (*)
80-D510PSB14 ASSY PCBA DS1010+ SATA
BOARD SYNOLOGY V1.4
DS1511+
DX513 (*)
DX510
Note: For DX513, consult Synology for further information about the correct
backplane version before proceeding to replace.
HDD Backplane for DS1813+ (Metal Frame Included)
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 4 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology ® Inc.

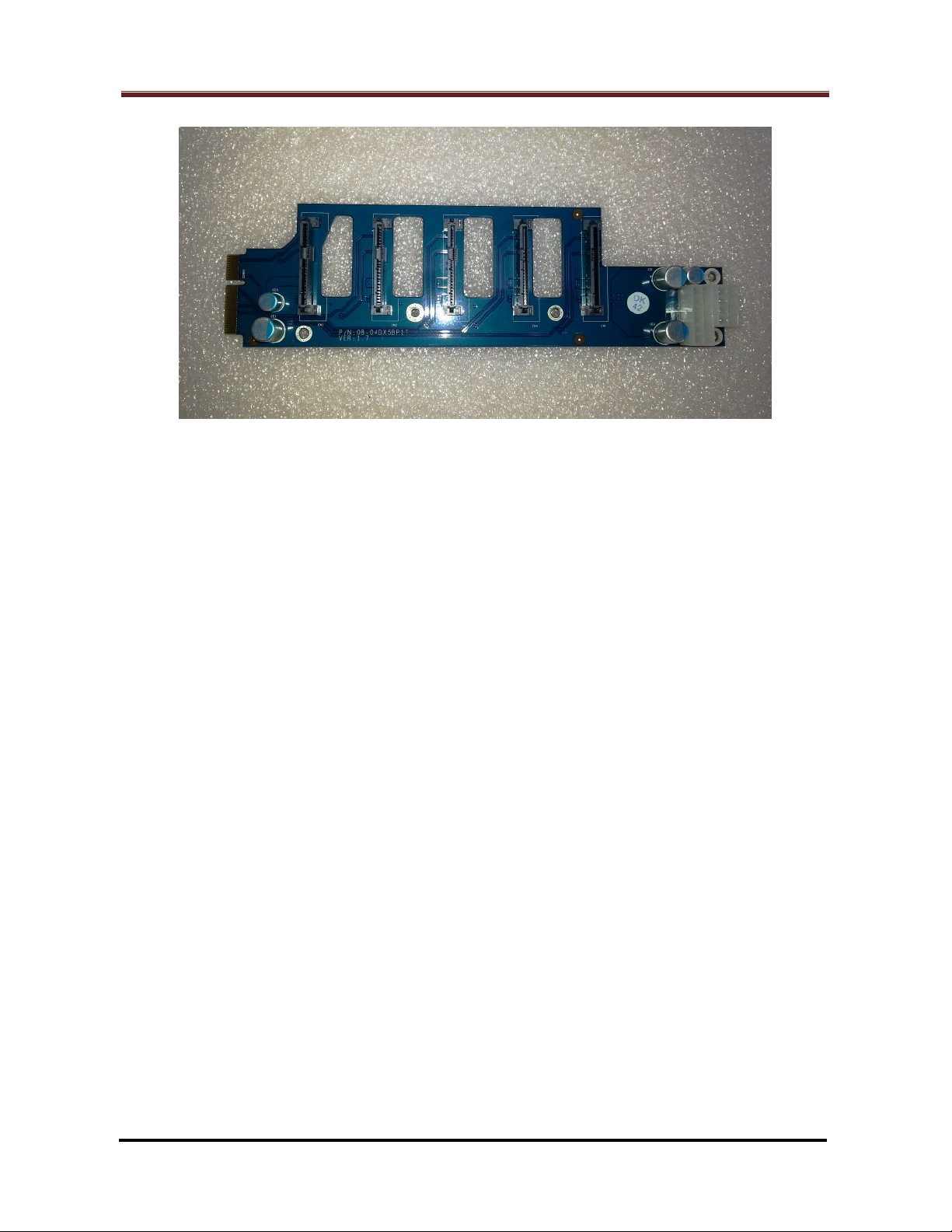

HDD Backplane for DS1513+
1.2 Required Tools
Screw Driver “+” Type: Suggested Bit Size PH#2
Note: If an automatic screwdriver is used, set its torque reading to be 4.5 (+/-0.2)
kg/cmf in advance.
Anti-static / Cotton Gloves
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 5 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
2. Start to Replace
Note: DS1813+ is hereunder the common example unless otherwise specified.
2.1 Dismantle the defective HDD backplane
2.1.1 Release the six (6) screws on the rear panel (Marked by the red circles). (Fig. 1)
Fig. 1
2.1.2 Draw backwards then move up the enclosure cover to remove it. (Fig. 2)
Fig. 2
Fan Panel
Rear Panel
Fan #1
Fan #2
Fan Panel
Enclosure
Cover - Top
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 6 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
2.1.3 Release the three (3) screws on the enclosure bottom (Marked by the red circles).
(Fig. 3)
Fig. 3
2.1.4 Release the four (4) screws on the rear panel (Marked by the red circles). (Fig. 4)
Fig. 4
Fan Panel
Rear Panel
Fan #1
Fan #2
Enclosure
-
Bottom
Rear Panel
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 7 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology ® Inc.
2.1.5 Remove the rear panel from the enclosure. (Fig. 5)
Fig. 5
2.1.6 Unplug the two (2) fan cable connectors (Marked by the red rectangles) which
attach to the eSATA board. (Fig. 6)
Fig. 6
Rear Panel
Fan Cable
Connector #1
Fan Cable
Connector #2
eSATA Board
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 8 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
2.1.7 Remove all the disk trays from the HDD chassis. (Fig. 7)
Fig. 7
2.1.8 For DS1813+, DS1812+:
Release the screw on the enclosure bottom (Marked by the red circles). (Fig. 8)
Fig. 8
Front
Panel
Dis
Tray
Enclosure
-
Bottom
Rear Panel
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 9 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology ® Inc.
2.1.9 Unplug the eSATA board cable connector(s) (Marked by the red rectangle) from the
motherboard. (Fig. 9 for DS1813+, DS1513+, DX513 and Fig. 10 for DS1812+,
DS1512+, DS1511+, DX513 and DX510):
Fig. 9 – For DS1813+, DS1513+, DX513
Fig. 10 – For DS1812+, DS1512+, DS1511+, DX513, DX510
Enclosure
-
Top
Motherboard
e
S
ATA Board
Cable Connector
Rear Panel
Enclosure
-
Top
Motherboard
eSATA Board
Cable Connector
Rear Panel
How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 10 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
2.1.10 Release the five (5) screws (Marked by the red circles). (Fig. 11)
Fig. 11
2.1.11 Then remove the motherboard from the chassis. (Fig. 12)
Fig. 12
Front Panel
Isolating Mylar
(Transparent)
Enclosure
-
Top
Motherboard
