GB Disposal and recycling | 5

1 Disposal and recycling

This product is compliant to the WEEE directive. When disposing the unit, follow your local rules

and regulations.

This product packing materials are recyclable and can be reused. Do not dispose in household

waste.

2 Warnings

Danger

• Make sure that the mains supply to the unit is disconnected before performing any maintenance or

electrical work!

• All electrical connections and maintenance work must be carried out by an authorized installer and in

accordance with local rules and regulations.

Warning

• This product must only be operated by a person who has suitable knowledge or training within this field

or carried out with the supervision of a suitably qualified person.

• Beware of sharp edges during mounting and maintenance. Use protective gloves.

Warning

• All though the mains supply to the unit has been disconnected there is still risk for injury due to rotating

parts that have not come to a complete standstill.

Important

• The installation of the unit and complete ventilation system must be performed by an authorized installer

and in accordance with local rules and regulations.

• The system should operate continuously, and only be stopped for maintenance/service.

• Do not connect tumble dryers to the ventilation system.

• Duct connections/duct ends must be covered during storage and installation.

• Make sure that filters are mounted before starting the unit.

211462 | A005

6| Type label GB

3 Type label

Before calling your service representative, make a note of the specification and production number from the type label,

which can be found on the side of the units, next to the external connections.

Fig. 1 Type label

Position Description

1Product code (product specification)

2Product item number

3Production order number

4Serial number

5Production date (YY.MM.DD)

6QR code for manufacturing order (MO) number and software version

7QR code for the spare parts list and documentation

4 Product description

The SAVE VTC 200 is a heat recovery ventilation unit with a built in counter flow heat exchanger. The SAVE VTC 200 is

suitable for houses with up to 160 m2heated living area. It supplies filtered outdoor air to residential areas and extract

air from bathroom, kitchen and wet rooms.

4.1 Left and Right models

There are two model options, right (R) and left (L) model. The different models are recognized by the placing of the in-

ternal components and the supply air outlet, which is situated on left side of the unit on an (L) unit and on the right hand

side on an (R) unit.

Note:

This document describes a left (L) model.

5 Configuration

5.1 General

SAVE VTC 200 has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The

touchscreen display provides information about current state of the unit and allows you to control all system functions.

Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too

hard.

5.2 Startup wizard

During the first power up of the unit, you will be asked to set:

211462 | A005

GB Configuration | 7

• menu language

• time and date

• import configuration file (if the Internet Access Module (IAM) with configuration file is available)

• airflow control type (Manual/RPM) and airflow level values

• heater type (None/Electrical/Water/Change-over)

The Startup Wizard cannot be skipped.

5.3 Common symbols

The following selection symbols are common and are present in most menu pages:

Back button to return to a previous

menu, located at the upper left corner

On and Off slider to activate or

deactivate a function. White bubble —

function is inactive, green bubble —

function is active.

Up arrow to increase a value CANCEL Button to cancel changes

Down arrow to decrease a value SET/OK Buttons to confirm changes

Some menus have more than one page. Touch page indicator in the top right corner to go to the next page. The first

number indicates current page number and the second number indicates a total number of pages available.

Many options show up in a form of the pop-up window. Select the option from the displayed list in the pop-up window

and press OK to confirm selection.

5.4 Menu overview

A.Return to home screen

B. Basic read-only information about the unit

C. Currently active alarms and alarm history

D. Configure and check week schedule

E. Check and change remaining time till filter change

F. General system preferences

G.Configuration of all system parameters

H.Help and troubleshooting menu

211462 | A005

8| Configuration GB

5.5 Home screen

Touching home icon (pos. A) in drop-down menu

list (pos. 1) will always returns you to home screen after

commissioning.

1. Drop-down menu list

2. Active user mode

3. Airflow settings

4. Temperature settings

5. List of active alarms

6. Icon list of active user functions

5.5.1 User modes

The first icon at the top of home screen shows currently active user mode. To change the user mode, touch the active

user mode icon (pos. 2) and select a new user mode from the list. The unit has 2 permanent and 5 temporary user

modes available for selection. Only one mode can be active at a time.

Settings of all modes can be modified in Service menu.

5.5.1.1 Permanent modes

Permanent modes are always active unless interrupted by temporary modes, activated user functions or alarms:

Icon Text Description

AUTO

Automatic airflow control. AUTO mode is available for selection when Demand

Control,Week Schedule and/or external fan control functions are configured,

otherwise AUTO mode icon won’t be visible in active user modes menu. AUTO

mode activates Demand Control,Week Schedule and/or external fan control

functions. Demand is available to choose as airflow setting in Week Schedule.

MANUAL

Manual selection of airflow levels. The unit can be set run at one out of four

available airflow speeds: Off/Low/Normal/High.

Note:

The fan can be set to OFF by activating Manual Fan Stop function in

Service menu.

5.5.1.2 Temporary modes

Temporary modes are active only for a set period of time unless interrupted by active user modes, activated user func-

tions or alarms:

211462 | A005

GB Configuration | 9

Icon Text Description

HOLIDAY

Sets speed of both supply and extract air fans to Low levels when user is away

from home for a long period of time.

ECO mode is active.

Set duration in days.

CROWDED

Sets speed of both supply and extract air fans to maximum High levels and

temperature setpoint offset to –3 K when apartment is more crowded than usual.

Default temperature setpoint offset is –3 K.

Set duration in hours.

AWAY

Sets speed of both supply and extract air fans to Low levels when user is away

from home for a short period of time.

ECO mode is active.

Set duration in hours.

REFRESH

Sets speed of both supply and extract air fans to maximum High levels to

replace indoor air with a fresh air in a short period of time.

Set duration in minutes.

FIREPLACE

Sets speed of supply air fan to High level and extract air fan to Low level to

increase air pressure within the apartment for better smoke extraction through

the chimney.

Set duration in minutes.

Settings of all modes can be modified in Service menu.

Temporary modes and user functions are active only for a set period of time after which they are terminated and the

unit changes back to a former AUTO or MANUAL mode, depending on which one was active before temporary mode or

user function was activated.

Temporary modes can also be activated via digital input signal triggered by push button, presence detector, etc.

5.5.1.3 Digital input functions

Digital input functions always active while digital input is activated.

Icon Text Description

Central

Vacuum

Cleaner

Function sets speed of supply air fan to High level and extract air fan to Low

level to increase air pressure within the apartment for better dust collection

through central vacuum cleaner.

Function can be activated via digital input — Central Vacuum Cleaner

Function.

Cooker Hood

Sets speed of both supply and extract air fans to Maximum level to increase

airflow in the cooker hood.

Function can be activated via digital input — Cooker Hood Function.

Configurable

Digital Input

Configurable digital input for custom user function. Airflow levels for both fans

are freely configurable.

High–priority function.

Configurable

Digital Input

Configurable digital input for custom user function. Airflow levels for both fans

are freely configurable.

Mid–priority function.

Configurable

Digital Input

Configurable digital input for custom user function. Airflow levels for both fans

are freely configurable.

Low–priority function.

Pressure

Guard

Configurable digital input for pressure switch connection. Airflow levels for both

fans are freely configurable.

5.5.1.3.1Configurable digital inputs

A custom airflow settings for supply and extract fans can be set and assigned to a digital input. Each fan can have a dif-

ferent airflow setting.

211462 | A005

10 | Configuration GB

Configurable digital input can be activated via signal triggered by push button, presence detector or any other external

device with digital output, such as Building Management Systems (BMS)

Configurable digital inputs are grouped in levels of priority, Configurable Digital Input 1 being the highest,

meaning it can’t be overwritten by other user functions.

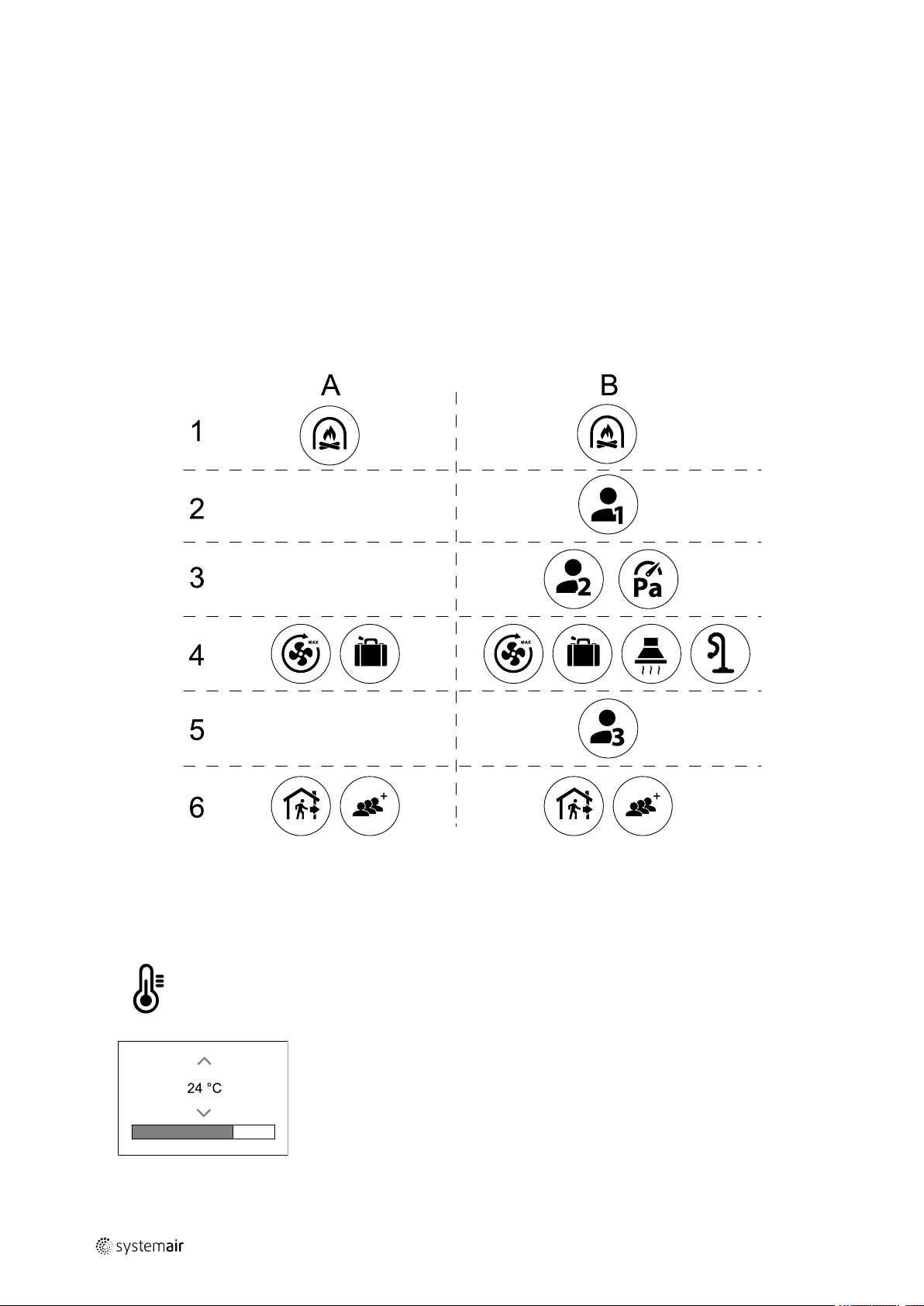

5.5.1.4 Digital input and Mode hierarchy

User modes and functions have a different hierarchy. User functions activated via HMI or mobile APP, such as AWAY,

CROWDED,FIREPLACE,HOLIDAY and REFRESH, are interrupted by manual selection of AUTO and MANUAL fan modes.

AFIREPLACE function has the highest priority between user functions. Other functions activated via HMI/APP can in-

terrupt each other.

If FIREPLACE function is hard-wired on the connection board and configured as digital input (DI) then it has a higher

priority than AUTO and MANUAL mode. Digital input for a FIREPLACE function has also a higher priority than other

hard-wired digital inputs (DI) for: AWAY,CENTRAL VACUUM CLEANER,COOKER HOOD,CROWDED,HOLIDAY or REFRESH.

Fig. 2 Hierarchy of user modes and digital inputs

Modes are listed from the highest to lowest priority; A — user modes that can be activated from the control panel; B —

user modes and functions activated via digital input

5.5.2 Temperature settings

Temperature can be set at SET TEMPERATURE menu accessible from the home screen by touching

TEMPERATURE icon with thermometer. Default temperature value is 18°C (range 12–30°C).

Use up and down arrows or a slider to change the value.

Then touch the OK button to confirm changes.

211462 | A005

Andere Handbücher für SAVE VTC 200

Inhaltsverzeichnis

Sprachen:

Andere System air Lüfter Handbücher

System air

System air SYSWALL 21 Bedienungsanleitung

System air

System air Multibox MUB Handbuch

System air

System air Fantech SHR Series Bedienungsanleitung

System air

System air Topvex FR03 Bedienungsanleitung

System air

System air fantech Pro 150 Bedienungsanleitung

System air

System air AW 300E4 Bedienungsanleitung

System air

System air Fantech PBF Series Bedienungsanleitung

System air

System air RVF 100 Handbuch

System air

System air prioAir 150E2 Bedienungsanleitung

System air

System air Fantech DEDPV-705 Bedienungsanleitung

System air

System air Fantech SHR 8005R Bedienungsanleitung

System air

System air SAVE VTC 500 Bedienungsanleitung

System air

System air fantech FG 12 Bedienungsanleitung

System air

System air Ex 140-2 Fehlerbehebungshandbuch

System air

System air DVG EC F400 Handbuch

System air

System air KBR Series Bedienungsanleitung

System air

System air IV Smart AC Bedienungsanleitung

System air

System air BF QW Bedienungsanleitung

System air

System air SAVE VSR 300 Bedienungsanleitung

System air

System air Villavent VV-835/K Betriebsanleitung

System air

System air fantech FIT 120E Bedienungsanleitung

System air

System air FANTECH VHR100R Bedienungsanleitung

System air

System air IV Smart AC Bedienungsanleitung

System air

System air Fantech FLEX 100H ES Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
