SAVE VTR 275/B

Installation instructions GB

281769 | v01

E&OE

Systemair UAB reserves the rights to alter their products without notice.

This also applies to products already ordered, as long as it does not affect the previously agreed specifications.

Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service.

281769 | v01

Contents

1 Overview ......................................................1

1.1 General Description ................................1

1.2 Warranty..............................................1

1.3 Type label.............................................1

2 Important Safety Information.............................1

2.1 Intended Use.........................................1

2.2 Admonitions .........................................2

3 Technical Data ................................................2

3.1 Dimensions and Weight ...........................3

3.2 Connections Left and Right models.............4

3.3 Installation recommendation regarding

condensation ........................................5

3.3.1 Condensation inside of the

unit.........................................5

3.3.2 Condensation outside of the

unit.........................................5

4 Delivery, Transport, Storage...............................5

4.1 Transport and storage .............................5

4.2 Delivery/Unloading.................................6

5 Prerequisites for Installation...............................6

5.1 Location and Space Requirements..............6

5.2 Wall preparation for mounting

bracket ................................................7

5.3 Outdoor Air Intake Location

Recommendation...................................7

5.4 Access to Power supply ...........................7

6 Installation.....................................................7

6.1 Ventilation Duct Connection and

Insulation .............................................9

6.2 Installation and Configuration of

Accessories...........................................9

7 Electrical connections.......................................9

7.1 Main circuit board layout..........................9

7.2 External connections (Connection

board) ...............................................10

8 Before Starting the System.............................. 11

9 Commissioning ............................................. 11

10 Concluding Routines ...................................... 12

11 Disposal and recycling .................................... 13

12 EU Declaration of Conformity ........................... 14

Overview |1

1 Overview

1.1 General Description

This manual describes basic information how to operate and perform maintenance on the unit and the system it is con-

nected to.

Read the instructions carefully and in its entirety.

For description of advanced settings and installation of accessories see Service and Accessories Installation manual.

All documents can be found in our online catalogue at www.systemair.com.

1.2 Warranty

For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance

with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re-

port. Systemair will require these in the case of a warranty claim.

1.3 Type label

Before calling your service representative, make a note of the specification and production number from the type label,

which can be found next to the external connections and inside of the unit.

Fig. 1 Type label

Position Description

1Product code (product specification)

2Product item number

3Production order number

4Serial number

5Production date (YY.MM.DD)

6Scannable code for manufacturing order (MO) number and software version

7Scannable code for the spare parts list and documentation

2 Important Safety Information

• Observe and respect local conditions, regulations and laws.

• Safety elements may not be dismantled, circumvented or deactivated.

• Wear protective equipment during all work in the vicinity of the unit.

• Do not allow children to play with the device.

2.1 Intended Use

• Abide by the system-related conditions and requirements of the system manufacturer or plant constructor.

281769 | v01

2| Technical Data

• Keep all the warning signs on the device and in a legible condition.

• The device is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction.

• The system should operate continuously, and only be stopped for maintenance/service.

• Do not connect tumble dryers to the ventilation system.

• Make sure that filters are mounted before starting the unit.

2.2 Admonitions

Danger

• Make sure that the mains supply to the unit is disconnected before performing any maintenance or

electrical work!

• All electrical connections and maintenance work must be carried out by an authorized installer and in

accordance with local rules and regulations.

Warning

• This product is not intended to be used by children or people with reduced physical or mental ability or

lack of experience and knowledge, if no instruction concerning the use has been given by the person

responsible for their safety or that this person is supervising the operation. Children should be supervised

so that they can not play with the product.

• Beware of sharp edges during mounting and maintenance. Use protective gloves.

Warning

• Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the

unit have been disconnected.

3 Technical Data

Re-heater 500 W

Fans 170 W

Total power consumption 683 W

Fuse 10 A

Voltage 230V 1~, 50Hz

281769 | v01

Technical Data | 3

3.1 Dimensions and Weight

601

598

108

222

116

∅125x5

580

450

242

330

313

1030

614

168**

628

1182

584

219**

Fig. 2 Dimensions of left hand unit

281769 | v01

4| Technical Data

601

598

116

127

225

∅125x5

580

450

178

310

338

1030

614

168**

628

∅125x5

219**

584

1182

Fig. 3 Dimensions of right hand unit

** Drainage.

The unit weight is 49 kg.

3.2 Connections Left and Right models

281769 | v01

Delivery, Transport, Storage | 5

Position Description

RRight hand model (Supply air connection is situated on the right hand side of the unit

viewed from the front)

LLeft hand model (Supply air connection panel is situated on the left hand side of the unit

viewed from the front)

Symbol Description Symbol Description Symbol Description

Supply air Outdoor air Cooker hood air

Exhaust air Extract air

3.3 Installation recommendation regarding condensation

3.3.1 Condensation inside of the unit

The unit should run continuously. If the unit is intended to be stopped by the user manually or due to calendar function

we recommend to install air tight dampers at extract and supply air ducts. The dampers will ensure that no air circulates

from the warm parts of the building through the unit to outside (chimney effect). If no dampers are installed there is risk

of condensation inside the unit and the outdoor ducts during these stop periods. It also might be that cold air from out-

side could pass the unit and enter into the building. That could cause condensation outside the supply and extract air

ducts and even at the valves in the rooms.

When the unit is not running due to late commissioning in winter time, the supply and extract air ducts should be dis-

connected and closed due to above mentioned effects until commissioning and regular operation.

3.3.2 Condensation outside of the unit

1. Room temperature 26°C

2. Room temperature 24°C

3. Room temperature 22°C

4. Room temperature 20°C

When the unit is installed in warm humid areas (like laun-

dry) together with low outdoor temperature there is a

certain point where moisture can condense outside of the

casing. The condensation relation to indoor relative hu-

midity, room and outdoor temperature is shown diagram

below. The condensation outside of the unit do not occur

in zones bellow each curve.

Important

Recommendation: If condensation occurs,

increase ventilation in area close to the unit.

Examples when condensation outside of the unit can

occur:

Example A: If the unit is installed in room where tempera-

ture is 24°C, outside temperature is –15°C, then dew will

start accumulating when relative humidity is 46% and

higher.

4 Delivery, Transport, Storage

4.1 Transport and storage

The SAVE VTR 275/B should be stored and transported in such a way that it is protected against physical damage. It

should be covered so dust, rain and snow cannot enter and damage the unit and its components.

281769 | v01

6| Prerequisites for Installation

Important

• Use the packaging exclusively as transport protection and not as a lifting aid.

• Load and unload the air handling unit carefully.

4.2 Delivery/Unloading

The appliance is delivered in one piece containing all necessary components, wrapped in plastic on a pallet for easy

transportation.

Checking delivery

• Check the packaging and the air handling unit for transport damage. Any findings should be noted on the cargo

manifest.

• Check completeness of the delivery.

Verify that all ordered equipment is delivered before starting the installation. Any discrepancies from the ordered

equipment must be reported to the supplier of Systemair products.

Warning

When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters

etc.

Unpacking

• Check the air handling unit for visible transport damage.

• Only remove the packaging shortly before assembly.

• Beware of sharp edges during mounting and maintenance. Use protective gloves.

5 Prerequisites for Installation

To ensure a proper and fail-free operation, it is important that the unit is installed according to these instructions.

5.1 Location and Space Requirements

The SAVE VTR 275/B should preferably be installed in a separate room (e.g. storeroom, laundry room or similar.).

450

1050

620

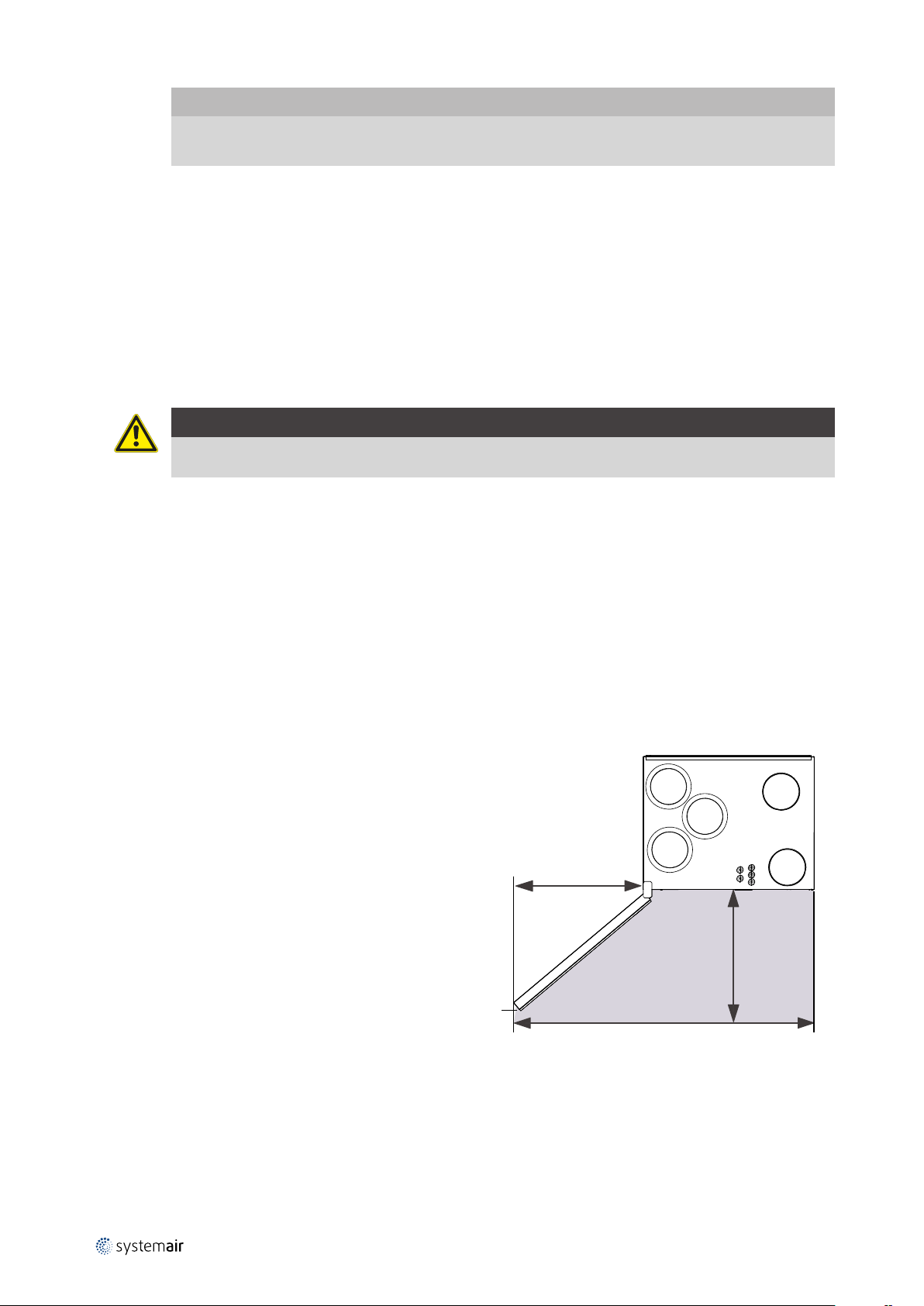

Fig. 4

The SAVE VTR 275/B should preferably be installed in a

separate room (e.g. storeroom, laundry room or similar.).

When choosing the location it should be kept in mind that

the unit requires maintenance regularly and that the in-

spection door should be easily accessible. Leave free

space for opening the door and for taking out the main

components (figure 4).

281769 | v01
