HDM170 - 3ch HDMI Switch With Remote Control
1
Great little device for controlling 3 devices on an HDMI Screen
Useful for switching between HDMI connected equipment when a screen only has one HDMI
input such as on a monitor screen, the HDM170 allows you to switch between a DVR, a DVD
player and even a laptop by pressing the front panel buttons or using the mini IR remote
controller supplied.
Powered from the HDMI of connected devices and measuring just 98x55x25mm, the switcher
is discrete enough to hide away on a desktop or simply sit on one of the connected devices.
Use good quality HDMI leads up to 10 metres long to connect to the unit, simply plug in and
the screen displays the last HDMI device connected or use the remote to select the channel
you wish to be displayed.
Typical devices with HDMI that can be connected include:
DVRs, DVD or Blu-ray players, camcorders, games consoles, tablets, laptops,
AV & satellite receivers.

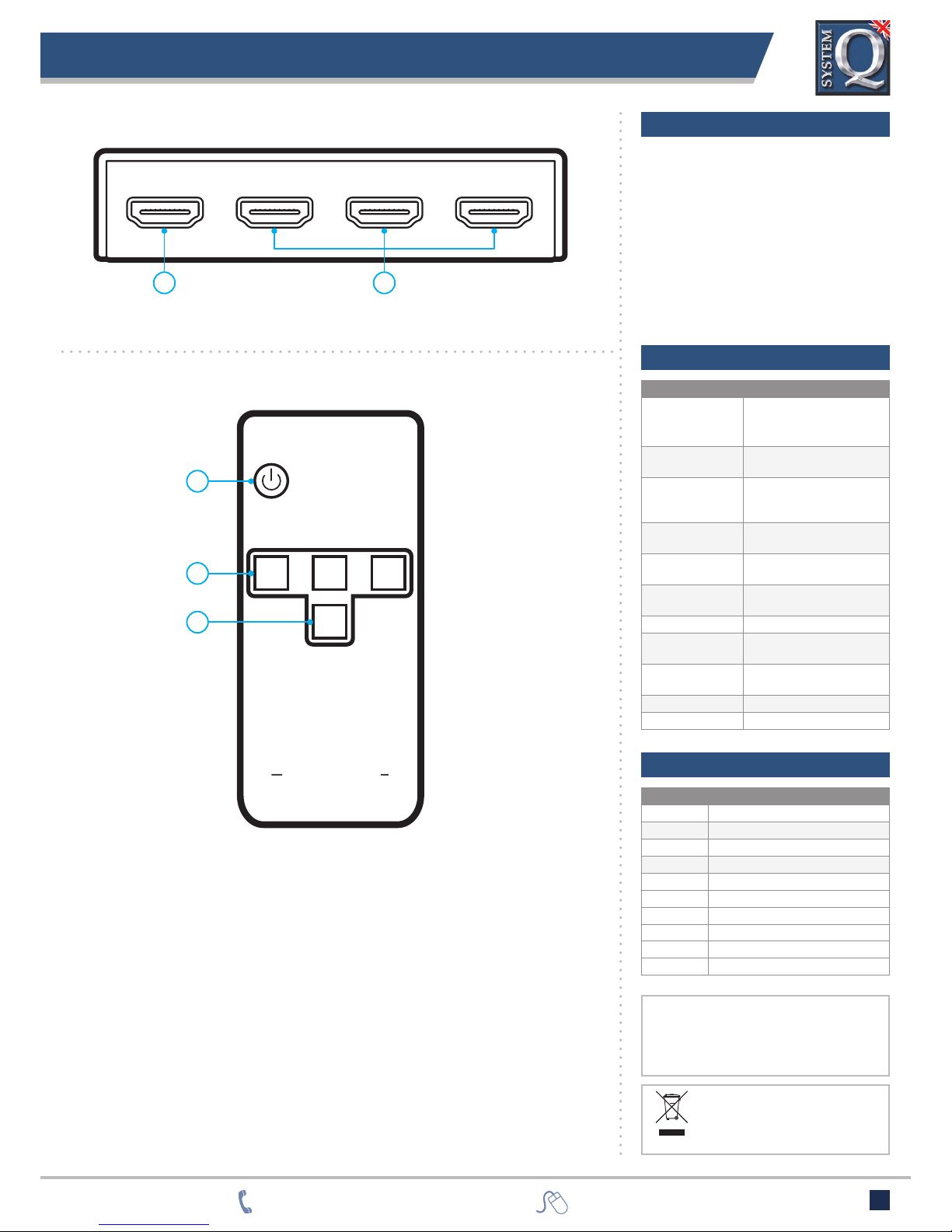

1. IR Receiver Cable Input Port.
2. HDMI Input Channel Audio
Switch LED Status Light. When
the light comes on, the Auto
Switch function is on.
3. HDMI Input Channel One LED
Status Light.
4. HDMI Input Channel Two LED
Status Light.
5. HDMI Input Channel Three LED
Status Light.
6. HDMI Input Channel
Switch Button.
7. Standby Status LED - when this
light comes on, the device is in
a standby state.
8. Standby and Start Button.
IR AUTO IN1 IN2 IN3
SWITCH PWR
1 2 3 4 5 6 7 8
Front Panel
Features
•3x HDMI Socket Inputs
•1x HDMI Socket Output
•Auto-Display Function Mode
• Mini IR Remote Handset
•Full 1080p HD
•Supports 4K
•For Video & Audio
• No Power or PSU Required
Specication
FUNCTION SPECIFICATION
HDMI Resolution
1080p / 1080i / 720p / 576i /
480p / 480i (24/50/60 fps)
2160p (24/30 fps)
Max Bandwidth
(per channel) 225MHz
Supported Audio
DTS-HD / Dolby-trueHD /
LPCM7.1 / DTS / Dolby-AC3
/ DSD
HDMI Input Cable
Length Up To 6m
HDMI Output
Cable Length Up To 6m
Input/Output DDC
Signal 5V p~p, TTL
Power/Current 5V DC (± 10%) 350mA
Operating
Temperature 0°C ~ +40°C
Operating
Humidity
5 to 85%RH
(No Condensation)
Weight 122g
Dimensions 98 x 55 x 25mm
Options Available
PART CODE
DESCRIPTION
HDM150
1080p HDMI Extender
VID500
HDMI Socket to Plug Adaptor
VID501
HDMI-HDMI Lead 1m PLG-PLG
VID502
HDMI-HDMI Lead 2m PLG-PLG
VID503
HDMI-HDMI Lead 3m PLG-PLG
VID505
HDMI-HDMI Lead 5m PLG-PLG
VID510
HDMI-HDMI Lead 10m PLG-PLG
VID511
HDMI Socket to Socket Adaptor
VID512
HDMI Plug to Socket Adaptor (Left)
VID512
HDMI Plug to Socket Adaptor (Right)
