2100S and 2100TS Photoelectronic

Smoke Detectors

INSTALLATION AND MAINTENANCE INSTRUCTIONS

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: 630-377-6495

Before Installing

Please thoroughly read System Sensor manual I56-407,

Guide for Proper Use of System Smoke Detectors, which pro-

vides detailed information on detector spacing, placement,

zoning, wiring, and special applications. Copies of this

manual are available at no charge from System Sensor.

NOTICE: This manual shall be left with the owner/user of

this equipment.

IMPORTANT: This detector must be tested and maintained

regularly following NFPA 72 requirements. The detector

should be cleaned at least once a year.

General Description

Model 2100S is a 2-wire photoelectronic smoke detector

that uses a state-of-the-art optical sensing chamber. This

detector is designed to provide open area protection and to

be used with compatible UL-listed panels only. Model

2100TS features a restorable, built-in, fixed-temperature

(135°F) thermal detector.

Specifications

Diameter: 5.5 inches (140 mm)

Height (including mounting bracket): 1.9 inches (48 mm)

Weight: 5.3 oz. (150 g)

Operating Temperature Range: Model 2100S: 32° to 120°F (0° to 50°C)

Model 2100TS: 32° to 100°F (0° to 38°C)

Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Latching Alarm: Reset by momentary power interruption

Heat Sensor (Model 2100TS only): 135°F Fixed Temperature Electronic Thermistor

Electrical Ratings

System Voltage – Nominal: 12 or 24 VDC

Minimum: 8.5 VDC

Maximum: 35 VDC

Maximum Ripple Voltage: 30% of nom. Voltage (peak to peak)

Start-up Capacitance: 0.02 µF maximum

Standby Current: 50 µA maximum

Alarm Ratings: 4.2 VDC minimum at 10 mA.

6.6 VDC maximum at 130 mA.

(Alarm current must be limited to 130 mA maximum by the control panel. If

used, the RA400Z Remote Annunciator operates within the specified detector

alarm currents.)

Reset Voltage: 2.5 VDC minimum

Reset Time: 0.3 seconds maximum

Start-up Time: 30 seconds maximum (after 60 second reset)

Installation of these detectors is simplified by the use of a

mounting bracket and a plug-in screw terminal block that

can be prewired to the system, allowing the detector to be

easily installed or removed. The detector’s sensitivity can

be tested in place using the MOD400R Test Module.

An LED on the detector provides a local visual indication of

the detector’s status. If power is applied to the detector, and

it is functioning normally in standby mode within the listed

sensitivity ranges, the status LED blinks once every ten sec-

onds. The LED also provides a visual indication that main-

tenance is required. If the LED stops blinking, the detector

is either not powered, out of the listed sensitivity range,

and/or unable to function properly. The test switch will not

operate if the detector is below the insensitive limit. The

LED will also latch on when the detector is in alarm.

D200-54-00 2 I56-710-14R

The detectors also include an output that allows an option-

al Model RA400Z Remote Annunciator to be connected.

Mounting

Each 2100S and 2100TS detector is supplied with a mount-

ing bracket that permits the detector to be mounted:

1. To a single gang box, or

2. Directly to a 31/2-inch or 4-inch octagonal box, or

3. To a 4 inch square electrical box by using a plaster ring.

4. Directly to the ceiling using drywall anchors, if permit-

ted by local codes and/or the authority having jurisdic-

tion.

Tamper-resistance Feature

This detector includes a tamper-resistant feature that pre-

vents its removal from the bracket without the use of a tool.

To make the detector tamper-resistant, remove the smaller

tab by breaking it at the scribed line on the tamper-resist-

ant tab on the detector mounting bracket (see Figure 2),

then install the detector. To remove the detector from the

bracket once it has been made tamper resistant, use a

small screwdriver to depress the tamper-resistant tab, locat-

ed in the slot on the mounting bracket, and turn the detec-

tor counterclockwise.

Wiring Installation Guidelines

All wiring must be installed in compliance with the

National Electrical Code, applicable local codes, and any

special requirements of the local authority having jurisdic-

tion. Proper wire gauges should be used. The conductors

used to connect smoke detectors to control panels and

;;;;;;;;;;;;;;;;;;;;;;;;

Figure 1. Surface mounting of 2100S smoke detec-

tor on 3 1/2-inch and 4-inch octagonal box:

A78-2563-00

accessory devices should be color-coded to reduce the like-

lihood of wiring errors. Improper connections can prevent

a system from responding properly in the event of a fire.

The screw terminal block will accept 14 – 22 gauge wire.

For best system performance, all wiring should be installed

in separate grounded conduit; do not mix fire system

wiring in the same conduit as any other electrical wiring.

Tw isted pair may be used to provide additional protection

against extraneous electrical interference.

Wire connections are made by stripping about 1/4inch of

insulation from the end of the feed wire, inserting the wire

into the appropriate terminal, and tightening the screw to

secure the wire in place.

System Sensor smoke detectors are marked with a compat-

ibility identifier located as the last digit of a five digit code

stamped on the back of the product. Connect detectors only

to compatible control units as indicated in System Sensor’s

compatibility chart which contains a current list of UL list-

ed compatible control units and detectors. A copy of this

list is available from System Sensor upon request.

Installation

Remove power from the control unit or initiating-device

circuits before installing detectors.

1. Wire the plug-in screw terminal block per Figure 3 and

plug the terminal block into the detector.

2. Align the arrows on the detector with the arrows on the

mounting bracket.

3. Turn the detector clockwise in the mounting bracket

until it clicks into place.

4. After all detectors have been installed, apply power to

the control unit or initiating-device circuits.

5. Test the detector as described in TESTING. (See page 3.)

6. Reset the detector at the system control panel.

7. Notify the proper authorities the system is in operation.

Figure 2. 2100S and 2100TS smoke detector mounting bracket:

A78-2333-01

TAMPER SLOT

(DEPRESS TAB TO

REMOVE DETECTOR)

TAMPER RESISTANT TAB

(CUT OFF SMALL TAB TO

ACTIVATE TAMPER-RESIST

FEATURE)

ALIGNMENT

ARROWS

WARNING

D200-54-00 3 I56-710-14R

Dust covers are an effective way to limit the entry of dust

into smoke detector sensing chambers. However, they may

not completely prevent airborne dust particles from enter-

ing the detector. Therefore, System Sensor recommends the

removal of detectors before beginning construction or other

dust producing activity. Be sure to remove dust covers from

any sensors that were left in place during construction as

part of returning the system to service.

Testing

NOTE: Before testing, notify the proper authorities that

the smoke detector system is undergoing mainte-

nance and will temporarily be out of service.

Disable the zone or system undergoing mainte-

nance to prevent unwanted alarms.

Detectors must be tested after installation and following

periodic maintenance. Test the 2100S as follows:

A. Test Switch

1. A recessed test switch is located on the detector hous-

ing (See Figure 4).

2. Push and hold the recessed test switch with a 0.18

inch maximum diameter tool such as an allen wrench

or small screwdriver.

3. The detector’s LED should light within 5 seconds.

OPTIONAL CLASS A WIRING

EOL RESISTOR

SPECIFIED BY

PANEL

MANUFACTURER

UL LISTED

COMPATIBLE

CONTROL

PANEL

INITIATING

LOOP

–

RA400Z

REMOTE

ANNUNCIATOR

–

RA400Z

REMOTE

ANNUNCIATOR

–

LED

–

LED

–

Figure 3. Wiring diagram for the 2100S and 2100TS detector:

A78-2331-02

B. Test Module (System Sensor Model No. MOD400R).

The MOD400R test module can be used with a DMM or

analog voltmeter to check the detector sensitivity as

described in the test module’s manual.

C. Smoke Entry Test

Hold a smoldering punk stick or cotton wick at the side

of the detector and gently blow smoke through the

detector until the unit alarms.

D. Direct Heat Method (Model 2100TS only – Hair dryer of

1000-1500 watts).

Direct the heat toward either of the side thermistors.

Hold the heat source about 12 inches from the detector

in order to avoid damage to the plastic. The detector will

reset only after it has had sufficient time to cool and the

power source has been momentarily interrupted.

Both smoke and heat detection testing are recommended

for verifying system protection capability.

A detector that fails to activate with any of the above tests

should first be cleaned as outlined in the MAINTENANCE

section which follows. If the detector still fails to activate,

it should be returned for repair.

Notify the proper authorities the system is back on line.

Figure 4. Top and side views showing position of test switch:

PUSH RECESSED

SWITCH WITH A

0.18″MAX. DIAMETER TOOL

;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;

LED

TEST MODULE

SOCKET RECESSED TEST

SWITCH

A78-2564-05

CAUTION

D200-54-00 4 I56-710-14R

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector to be free from

defects in materials and workmanship under normal use and service for a

period of three years from date of manufacture. System Sensor makes no

other express warranty for this smoke detector. No agent, representative,

dealer, or employee of the Company has the authority to increase or alter

the obligations or limitations of this Warranty. The Company’s obligation

of this Warranty shall be limited to the repair or replacement of any part

of the smoke detector which is found to be defective in materials or work-

manship under normal use and service during the three year period com-

mencing with the date of manufacture. After phoning System Sensor’s toll

free number 800-SENSOR2 (736-7672) for a Return Authorization number,

send defective units postage prepaid to: System Sensor, Repair

Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174.

Please include a note describing the malfunction and suspected cause of

failure. The Company shall not be obligated to repair or replace units

which are found to be defective because of damage, unreasonable use,

modifications, or alterations occurring after the date of manufacture. In no

case shall the Company be liable for any consequential or incidental dam-

ages for breach of this or any other Warranty, expressed or implied what-

soever, even if the loss or damage is caused by the Company’s negligence

or fault. Some states do not allow the exclusion or limitation of incidental

or consequential damages, so the above limitation or exclusion may not

apply to you. This Warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

Maintenance

NOTE: Before removing the detector, notify the proper

authorities that the smoke detector system is

undergoing maintenance and will temporarily be

out of service. Disable the zone or system under-

going maintenance to prevent unwanted alarms.

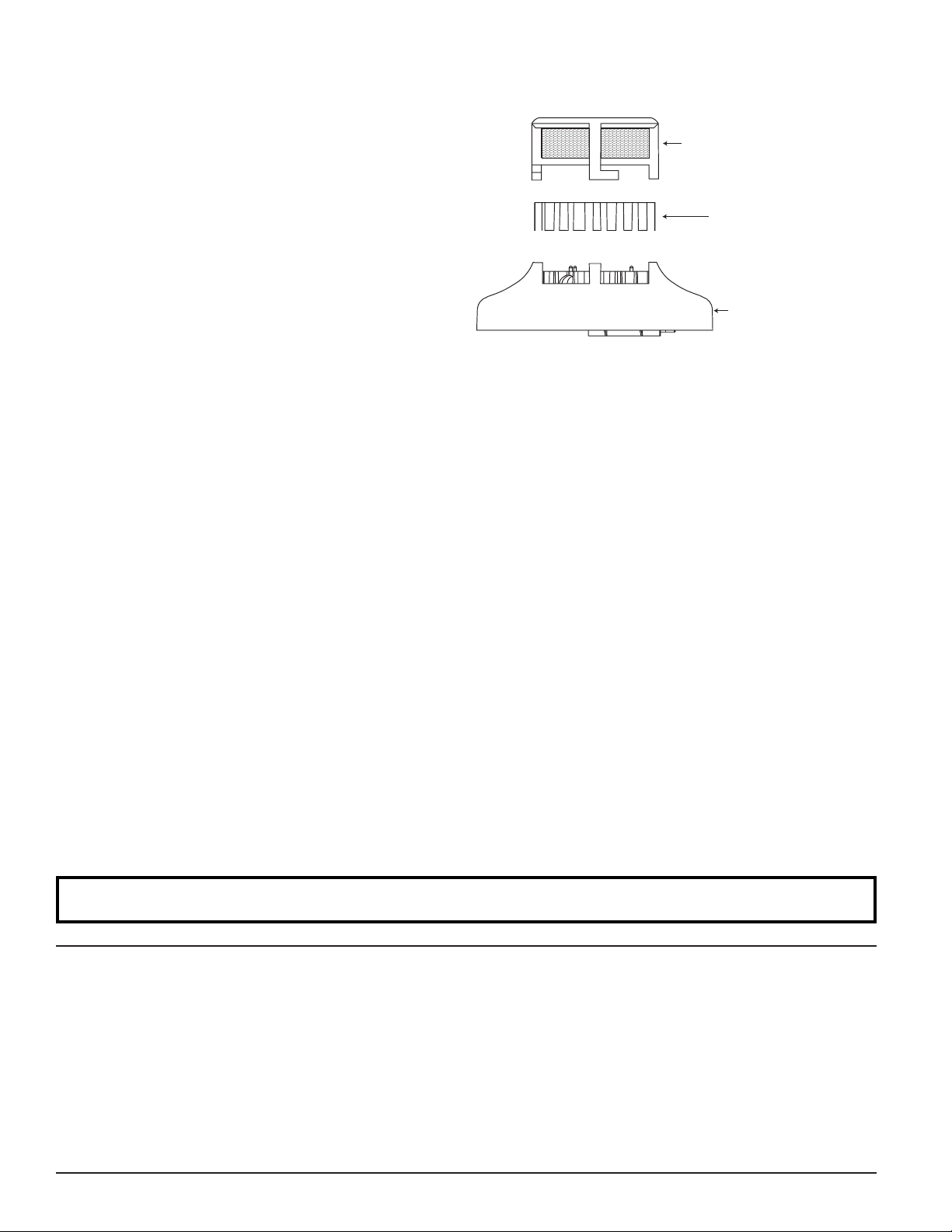

1. Remove cover by turning counter-clockwise in the direc-

tion of arrow.

2. Vacuum the cover carefully.

3. Remove the sensing chamber cover (See Figure 5).

4. Clean the sensing chamber by vacuuming or blowing

out dust and particles.

5. Replace the sensing chamber cover, aligning the arrow

on the top of the chamber cover with the arrow on the

housing.

6. Replace the cover by placing it over the sensing cham

ber cover and twisting until it snaps into place.

7. Reinstall the detector.

8. Notify the proper authorities the system is back in operation.

Figure 5. Removal of cover and screen for cleaning:

A78-2565-07

REMOVABLE

SCREEN/COVER

(PART NO.

C58-357-XX)

SENSING

CHAMBER

COVER

HOUSING

Please refer to insert for the Limitations of Fire Alarm Systems

Dieses Handbuch passt für folgende Modelle

Andere System Sensor Rauchmelder Handbücher

System Sensor

System Sensor 6424 Technische Daten

System Sensor

System Sensor InnovairFlex D4240 Bedienungsanleitung

System Sensor

System Sensor OSI-RE-SS Bedienungsanleitung

System Sensor

System Sensor 2151 Bedienungsanleitung

System Sensor

System Sensor A05-1003 Bedienungsanleitung

System Sensor

System Sensor i3 Series Bedienungsanleitung

System Sensor

System Sensor DH100 Series Bedienungsanleitung

System Sensor

System Sensor Innovair flex D2 Bedienungsanleitung

System Sensor

System Sensor 2412 Bedienungsanleitung

System Sensor

System Sensor Innovair DH100ACDCLPX Bedienungsanleitung

System Sensor

System Sensor B401 Bedienungsanleitung

System Sensor

System Sensor Innovair flex 2D51 Bedienungsanleitung

System Sensor

System Sensor 5451 Bedienungsanleitung

System Sensor

System Sensor 22051EI Bedienungsanleitung

System Sensor

System Sensor 2100AT Bedienungsanleitung

System Sensor

System Sensor Innovair Flex D2E Bedienungsanleitung

System Sensor

System Sensor 6500RE Bedienungsanleitung

System Sensor

System Sensor B224BI Bedienungsanleitung

System Sensor

System Sensor 6500S Bedienungsanleitung

System Sensor

System Sensor Innovair DH100LP Bedienungsanleitung

System Sensor

System Sensor 2312/24T Bedienungsanleitung

System Sensor

System Sensor Innovair DH100ACDCLP Bedienungsanleitung

System Sensor

System Sensor 2251A-COPTIR Bedienungsanleitung

System Sensor

System Sensor 1424 Bedienungsanleitung

Beliebte Rauchmelder Handbücher anderer Marken

x-sense

x-sense SD19-W Bedienungsanleitung

BRK electronic

BRK electronic First Alert P1010 Bedienungsanleitung

FireAngel

FireAngel Thermoptek ST-622 Bedienungsanleitung

teko

teko Astra-42A Bedienungsanleitung

Safetec

Safetec SDS-2/6 Betriebsanleitung

Siemens

Siemens PE-11C Bedienungsanleitung

Resolution Products

Resolution Products RE612 CryptiX Bedienungsanleitung

First Alert

First Alert PC900V Bedienungsanleitung

Eminent

Eminent EM6590 E-Domotica Bedienungsanleitung

Ei Electronics

Ei Electronics Ei Ei168RC Bedienungsanleitung

Carrier

Carrier Kidde Quell Q301 Bedienungsanleitung

VESDA

VESDA VLF-500 Bedienungsanleitung

ELRO

ELRO FS8110 Bedienungsanleitung

Heiman

Heiman SMOKI NS-626PHS Bedienungsanleitung

Regin

Regin SDD-S65 Bedienungsanleitung

Family Gard

Family Gard FG225 Bedienungsanleitung

Greystone

Greystone DSD120 Bedienungsanleitung

Aparton

Aparton ASD-10 Bedienungsanleitung
