AC-400R-3T-TH MANUAL
1
USER MANUAL
AC-400R-3T-TH
Standard Type of Thermo-hygrostat Controller
VER:201808-1.0SYStronics. Co. ltd.,
1404, 301, Bucheon Techno park, 345, Seokcheon-ro, Bucheon-si, Gyeonggi-do, Republic of Korea
Phone : +10-32-324-2777 Fax : +10-32-324-2717 Homepage : www.ss22.com
AC-400R-3T-TH MANUAL
2
Be sure to read and ensure that your safety precautions are used to protect your safety and prevent property
damage. We shall not accept any liability for any loss caused by the use or carelessness caused by the use
or handling of this manual.
Warning
If this product is not intended as a safety device, use a double safety device for fear of accidents, damage of
critical peripheral equipment, and equipment that is feared to cause extensive property damage.
Safety instructions
1. Be sure to check the equipment after disconnecting mains.
2. Do not disassemble and repair this product ; it is not possible to manufacture any product.
3. Do not spray water directly or clean it with benzene, jazzy, or alcohol.
Notes on the environment
Do not install this product in the following locations and environments :
1. Places directly exposed to mechanical vibration or shock
2. Places exposed to corrosive gases or combustible gases
3. Position directly exposed directly to direct sunlight
4. Places affected by electromagnetic waves
5. Places where high temperature or humidity is high (sites with over 85 % of ambient humidity)
6. Places where dust and salt are plentiful
Precautions on installation
1. Make sure that the installation work is related to the installation or qualified personnel only.
2. Do not place any device or wiring that caused noise (NOISE) near the product.
3. Avoid near heating apparatus.
4. Disconnect all appliances (OFF) after disconnecting them from the wiring.
5. Do not work with wet hands. Risk of electric shock.
6. Install and use the method described in the User Manual as instructed in the Instructions for Use.
7. Do not turn on (power on) prior to the connection between the unit of manufacture of this unit.
8. Do not use any load exceeding the opening and closing capacity of the output contacts.
Immunity condition
1. In addition to the contents set forth herein, no warranties and responsibilities shall be made regarding this
product.
2. Whether or not this product is likely to be unforeseen defects and natural disasters due to the use of this
product, the user or the third person We shall not be held liable for any indirect damage.
Precautions
AC-400R-3T-TH MANUAL
3
Product Overview
AC-400R-3T-TH is thermo-hygrostat controller composed of coolling 2 step·heating 5 step·
humidification 1 step when using electrode (E-type)·humidification 2 step when using heating
(P-type)·dehumidification 2 step. The monitor and sensor can be changed to other products
depending on the usage purpose. And this product is highly versatile because electrode type humidifier
and heating type humidifier can also be selected and applied.
·Cooling 2 step·heating 5 step·dehumidification 2 step
·humidification 1 step when using electrode (E-type)
·humidification 2 step when using heating (P-type)
·Monitor, sensor, humidification can be changed to other type
·Remote monitoring via RS-485 communication
AC-400R-3T-TH MANUAL
4
Product Component
Mainboard
(1EA / DDC-400R)
Vertical monitor
(1EA / SM-3303T)
General type temp. humi. sensor
(1EA / STH-CR5N)
AC-400R-3T-TH MANUAL
5
Option Product Component
Duct type temp.humi. sensor
(1EA / STH-CD5N)
Button type monitor
(1EA / SS-3303)
Horizontal monitor
(1EA / SM-4000T)
Current sensor
(1EA / SCT-02)
Warning
Monitor 3 type (SS-3303, SM-3303T, SM-4000T)·sensor 2 type (STH-CR5N, STH-CD5N) can be selected by
user convenience.
AC-400R-3T-TH MANUAL
6
Product Specifications
Mainboard specification (DDC-400R)
Input power 100 ~ 220VAC / 50/60Hz
Output voltage 100 ~ 220VAC / 50/60Hz (Main fuse 3A / 250V)
Output contact capacity 250VAC / 5A (Relay output)
Input port 10 Port (Non powered contact)
Output port 15 Port (Input power output 14 Port / Relay contact output 1 Port)
Sensor port 1 Port (Current sensor / 0 ~ 100A)
Communication port 3 Port (Monitor 1 Port / sensor 1 Port / remote control 1 Port)
Operating environment -10 ~ 60℃ / 5 ~ 90% (Non condensing)
Storage temperature -20 ~ 60℃(Non condensing)
Body weight 581g
Vertical monitor specification (SM-3303T)
Input power DC 12V
Current consumption 200mA
Power consumption 2.5W
LCD resolution 128 x 64 (Pixel)
Key specification Capacitive touch key
Communication port RS-485 (1Port / Modbus RTU)
Operating environment -10 ~ 60℃ / 5 ~ 90% (Non condensing)
Storage temperature -20 ~ 60℃(Non condensing)
Body weight 253g
Guide weight 15g / EA (2EA)
General type temp. humi. sensor specification (STH-CR5N)
Temp. measure range -20.0 ~ 80.0℃ ±0.3℃
Humi. measure range 0 ~ 100% RH ±3% RH
Input power DC 12Vdc (10 ~ 15Vdc)
Power consumption 30mA / 0.3W (at 12Vdc)
Communication port RS-485 (1Port / Modbus RTU)
Operating environment -20 ~ 80℃ / 5 ~ 95% (Non condensing)
Storage temperature 0 ~ 60℃ (Non condensing)
Body weight 223g
Cable length Basic 3M (Changeable to 10, 20M)
AC-400R-3T-TH MANUAL
7
Option Product Specification
Horizontal monitor specification (SM-4000T)
Input power DC 12V
Current consumption 200mA / 2.5W
LCD resolution 128 x 64 (Pixel)
Communication port 1 Port (RS-485)
Operating environment -10 ~ 60℃/ 5 ~ 90% (Non condensing)
Storage temperature -20 ~ 60℃ (Non condensing)
Body weight 253g
Guide weight 15g / EA (2EA)
Button type monitor specification (SS-3303)
Input power DC 12V
Current consumption 200mA / 2.0W
LCD resolution 128 x 64 (Pixel)
Communication port 1 Port (RS-485)
Operating environment -10 ~ 60℃/ 5 ~ 90% (Non condensing)
Storage temperature -20 ~ 60℃ (Non condensing)
Body weight 195g
Guide weight 15g / EA (2EA)
Current sensor (SCT-02)
Current range 0 ~ 100A
Operating environment -20 ~ 80℃ / 5 ~ 95% (Non condensing)
Storage temperature 0 ~ 60% (Non condensing)
Body weight 64g (Cable basic 2M)
Duct type temp. humi. sensor specification (STH-CD5N)
Temp. measure range -20.0 ~ 80.0℃ ±0.3℃
Humi. measure range 0 ~ 100% RH ±3% RH
Input power DC 12Vdc
Power consumption 30mA / 0.3W (at 12Vdc)
Communication port RS-485 (1Port / Modbus RTU)
Operating environment -20 ~ 80℃ / 5 ~ 95% (Non condensing)
Storage temperature 0 ~ 60℃ (Non condensing)
Body weight 279.5g
Cable length Basic 20M
AC-400R-3T-TH MANUAL
8
Product Dimension
Top view
Back view
Front view Side view

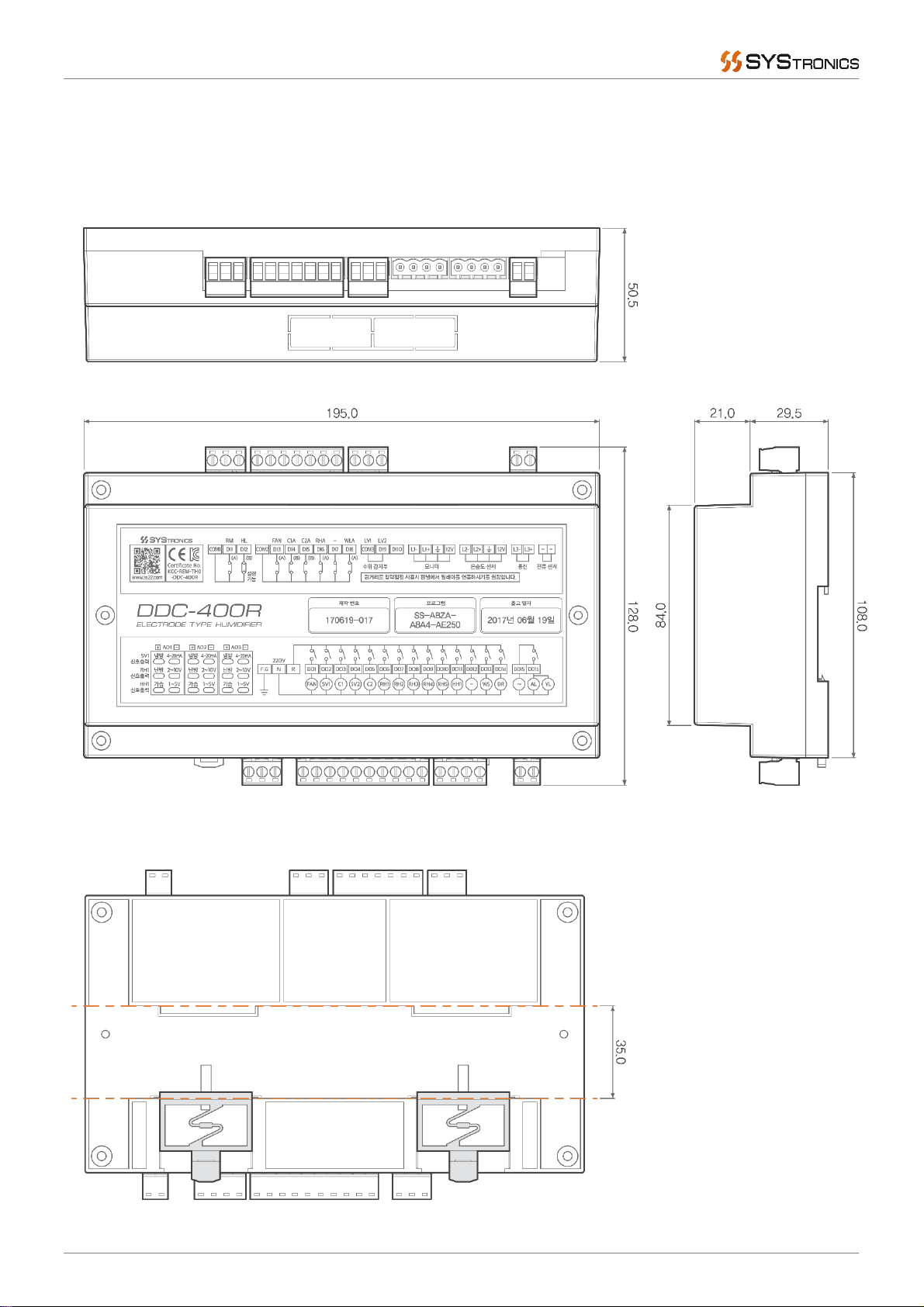

Mainboard dimension (DDC-400R / Unit: mm)
AC-400R-3T-TH MANUAL
9
Product Dimension
Guide dimension (Screw : PMS 3 ×6 2EA / Unit : mm)

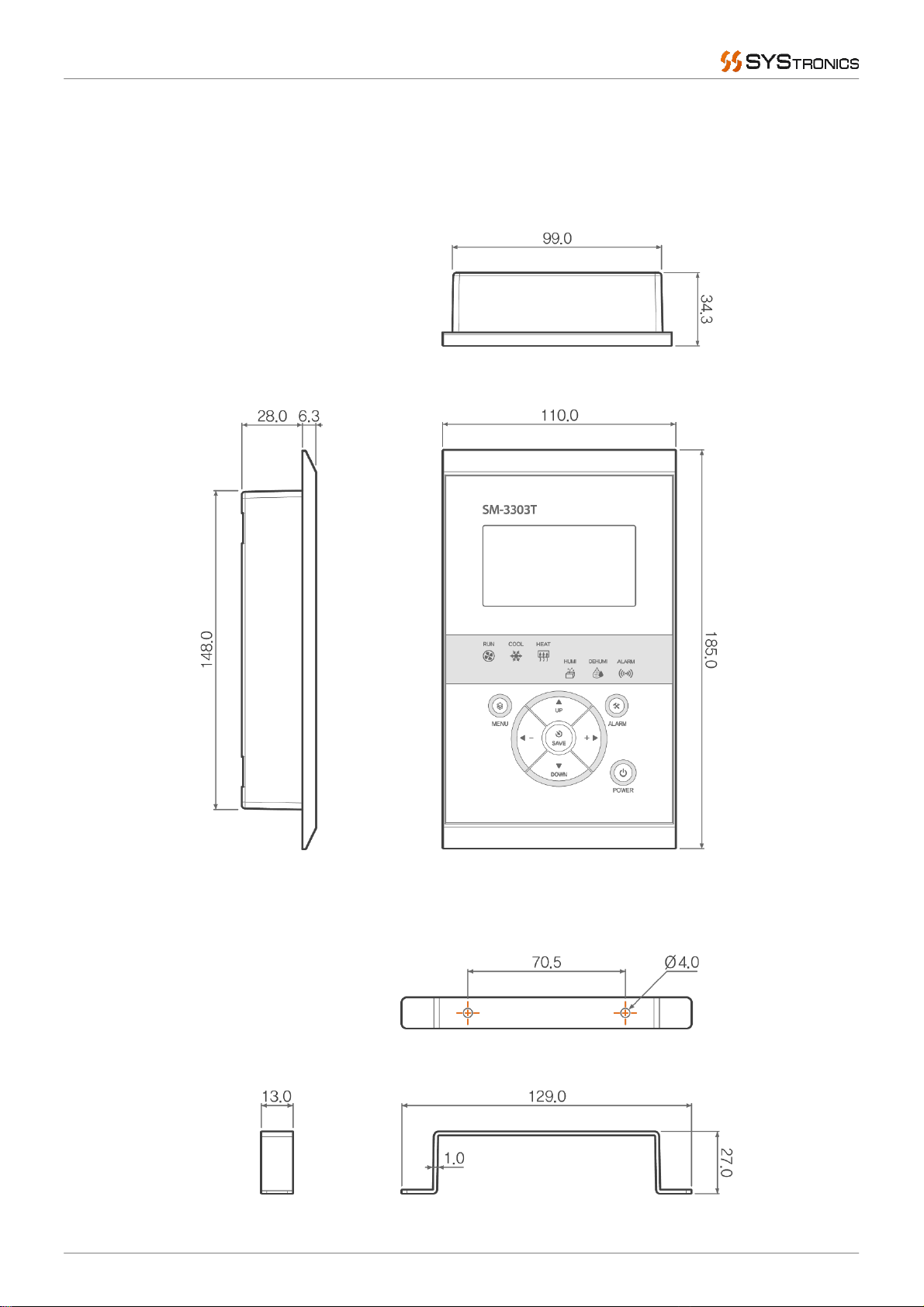

Vertical monitor dimension (SM-3303T / Percussion dimension : W101 ×H150 / Unit : mm)
Front viewSide view
Top view
Top view
Front viewSide view
AC-400R-3T-TH MANUAL
10
Product Dimension
General type temp. humi. sensor dimension (STH-CR5N / Unit : mm)
Top view
Front view Side view
