OPERATION MANUAL
Puller
Prod. no 59475
2
Parts list ........................................................................................3
Description....................................................................................4
Work area......................................................................................4
Personal safety..............................................................................4
Connection schema. .....................................................................6
Operation ......................................................................................6
Maintenance..................................................................................7
3
1 Handle screw
2 Handle (c/w check valve)
3 Filter
4 O-ring
5 Handle support
6 Screw cap
7 Handle extension support
8 Handle extension
9 Slide hammer support
10 Slide hammer
11 Slide hammer cover
12 Cover
13 Suction pad 125mm
14 Suction pad 100mm
15 Suction pad 75mm
16 O-ring
17 Hook support
18 Hook
19 Suction pad cover 125mm
20 Suction pad cover 100mm
21 Suction pad cover 75mm
22 Valve
23 Cover
Parts list
4
WARNING! Read and understand all instructions before using this product. The operator must
follow basic precautions to reduce the risk of personal injury and / or damage to the product.
Before allowing someone else to use this product, make sure they are aware of all safety
information.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot
cover all possible conditions and situations that may occur. Common sense and caution are
factors that cannot be built into this product, but must be supplied by the operator.
LKeep this manual for the safety warnings, precautions and operating,
inspection and maintenance instruction.
Description
Air activated suction pad keeps firm hold of panel while slide hammer is used to
ease out dents and depressions without damage to the paint surface. Ideal for
initial panel reshaping. Supplied with Ø75mm, Ø100mm and Ø125mm suction
pads and hook.
Work area
• Operate in a safe work environment. Keep
your work area clean and well lit.
• Do not use in the presence of flammable gases or liquids.
• Keep anyone not wearing the appropriate safety
equipment away from the work area.
LMinimize distractions in the work environment. Distractions can cause you
to lose control of the tool.
• Store tools properly in a safe and dry location to prevent rust or damage.
• Always lock up tools and keep them out of the reach of children.
Personal safety
• Dress properly, wear protective equipment. Use breathing, ear, eye,
face, foot, hand and head protection. Always wear ANSI approved
impact safety goggles, which must provide both frontal and side
5
protection. Protect your hands with suitable gloves. Wear a full face
shield if your work creates metal filings or wood chips. Protect your
head from falling objects by wearing a hard hat. Wear an ANSI approved
dust mask or respirator when working around metal, wood and chemical
dusts and mists. Wear ANSI approved earplugs. Protective, electrically
non-conductive clothes and non-skid footwear are recommended when
working. Wear steel-toed boots to prevent injury from falling objects.
• Control the tool, personal movement and the work environment
to avoid personal injury or damage to the tool. Stay alert,
watch what you are doing and use your common sense.
• Keep articles of clothing, jewelry, hair, etc., away from
moving parts to avoid entanglement with a tool.
• Do not operate any machine / tool when tired or under
the influence of drugs, alcohol or medications.
• Do not overreach when operating a tool. Proper footing and balance
enables better control of a tool in unexpected situations.
• Use clamps or other practical ways to support or secure the work
piece to a stable platform. Holding the work piece by hand or against
your body is not stable and may lead to loss of control and injury.
6

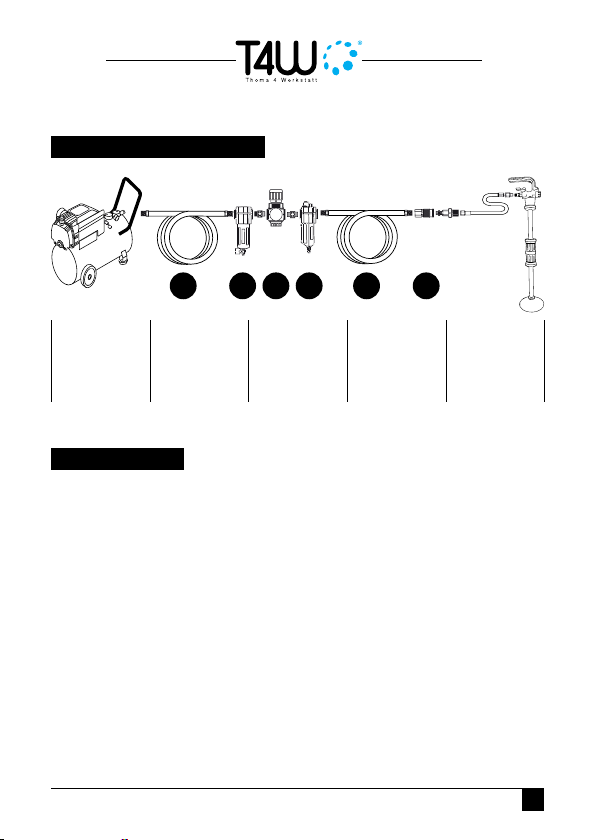

Connection schema.
1 1 52 3 4
Air Hose Filter Regulator Lubricator
(optional)
Cupler and
Plug
Operation
• Ensure that the panel to be worked on is dry, clean and free of grease.
• Select the appropriate size suction cup and screw it onto the
slide hammer and remove the protective cover from the cup.
• Ensure the valve is in the ‘Off’ position (90° to handle). Connect the
slide hammer to an air line with a suitable rated supply pressure
- between 72psi and 116psi (working pressure is 90psi).
• Position the suction cup over the dent and
press it gently onto the body panel.
• Open the air valve, the suction cup will form a
vacuum, firmly attaching it to the body panel.
• Using the slide hammer, pull the dent out. Do not
apply excessive force to the slide hammer.
7
• When finished, turn the air valve off and remove
the puller from the body panel.
• Disconnect from the air supply, remove the suction cup from
the puller and refit the protective cover. Place all parts back
in the case and store it in a safe, dry, childproof location.
• Alternatively, weld a wavy wire strip to the panel, then use the
hook in conjunction with the sliding hammer to pull out a dent.
Maintenance
Check condition of the suction cups regularly, if damaged, replace them using
genuine parts only.
Always keep the suction cups clean and free of oil and grease. Clean them
regularly with a non-aggressive cleaner.
In order to preserve elasticity, do not expose suction cups to sunlight over an
extended period of time.
Keep the tool in a clean, serviceable condition, using a slightly dampened cloth
to clean it.
Thoma
Tel./Fax: +48 95 741 11 62
info@t4w.eu • www.t4w.eu
