TAG RLKM-12 Bedienungsanleitung

RLKM-12

Inaugurating a new era of low-profile rack-mounted servers, the

Advanced Concepts division of Technology Advancement Group®, Inc.

(TAG®) has unleashed three powerful rack-mounted servers to its

High-Density Information Technology™ (HDIT™) product line. Fueled

by intense customer demand, TAG is offering the three servers in

an Intel, Sun, or HpUX platform. What makes these servers so com-

pletely unique is that they are only 2U (3”) high. Rack-mounted

servers produced by other manufactures normally take two-to-three

times the space, but HDIT neatly fits it all in a 2U chassis, and TAG is

the only company that brings it to you!

Before unpacking the RLKM-12 from its shipping container,

prepare an area to place the RLKM-12 on that is clean and

free of debris.

Remove all of the protective wrap from the RLKM-12, including

the LCD glass cover.

The RLKM-12 has been designed to provide easy access to all

controls for both the LCD and the keyboard.

The Figure 1 will assist you in identifying all of the necessary

controls and features of the RLKM-12.

Unpacking the RLKM-12

Identifying Components of the RLKM-12

Figure 1

1. Keyboard

2. Touchpad

3. 12.1” LCD

4. LCD Controls

A. Menu Control m

B. Menu Control n

C. Menu Adjustment m

D. Menu Adjustment n

E. LCD Power Switch

F. LCD Power Indicator

1. The RLKM-12 is packaged with its slide-rails attached to the unit. Carefully slide the

mounting rails from the unit.

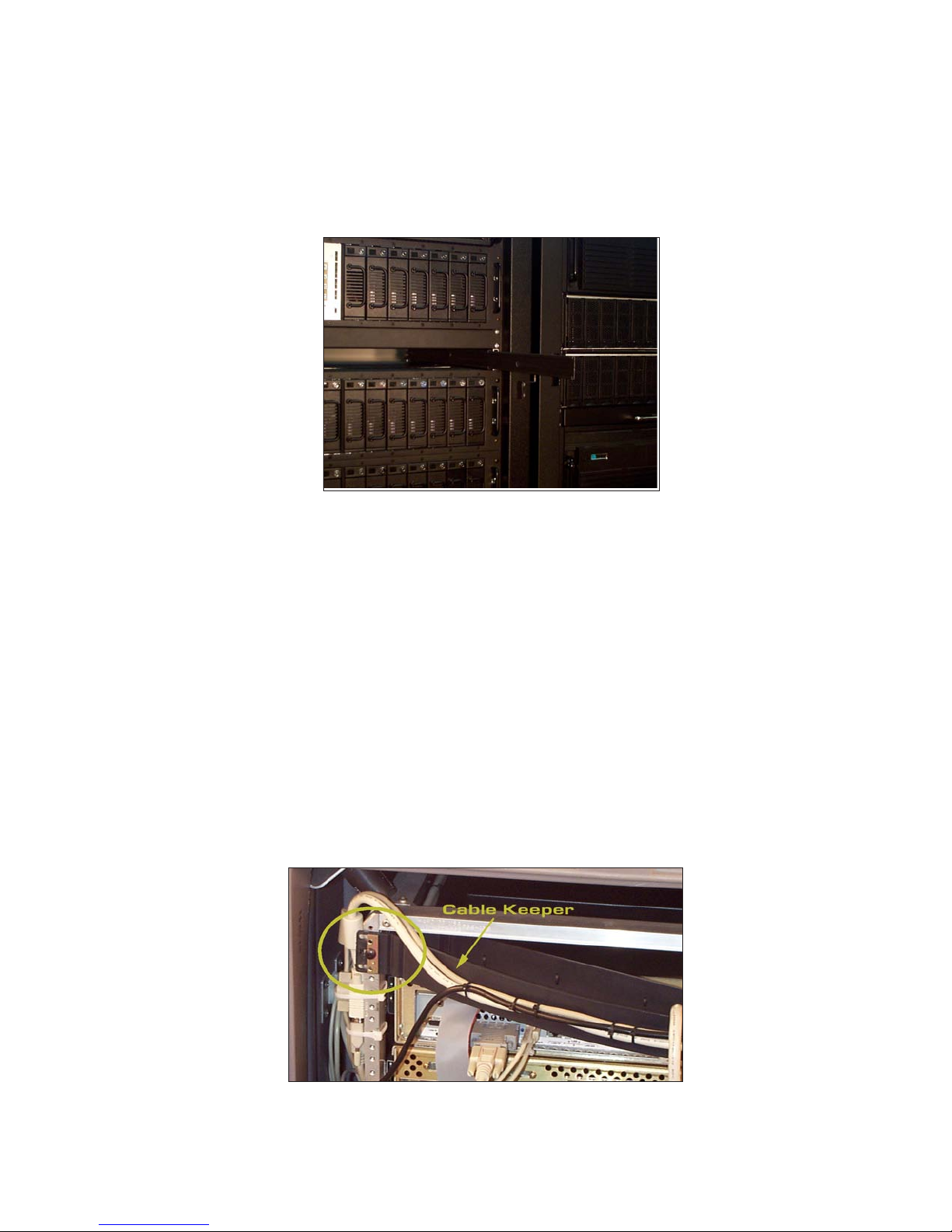

2. Fully extend mounting rails before mounting them to the rack enclosure, See Figure 2.

3. Use the supplied hardware to attach the mounting rails to the rack enclosure.

4. Carefully slide the RLKM-12 onto the extended mounting rails, until the slide rail “clicks”.

5. All of the cables have been secured to a Cable Keeper at the rear of the RLKM-12.

Thread the cables through the back of the rack enclosure, before sliding the RLKM-12

into the rack enclosure.

6. Attach the Power Cord, Keyboard, Mouse (Touchpad), and Video cables to their respective

ports.

Note: The keyboard and mouse cables are prominently labeled on their respective connectors.

Make sure that they are connected to the correct port.

7. Bolt the Cable Keeper’s hinge bracket to the rack enclosure, See Figure 3.

8. Press the slide safety lock to slide the RLKM-12 into the rack enclosure.

Note: Make sure the LCD has been stowed before sliding the RLKM-12 into the rack enclosure.

Installation of the RLKM-12

Figure 2

Figure 3

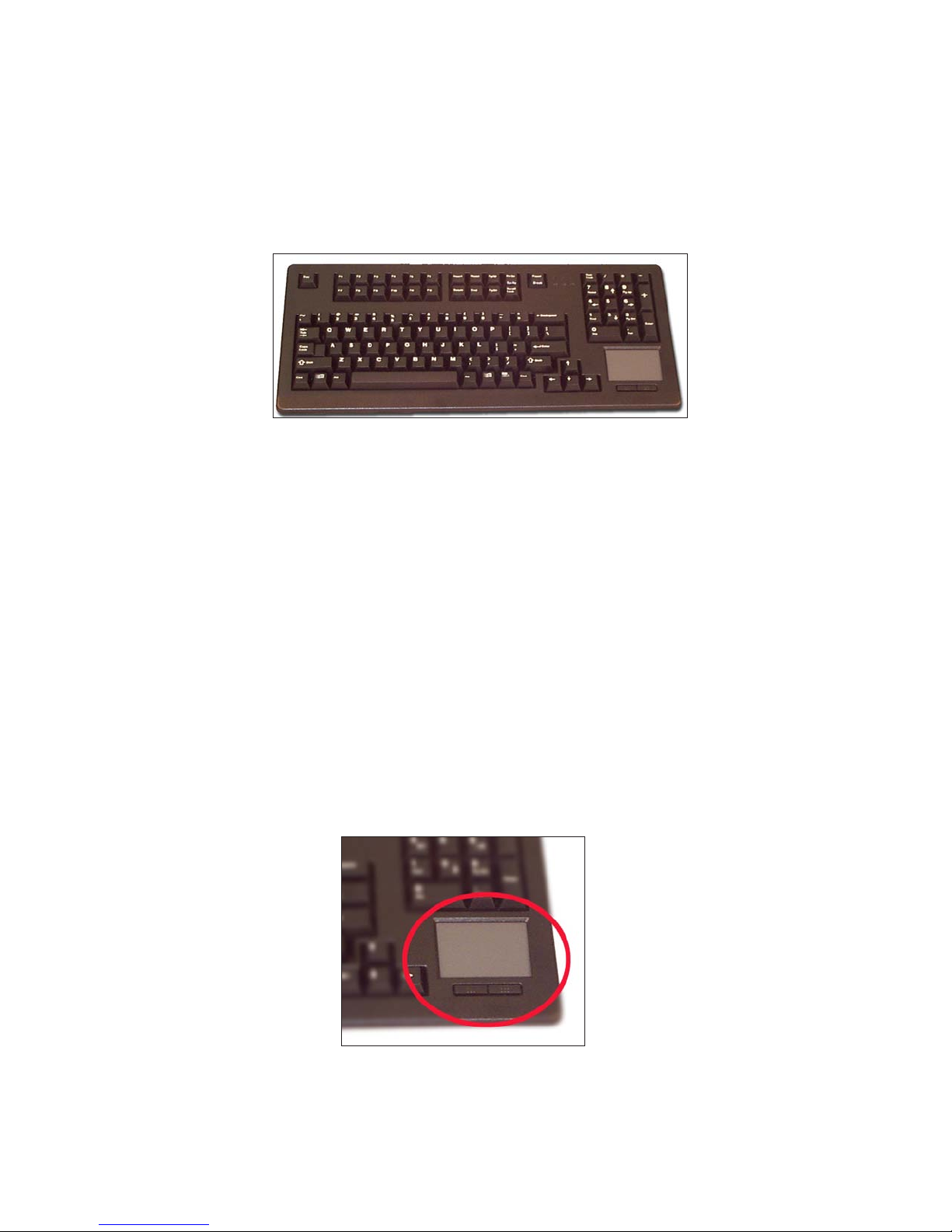

The RLKM-12 is equipped with a 104 key, O/S independent,

keyboard. A 17-key numeric keyboard is located above the

touchpad, See Figure 4.

The O/S independent mouse, of the RLKM-12, is integrated into

the keyboard in the form of a touchpad. The pointer on the

screen is controlled by guiding your finger with the touchpad.

Two buttons are ergonomically positioned below the touchpad,

which act as a left and right mouse button, See Figure 5.

Keyboard

Touchpad

Figure 4

Figure 5

The RLKM-12 is equipped with a 12.1” active matrix color

LCD monitor capable of displaying most standards, from

640x480VGA to 1024x768 XGA @ 60Hz . The controls

on the front panel allow the user to easily adjust the display

parameters by slipping an adjusting tool into the front panel

slots. To access the OSD menu, simply press the Power On/Off

button.

Function Control Buttons

These two buttons allow you to select one of the control functions. Press

either button again to scroll through the menu items.

Adjustment Control Buttons

These two buttons allow you to adjust the selected control functions to

accommodate your specific working environment. Press the upper button to

increase the setting of the selected control function and press the lower button to

decrease the setting of the selected control function.

Power Switch

Push the power switch to turn the LCD on. Push the power switch to pop-up

the On-Screen Display (OSD) menu. Select the menu items using the Function and

Adjustment buttons. Push and hold the power button to turn the LCD off.

Main Menu

BASIC SETTING

POSITION

AUTO-ADJUST

COLOR-TEMP.

MISCELLANEOUS

RESET

EXIT

Basic Setting

CONTRAST - Adjust contrast level

BRIGHTNESS - Adjust brightness level

VIDEO LEVEL - Select input signal voltage

GAMMA - Select color representation

FRAME - Select border color

TO MAIN MENU - Return to Main Menu

Position

CLOCK - Adjust pixel alignment

PHASE - Adjust display clarity

DEFAULT SIZE - Adjust to full screen

NATIVE SIZE - Adjust to original size

H-POSITION - Adjust horizontal position

V-POSITION - Adjust vertical position

H-SIZE - Adjust horizontal size

V-SIZE - Adjust vertical size

GRAPH/TEXT - Select either text or graph

expansion (720x400/640x480 only)

TO MAIN MENU - Return to Main Menu

Color Temp.

9300 - Adjust color temp to CIE 9300

6500 - Adjust color temp to CIE 6500

USER - Adjust to User Color Field

Miscellaneous

AUDIO VOLUME - N/A

OSD H-POSITION - Adjust horizontal

position of OSD

OSD V-POSITION - Adjust vertical

position of OSD

DISPLAY MODE - Adjust frame rate

F/W VERSION - Displays firmware version

FRAME - Select border color

TO MAIN MENU - Return to Main Menu

Reset Menu

BASIC SETTING - Set default parameters

OSD Menu Tree

LCD

22355 TAG WAY

Dulles, VA 20166-9310

(703) 406-3000

tag.com
