TAG RLKM-15-ISW Bedienungsanleitung

22355 TAG WAY

Dulles, Virginia 20166-9310

(703) 406.3000 (800) TAG-POWER

tag.com

22NOV02

RLKM-15-ISW

Reference Manual

RLKM-15-ISW

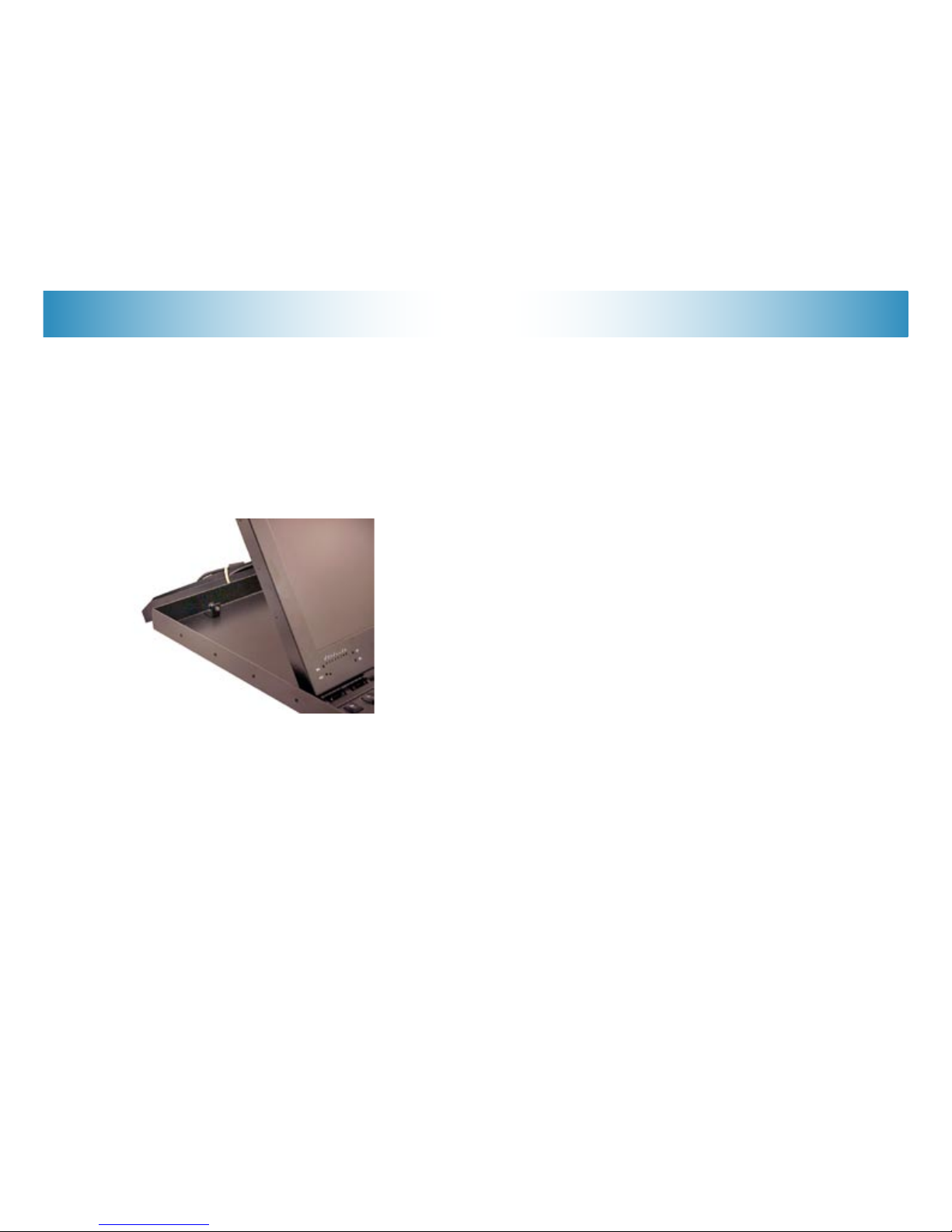

The RLKM-15-ISW is held in place within the rack enclosure by captivated

thumbscrews. The drawer will slide free once the thumbscrews have been

loosened. Slide the RLKM-15-ISW completely from the rack. The LCD is fas-

tened to the drawer with a spring loaded catch, located at top of the LCD.

Slide the catch to the released position and lift the LCD from the top grab

handle. A portion of the drawer may be slid back into the rack to allow for

easier access to the systems located beneath. Make sure the slide rails lock

the RLKM-15-ISW in place. The RLKM-15-ISW is now ready for use.

Opening The RLKM-15-ISW Notes

The RLKM-15-ISW is fully controlled by the control panel located at the front

of the unit. There are four control buttons which control the parameters and

display options for the RLKM-15-ISW.

RST Button - Pressing this button will reset the display options to TAG

Factory default settings.

SEL Button - Pressing this button will toggle between the adjustment

modes depicted by the glowing strip of red LED indicators.

UP Button - Increments or raises the value of the selected mode.

DN Button - Decrements or lowers the value of the selected mode.

Front Panel Controls

SEL

RST

BRIGHT

CONT

HTOT

DELAY

AUTO

RST

KVM Switch

Integrated 4-port keyboard, monitor, & mouse switch

1. Easy PC access switching capability via hot key selections from

keyboard

2. Superior video quality that supports up to 1024 x 768 resolution

3. Compact, rugged space saving design

Auto Adjust

Select this function to automatically adjust system setting for optimal per-

formance.

Brightness

Select this function to adjust the luminosity level of the display.

Clock

Select this function to adjust the Horizontal size and clock phase.

Position

Select this function to adjust the vertical & horizontal position.

Contrast

Select this function to adjust the black level of the display.

Color Level

Select this function to adjust the White, Red, Green, and Blue levels of the

display.

Information

Select this function to determine the current Hf, Vf and resolution.

OSD Position

Select this function to adjust the position of the OSD menu.

All Reset

Resets all OSD menu to factory settings.

No Power

•Make sure A/C power cord is securely connected to the power outlet.

•Verify power outlet is “hot”.

Power On But No Screen Image

•Verify video cable is securely attached to LCD video port.

•Adjust the brightness and contrast controls at the rear of the unit.

Flickering

•Not enough power is being supplied to the RLKM-15-ISW. Connect the

LCD monitor to a different power outlet. If a surge protector is being

used, there may be too many devices plugged in.

Wrong or Abnormal Colors

•If any colors (Red, Green, Blue) are missing, check the video cable to

make sure it is securely connected. Loose pins in the cable connector

could cause a bad connection.

•Connect the LCD monitor to another computer.

•Check the graphics card for proper sync scheme.

Double (Split) Screen Image

•Make sure graphics card is set to Non-Interlaced mode.

Entire Screen Image Roll (Scrolls) Vertically

•Make sure the input signals are within the LCD monitor’s specified

Frequency range. (VESA 1024x768 / 75Hz)

•Connect the video cable securely.

•Try the LCD monitor with another power source.

For more information, please contact

TAG Technical Support 24x7x365

OCONUS: +1 (703) 406.4516

CONUS: 1(877) TAG-TECH

tag.com

Pressing SEL button will display this menu:

On-Screen Display Menu Options Troubleshooting The RLKM-15-
