1. To reduce the risk of electric shock, insure electricity has been turned

off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code

and local electrical code. Electrical installation should be performed

by a qualified licensed electrician.

3. WARNING: To reduce the rick of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the rick of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may

need to be replaced, consult a qualified electrician if in doubt.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PERSONAL INJURY, MOUNT FAN TO OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 50 pounds. Use only UL

Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

7. Do not operate reversing switch while fan blades are in motion. Fan

must be turned off and blades stopped before reversing blade

direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautions when working around or cleaning the fan.

10. Do not water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After marking electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light kit that are not packed

with the fan must be UL Listed and marked suitable for use with the

model fan you are installing. Switch must be UL General Use

Switches. Refer to the Instructions packaged with the light kits and

switches for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BAND

THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

1. Safety Rules

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

2. Canopy

3. Ball/downrod assembly (1)

& extra downrod (1)

4. Collar cover

5. Fan motor assembly

6. Light kit fixture

Set of blades (5) 7. Fluorescent lamp

8. Glass shade

9. Glass holder

10. Balancing kit

11. Receiver+8 wire nuts

12. Transmitter+holder+2 mounting screws

13. Loose parts bag containing:

a. Blade attachment hardware

(16 screws, 16 fiber washers)

b. Mounting hardware

( 3 plastic wire connectors)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 800-345-0542

2 5

LIGHT / D IMMER

LO MED HI

FAN OFF

3. Installing Your Fan

Tools Required

P h i l l i p s s c r e w d r i v e r , s t r a i g h t s l o t

sc re wdr iv er, ad just able wr ench , s tep

ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the

bu i ldin g st ruct u re. U se appr opri at e

fasteners and building materials. The outlet

box and its support must be able to fully

support the moving weight of the fan (at

least 50 lbs). Do not use plastic outlet

boxes.

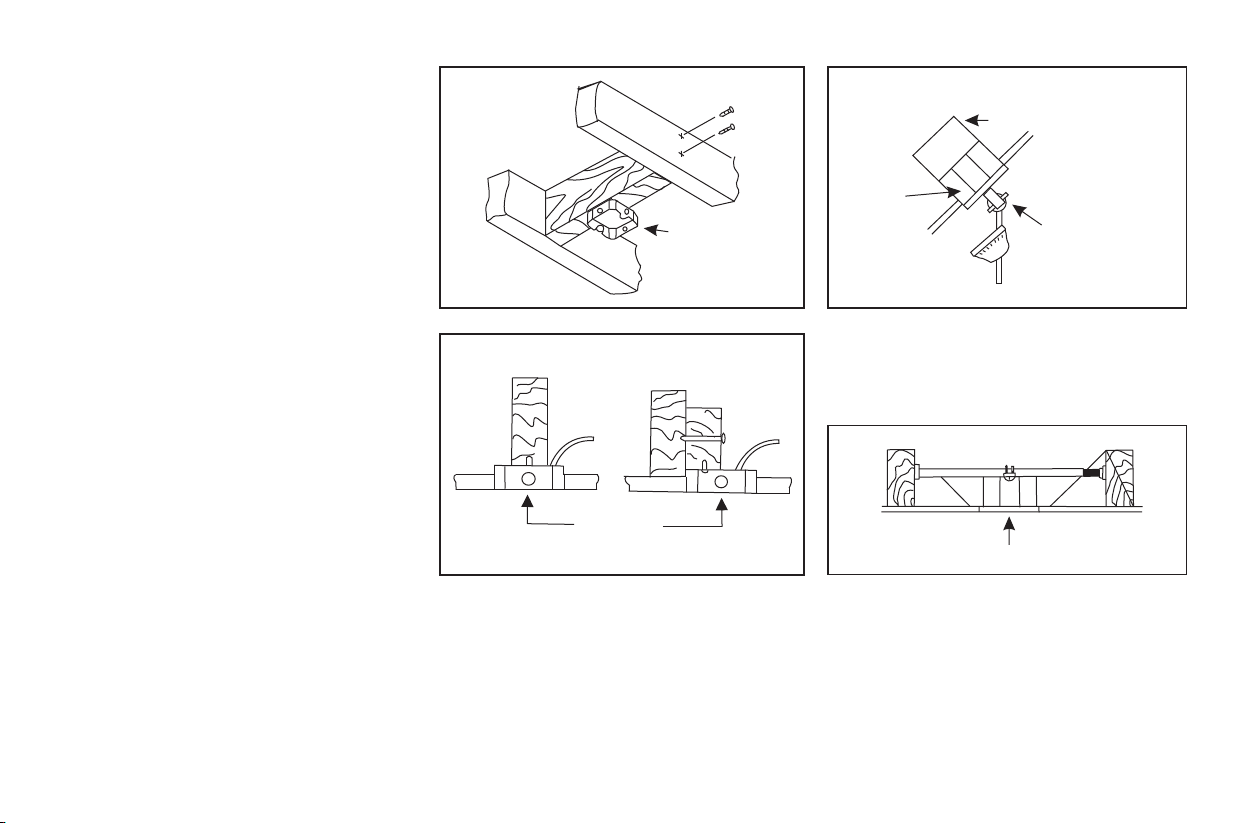

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

Note: You may need a longer downrod

to maintain proper blade clearance

when installing on a steep, sloped

ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need

an installation hanger bar as shown in

Figure 4 (available at your Hampton Bay

Retailer).

Out box

Outlet box

Provide strong

support

Recessed

outlet box

Mounting bracket

opening must be

towar d the top

Outlet box

Figure 1 Figure 3

Figure 2 Figure 4

Step 3. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket as

shown in Fig. 8)

Step 4. Secure the hanger bracket to the ceiling

outlet box with the screws and washers provided

with your outlet box.

Step 5.Remove the hanger pin, lock pin and set

screws from the top of the motor assembly.

Step 6. Route wires exiting from the top of the

fan motor through the collar cover, canopy

cover, canopy and then through the ball /

downrod. (Fig. 8A)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of the

motor housing (Fig.8A). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the locking

pin through the hole near the end of the hanger

pin until it snaps into its locked position, as

noted in the circle inset of Fig. 8A.

Installing the blade

Step 1. Disassemble the top housing

from the motor body by loosening the 6

screws from the top housing.(Fig. 5)

Step 2.Locate the blade bracket in the

bottom of motor housing, insert the

blade through the slot in housing. Align

holes in blade and blade bracket and

secure with 3 screws and fiber washers

provided. Repeat the process with the

other blades. Reinstall the top housing to

the motor body. (Fig. 6)

Figure 5

Top housing

Screws

Blade bracket

Figure 6

Top housing

Screws

Blades screws

Blades

Blade bracket

Fiber washers

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning

the cover clockwise.(Fig. 7)

Step 2. Remove the hanger bracket from

the canopy by loosening the two screws on

the bottom of the canopy in 1/4" from the

screw head and turning the canopy

counter clockwise.(Fig, 7)

WARNING

FAILURE TO PROPERLY INSTALL LOCKING PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Step 8. Tighten two set screws on top of the fan

motor firmly (Figure 8A)

Step 9. Place the downrod ball into the hanger

bracket socket.

CHANGING THE DOWNROD (OPTIONAL)

NOTE: Your fan comes with a 4" downrod attached

to the hanger ball. In addition you have been

provided with a 6" downrod to use if desired. If you

choose to use the 6" downrod, perform the following

steps:

1. Remove the hanger ball from the 4" downrod by

loosening the set screw at the top of the downrod

which holds the hanger ball to the downrod.

2. Slide the hanger ball down the downrod and

remove the support pin.

3. Insert the support pin in the holes at the top of the

6" downrod and slide the hanger ball up the 6"

downrod. Make sure the suppout pin is properly

seated in the grooves in the top of the hanger ball.

4. Tighten the set screw firmly.

Mounting

screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

UL Listed

electrial

box

Figure 8 120V Wires

Pin in

locked

position

Motor collar

Motor wires

Ball/downrod

assembly

Ceiling

canopy

Tighten

screws

firmly

Figure 8A

Hanger pin

Locking pin Collar cover

Canopy

cover

Figure 7

Ceiling

mounting

plate

Ceiling

canopy

Canopy

cover

Washers

Make the Electric

Connections

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

NOTE: This remote control unit is equipped

with 16 code combinations to prevent possible

interference from or to other remote units. The

frequency switches on your receiver and

transmitter have been preset at the factory.

Please recheck to make sure the switches on

transmitter and receiver are set to the same

position, any combination of settings will

operate the fan as long as the transmitter and

receiver are set to the same position.(Figure 9)

Step 1. Insert the receiver into the hanger

bracket with the flat side of the receiver facing

the ceiling. (Figure 10)

S t e p 2 . M o t o r t o R ec e i v er E l e ct r i c al

Connections: Connect the black wire from the

fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "FOR LIGHT" from the

receiver. Connect the purple wire from the fan

to the purple wire from the receiver. Connect

the gray wire from the fan to the gray wire from

the receiver. The Secure the wire connections

with the plastic wire nuts provided.(Figure 11)

Step 3. Receiver to House Supply Wires Electrical

Connections: Connect the black (hot) wire from

the ceiling to the black wire marked "AC IN L"

from the receiver. Connect the white (neutral) wire

from the ceiling to the white wire marked "AC IN

N" from the receiver. Secure the wire connections

with the plastic wire nuts provided.(Figure 11)

Step 4. If your outlet box has a ground wire (green

or bare copper) connect it to the fan ground wires.

Secured the wire connection with a plastic nuts

provided. After connecting the wires spread them

apart so that the green and white wires are on one

side of the outlet box and black and blue wires are

on the other side. Carefully tuck the wire

connections up into the outlet box. (Figure 11)

Figure 10

Receiver

Hanger

bracket

Figure 9

Code switch

Finishing the

Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the 2 screws on hanger bracket. Rotate

canopy clockwise, next, while holding the

canopy with one hand, slide the canopy

cover over the screws and rotate counter

clockwise until tight. Note; adjust the

canopy screws as necessary until the canopy

and canopy cover are snug. (Fig. 12)

WARNING

MAKE SURE TAB AT BOTTOM OF HANGER

BRACKET IS HANGER PROPERLY SEATED IN

GROOVE OF HANGER BALL BEFORE

ATTACHING CANOPY TO BRACKET. FAILURE

TO PROPERLY SEAT TAB IN GROOVE COULD

CAUSE DAMAGE TO ELECTRICAL WIRING

Figure 12

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE GRAY

GREEN

Figure 11

WHITE

GRAY

WHITE

BLUE

BLACK

PURPLE

Outlet box

Hanger

bracket

Canopy

cover

Screws

Installing the Light Kit 8.

WARNING: Shut off the power supply

before removing or replacing lamp.

1.Remove the finial from the light kit

stem.

2.Place the light kit stem to the light

plate, secure with 2 screws.

3.Connect the wire connector from the

fan to the lamp, then install the lamp

(40W) to the light plate using the two

lamp holders to prop up the lamp. Be

sure to pull the lamp holders out a

l i t t l e f o r i n s t a l l i n g t h e l a m p

easier.(Figure 13)

4.Place the glass shade in the glass

holder, then raise the glass holder up

against the light plate and secure it to

the fan with finials.(Figure 14)

5. Reattach the finial to the light kit

stem.

6. Restore power and your light kit is

ready for operation.

7. If the light kit does not work, turn off

the e lectricity a nd lo wer either

canopy or decorative housing on your

ceiling fan to make sure the blue, gray

and p urple wir es are c onnecte d

Figure 14

Glass

holder

Finial

Screw

Figure 13

Light kit

stem

Lamp

holder

Wire

connector

Finial

Restore power to ceiling fan and test for

proper operation.

1. " LO, MED, HI" buttons:

These three buttons are used to set the fan

speed as follows:

LO= Low speed MED= Medium speed

HI= High speed

2. "FAN OFF" button:

This button turns the fan off.

3. The "LIGHT/DIMMER" button turns the

light ON or OFF and also controls the

brightness setting. Press and release the

button to turn the light ON or OFF. Press and

ho ld th e bu tto n t o s et th e d es i re d

brightness. The light key has an auto-

resume, it will stay at the same brightness as

the last time it was turned off.

Speed settings for warm or cool weather

depend on factors such as the room size,

ceiling height, number of fans, etc.

The Reverse switch is located on top of the

motor assembly. Slide the switch to the Left

for warm weather operation. Slide the switch

to the Right for cool weather operation.

NOTE: Wait for fan to stop before changing

the setting of the slide switch.

Warm weather - (Forward) A downward

air flow creates a cooling effect as shown in

Figure 16. This allows you to set your air

conditioner on a higher setting without

affecting your comfort.

Cool weather - (Reverse) An upward airflow

moves warm air off the ceiling area as shown

in Figure 17. This allows you to set your

heating unit on a lower setting without

affecting your comfort.

9.Operating Your Transmitter

Figure 16

Figure 17

Figure 15

LIGHT / DIMMER

LO MED HI

FAN OFF

Here are some suggestions to help you

maintain your fan

1 . B e c au s e o f t he f an ' s n a t u r al

movement, some connections may

become loose. Check the support

connections, brackets, and blade

attachments twice a year. Make sure

they are secure. (It is not necessary

to remove fan from ceiling.)

2. Clean your fan periodically to help

maintain its new appearance over the

years. Use only a soft brush or lint-

free cloth to avoid scratching the

finish. The plating is sealed with a

lacquer to minimize discoloration or

tarnishing. Do not use water when

cleaning. This could damage the

motor, or the wood, or possibly cause

an electrical shock.

3. You can apply a light coat of

furniture polish to the wood blades for

additional protection and enhanced

beauty. Cover small scratches with a

light application of shoe polish.

4. There is no need to oil your fan.

The motor has permanently lubricated

bearings.

IMPORTANT

MAKE SURE THE POWER IS OFF AT THE

ELECTRICAL PANEL BOX BEFORE YOU

ATTEMPT ANY REPAIRS. REFER TO THE

SECTION "MAKING ELECTRICAL

CONNECTIONS"

Care of Your Fan 10.

Installing the battery:

Install 9 volt battery (not included), to

prevent damage to transmitter, remove the

battery if not used for long periods.

9 Volt

Battery

Figure 18

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TAL Lüfter Handbücher

TAL

TAL Dolce 297-029 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
