Tandberg Data SLRTAPEDRIVE - Bedienungsanleitung

TANDBERG SLR

TAPE INFORMATION STORAGE SOLUTION

Installation and User's Guide

PC-BACKUP-SYSTEME

Installation und Benutzeranleitung

SOLUTION DE STOCKAGE DE DONNÉES

SUR BANDE MAGNÉTIQUE

Manuel d'installation et guide de l'utilisateur

SOLUCIÓN DE ALMACENAMIENTO DE DATOS

EN CINTA MAGNÉTICA

Manual de Instalación y Guía del Usuario

Part No. 43 18 55-07

Drive Series Publ. No. Part. No. Title

Tandberg SLR 9048 43 05 08 Tandberg SLR Product Line Reference Manual

6028 42 26 86 Tandberg SLR Product Line Maintenance Manual

6047 42 30 42 Tandberg SLR Product Line SCSI-2 Interface Functional

9084 43 15 65

Specifications

Tandberg SLR Product Line - SLR5 4.0/8.0GB Product

9033 43 01 37

Verification Reports

Tandberg SLR Product Line - SLR4 (TDC 4220) Product

9031 43 04 44

Verification Reports

Tandberg SLR7,SLR24, SLR40, SLR50, SLR60, SLR75

9063 43 07 43

SLR100 and SLR140 Reference Manual

Tandberg SLR7, SLR24, SLR40, SLR50, SLR60, SLR75

9100 43 17 88

SLR100 and SLR140 - SCSI Interface Functional

Specifications

Tandberg SLR50 (MLR3) PVR Manual

9144 43 21 67 Tandberg SLR100, SLR60 and SLR40

9148 43 22 23

PVR Manual - Internal

Tandberg SLR24-100 PVR Manual - External

9149 43 22 22 Tandberg SLR2-5 PVR Manual - External

9156 42 22 46 Tandberg SLR24 and SLR50 PVR Manual - Internal

(VU2000)

9162 43 23 17 Tandberg SLR7 PVR Manual - Internal

Please Note

This publication may describe designs for which patents are granted or pending. By

publishing this information, Tandberg Data ASA conveys no license under any patent

or any other rights.

Every effort has been made to avoid errors in text and diagrams. However,

Tandberg Data ASA assumes no responsibility for any errors, which may appear in

this publication.

It is the policy of Tandberg Data ASA to improve products as new techniques and

components become available. Tandberg Data ASA therefore reserves the right to

change specifications at any time.

We would appreciate any comments on this publication.

Related publications available from our Marketing Department:

IMPORTANT! The Tandberg SLRx equipment must be connected to an earthed

mains socket outlet!

VIKTIG! Apparatet må kun tilkobles jordet stikkontakt!

WICHTIGE

SICHERHEITS-

HINWEISE!

Benutzen Sie stets das werkseitig mitgelieferte Netzkabel und

verbinden Sie es ausschließlich mit geerdeten Netzsteckdosen!

VIKTIGT! Apparaten får endast anslutas till jordat uttag!

Table of Contents

Introduction 1

Solution Contents 3

Information 5

Tape Drive Naming Convention 5

Tape Drive Capacity 5

Tape Drive Performance 6

Media Specifications 6

Tape Format Compatibility 6

Data Compression 7

Tape Drive Installation 9

SCSI Controller Board Installation 9

SCSI Configuration 11

External SLR2 -SLR140: 12

SCSI-bus Termination - Internal Tape Drives 13

SCSI-bus Termination - External Tape Drives 15

Mounting the Internal Tape Drive 15

Mounting a Tabletop Tape Drive 19

Tape Drive Operation 21

How to Rewind a Data Cartridge 23

Software Installation 27

Windows NT 29

SCSI Host Adapter 29

Tape Driver 29

Windows NT 4.0 Tape Driver Installation 29

Backup Applications 31

Computer Associates ARCserveIT for Windows NT 32

Veritas Software Server CD-ROM 35

Legato Networker for Windows NT 39

Windows 2000 41

SCSI Host Adapter 41

Tape Driver 41

Windows 2000 Tape Driver Installation 41

Backup Applications 43

Novell NetWare 45

Host Adapter 45

Backup Applications 45

Veritas Software Server CD-ROM 49

Windows 95 51

Host Adapter 51

Tandberg SLR Installation and User's Guide i

Tandberg Data

Backup Applications 51

Veritas Software Desktop CDROM 52

Windows 98 Windows 98 2nd Edition 53

Host Adapter 53

Backup Applications 53

Veritas Software Desktop CD-ROM 54

SCO Open Server Release 5 55

Host Adapter 55

Backup Applications 57

SCO UnixWare 59

Host Adapter 59

Backup Applications 59

Sunsoft Solaris 61

Tape Drive Installation 61

Backup Applications 62

Apple Macintosh 65

Backup Applications 65

IBM RS/6000 67

Tape Drive Installation 67

Backup Applications 68

HP/UX 71

Tape Drive 71

Backup Applications 72

Linux 73

SCSI Host Adapter 73

Backup Applications 74

Tape Drive Utility Disk 77

Troubleshooting 79

Hardware Checking 79

Software Checking 79

Verifying Recent Changes 80

Correcting Intermittent Failures 80

Software Troubleshooting 80

Appendix 81

Regulatory Compliance Notices 81

Glossary of Terms 83

ii Tandberg SLR Installation and User's Guide

Introduction

Congratulations on your new

Tandberg Data SLR tape storage

solution!

Total customer satisfaction is of the most importance to

Tandberg Data. We guarantee that this product left our

premises defect free. If you are not satisfied the quality of this

product, please contact your distributor, dealer or the nearest

Tandberg Data office to have your problem resolved quickly.

If you need technical support or have any problem with your

SLR tape storage solution, phone, fax and addresses can be

found on the back cover of this manual, ask for Customer

Services.

Tandberg Data ASA is a leading global supplier of advanced, tape-

based information data storage products for the professional

market. The company offers a wide range of products and

solutions for data protection and other user applications within

data storage management.

Tandberg Data supplies Travan NS™, SLR™and DLT™

branded tape drives and tape storage solutions to the world's

leading OEMs and through a worldwide channel sales network.

On the following pages, before the installation guide starts,

there is some brief information about the Tandberg Data SLR

tape storage solutions. Also listed is what is included with the

Tandberg Data product you have purchased.

All documentation referred to in this Product Line installation

guide, is available as a downloadable PDF file from the

Tandberg Data web site:

www.tandberg.com

Tandberg Data

Tandberg SLR Installation and User's Guide 1

This Page Intentionally Left Blank

Tandberg Data

2 Tandberg SLR Installation and User's Guide

Solution Contents

Please Check the Package Contents

before Beginning the Installation!

For the Internal Solution:

·Internal Tandberg SLR tape drive (SLR2-140)

•Internal SCSI cable (with removable LVD/SE terminator for

Tandberg SLR24, SLR7, SLR40, SLR50, SLR60, SLR75,

SLR100 and SLR140)

·Data cartridge (1 or 5 depending on type of kit/solution)

·Cleaning cartridge (Tandberg SLR5, SLR24, SLR7,

SLR40, SLR50, SLR60, SLR75, SLR100 and SLR140)

·Application software

·Installation and User's Guide

·Warranty Card

For the Tabletop Solution:

·Tabletop Tandberg SLR tape drive with power cord

·External LVD/SE SCSI terminator (Tandberg SLR24,

SLR7, SLR40, SLR50, SLR60, SLR75, SLR100 and SLR140)

·External SCSI cable

·Data cartridge (1 or 5 depending on type of kit/solution)

·Cleaning cartridge (Tandberg SLR24, SLR7, SLR40,

SLR50, SLR60, SLR75, SLR100 and SLR140)

·Application software

·Installation and User's Guide

·Warranty Card

Tandberg Data

NOTE:

See also our website: www.tandberg.com.

Tandberg SLR Installation and User's Guide 3

This Page Intentionally Left Blank

Tandberg Data

4 Tandberg SLR Installation and User's Guide

Information

Tape Drive Naming Convention

The following table gives the equivalence between the original

tape drive name and their associated SLR naming.

Tandberg SLR2 Tandberg TDC 3820

Tandberg SLR3 Tandberg TDC 4120

Tandberg SLR4 Tandberg TDC 4220

Tandberg SLR4-DC Tandberg TDC 4222

Tandberg SLR5 NA

Tandberg SLR24 Tandberg SLR6

Tandberg SLR7 NA

Tandberg SLR40 NA

Tandberg SLR50 Tandberg MLR3

Tandberg SLR60 NA

Tandberg SLR75 NA

Tandberg SLR100 NA

Tandberg SLR140 NA

Tape Drive Capacity

Tandberg Data Tape Drive Model Capacity

Tandberg SLR2 (TDC 3820) 525 MB

Tandberg SLR3 (TDC 4120) 1.2GB

Tandberg SLR4 (TDC 4220) 2.5GB

Tandberg SLR4-DC (TDC 4222) 2.5GB/5.0*GB

Tandberg SLR5 (SLR5 4/8 GB) 4.0GB/8.0*GB

Tandberg SLR24 (SLR6 12/24 GB) 12GB/24*GB

Tandberg SLR7 20 GB/40GB*

Tandberg SLR40 20GB/40*GB

Tandberg SLR50 (MLR3 25/50 GB) 25GB/50*GB

Tandberg SLR60 30GB/60*GB

Tandberg SLR75 38 GB/75*GB

Tandberg SLR100 50GB/100*GB

Tandberg SLR140 70GB/140*GB

* Using 2:1 Hardware Compression

Tandberg Data

Tandberg SLR Name Convention Previous Tape Drive Name

Tandberg SLR Installation and User's Guide 5

Tape Drive Performance

Tandberg Data Tape Drive Model Per Minute Per Hour

Tandberg SLR2 525MB (TDC 3820) 12 MB/min 720 MB

Tandberg SLR3 1.2GB (TDC 4120) 18 MB/min 1.08 GB

Tandberg SLR4 2.5GB (TDC 4220) 18 MB/min 1.08 GB

Tandberg SLR4-DC 5GB (TDC 4222) 18/36* MB/min 2.16 GB

Tandberg SLR5 (SLR5 4/8 GB) 24/48* MB/min 2.88 GB

Tandberg SLR24 (SLR6 12/24 GB) 72/144* MB/min 8.64 GB

Tandberg SLR7 180/360* MB/min 21.6 GB

Tandberg SLR40 180/360* MB/min 21.6 GB

Tandberg SLR50 (MLR3 25/50 GB) 120/240* MB/min 14.4 GB

Tandberg SLR60 240/480* MB/min 28.8 GB

Tandberg SLR75 240/480* MB/min 28.8 GB

Tandberg SLR100 300/600* MB/min 36.0 GB

Tandberg SLR140 360/720* MB/min 43.2 GB

* Using 2:1 Hardware Compression

Media Specifications

DC 6250 or equivalent 1020 250

DC 6525 or equivalent 1020 525

MAGNUS 1.2 or equivalent 950 1200

MAGNUS 2.5 or equivalent 1200 2500

SLR5 8GB * 1500 4000

SLRtape24 24 GB * 1130 12 000

SLRtape7 40 GB* 1545 20 000

SLRtape40 40 GB* 600 20 000

SLRtape50 50 GB * 1515 25 000

SLRtape60 60 GB* 900 30 000

SLRtape75 75 GB* 1150 38 000

SLRtape100 100 GB* 1500 50 000

SLRtape140 140 GB* 1670 70 000

* Using 2:1 Hardware Compression

Tape Format Compatibility

Tape Native Tape Drive Compatibility

Drive Media Type SLR140 SLR100 SLR75 SLR60 SLR50 SLR40 SLR7 SLR32 SLR24 SLR5 SLR

SLR3 SLR2

SLR140 SLRtape140 R/W

SLR100 SLRtape100 RR/W

SLR75 RR/W R/W

SLR60 SLRtape60 RR/W R/W R/W

SLR50 SLRtape50 RR/W R/W R/W R/W

SLR40 SLRtape40 RR/W R/W R/W -R/W

SLR7 SLRTape7 RR* RR* -R* R/W

SLR32 SLR32,

MLR1-26GB,

Accuscribe 13GB

R R R R/W R - R/W

SLR24 SLRtape24 R R R R/W R - R/W R/W

SLR5 SLR5 R R R R R R/W RR/W

SLR4 Magnus 2.5,

Magnus 2.0,

DC 92xx, QD 92xx

R R R R/W RRW R/W

SLR3 Magnus 1.2,

Magnus 1.0,

DC 91xx, QD 91xx

R/W R/W R/W

SLR2 DC6525, DC6320 R/W R/W R/W R/W

SLR1 DC6250, DC6150 R/W R/W R/W

R à Read only

R/W à Read and Write compatible

*SLR7 read capability available in F/W 04.30 or greater

Tandberg Data

6Tandberg SLR Installation and User's Guide

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Tandberg Data Lagerung Handbücher

Tandberg Data

Tandberg Data STORAGE LIBRARY T40 Bedienungsanleitung

Tandberg Data

Tandberg Data RDX QuikStor Bedienungsanleitung

Tandberg Data

Tandberg Data Storage Library T128 Bedienungsanleitung

Tandberg Data

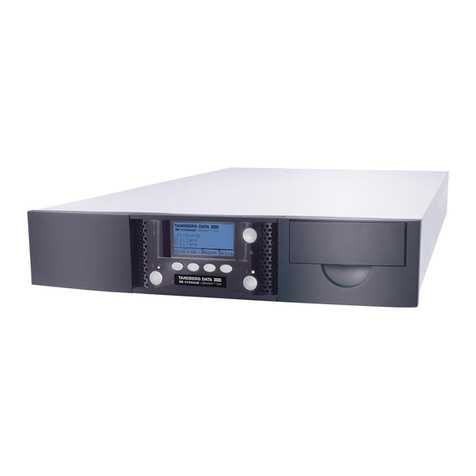

Tandberg Data Storage Library T24 Bedienungsanleitung

Tandberg Data

Tandberg Data DLT-V4 Betriebsanleitung

Tandberg Data

Tandberg Data STORAGE CAB4000 - Bedienungsanleitung

Tandberg Data

Tandberg Data Storage Library T24 Bedienungsanleitung

Tandberg Data

Tandberg Data SDLT320 - Bedienungsanleitung

Tandberg Data

Tandberg Data StorageLoader DLT VS160 Bedienungsanleitung

Tandberg Data

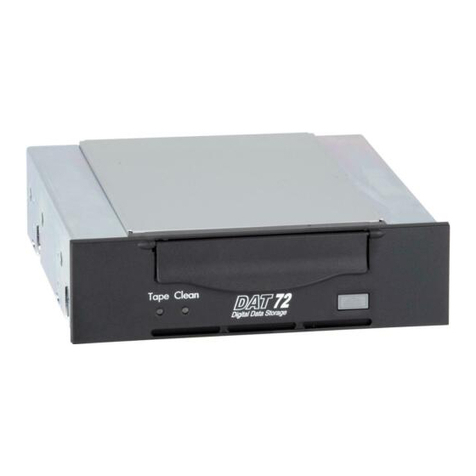

Tandberg Data DAT 160 Bedienungsanleitung

Tandberg Data

Tandberg Data StorageLoader DLT VS160 Bedienungsanleitung

Tandberg Data

Tandberg Data DLT-V4 Bedienungsanleitung

Tandberg Data

Tandberg Data STORAGELIBRARY REV2 ONLINE - QUICK Bedienungsanleitung

Tandberg Data

Tandberg Data DLT7000 Bedienungsanleitung

Tandberg Data

Tandberg Data NAS Hardware Viking FS-1500 Bedienungsanleitung

Tandberg Data

Tandberg Data SDLT220-320 INTEGRATION Bedienungsanleitung

Tandberg Data

Tandberg Data SDLT 600 Bedienungsanleitung

Tandberg Data

Tandberg Data StorageLibrary LTO-3 SCSI Bedienungsanleitung

Tandberg Data

Tandberg Data RDX QuikStor Bedienungsanleitung

Tandberg Data

Tandberg Data DAT 72 Bedienungsanleitung

Tandberg Data

Tandberg Data DAT 160 Bedienungsanleitung

Tandberg Data

Tandberg Data StorageLibrary LTO-3 SCSI Montageanleitung

Tandberg Data

Tandberg Data SDLT220-320 INTEGRATION Bedienungsanleitung

Tandberg Data

Tandberg Data StorageLoader DLT VS160 Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
