Tannoy Arena ELITE Bedienungsanleitung

Contents

3 Warranty

4 - 5 Unpacking List

6 - 7 Dual ConcentricTM

and WideBand TM

Technology

8 - 9 Connections

10 - 11 Positioning

12 - 13 Trim Removal

14 - 17 Optional Accessories

All of our products have been produced and tested with

care and precision to give first-class service. All passive

components are guaranteed for a period of five years from

the date of purchase from an authorised Tannoy dealer

subject to the absence or evidence of misuse,overload,or

accidental damage. All active and electronic components

are guaranteed for a period of one year from the date of

purchase from an authorised Tannoy dealer subject to the

absence of, or evidence of,misuse, overload or accidental

damage. If at any time during this warranty period the

equipment proves to be defective for any reason other than

accident,misuse, neglect, unauthorised modification or fair

wear and tear, we will repair any such manufacturing defect

or, at our option,replace it without charge for labour,parts or

return carriage.If you suspect a problem with a Tannoy

product then, in the first instance,discuss it with your Tannoy

dealer. If you require further assistance then we ask that you

deal directly with your local Tannoy distributor. If you cannot

locate your distributor please contact Customer Services,

Tannoy Ltd at the address given below.

Customer Services,Tannoy Ltd., Rosehall Industrial Estate,

Coatbridge, Strathclyde ML5 4TF, Scotland

Telephone: 01236 420199 (National)

+44 1236 420199 (International)

Fax: 01236 428230 (National)

+44 1236 428230 (International)

E-mail: enquiries@tannoy.com

Do not ship any product to Tannoy without previous

authorisation.

Our policy commits us to incorporating improvements to

our products through continuous research and development.

Please confirm current specifications for critical applications

with your supplier.

WARRANTY

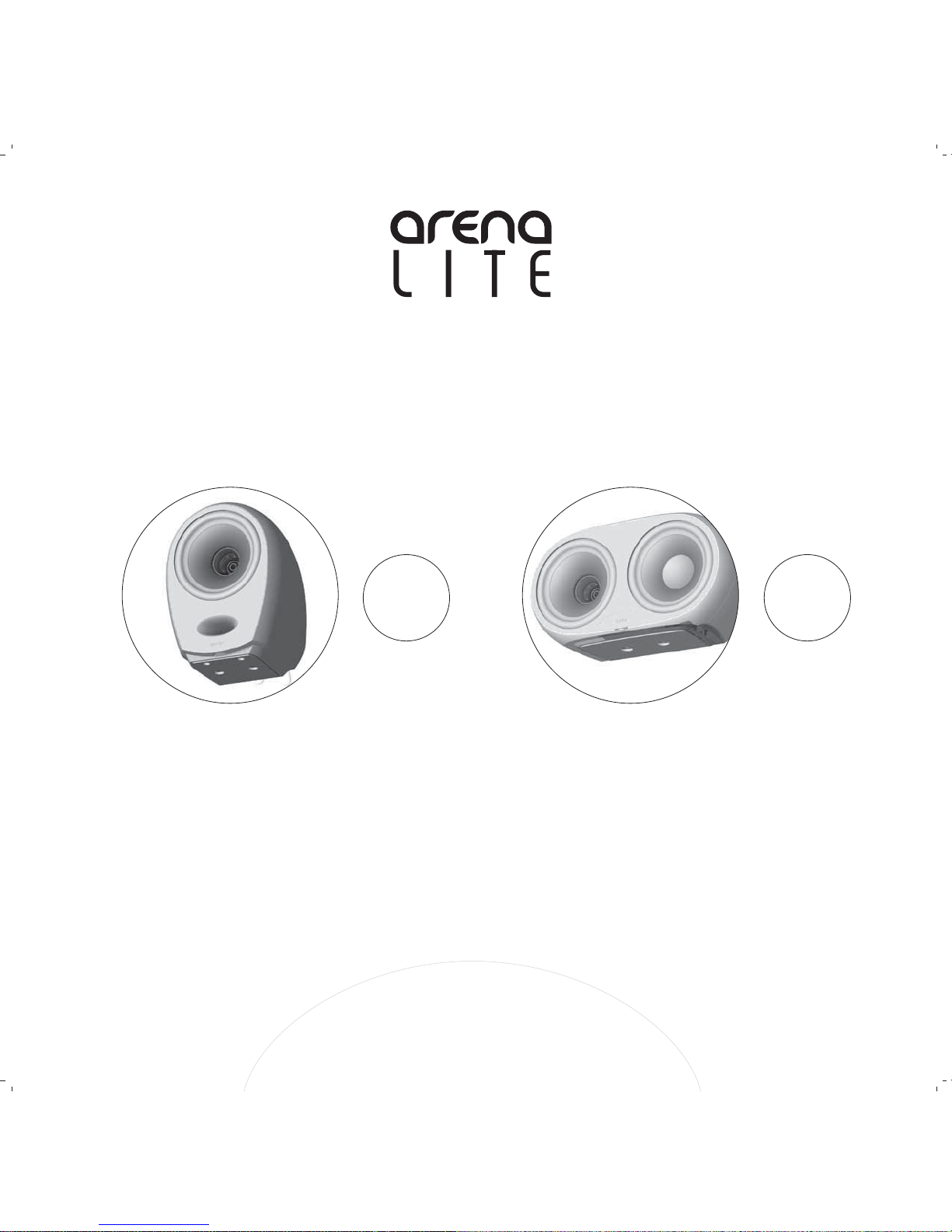

UNPACKING

Check the contents of the carton to identify the following items:

one 4x satellite speakers

two 1x centre channel speaker

Store complete packaging in case it is needed for re-use.

x 4

one

x 1

two

SATELLITES and CENTRE CHANNEL

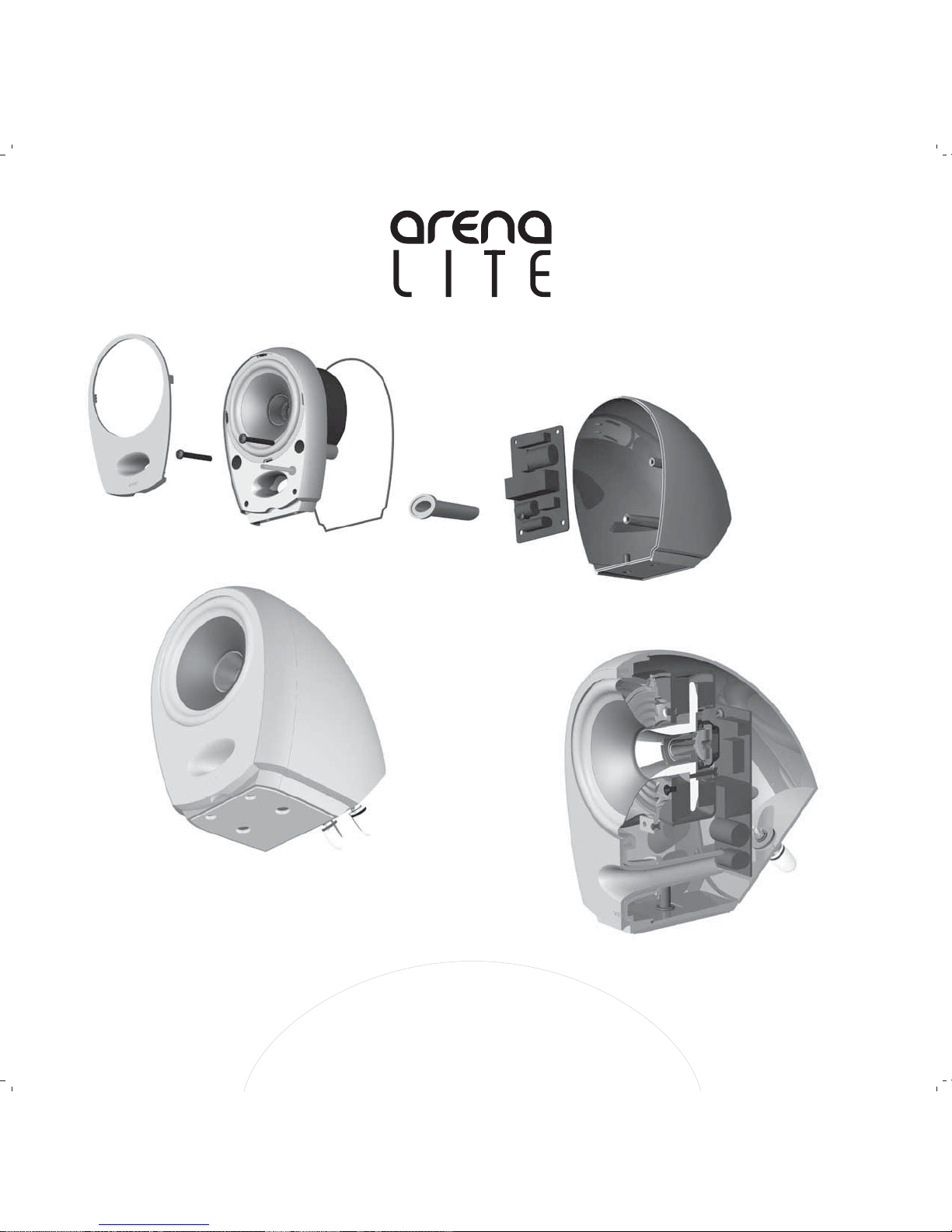

DRIVER TECHNOLOGY

Dual Concentric™

Tannoy Dual Concentric™drivers have been incorporated into the Arena system. Intensive research and development has produced an

all-new version of this proven technology that builds upon the legendary performance of this exclusive Tannoy driver design.

The time coherent, point source and constant directivity nature of the dispersion characteristics inherent in the Dual makes it an accepted

industry standard in studio monitoring. By exceeding the rigorous demands of the reording and mastering environment Tannoy can ensure

that playback performance in the home for multi channel home cinema, is strictly controlled to accurately reect the sound engineers artistry.

In nature all sounds emanate from a single point in space. The high frequency unit of the Dual, centrally mounted in the throat of the main

mid/bass driver, is so positioned as to acoustically replicate this single point source; delivering an incredibly natural sound with an incredibly

wide imaging ‘sweet spot’ that creates an expansive soundstage with remarkably focused placement of images.

WIDEBAND™Technology

Tannoy has incorporated its own WideBand™technology into the design of these drivers. Not only does this exceptional in-house technology

resolve ne detail of high frequency information but it also eectively enhances the listening experience throughout the whole frequency

range. The WideBand™high frequency system creates an increased immediacy, airiness and impact, making music and movie sound more natural

and true to life.

Sounds contain transient information and rich harmonics beyond the range of human hearing for pure tones. Even low frequencies have leading

edge transients reaching high frequency unit will accurately reproduce the leading edge of individual sounds allowing the listener to experience

the entire 30kHz. The Tannoy Arena WideBand™bandwidth, by extending the frequency response to 54kHz.

In addition, the extension of the frequency response, by fully two octaves, corrects time and phase response within the bandwidth of normal human

hearing. Taking these acoustical phase anomalies beyond the audible range adds realism to the soundstage through improvements in

imaging and the placement of sounds.

Tannoy Dual Concentric

™

drivers have been incorporated into the Arena system.

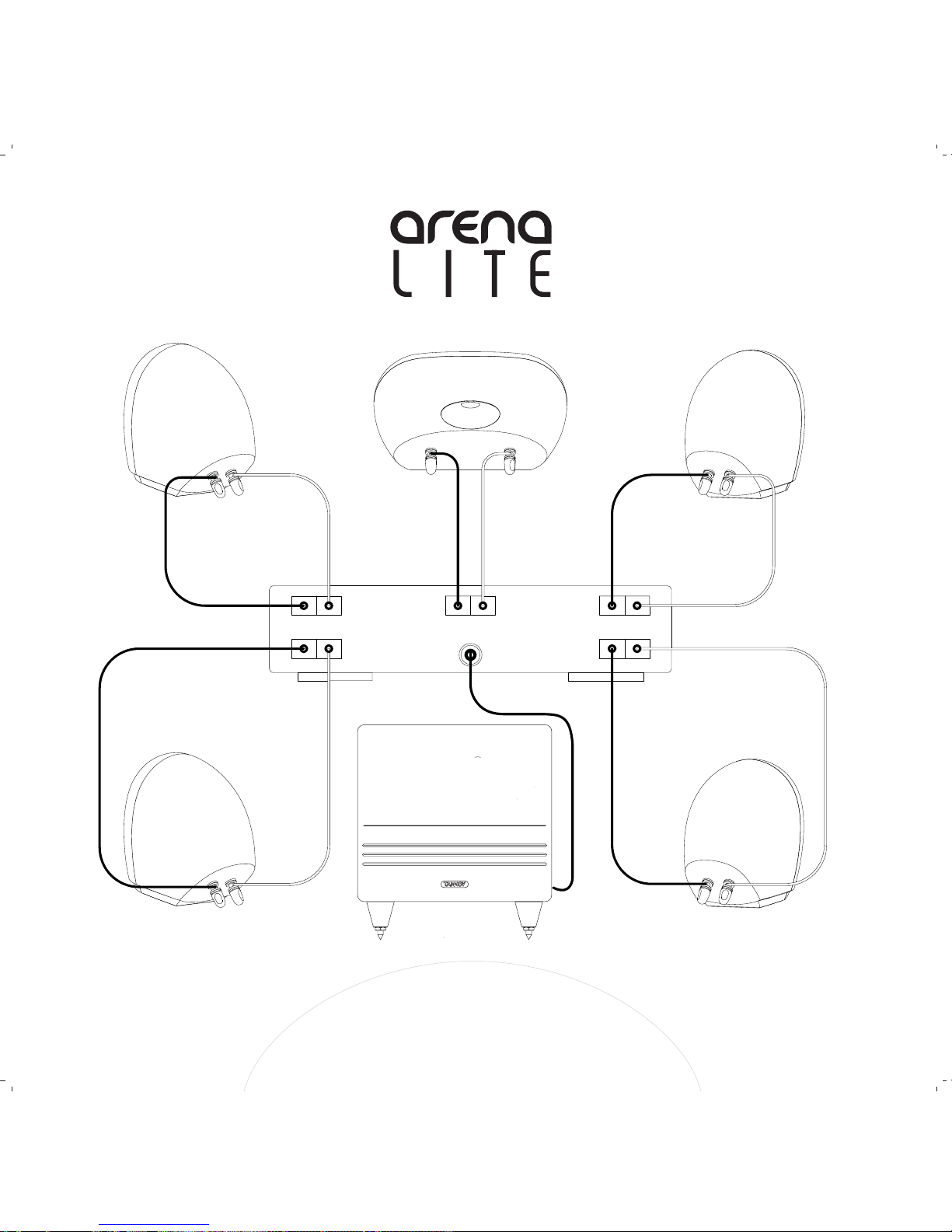

CONNECTIONS

Using the supplied twin core cable,

connect each channel to the

appropriate output of your AV receiver,

observing polarity - positive to

positive and negative to negative (or

red to red and black to black).

The supplied cable has the negative

( - ) core marked by a black line.

If additional cable is required, your

dealer will be able to advise on a

suitable type.

Additional satellite and centre

speakers are available, should you

wish to expand your system.

FRONT RIGHT

SATELLITE (F/R) SATELLITE (F/L)

FRONT LEFT

REAR LEFT

SATELLITE (R/L)

SATELLITE (R/R)

REAR RIGHT

CHANNEL (C)

CENTRE

RED TERMINAL

POSITIVE (+)NEGATIVE (-)

BLACK TERMINAL BLACK TERMINAL

NEGATIVE (-) POSITIVE (+)

RED TERMINAL

F/R

R/R

-+ +

R/L

F/L

SUB

RED TERMINAL

POSITIVE (+)NEGATIVE (-)

BLACK TERMINAL

RED TERMINAL

POSITIVE (+)NEGATIVE (-)

BLACK TERMINAL

RED TERMINAL

POSITIVE (+)NEGATIVE (-)

BLACK TERMINAL

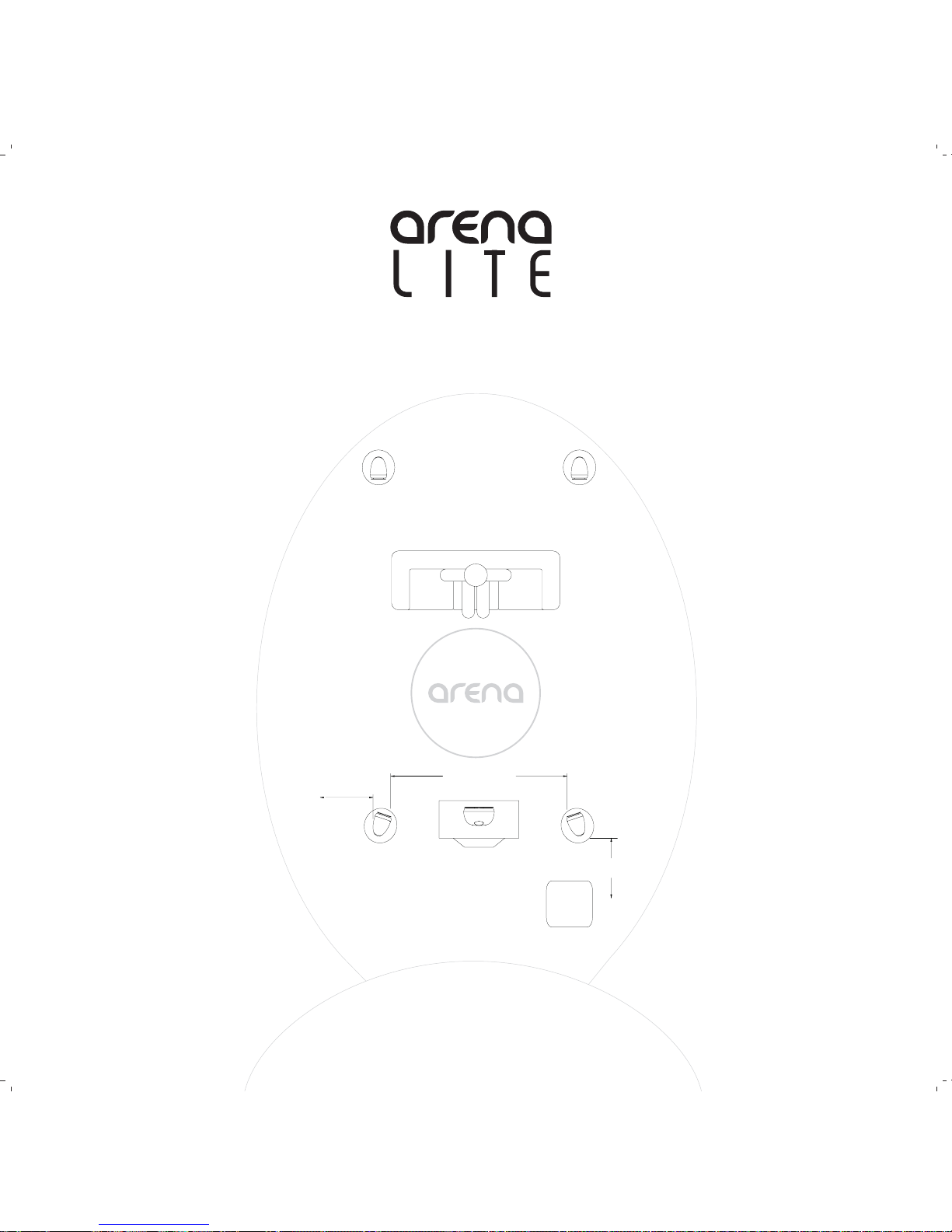

The centre channel may be placed

either on top of or below the

television or monitor and the front

and rear speakers positioned as

shown on a suitable table or shelf.

All speakers (with the exception of

the subwoofer) are magnetically

shielded to avoid colour distortion

to the television, but as some sets

are more sensitive to interference

than others, some experimentation

in placement may be required,

or the use of the optional table stand

to space the centre speaker further

from the television.

0.5 METRE

MINIMUM

1.5 TO 4.5 METRES

1.0 METRE

MINIMUM

REAR

POSITIONING

For the satellites, an optional

combined table stand and wall

bracket is available, along with

a floor stand. while a dedicated

table stand/wall bracket is

available for the centre channel.

Please consult your authorised

Tannoy dealer.
