SR601

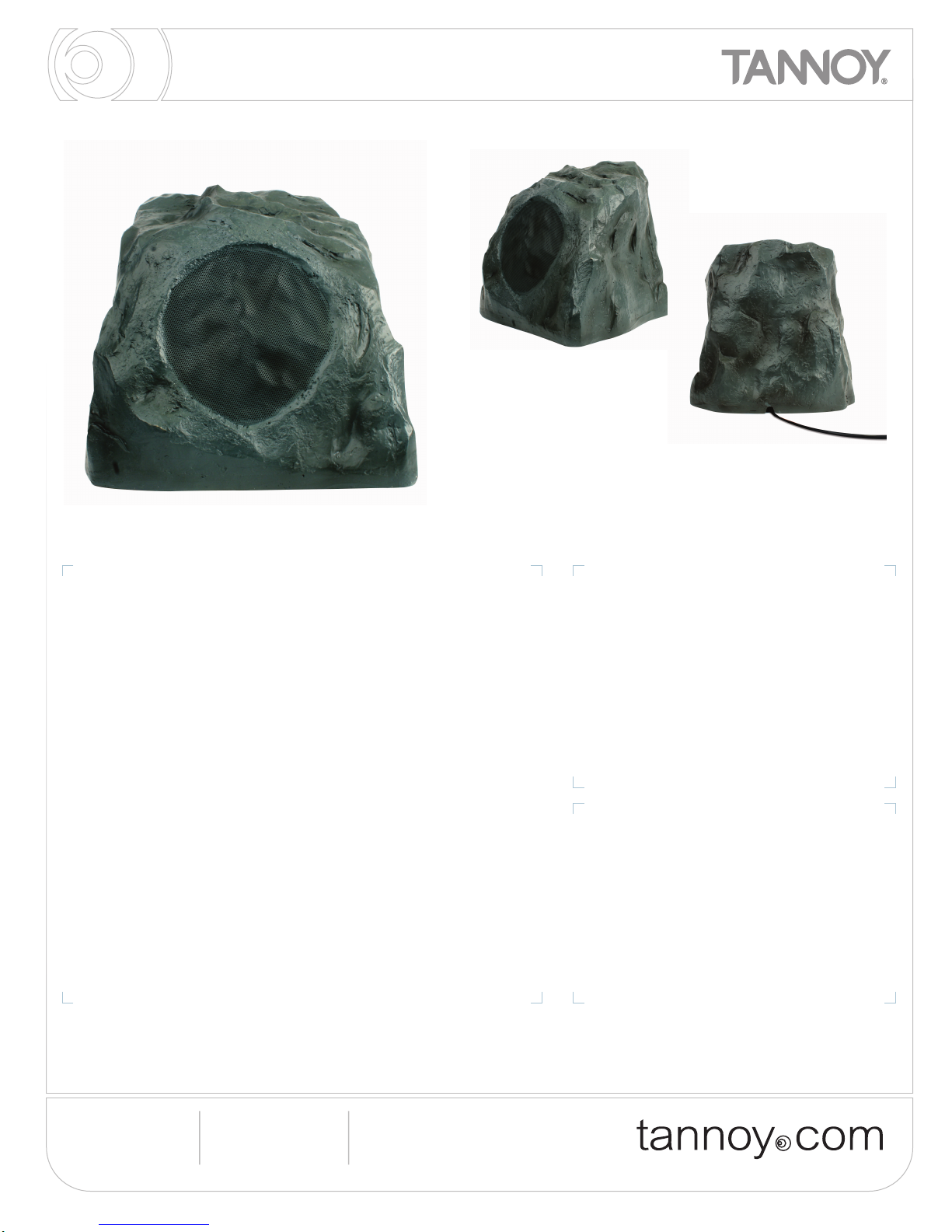

The Tannoy SR601 is a high power handling, high sensitivity, full bandwidth rock

speaker design primarily for outdoor use. The rugged and durable terra alba and

fibreglass enclosure construction is weather, water marking and UV discolouration

resistant; this, together with the integrated grille design, provides protection for the

153mm (6.00”) Tannoy ICT™ transducer from the elements, including rain, hail, sleet,

snow and high salt content atmospheres such as coastal environments. The natural

rock-like appearance of the SR601 blends inconspicuously into outdoor applications

from gardens, patios, and architectural landscapes.

Equipped with Tannoy’s exclusive ICT™ point source, constant directivity drive unit,

the SR601 is a compact speaker system delivering an acoustic performance of

outstanding clarity, definition and detail with class leading vocal intelligibility. The mid

bass and tweeter sections of the driver are configured to a point source, ensuring a

wide and controlled dispersion for optimum coverage of the listening area; this while

avoiding the massive loss of energy in the vertical plane, at the crossover frequency,

inherent in two-way discreet designs.

The ICT™ (Inductive Coupling Technology) drive unit design addresses the two most

common component failures experienced in background music and sound reinforcement

systems, the tweeter and the crossover reliability. The use of a wireless electromagnetic

tweeter means that no crossover is required in the design; this therefore ensures that

an ICT™ unit cannot be burned out through system misuse or by constant heavy

usage. The mineral loaded polypropylene cone material and nitrile rubber surround

further enhance durability and long-term reliability.

Features

153mm (6”) ICT™ driver

High sensitivity

Phase coherent design for superior vocal articulation and

music reproduction

No crossover required, ensuring better phase, impedance

and sensitivity response for high performance and durability

Wireless electromagnetic tweeter cannot be burned out from

heavy or abusive use

1 metre of weather proof speaker attached

Weather resistant enclose

Visually blends into its environment

Five year loudspeaker warranty

Applications

Architectural landscapes

Residential developments, gardens and patios

Retail outlets, boutiques and shopping malls

Lounges and theme bars

Airports

Theme parks and convention centres

Casinos

Museums

Transportation centres

Cruise ships

Recreational facilities

•

Product Description

SR601 Rock Speaker

Tannoy United Kingdom

Tannoy North America

Tannoy Deutschland

Tannoy France

T: 00 44 (0) 1236 420199

T: 00 1 (519) 745 1158

T: 00 49 (180) 1111 881

T: 00 33 (0)1 7036 7473

E: [email protected]

SR 601 data file // issue 01.01// 01.31.07

System

Frequency response (1)

Dispersion Characteristics

Directivity Index

1kHz

2kHz

4kHz

8kHz

16kHz

1kHz

2kHz

4kHz

8kHz

16kHz

Rated Maximum SPL (2)

Impedance

Crossover Frequency

Power Handling

Sensitivity

Transducer

Full Range

Physical

Enclosure

Grille Material

Connection

Dimensions

(H x W x D)

Net Weight (ea)

Shipping Weight (ea)

Notes

(1) Unweighted pink noise input measured at 1m in an anechoic chamber

(2) Averaged over stated bandwidth, measured at 1m on axis

SR601

80Hz - 20kHz (+/-5dB), (-10dB) 60Hz

4.2

6.1

10.1

7.0

9.8

2.6

4.1

10.3

5.1

9.6

107dB average

110dB peak

6 Ohms

7kHz (Inductively Coupled)

60 Watts (average)

87dB

1 x 153mm (6.00”) ICT™ transducer

Terra alba & fibre glass

Weather resistant

Stainless steel

1m weather proof speaker cable

275mm x 295mm x 270mm

(10.83” x 11.61” x 10.63”)

4.5kgs (9.92lbs)

5.3kgs (11.68lbs)

SR601

TECHNICAL SPECIFICATIONS

Ordering Information

Item number

8001 4660 Item name

SR601 Packaging Quantity

1Gross Weight

5.3kgs (11.68lbs) Gross Depth

372mm (14.65”) Gross Width

357mm (14.05”) Gross Height

361mm (14.21”)

Architectural specifications

The weatherproof, full bandwidth outdoor rock-design speaker system shall consist of

a 153mm (6.00") full range, point source ICT™ transducer mounted in an optimally

tuned, rugged and durable terra alba / fibreglass enclosure. The enclosure construction

with integrated protective grille shall provide weather, water marking and UV discolouration

resistance.

Performance of the SR601 speaker shall meet or exceed the following criteria: Frequency

response measured on axis shall be 80Hz - 20kHz (+/- 5dB), (-10dB) 60Hz; unweighted

pink noise input measured at 1m in an anechoic chamber. Sensitivity shall be 87dB

(1W = 2.45V for 6 Ohms). Long term power handling capacity as defined in EIA-426B

test shall be 60W, recommended amplifier power 120W. The nominal system impedance

shall be 6 Ohms (in low impedance setting).

One metre of weatherproof speaker cable shall be provided hardwired into the enclosure.

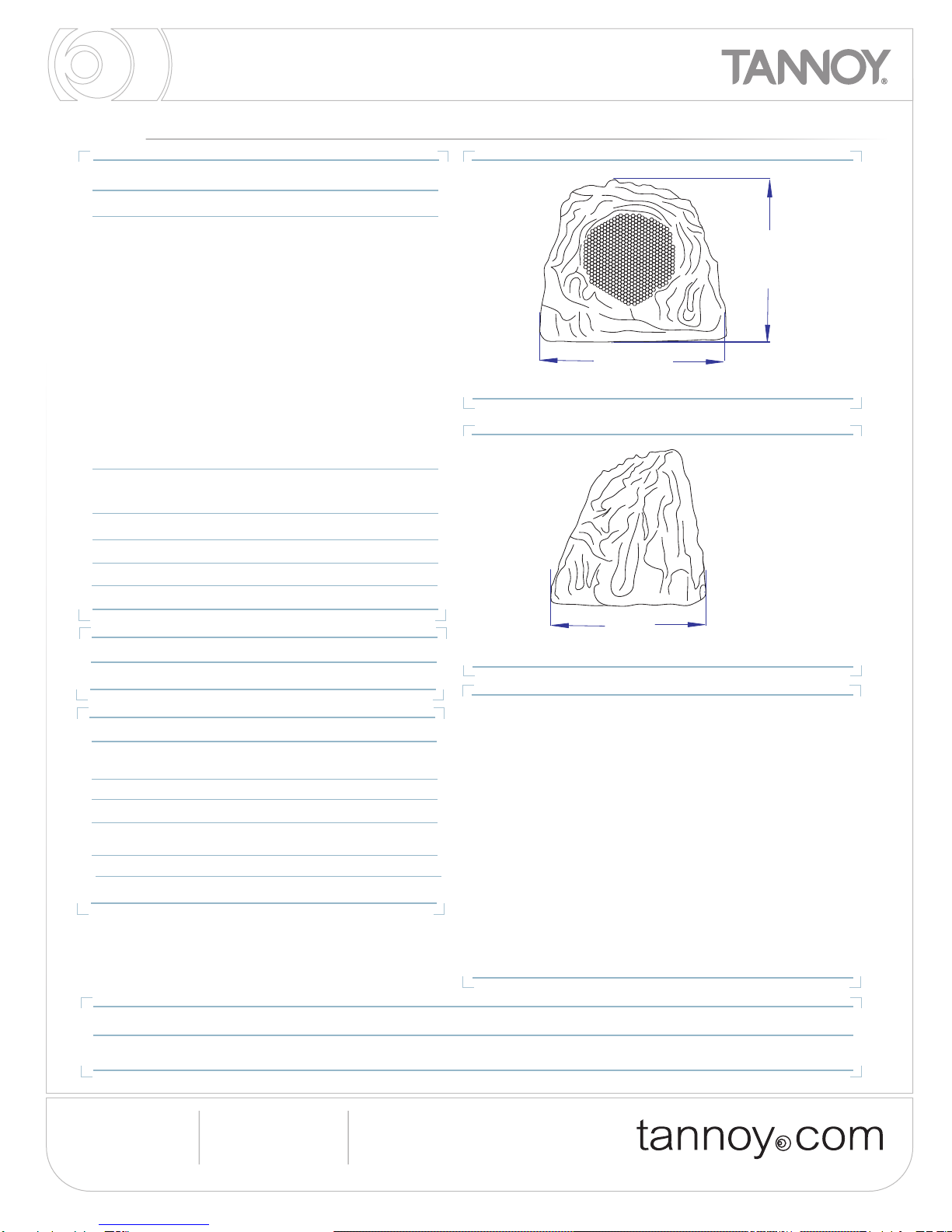

The dimensions shall be: Height 275 ±5 x width 295 ±3 x 280 ±3mm

(Height 10.83 ±5 x width 11.61 ±3 x 11 ±3”)

The outdoor rock-design speaker system shall be the.....SR601.

SR 601 data file // issue 01.01// 01.31.07

Tannoy United Kingdom

Tannoy North America

Tannoy Deutschland

Tannoy France

T: 00 44 (0) 1236 420199

T: 00 1 (519) 745 1158

T: 00 49 (180) 1111 881

T: 00 33 (0)1 7036 7473

E: [email protected]

10.63" ±3

295mm ±3

11.61" ±3

275mm ±5

10.83" ±5

270mm ±3
