Quick Start Guide

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specications,

appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic,

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.

iW 62 BACKCAN

Pre-Install backcan for iW 62DS-WH and iW 62S-WH In-Wall Loudspeakers

IN WALL INSTALLATION

(1) Using screws that are at least ¾" long, ax backcan to studs or joists. Tannoy recommends a

minimum of 8 screws.

(2) Run appropriate gauge and type of wire for your particular installation to the backcan location.

½" or ¾" conduit is also an option.

(3) Install a suitable connector for wire chosen into the ½" or ¾" knock out. Run wire through connector,

leaving enough length to reach the loudspeaker with excess for ease of connection.

(4) Leave excess wire in the backcan until drywall or desired nishing is complete.

(5) The ange on the front of the backcan will protrude through the drywall and act as a guide for

drywall installation.

(6) After desired nishing is complete, connect the previous installed wire in the backcan to the red (+)

and black (-) terminals on the chosen loudspeaker model. An optional ground wire may be used to

reduce RF interference.

(7) Follow installation instructions found in the loudspeaker quick start guide for nal speaker installation.

For technical assistance: Tannoy UK +44 1562 732290 or visit our website at tannoy.com.

)

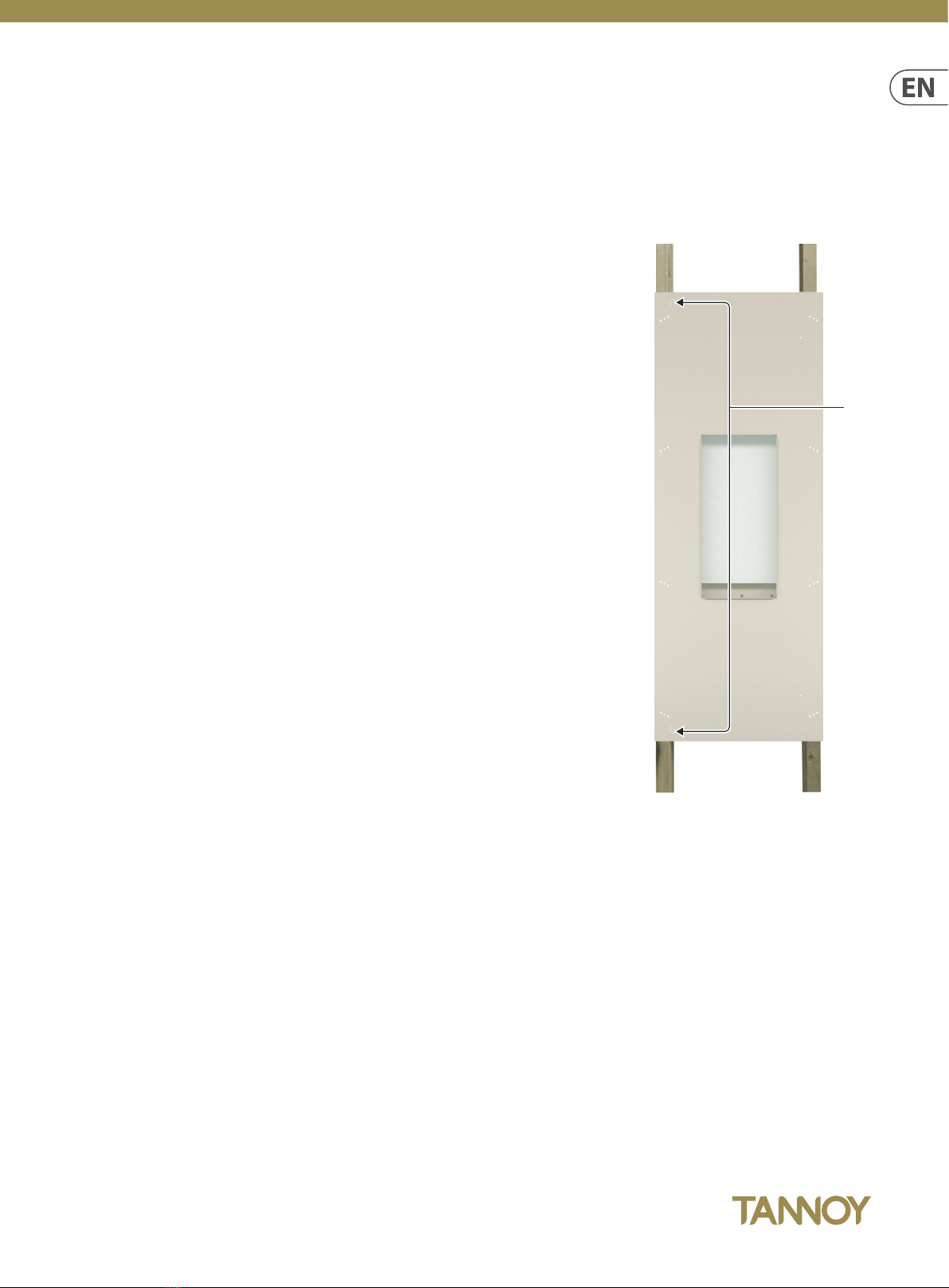

(1) Alignment tags for in wall mounting

96.7mm

3.81"

310.0mm

12.20"

1143.0mm

45.00"

89.1mm

3.51"

436.0mm

17.17"

1200.0mm

47.24"

199.0mm

7.83"

451.0mm

17.76"

101.6 mm min

4.00" min

12.5 mm min

0.49" min

iW 62 BACKCAN Dimensions
