Targus Click N Type

for Compaq iPAQ 3800/3900

USER’S GUIDE

Making Your Mobile Life Easier.

Visit our Web site at: www.targus.com

400-0090-001A

Targus Click N Type

Congratulations on your purchase of the Targus Click N Type.

The Click N Type is a convenient and ultra-portable keyboard

and mouse for your PDA.

With the Click N Type you can:

•Enter text directly into your PDA.

•Use the 8-way navigation button to simulate mouse movement.

•Define and use the function keys to quickly execute commands

and options.

•Take a keyboard and mouse with you whenever you travel with

your PDA.

In addition to this user’s guide, this package contains the Targus

Click N Type and the driver software CD-ROM.

Installing the Driver

To install the driver software for the Click N Type, you need:

•A desktop or notebook computer with the Windows®95/98/

Me/2000/XP or Windows NT®4.0 operating system

•Microsoft®ActiveSync®3.1 or higher on your computer (for

copying files to your PDA). For the most current version of

Microsoft ActiveSync, go to: http://www.microsoft.com/mobile

•At least 24K bytes of free memory on your PDA.

1Connect your PDA to your computer, if it’s not already

connected, and synchronize to back up your files.

2Disable any previously installed keyboard software on your

PDA.

3Insert the driver software CD-ROM into your computer’s

CD-ROM drive.

4Click Start, Run, then enter D:\Setup.exe (where D: is the

path of your CD-ROM drive) and then click OK.

The Click N Type Installation screen appears.

PDA Mouse Click N Type Installation screen

5Click Install.

6Follow the on-screen instructions to complete installation.

7Synchronize to copy the driver to your PDA.

After synchronization, the Click N Type icon appears in the

Applications screen on your PDA. You can now connect the

Click N Type to your PDA.

Connecting the Click N Type to

Yo u r P D A

Once you have installed the driver, you can connect the Click N

Type to your PDA. To do this:

1 Turn off your PDA (if it’s turned on).

2 Hold your PDA in one hand and the Click N Type in your

other hand.

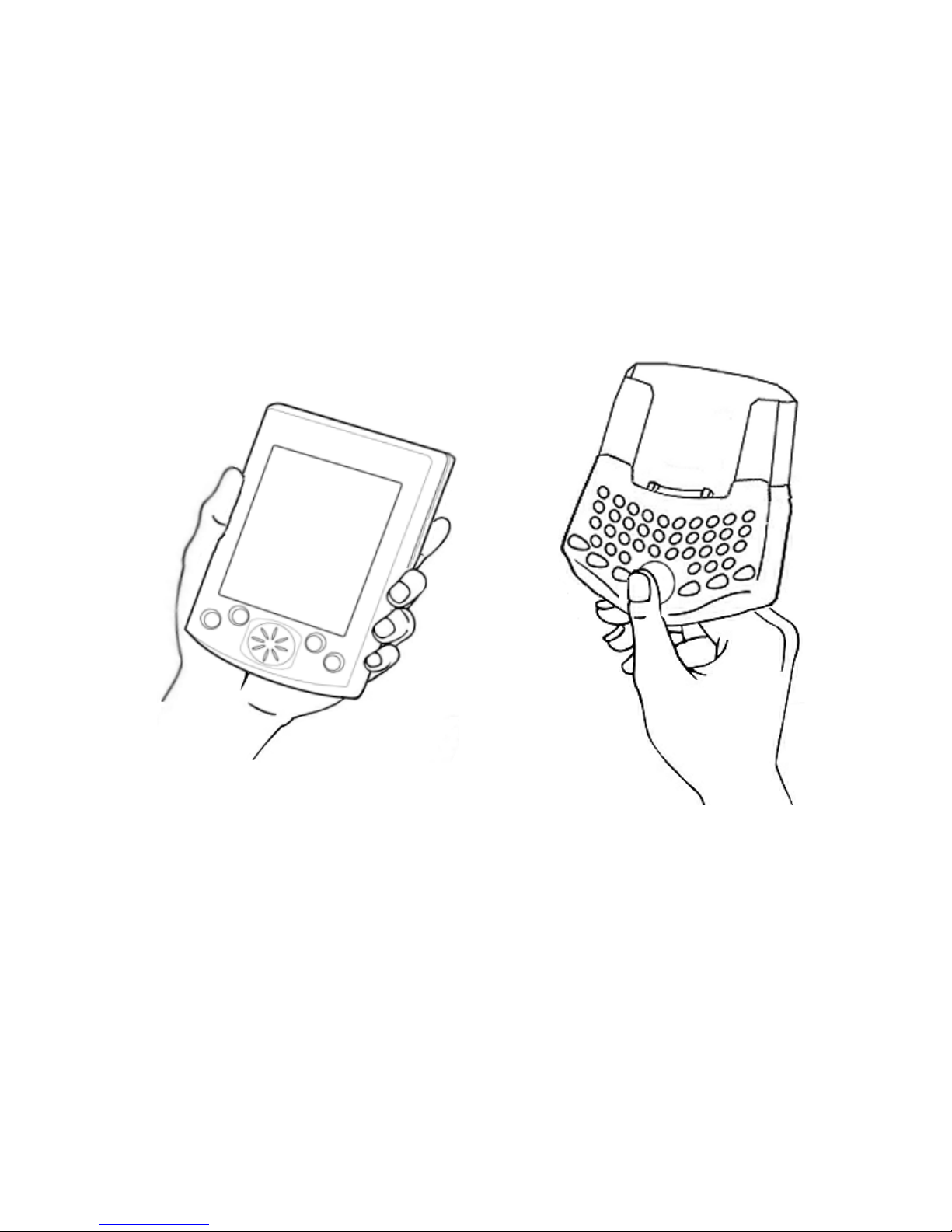

Holding your PDA and the Click N Type

3 Align your PDA with the keyboard connector, located at the

top of the Click N Type.

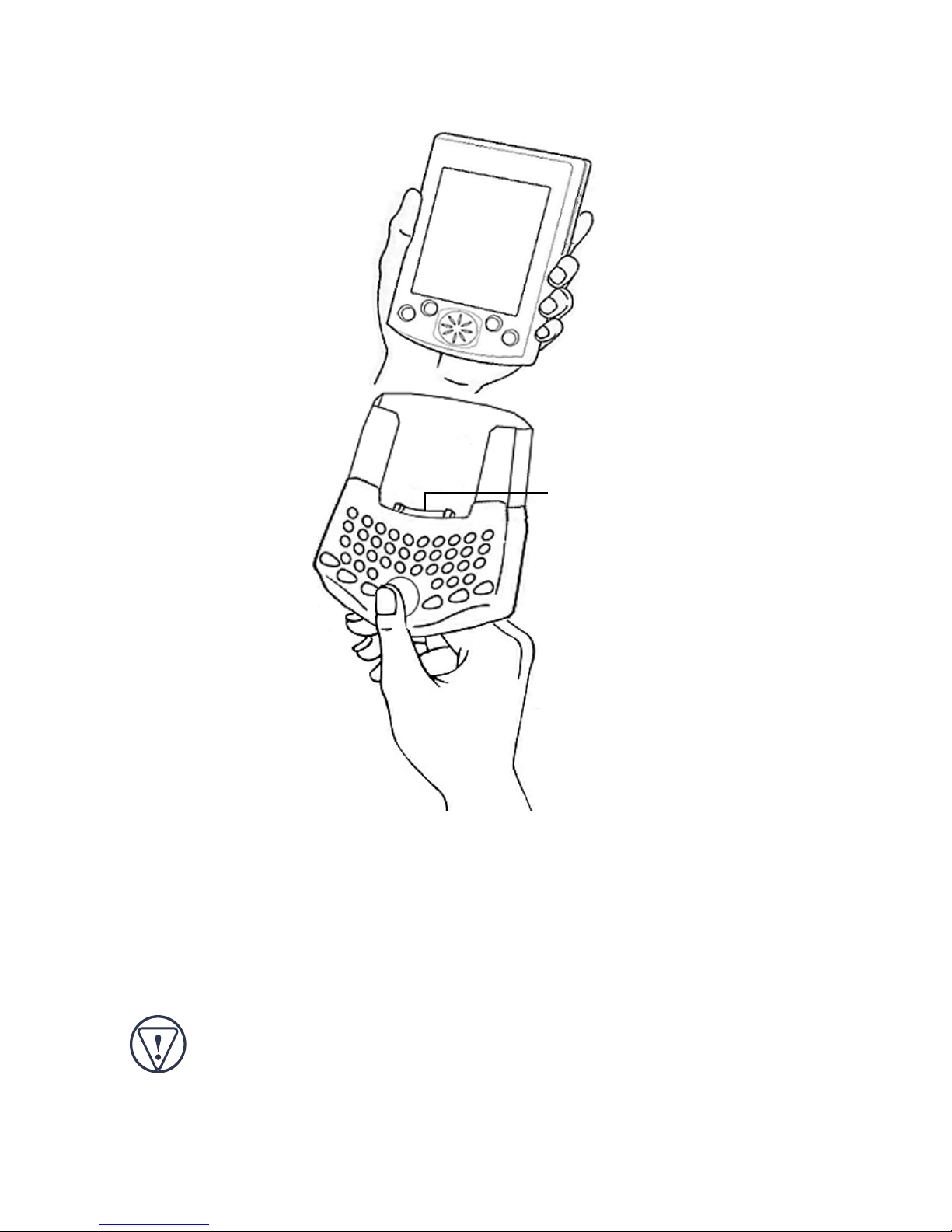

Aligning your PDA with the keyboard connector

4 Gently slide your PDA into the keyboard connector until you

hear a “click.”

When you connect the Click N Type, your PDA automatically

turns on and you can begin typing.

CAUTION: Always use the keyboard connector as a guide

when connecting and disconnecting your PDA to avoid

possible damage to your device or the Click N Type.

Keyboard

connector

Disconnecting the Click N Type

To disconnect the Click N Type from your PDA:

1 Turn off your PDA (if it’s turned on).

2 Press the release button, located on the back of the keyboard,

and gently pull your PDA away from the Click N Type,

sliding it out of the keyboard connector.

CAUTION: Avoid pressing any keys on the Click N Type when

disconnecting it from your PDA, as doing so may cause the

key to stop working.

Using the Click N Type

NOTE: The Click N Type does not require batteries. Instead, it

runs off of a small amount of power, which it draws directly

from your PDA.

Enabling the Click N Type

After installing the driver and connecting the Click N Type to

your PDA, you can enable the keyboard through the main

application screen.

To enable the Click N Type:

1TapStart, then Click N Type.

The main application screen appears.

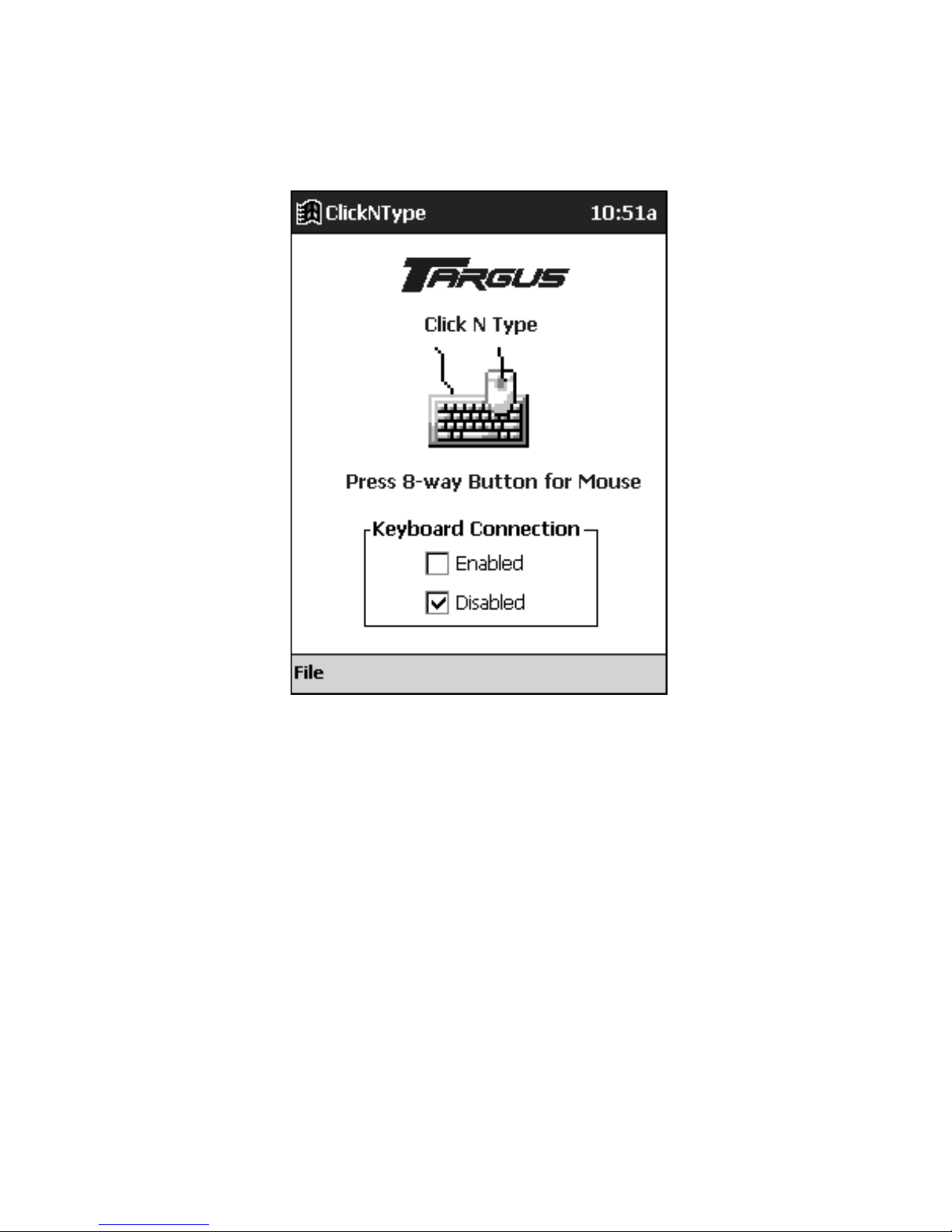

Sample main application screen

2 Tap on the box next to Enabled so that a check mark appears.

You are now ready to customize and use the Click N Type.

Customizing the Click N Type Options

Once you enable the Click N Type, you can view and customize

its options through the File menu on the main application screen.

To customize the Click N Type option:

1TapStart, Click N Type, then File.

The File menu appears.

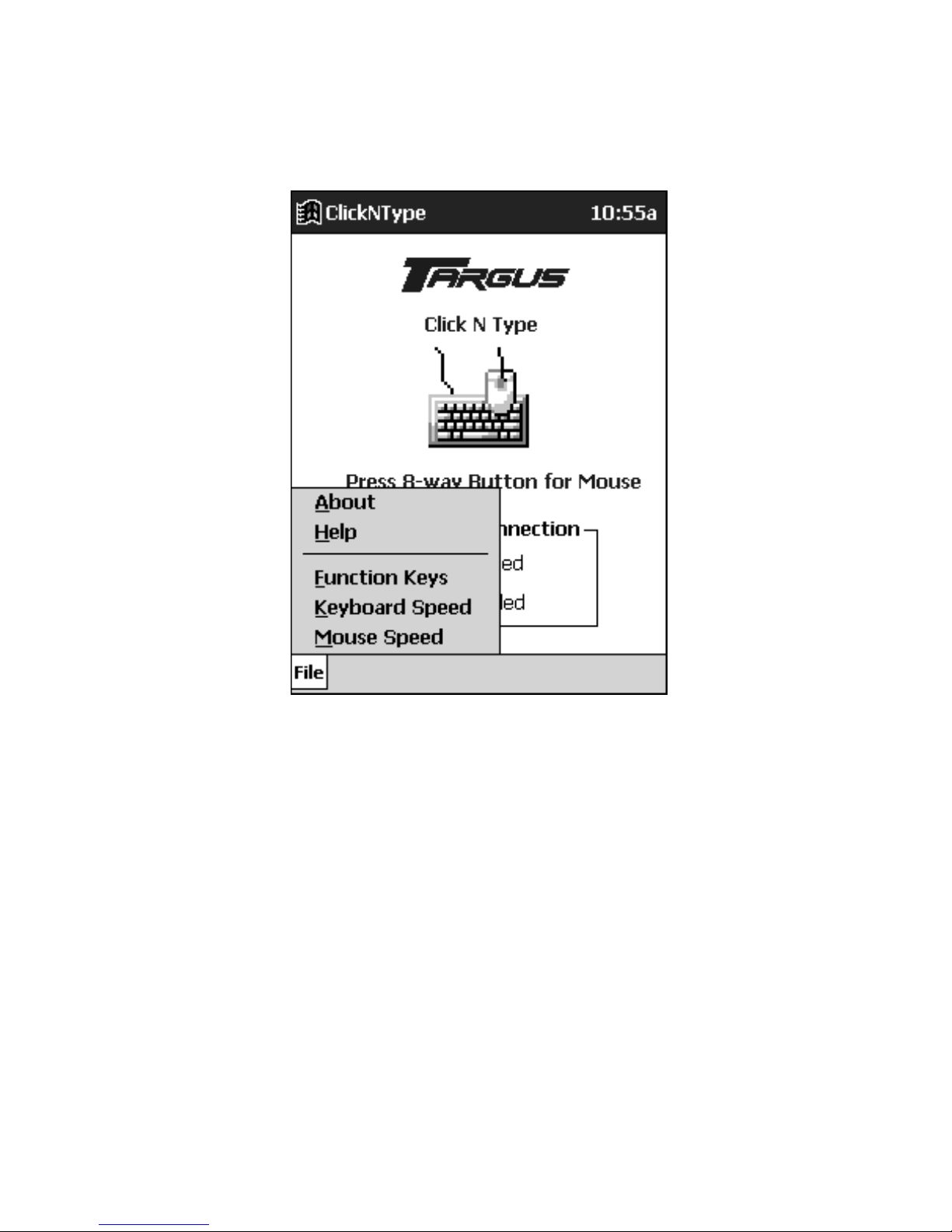

Sample File menu

2 Select the option you want to view or customize.

The available options are:

• About Shows the software version and copyright

• Help Lists the online Help topics

• Function Keys Defines the programmable function keys

• Keyboard Speed Specifies the keyboard repeat rate settings

• Mouse Speed Specifies the mouse speed settings

About

The About screen in the Click N Type application allows you to

view the software version and copyright information.

Help

The Help screen in the Click N Type application displays the

online help topics.

Find the topic you want to learn more about and select the link to

view more information.

Function Keys

The Function Keys screen in the Click N Type application

provides twelve user-definable function keys, consisting of keys

F1 to F4 with and without a modifier.

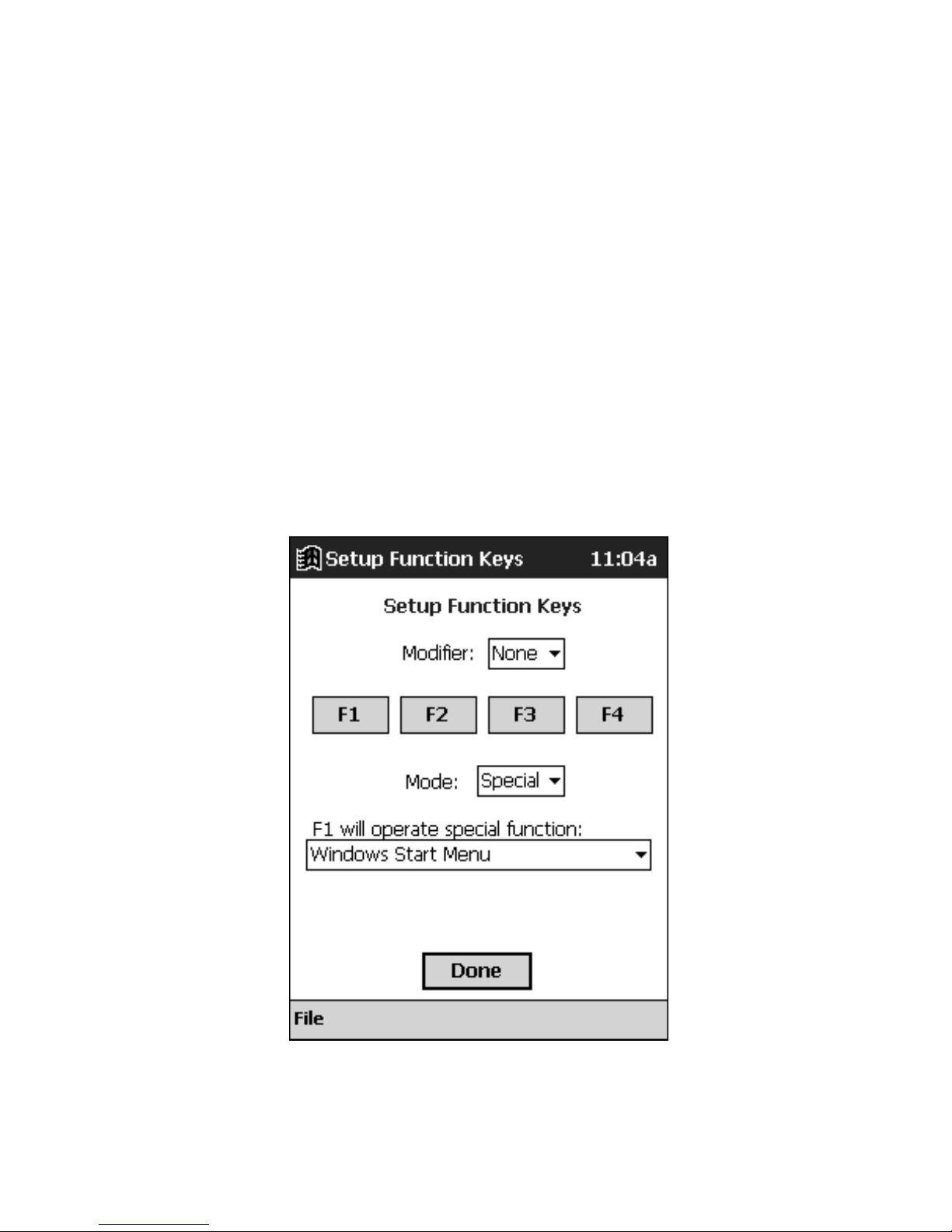

Sample Function Keys screen
