L N LN L N L N L N L N L N L N L N L N L N L N L N L N
Power Pump R1 R2 R3 R4 R5 R6 R7 R8 G1 G2 W1 W2 W3 W4 W5 W6 W7 W8 Cooling
COM NOCOM NO °
C°
C°
C°
C°
C°
C°
C°
CCOM NO
AC
Cooling changeover port

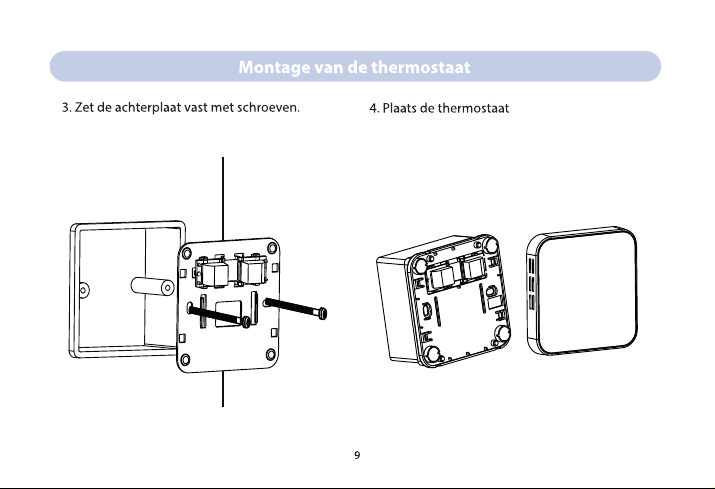

W1-W8:connect to thermostat
lowvoltage, regardless of null
lineandfire line.W1 must
connect with master thermostat
Water pump(Current<5A)
Power supply(100-240VAC 10A)
L:Fire Line N:Null line : Earth line
R1-R8:Connected electric heating actuator
(the total current<5A)
G1、G2:Passive linkage
(can be linked to boiler, heat pump host, mixed water device)
(Current<5A)
Wiring diagram
Wiring control centre H64-CC
Precautions
①W1-W8: Connected to the thermostat, low voltage, regardless of null line and fire line,
W1 must be connected to the master thermostat, W1 corresponds to an area.
② R1-R8: Connected electric heating actuator, R1 corresponds to W1, R2 corresponds to W2, and so on,
R1-R4 can be connected to two electric heating actuators respectively, the total current does not exceed 5A.
15
