TCL UC11 Bedienungsanleitung
EN - 1
Quick Start Guide
CJB1SS009AAA V1.0 | MW45V
EN - 2
Safety and use
We recommend that you read this chapter carefully before using
this device. The manufacturer disclaims any liability for damage,
which may result as a consequence of improper use of this
device or of use contrary to the instrucons contained herein.
Do not switch on your device when its use is
prohibited or when using the device may cause
interference or danger.
Follow rules or regulaons in hospitals and health
care facilies. Switch o your device near medical
apparatus.
Switch o your device in an aircra. The device
may cause interference to aircra control signals.
Switch o your device near high-precision
electronic devices. The device may aect the
performance of these devices.
Do not aempt to disassemble your device or its
accessories. Only qualied personnel are allowed
to service or repair the device.
Do not place your device or its accessories in
containers with a strong electromagnec eld.
Do not place magnec storage media near your
device. Radiaon from the device may erase the
informaon stored on them.
EN - 3
Do not subject your device to high temperatures
or use it in a place with ammable gas such as a
petrol staon.
Keep your device and its accessories away from
children. Do not allow children to use your device
without guidance.
Only use approved baeries and chargers to avoid
the risk of explosion.
Observe the laws or regulaons on device use.
Respect others’ privacy and legal rights when using
your device.
It is recommended that the equipment only be used in an
environment where the temperature is between 0°C and 45°C
and humidity is between 10% to 90%.
CHARGERS (Oponal)
Remove the baery rst if you intend to connect the device to
a power outlet for a period of more than 7 days. Otherwise,
it may damage the baery. Your LinkZone can sll funcon
without a baery provided it is connected via a USB cable to
a power supply.
Main power chargers will operate within the temperature range
of: 0°C to 40°C.
The chargers designed for your device meet with the standard
for safety of informaon technology equipment and oce
equipment use.
They are also compliant to the ecodesign direcve 2009/125/
EN - 4
EC. Due to dierent applicable electrical specicaons, a
charger you purchased in one jurisdicon may not work in
another jurisdicon. They should be used for this purpose only.
Manufacturer’s name and Address: TCL Communicaon Ltd.,
5/F Building 22E, 22 Science Park East Avenue, Hong Kong
Science Park, Shan, NT, Hong Kong
Model: UC11
Input Voltage: 100~240V
Input AC Frequency: 50/60Hz
Output Voltage: 5.0V
Output Current: 1.0A
Output Power: 5.0W
Average acve eciency: 73.8%
No-load power consumpon: 0.08W
Following air regulaon, the baery of your product is not
charged. Please charge it rst.
1. Overview
LinkZone is a portable wireless router, providing a simple way to
share 4G with any Wi-Fi embedded device.
1.1 Package contents
LinkZone USB cable Quick start guide
EN - 5

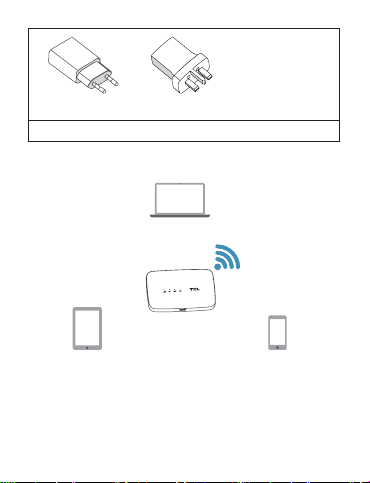

or
Charger*
* Charger type varies depending on import country.
1.2 Applicaon
PC
LinkZone
Tablets and iPad Smart phone
EN - 6
1.3 Device overview
Number Descripon
Power key
WPS key
LED light
Charging/Micro USB Jack
Use the device’s 2 buons as follows:
Buon Descripon
Power
Press and hold for 3 seconds to turn the
device on/o.
Short press to put the LED in either acve
or sleep mode.
Press and hold for 10 seconds to reboot the
device.
EN - 7
Buon Descripon
WPS
Press and hold the WPS buon for 3
seconds unl the Wi-Fi LED blinks.
Short press to put the device into either
acve or sleep mode.
Reset
Press both “Power” and “WPS” keys at the
same me for 3 seconds to reset your device
to factory mode.
1.4 LED display
The LED display is interpreted as follows:
Network Indicator (red or blue LED)
Wi-Fi indicator (blue LED)
SMS indicator (blue LED)
Baery indicator (red or blue LED)
EN - 8
LED descripon:
Icon Icon display
Network
indicator
LED is blue when connected to the Internet
or ashes when the Internet is disconnected.
LED is red when there’s no network, service,
or SIM card.
Wi-Fi
indicator LED is blue when Wi-Fi is acve.
SMS
indicator
LED is blue when you have a new message or
ashes when your inbox is full.
Baery
indicator
LED is red when the baery is low.
A blue, slowly ashing LED indicates that the
device is working.
A blue, quickly ashing LED indicates that the
device is charging.
A blue, non-ashing LED indicates that the
device is fully charged.
EN - 9
Power saving mode:
• If no key is pressed on the device for 30 seconds, then all
the LED lights will automacally turn o except the baery
LED light. An LED light will come on when the USB cable is
used to charge the device or any key is pressed on the device.
• If there is no Wi-Fi access used on the device for 10 mins,
Internet network dialling will disconnect automacally and
will connect automacally once any key is pressed on the
device or Wi-Fi is accessed from the device.
• If there is no Wi-Fi access to the device for 30 minutes, then
all LED lights will be automacally turned o along with the
Wi-Fi AP funcon. Press any key to restore the Wi-Fi AP
funcon.
1.5 Installing the device
Step 1: Open the back cover.
Note: We suggest that you put the ps of both thumbs into the
hole slot at the same me and pull the cover outwards to open it.
EN - 10
Step 2: Install SIM card in the cards slot.
WARNING! Do not insert the micro SIM card to the slot before
opening the slot cover. Follow the mark on the slot to open and
lock.
Step 3: Install baery.
