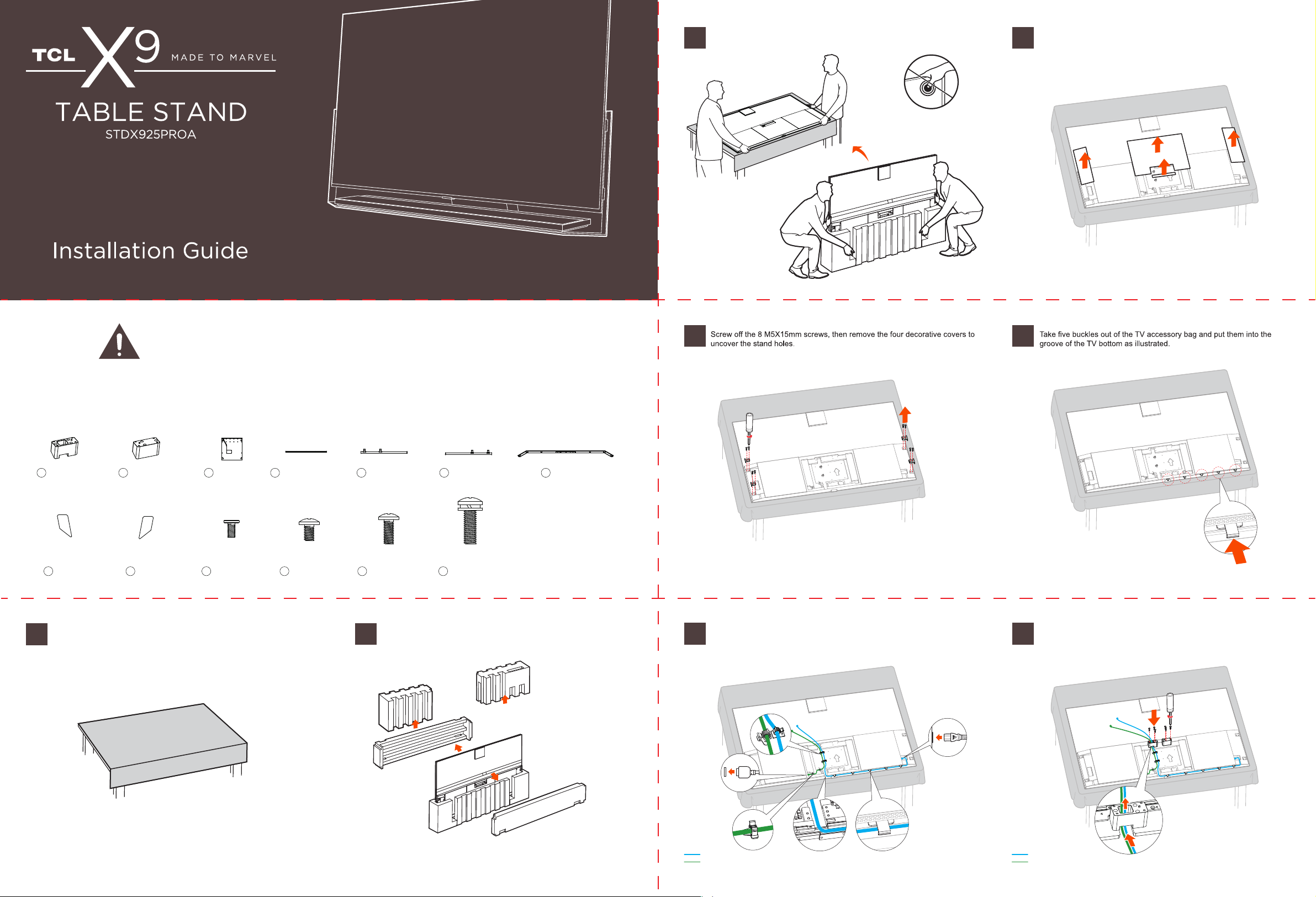

TCL X9 Bedienungsanleitung
Remove the four magnetic glass covers as illustrated.
Don’t press on the screen!
Notes: If the table stand has been assembled, disregard instructions below.
•
• Follow the instructions accordingly based on the table stand supplied to you.
• Graphics contained within this publication are for representation only.
• Keep the screws and plastic parts away from grease and organic solvents to avoid damage, especially during the assembly process.
• During installation, lay soft materials below the screen to avoid scratches and damage to the screen.
• When the TV is faced down, keep sharp edges away from the screen.
What’s in the Box:
Take two buckles out of the TV accessory bag and put them beside buckle A.
Connect the Sound Bar connection cable and TV power cable to the TV and
arrange them well as illustrated.
Put the two connectors at the bottom and get the Sound Bar connection
cable and the TV power cable out through the left connector as illustrated.
Then fix the two connectors with 6 M5X15mm screws.
12
3 4
5 6
7 8
Right Stand Footpad
9
Left Stand Footpad
8
Left Connector
1
Right Connector
2
Stand Plate
3Linking Plate
4Left Stand Bracket
5
Right Stand Bracket
6
Bottom Stand Bracket
7
Open the package, and remove the protection polyfoams as illustrated.
Keep the honeycomb panel attached while taking out the TV from the box.
(X1)
(X1)
(X1)
(X1)
M4
X
6mm screw11
(X4)
M3
X
6mm screw
10
(X10)
M4
X
10mm screw
12
(X6)
M5
X
15mm screw
13
(X18)
(X1) (X1) (X1) (X1) (X1)
Sound Bar connection cable
TV power cable
Sound Bar connection cable
TV power cable
AB
Prepare a clean, padded surface like a table covered by a soft cloth. The size
should be at least 6.5 ft x 4 ft (2 m x 1.2 m). This will prevent scratches and
damages to the TV screen.
Peel the tape and film off the Sound Bar as illustrated, then match the Sound Bar with
the stand plate and fix it with 4 M4X6mm screws.
Put back the magnetic glass cover of the Subwoofer, and stick
the footpads on the two ends of the bottom stand bracket.
Plug in the Subwoofer power cable, and let the TV power cable and
the Sound Bar connection cable go through the groove as illustrated.
Fix the linking plate on the two ends of the one side of the stand plate
with 5 M3X6mm screws as illustrated in Figure 1. Then secure the
stand plate to the Subwoofer with 12 M5X15mm screws as illustrated
in Figure 2.
Remove the magnetic glass cover of the Subwoofer, align the Subwoofer
with the screw holes in the connectors and secure the Subwoofer to the
connectors with 8 M5X15mm screws as illustrated.
Lift the TV set upright. All installation is now completed.
Installation of the table stand is done.
9 10
11 12
13 14
15 16
17
18
Put the left and right stand brackets on the back of the TV and secure
them to the TV with 8 M5X15mm screws.
Secure the two ends of the bottom stand bracket to the left and right stand brackets
with 6 M4X10mm screws. Secure the middle part of the bottom stand bracket to
the stand plate with 5 M3X6mm screws. Refer to the illustration below.
11
2
2
M4X10mm M4X10mmM3X6mm
Put back the four magnetic glass covers as illustrated.
Sound Bar connection cable
TV power cable
Sound Bar connection cable
TV power cable
Note: Before securing the Subwoofer,
get the two cables out through
the Subwoofer.
Sound Bar connection cable
TV power cable
Subwoofer power cable
Sound Bar connection cable
TV power cable
Subwoofer power cable
