TCL ALTO 6+ Bedienungsanleitung

ALTO 6+

2.1 Channel Sound Bar with Dolby Audio & Wireless Subwoofer

Quick Start Guide

Safety

instructions

QSG

AC power cord x 2

HDMI cable

Optical cable Remote control AAA battery x 2

Wall mount bracket x 2 Wall anchor x 2 Wall mounting screw x 2

Wall mount template

Quick Start Guide

Safety leaflet

Warranty

card

Warranty card

Make sure you read all the safety information

before you use this product.

Sound Bar main unit Subwoofer

1

What's in the box

Press to select the Bluetoothsource.

Press and hold to enter pairing mode.

Press to switch the audio source

among HDMI/OPT/

AUX/USB/BT modes.

Press to increase

or decrease the

volume level.

Sound Bar main unit

Volume buttons:Source button:

Power button: Bluetooth button:

Short press to power

on/off. Long press to reset

to factory default

2a

Overview

AC IN

AC IN

AC IN

AC input power connector

2b

Overview

> 2"

TV

TV

3

2

5

6

< 9.8'

TV

20.2"

The ideal place to position the Sound Bar is

centered underneath your TV.

For the Subwoofer working correctly, it should

be less than 9.8 feet from the Sound Bar.

Required tools:

• Place the supplied wall mount template on the

wall. Make sure the wall mount template is at

least 2 inches below the center of the TV.

• Use a level to make

sure the wall mount

template is positioned accurately.

• Use the tape to stick the wall mount template

firmly on the wall.

• Mark on the wall using each marking on the

template through the mounting holes.

• Take away the wall mount template.

• Drill a screw holeat each marking on the wall.

4

1

3a

Place your Sound Bar and

Subwoofer

3b

Wall mount your Sound Bar

7 8 9

Required tools:

• Insert the wall anchors in the holes on the

wall.

• Insert the supplied screws into the hole of the

wall anchors.

• Fix and tighten the wall bracket screws on the

wall, but leave a little space for hanging the

brackets.

3b

Wall mount your Sound Bar

Required tools:

• Unscrew the rubber cushions from the

bottom of the sound bar and set them aside

for potential use in the future.

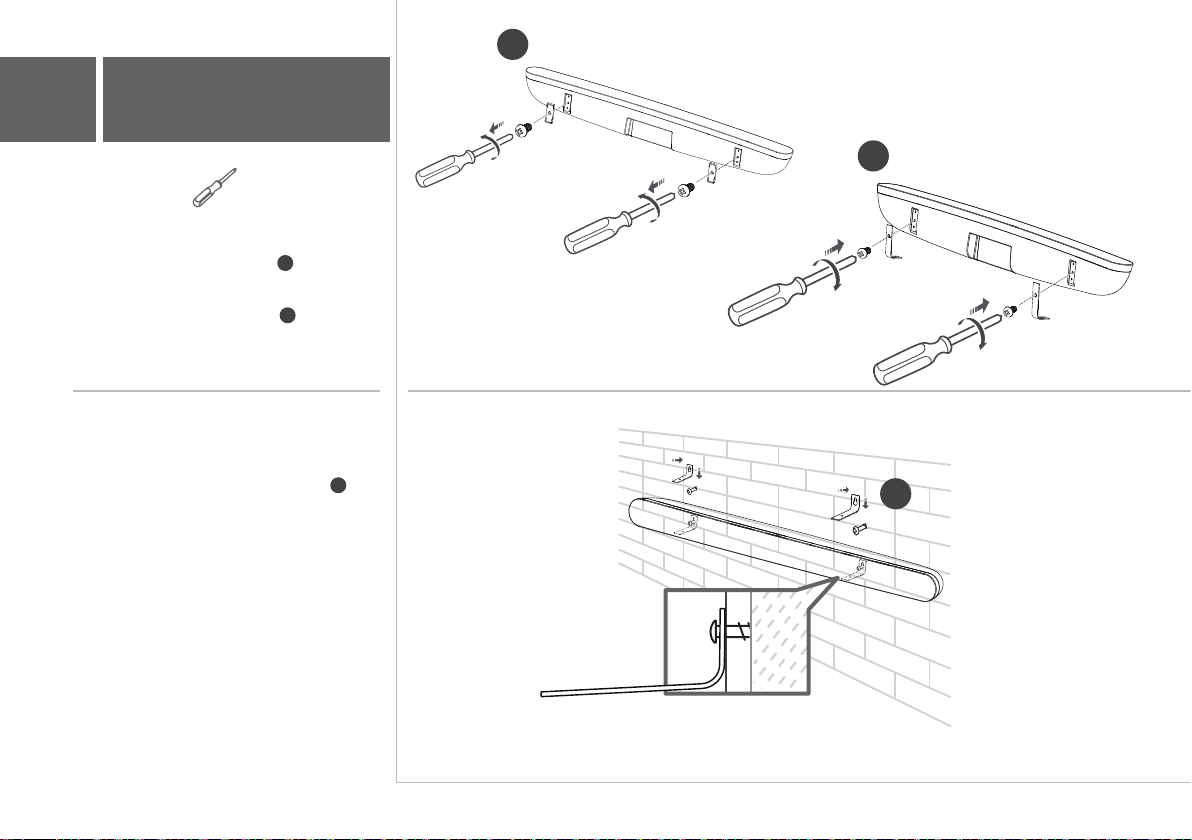

• Attach the included wall bracket mounts to

the sound bar in the same holes the rubber

cushions were removed from.

• With the brackets now attached to the sound

bar, pick up the sound bar and attach it to the

wall screws, similar to how you would hang a

picture. Make sure everything is tight.

10

12

11

12

10

11

3b

Wall mount your Sound Bar

AC IN

Connect the Sound Bar with your TV through the

supplied HDMI cable.

Connect the Sound Bar and the subwoofer to

the power supply with the supplied power cords.

There are 3 ways to connect your sound bar to the TV

(listed in order that we recommend): HDMI ARC (refer

to 4a), Optical (refer to 4b), and AUX (refer to 4c)

HDMI CEC

Set

On

4

Connect to your TV

4a

HDMI-ARC

AC IN

For USA only: If you have a Roku TVTM, simply plug

in the HDMI cable and follow the Roku TV ReadyTM

on-screen instructions.

AC IN

AC IN

Connect the Sound Bar with your TV through the

supplied Optical cable.

Connect the Sound Bar and the subwoofer to

the power supply with the supplied power cords.

4b

Optical
