TCL ALTO S522W Bedienungsanleitung

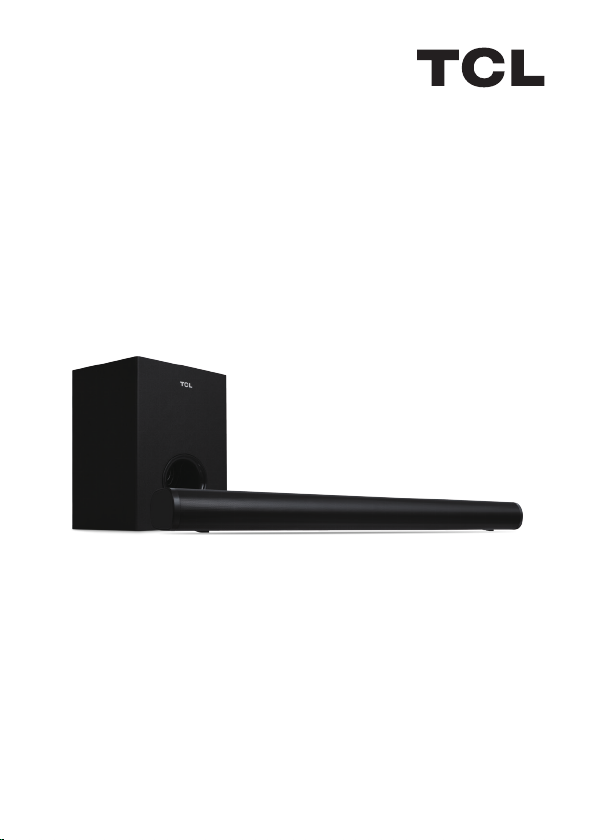

2.1 Channel Sound Bar with Wireless Subwoofer

User Manual

S522W

Contents

1 Important Safety Information ..................................................... 1

Warnings................................................................................... 2

Battery precautions ................................................................... 3

Disposal of your old product and battery ................................... 4

2 Before you begin ......................................................................... 5

3 Welcome ........................................................................... 6

What's in the box ...................................................................... 6

Overview of the Sound Bar........................................................ 7

Overview of the Remote Control................................................ 8

Install/replace the remote control batteries ................................ 9

4 Set up your Sound Bar system 11

Position Your Sound Bar and Subwoofer ................................ 11

Mount your Sound Bar on the wall .......................................... 12

5 Connect your Sound Bar system 15

Connect with the AC power adaptors...................................... 15

Connect with the optical cable ................................................ 17

Direction for setting up your Sound Bar using an optical cable 18

Connect with USB disk ........................................................... 18

6 Use your Sound Bar system 19

Operation instruction ............................................................... 19

Volume and Sound effect regulation ........................................ 21

7 Specification 22

8 Trademarks 24

9 FCC STATEMENT 25

Radiation Exposure Statement ................................................ 25

10 FAQ 26

1 Important Safety

Information

Make sure you read all the safety information before you use

this product.

TCL North America bears no responsibility for accidents or

damages caused by unauthorized changes, modiﬁcations or

improper use of the product.

User Manual can be found at www.tcl.com/us on the

specific product page in the “Download” section.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product’s enclosure that may be of sufﬁcient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the product.

This symbol indicates that this product incorporates

double insulation between hazardous main voltage and

user accessible parts. When servicing, use only identical

replacement parts.

Warnings

• To reduce the risk of fire or electric shock, do not expose this product

to rain or moisture. This product should not be exposed to dripping

or splashing. No objects filled with liquids, such as vases, should be

placed on or near the product.

• The product is unstable if it is not properly placed or mounted to the

wall. Be sure to follow the wall mounting instructions provided in the

user manual to ensure your safety.

• Do not expose batteries to excessive heat such as sunshine, fire, and

so forth.

• To avoid the danger of suffocation, keep plastic packaging away from

pets, babies, and children. Do not use packaging bags in cribs, beds,

carriages, or playpens.

Safety

• Read these instructions - Read all the safety and operating

instructions before operating the product.

• Retain these instructions - Retain the safety and operating

instructions for future reference.

• Heed all warnings - Adhere to all warnings on the product and in

the operating instructions.

• Follow all instructions - Follow all operating and use instructions.

• Do not use this apparatus near water – The appliance should not

be used near water or moisture – for example, in a wet basement or

near a swimming pool and the like.

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with

the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce

heat.

• Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where it

exits from the product.

• Use only attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury

from tip-over.

• Unplug this apparatus during lightning storms or when unused for

long periods of time.

• Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as

power-supply cord or plug damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

Warnings

• To prevent electric shock, match wide blade of plug to wide slot, fully

insert.

• Do not place any sources of danger on the product (for example:

liquid filled objects, lighted candles).

• Disconnect the power cord to shut off when find trouble or not in use.

The power cord shall be readily operable.

• Use of controls or adjustments or performance of procedures other

than those described herein, may result in hazardous radiation exposure

or other unsafe operation.

• The power cord/appliance coupler is used as the disconnect device,

the disconnect device must remain readily operable.

• The rating label is located at the bottom or back of the product.

• The use of apparatus in tropical and moderate climates.

Battery precautions

• Do not mix batteries (old and new or carbon and alkaline).

• Do not dispose of batteries in fire or water.

• Recycle or dispose of batteries as per state and local guidelines.

• Danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type.

• When the remote control is not to be used for a long time (more than

a month), remove the battery from the remote control to prevent it from

leaking.

• If the batteries leak, wipe away the leakage inside the battery

compartment and replace the batteries with new ones.

• Keep away the batteries from heat or moisture.

• Do not carry or store batteries with other metallic objects. Doing so

could cause batteries to short circuit, leak or explode.

• Never recharge a battery unless it is confirmed to be a rechargeable

type.

• This product contains a coin cell battery. If the coin cell battery is

swallowed, it can cause severe internal burns in just 2 hours and can

lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the

product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any

part of the body, seek immediate medical attention.

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials

and components, which can be recycled and reused.

This product may contain lead and mercury. Disposal of these materials

may be regulated due to environmental considerations. For disposal or

recycling information, please contact your local authorities.

This product contains batteries:

• Do not incinerate. Batteries may explode if overheated.

• For disposal or recycling information, please contact your local

authorities.

CAUTION: Risk of explosion if the battery is replaced by an incorrect

type.

CAUTION: Replacement of a battery with an incorrect type that can

defeat a safeguard.

CAUTION: Disposal of a battery into fire or a hot oven, or mechanically

crushing or cutting of a battery, that can result in an explosion.

CAUTION: Leaving a battery in an extremely high temperature

surrounding environment that can result in an explosion or the leakage

of flammable liquid or gas.

CAUTION: A battery subjected to extremely low air pressure that may

result in an explosion or the leakage of flammable liquid or gas.

2 Before you begin

• Carefully read and observe all safety instructions in the

safety leaflet.

• This sound bar is intended for indoor use only. In case it

accidentally gets in contact with small amounts of water,

unplug immediately and use a dry cloth to remove the

water.

• Unplug the sound bar if it is not used for long periods of

time or during lightning storms.

• Make sure the sound bar is installed on a solid surface

or solidly wall-mounted below your TV for the best

experience.

• Only use lithium CR2025 battery for the remote control.

• In case any of the cables are visibly damaged or pinched,

unplug the sound bar and replace the cable.

• Be careful not to sharply bend the HDMI and optical cable

as they may affect the performance.

• Protect your hearing by adjusting to a proper volume.

3 Welcome

Congratulations on the purchase of your new TCL Sound

Bar! After it is set up and connected, you can experience a

super sound quality and state-of-the-art design to best fit

your home entertainment system. You are recommended

to read through this user manual which helps you set up,

connect and operate the product easily and properly.

Let's get started.

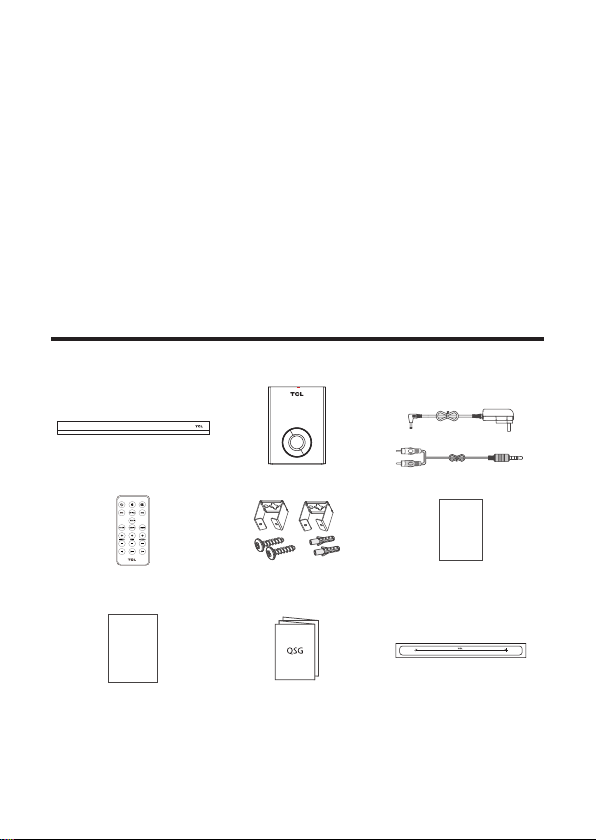

What's in the box

Sound Bar main unit Subwoofer AC adapter x 2

RCA-3.5mm cable

Warranty

Card

Remote control

Wall anchor x 2

Wall mount bracket x 2

Wall bracket screw x 2

Warranty Card

Safety

instructions

Safety Leaflet Quick Start Guide Wall Mount Template

Warning: To avoid the danger of suffocation, keep plastic packaging

away from pets, babies, and children. Do not use packaging bags in

cribs, beds, carriages, or playpens.

Overview of the Sound Bar

Button and jack definition:

Buttons and jacks are defined as follows:

ARC OPT USB AUX DC IN

1. : Press to power on, short press to switch function,

long press to power off

2. —: Press for volume down

3. +: Press for volume up

4. : Press for Bluetooth pairing

5. ARC: HDMI ARC

6. OPT: Optical input

7. USB: USB input

8. AUX: 3.5mm connector

9. DC IN: DC14V 2A input

Function indicator light:

1. Red light: in standby mode

2. White light: in operation

Overview of the Remote Control

1. : Press to power on and power off.

2. (MUTE): Press the mute button and turn on the sound

button (white light will flash slowly when mute).

3. : Press to switch to Bluetooth mode.

4. AUX: Press to switch to AUX mode.

5. OPTICAL: Press to switch to the Optical input mode.

6. USB: Press to switch to USB play when insert USB.

7. HDMI: Press to switch to HDMI mode.

8. MUSIC: Press to select the MUSIC sound mode.

9. MOVIE: Press to select the MOVIE sound mode.

10.DIALOG: Short press to select the DIALOG sound mode.

11.TREBLE +: Press to increase treble sound (the white

light flashes, when hit the maximum or minimum level

white light will be on).

Inhaltsverzeichnis

Andere TCL Lautsprechersystem Handbücher

Beliebte Lautsprechersystem Handbücher anderer Marken

JVC

JVC CA-MXK5R Bedienungsanleitung

LG NB4532B Bedienungsanleitung

JVC

JVC CA-FSH100 Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Electro-Voice

Electro-Voice S-122 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

JVC

JVC NX-PN7 Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung
