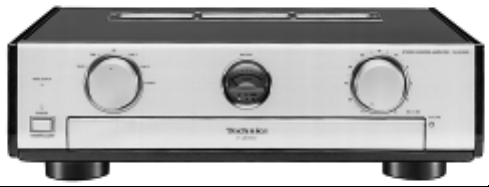

Technics Su-s3000 Bedienungsanleitung

WARNING: DO NOT CONNECT EITHER WIRE TO THE

EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER E, BY THE EARTH SYMBOL 2OR

COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

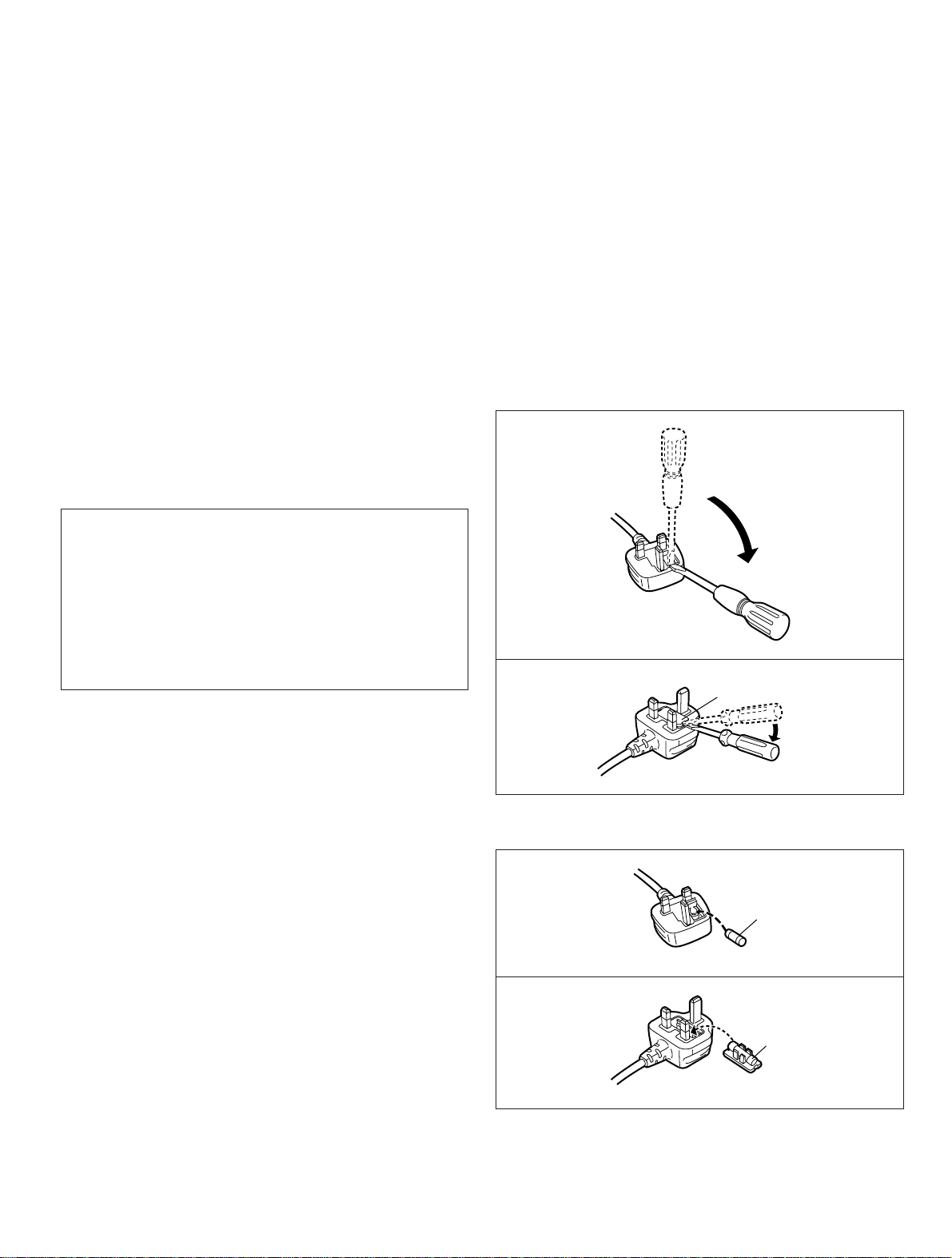

How to replace the fuse

The location of the fuse differ according to the type of AC

mains plug (figures A and B). Confirm the AC mains plug

fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin

mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that

the replacement fuse has a rating of 5-ampere and that it

is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 0or the BSI mark 1on the

body of the fuse.

If the plug contains a removable fuse cover you must

ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until

a replacement cover is obtained.

A replacement fuse cover can be purchased from your

local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE

FOR THE SOCKET OUTLET IN YOUR HOME THEN

THE FUSE SHOULD BE REMOVED AND THE PLUG

CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL

SHOCK IF THE CUT OFF PLUG IS INSERTED INTO

ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring

code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance

with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured

markings identifying the terminals in your plug, proceed

as follows:

The wire which is coloured Blue must be connected to

the terminal which is marked with the letter N or coloured

Black or Blue.

The wire which is coloured Brown must be connected to

the terminal which is marked with the letter L or coloured

Brown or Red.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Figure A

Figure B

Fuse cover

Fuse

(5 ampere)

Figure A

Figure B

Fuse

(5 ampere)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

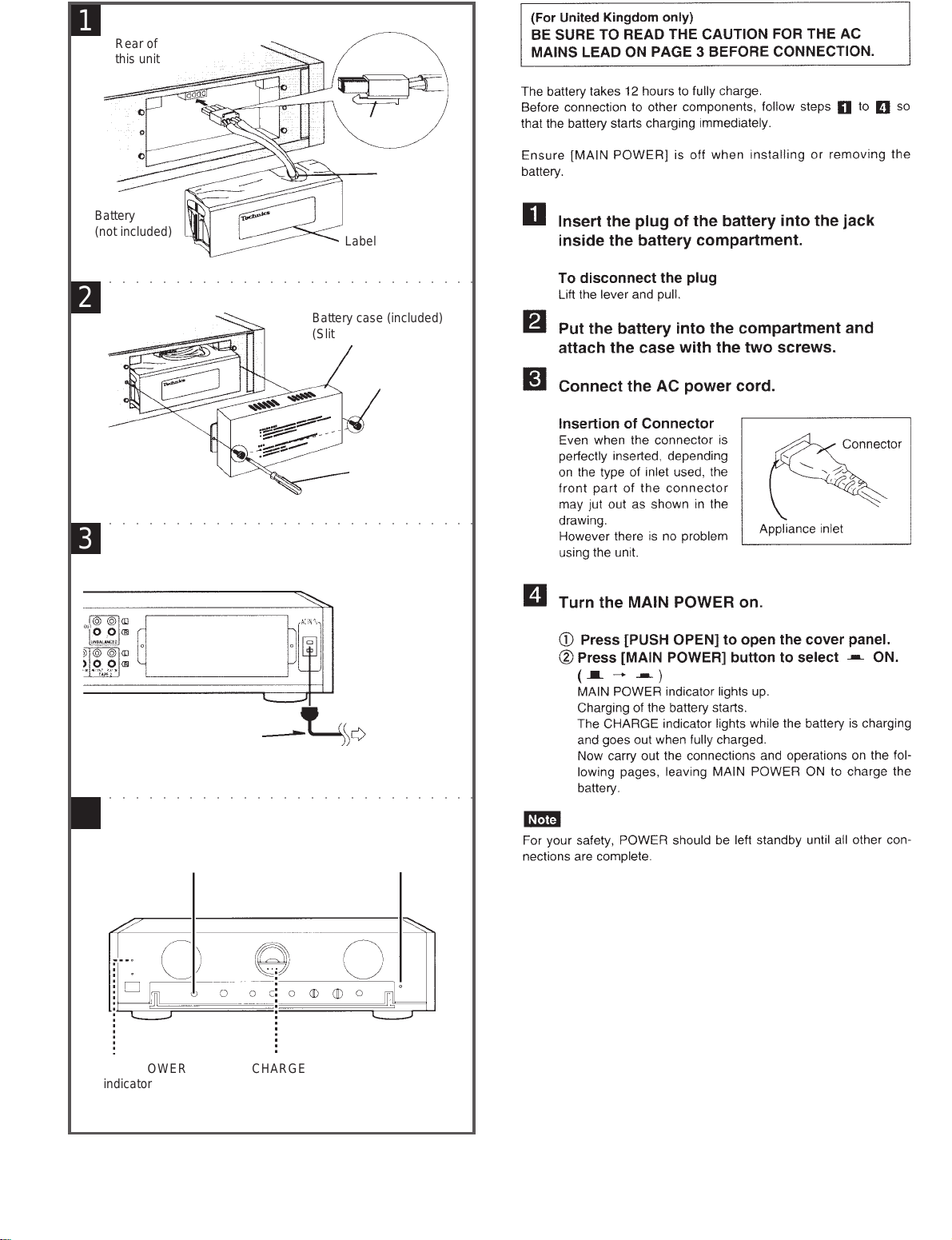

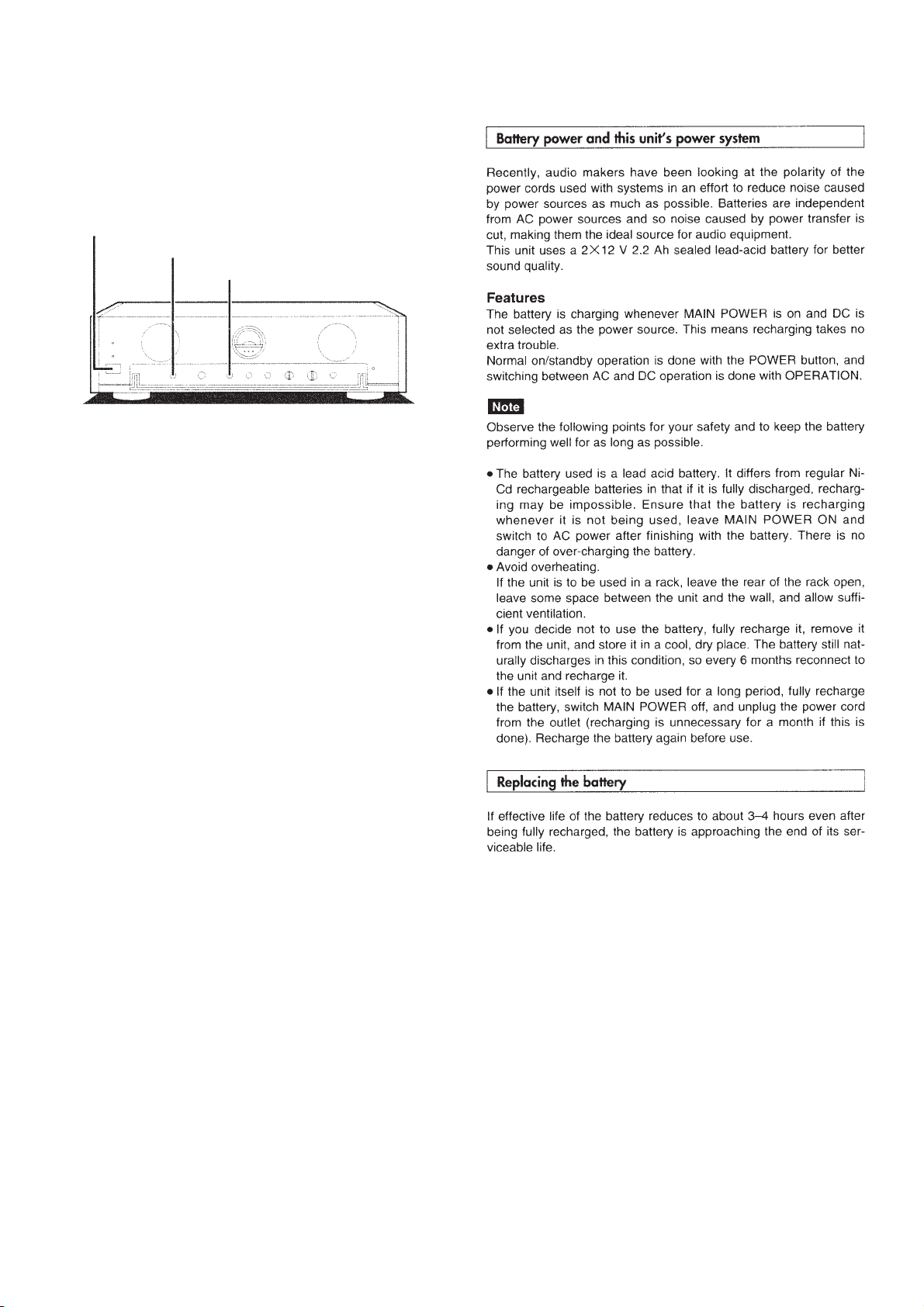

Battery case (included)

(Slits facing up)

Screw

(included)

Screwdriver

(included)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

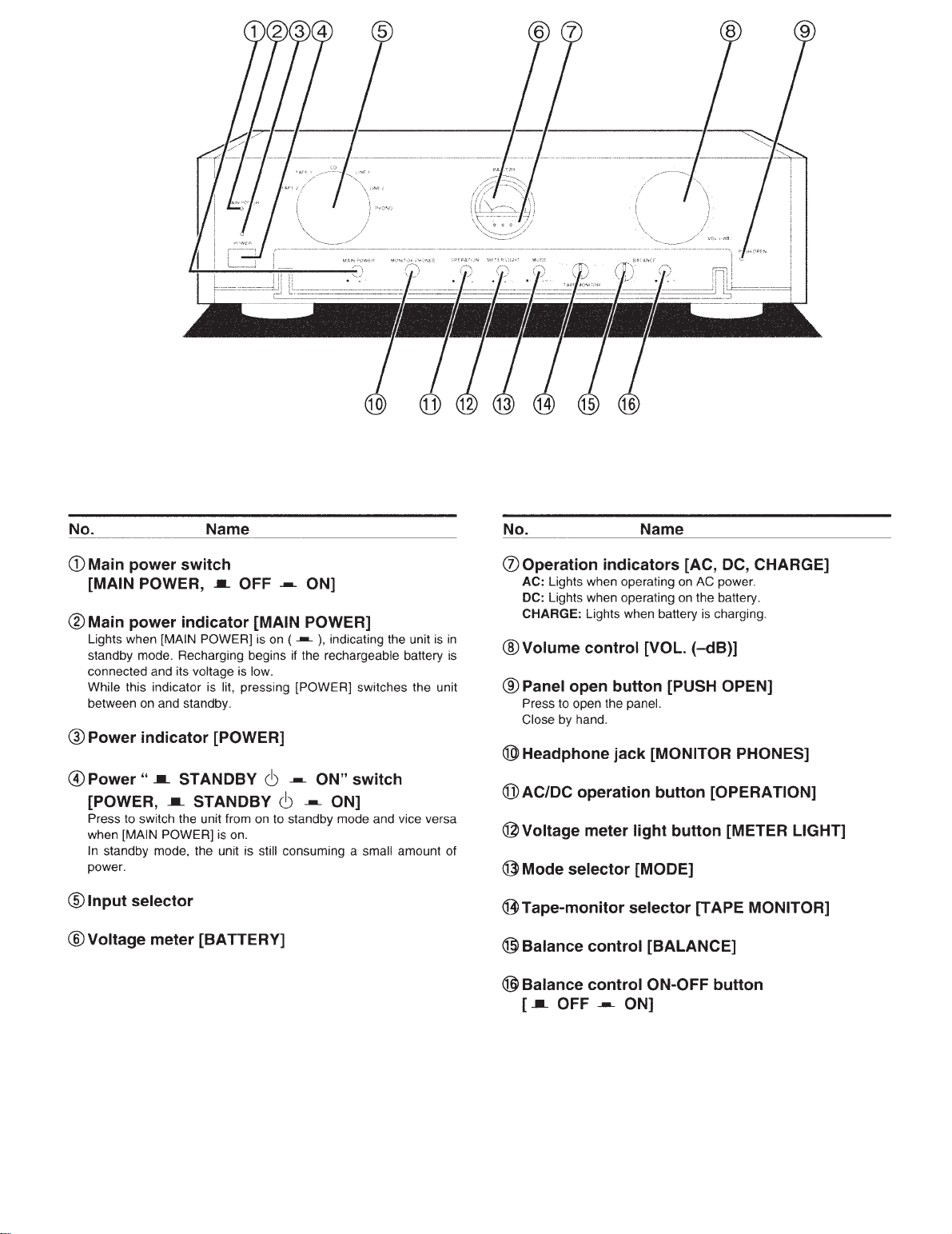

MAIN POWER

button PUSH OPEN

MAIN POWER

indicator CHARGE

Rear of

this unit

Battery

(not included) Label facing out

Lead upward

Lever

Plug

Rear of this unit

AC power supply cord

(included)

To household

AC outlet

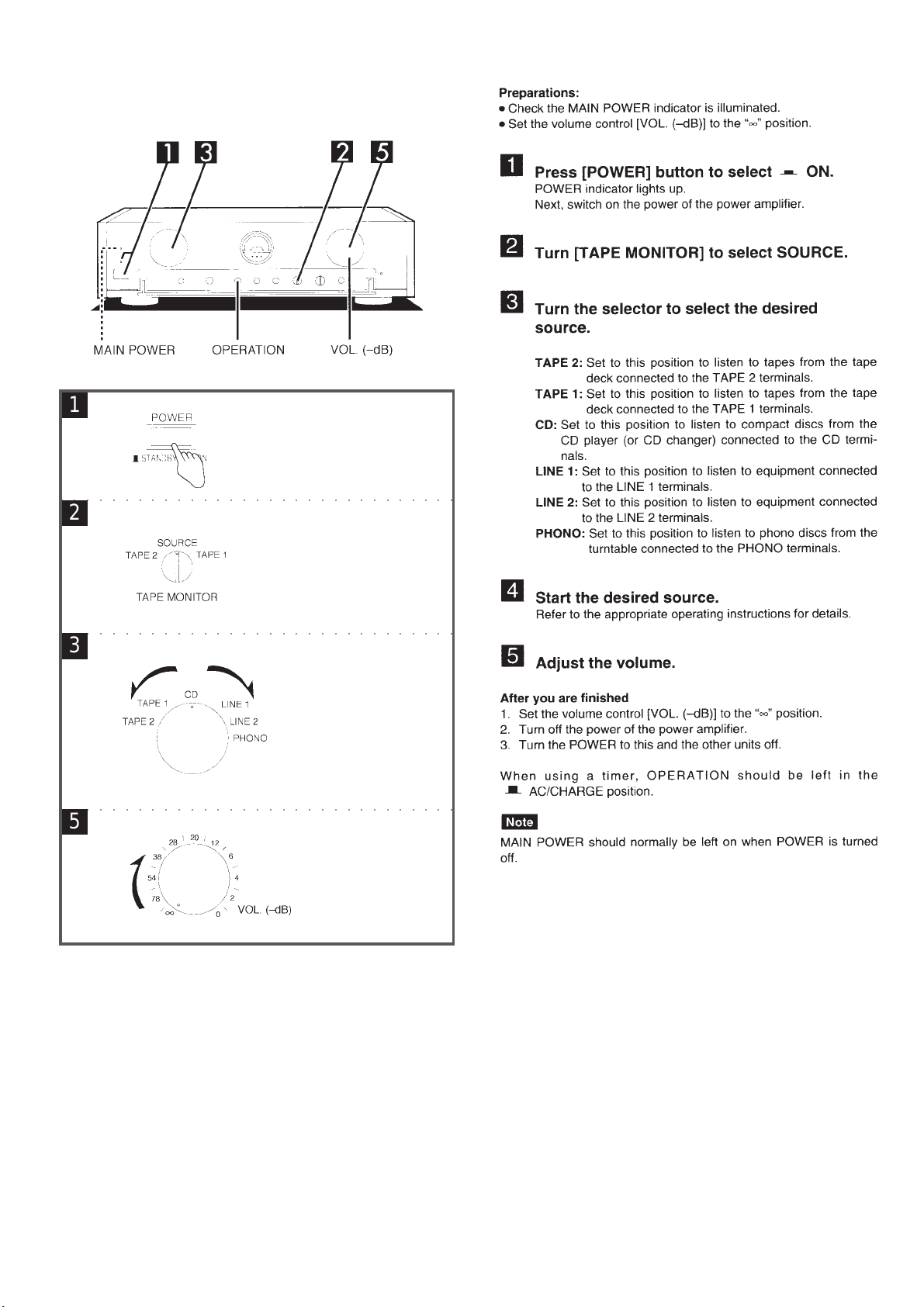

POWER button

MAIN POWER button

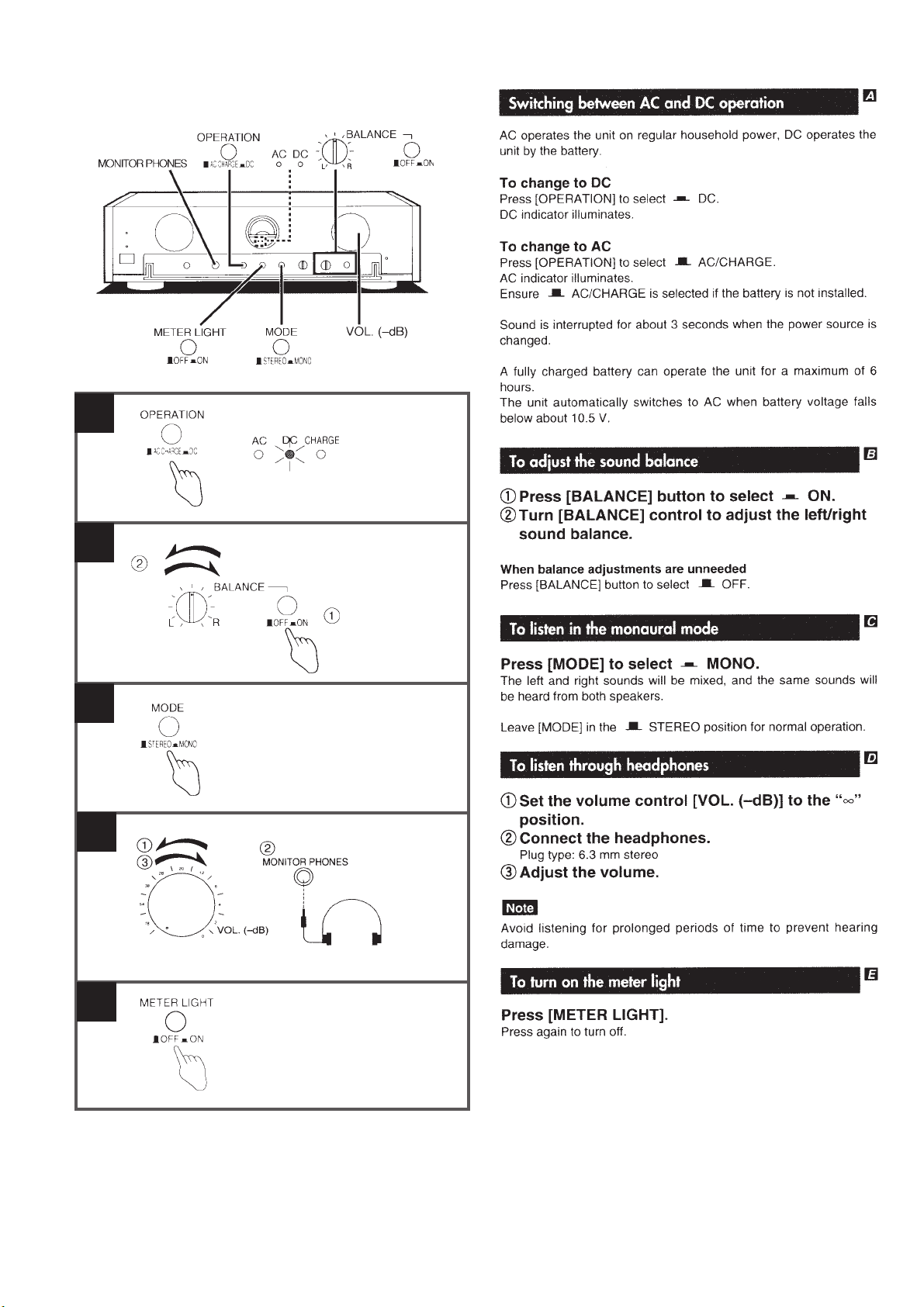

OPERATION

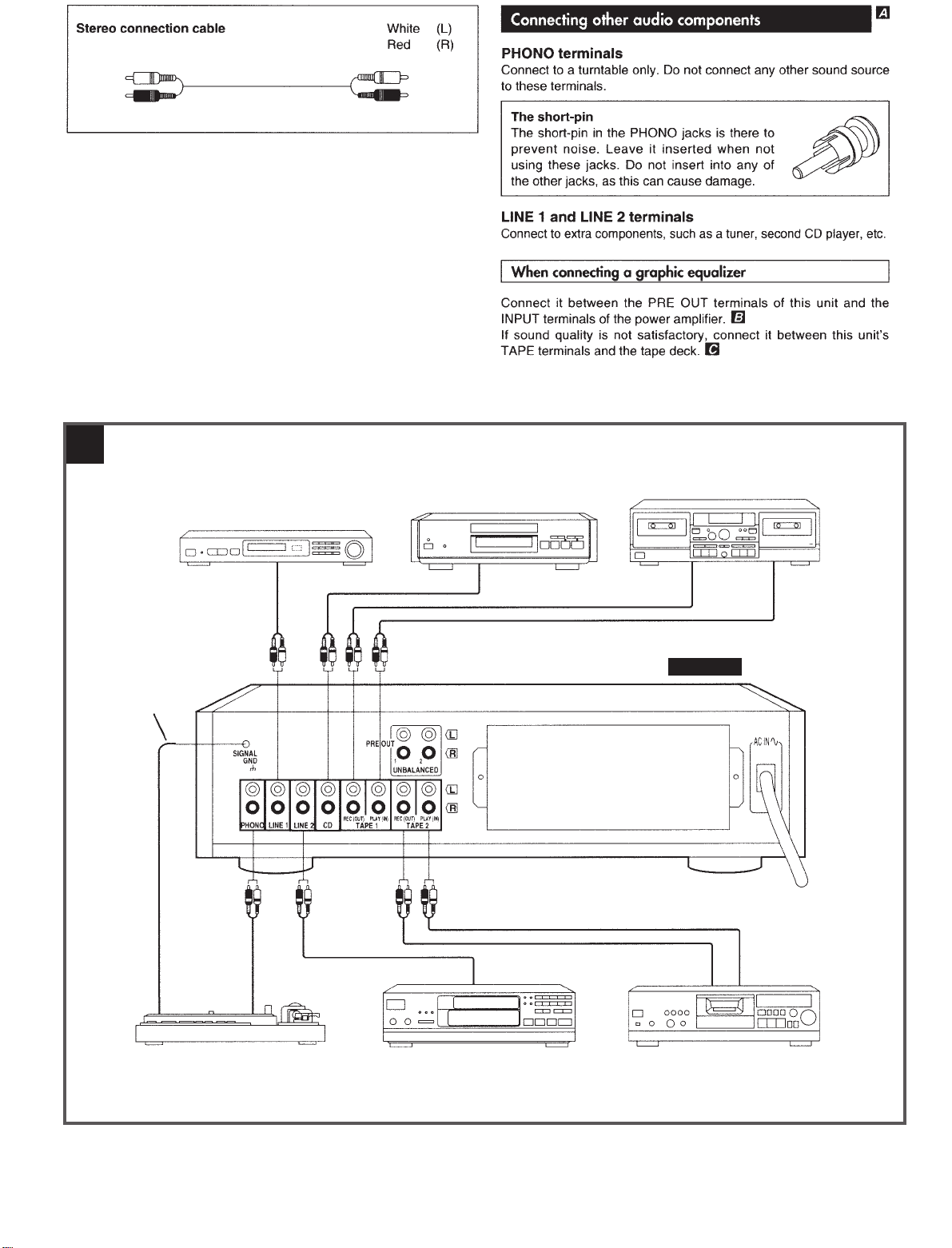

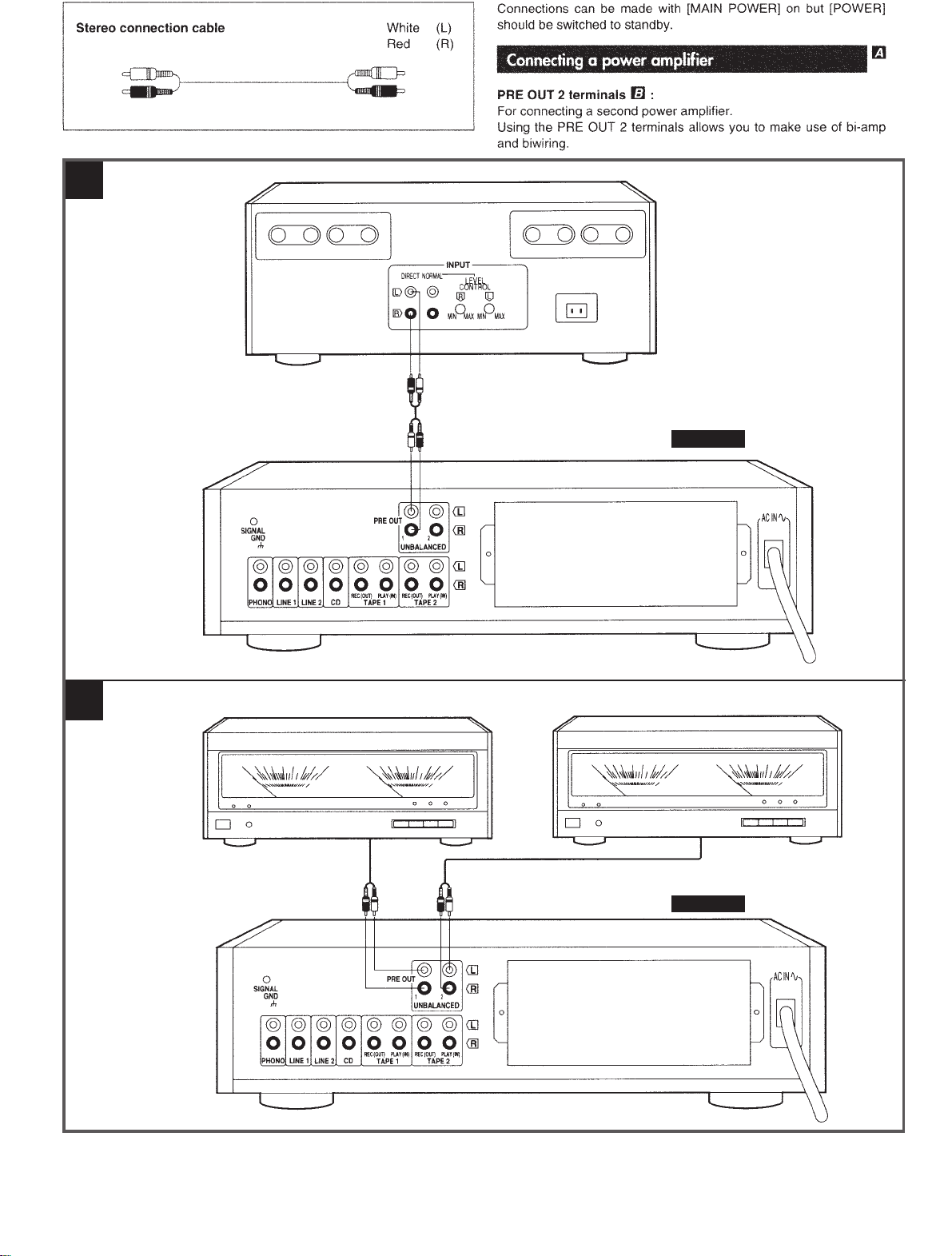

BPower amplifier (not included) Power amplifier (not included)

INPUT INPUT

(included) (not included) SU-C3000

Power amplifier

(not included)

SU-C3000

(included)

Tuner (not included)

CD player (or CD changer)

(not included) Tape deck (not included)

PLAY (OUT)REC (IN)OUTPUTOUTPUT

Ground wire

(not included)

SU-C3000

Turntable (not included) Second CD player, etc. (not included) Second tape deck (not included)

PLAY (OUT)REC (IN)OUTPUT

OUTPUT

GND

SU-C3000

(not included)

OUTPUTINPUT

(not included)

TAPE PLAY

(IN)

TAPE REC

(OUT)

PLAY

(OUT)

REC

(IN)

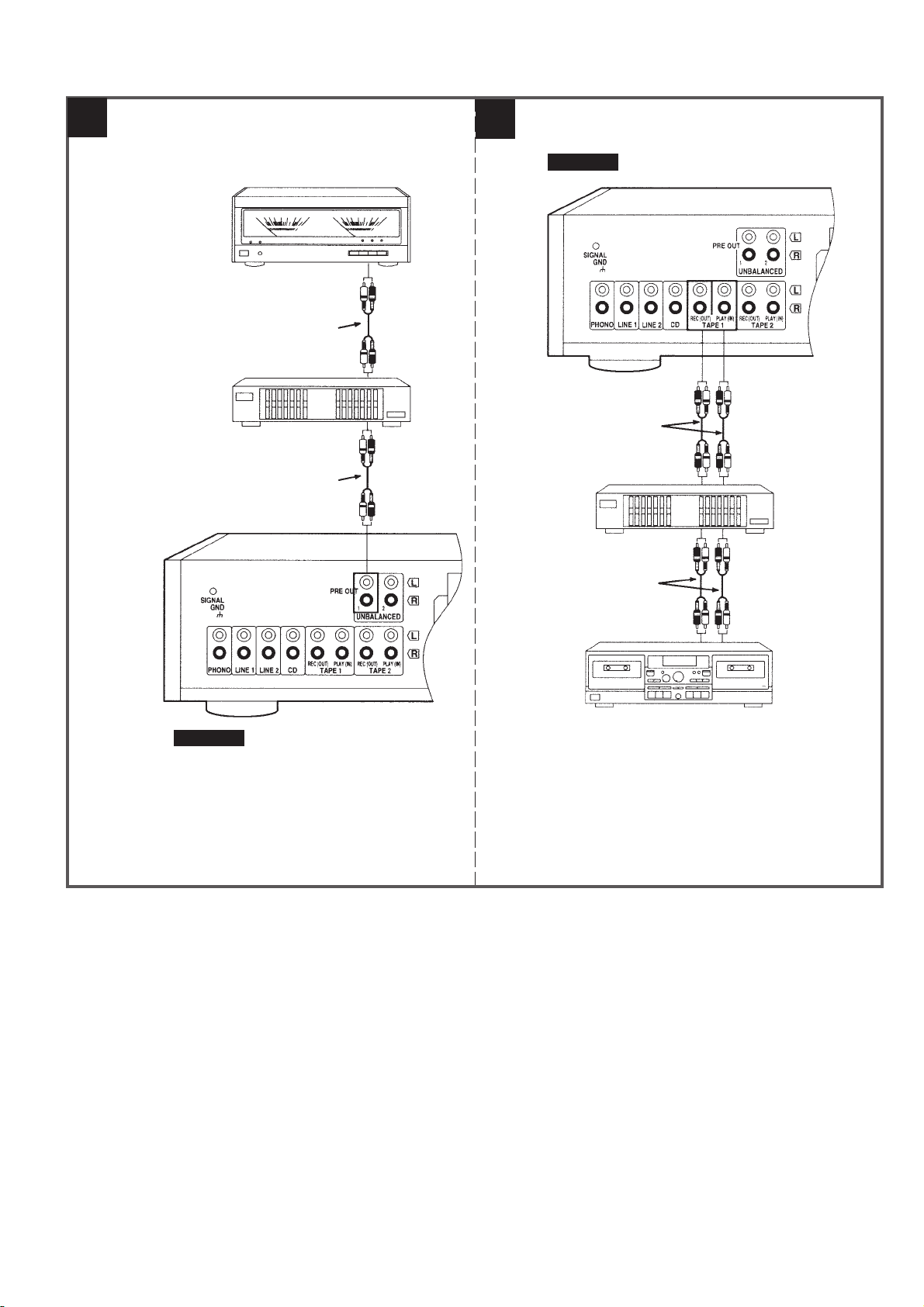

Graphic equalizer

(not included)

Tape deck

(not included)

Power amplifier

(not included)

OUTPUT

SU-C3000

Graphic equalizer

(not included)

(included)

INPUT

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
